OxoAir Engineers Gota, Ahmedabad, Gujarat

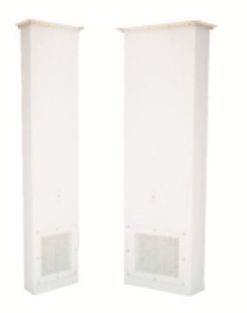

Construction:Riser is fabricated with high quality G.I. /Stainless Steel and CRCA Sheet up to 14 gauges. Riser Come with Aluminium and SS perforated sheet along with filters and dampers.   Application:  Riser enhances the Overall appearance of the clean Rooms.

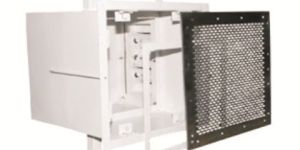

Construction:Terminal Box is fabricated with high quality G.I. /Stainless Steel and CRCA Sheet up to 14 gauges. Terminal Box Come with Poweder Coated / Buffing finish & Aluminium and SS perforated sheet along with filters and dampers. Application: Terminal Box enhances the Overall appearance of the clean Rooms

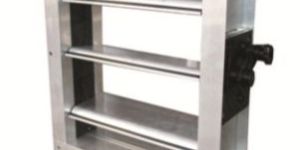

Custom builts as per required Opening Sizes. Volume Control dampers are specially designed for low leakages of air. Dampers are available in GI opposed blade type, aluminum  extruded blade type , face and bypass. Such as electrical actuator or fusible link. Dampers are provided with brass or nylon bush with gear operated. Body: G.I. /Aluminum /S.S Sheet Fabrricated   Blade: GI Opposed/ Aluminium extruded Aerofoil   Actuatator: 230 V.1 ph AC / 415V.3 Ph AC , Input Signal

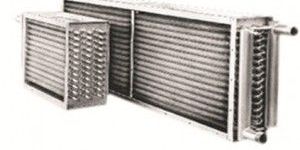

Applications:  Air Handling Units ( Cooling & Heating ) Commercial and Industrial Air – Conditioning Refrigeration Systems Material Of Construction: Tubes – Copper and S.S Type of Tube – plain and internally grooved Fins – Aluminium, Hydrofillic Blue Coated , Copper ( 6 to 13 fins per Inch) Circuits – Half , Full or Inter wined Tube Diameters-  3/8″ , 1/2″ , & 5/8″ Casings – Galvanized and S.S. Test Pressure at 21 Kg/Sq.cm ( 300 psiG ) Coil Selection: Using latest Selection software to get all details

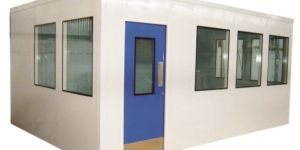

Oxoair Provide wall systems interface with Floors, Ceilings, and mechanical components to provide an ultra-clean environment with effective control of air flow, pressure, temperature, humidity and filtration. They can be Customized to fit your exact requirements and provide a cost effective alternate to conventional construction without compromising quality, durability or efficiency. Oxoair modular clean rooms also utilize a flexible design that allows for fast, easy installation in a system that can be expanded or relocated as needs change. Products are available in 50, 80 and 100 mm thickness with all suitable clean room accessories in both tongue & groove and modular system.   All kind of cutouts like SA, RA, Utility & Lighting. MOC: GI/CRCA Powder Coated, Aluminium Powder Coated, Stainless Steel Etc.

Air Washer , An air Adiabatic cooling equipment is Provided by Us in both single and Double Skin Construction with Compact , Low height With multi-Centrifugal fan Design. Double Skin units are available with  aluminium Profile. Compact and Custom Built unit unit with maintenance & Vibration free.   Capacity Range: 6000 cfm to 100000 cfm Applications: Shop Floor, Work Shop, Supermarket , Office, Shopping Mall, Showroom, Restaurant & School , Institute, Marriage/ Conference Hall and Other Allied Industry.

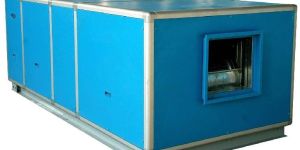

Oxoair Provide Air Handling units are consist of Rigid Framework design has inherent strength and stability. The Aluminium profiles are corrosion resistant with specially designed three way corners. The panels are pressure injected with CFC free Polyurethane foam up to 45 Kg/cum densities. The entire Framework is mounted ona galvanized steel channel base. The Condensate drain pan is fabricated out of corrosion resistant SS-304 Stainless Steel insulated on outside with close cell insulation. The Units are compact in design to provide vibration-free , noiseless performance and are easily maintainable. units can be Provided with Pre Filters, Fine Filters, hepa Filters , Mixing Box, Heaters Etc.   Type: Floor/ Ceiling /vertical & Loft Mounted Optional: Belt Drive/ Direct drive Chilled Water/ DX Systems

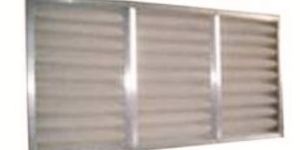

The Pre Filters are made from Multi layers for non Woven synthetics, HDPE & metallic Meshes. The Filter Finally Housed in Galvanized sheet/ Aluminium /SS.
