Pack make Engineer Amraiwadi, Ahmedabad, Gujarat

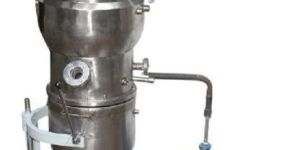

Vacuum cooker cooks and vacuums the batch   Machine Capacity 50-60 Kg.   Batch Time 20-25 Minutes / batch (Depends on steam pressure and other atmospheric conditions)   Steam Working Pressure 120 LBS/SQ. IN (according to requirement)   Electric Data Drive : 2 H.P.Vacuum Pump : 2 H.P.

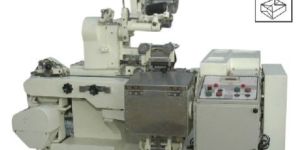

toffee cut wrap machine is designed to meet the most efficient wrap over toffee, caramel or chewing gum. In this machine the wrapping paper is pulled down from the reel by draw off reels and cut to the required length, than pushed together with the mouxe into the holding jaws of the periodically operating turret head, By indixing the turret head the mouxe are fed to the twisting fingers operating at the right and left side of the turret head. It is fully automatic and especially suitable for in line operation, high reliability and minimum maintenance. Particular Feature : The size can quickly be changed by exchange of a few parts. Long running time of the machine by accommodating packing material for reels of max. 400 mm dia. All internal gearing parts are accommodated in closed boxes and fitted with oil-circuit lubrication. Easy accessibility to the electric control system.

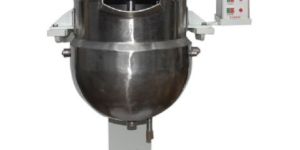

Pack-Make’s toffee cooker is highly efficient in confectionery processing industry. The ingredients are added and mixed in stainless steel jacketed vessel. Stirrer which is running by motor stirs continuously the ingredients which result in to a full mixed batch. The process is simultaneously accompanied by temperature rise. The ingredients are cooked using steam temperature. The steam is not directly in contact with the ingredients but it is enclosed in jacketed vessel. The jacketed vessel surrounds nearly whole mixture. This increases the contact surface area of mixture. Due to more contact area the cooking process is faster and a continuous taste can be maintained. This process is highly efficient as it copes up with the other process and due to which no delay is created. The process of cooking is safe. The mixture can then be collected in cooling plate. Pack-Make’s toffee cooker is made with precision parts, supreme raw material and constant supervision by experts. Salient Features :  Faster cooking of toffee batch. More contact surface area available for cooking. Maintenance is negligible. Stirrer is driven electrically at specific rpm. Cleaning is easy.

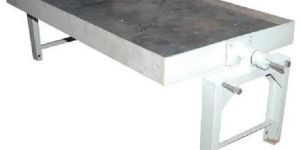

Pack-Make Engineer’s tilting cooling plate is having rigid construction due to which it is highly efficient in operation. Cooling plate consists of two cooling area on the either side of plate. The cooling area is large which offers faster cooling of batch. The batch is collected on cooling plate. Initial temperature of batch is high so it is placed on cooling area of the plate. Cold water is continuously being circulated under the cooling area of the plate. Water is circulated using a electrically driven motor. Specific paths have been made using metal components for effective cooling of the batch. This technique results in faster cooling of the batch and more easily. Batch can also be manually mixed on cooling plate. Two sides offer more comfort immediate cleaning can be avoided. Cooling plate is highly efficient and reliable in operation.   Salient Features  Maintenance is negligible. Cleaning is easy. Two sides available for work. Cooling area is larger. Water circulation in specific directions to get uniform and quick cooling.   Machine Cooling Area 2000 mm x 1000 mm (Approx)   Electric Data  Drive : MotorSupply : 220 V, Single Phase Supply.   Weight 300 Kgs. Approx.

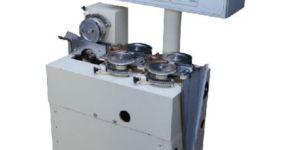

Rope sizer reduces the rope coming from batch roller in steps to a size which can easily be fed to toffee cut and wrap machine. Mode Of Operation : Pack-Make Engineer’s rope sizer is considered to be highly efficient , durable and reliable. Rope sizer consists of different rope reducing stations. Here there are three stations. The rope enters the first station where it is sized to a diameter of 36 mm. The output of sizer is a rope having diameter 17 mm. This small diameter rope can easily be fed into toffee cut and wrap machine. The sizer works speedily and has negligible maintenance. The speed of sizer is infinitely variable. This is because of A.C. drive provided. All parts are made to high standards of accuracy. Rope sizer is having robust construction and very smooth working.   Salient Features  Less mechanical parts so less maintenance. Cleaning is easy and all parts are easily accessible to operator. High speed performance. Infinitively variable speed.   Machine Capacity  Input Rope Diameter : 36 mmOutput Rope Diameter : 17 mm   Electric Data Drive : 1 H.P. A.C. OR D.C. (According to Requirement)Supply : 440 V, 3 Phase Supply.   Dimensions Length : 900 mmWidth : 700 mmHeight : 1600 mm (with Panel) Dimensions of machine are approx. Dimensions are subject to change without notice.   Weight  350 Kg. Approx.

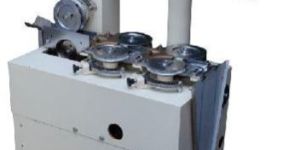

rope sizer is considered to be highly efficient , durable and reliable. Rope sizer consists of different rope reducing stations. Here there are three stations. The rope enters the first station where it is sized to a diameter of 36 mm. The output of sizer is a rope having diameter 17 mm. This small diameter rope can easily be fed into toffee cut and wrap machine. The sizer works speedily and has negligible maintenance. The speed of sizer is infinitely variable. This is because of A.C. drive provided. All parts are made to high standards of accuracy. Rope sizer is having robust construction and very smooth working. Salient Features : Less mechanical parts so less maintenance. Cleaning is easy and all parts are easily accessible to operator. High speed performance. Infinitively variable speed.

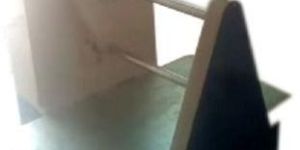

Pack-Make Engineer’s pulling machine is having robust construction which in turn increases the durability and reliability of machine. Pulling machine consists of three arms of which 2 are moving in opposite directions of each other while one is fixed. The movement of arms in specific directions stretch the batch . The rpm is low which is suitable for the batch and also for safety of workers. The batch coming from cooling plate is laid on the arms of pulling machine. The machine starts and does the work of pulling the batch. Manual mixing can also be done while keeping batch on the machine. The pulling machine is versatile in operation as it can move in forward direction as well as reverse directions. Pulling machine is highly recommended for confectionery processing industry due to its excellent reliability and safety.   Salient Features  Smooth and easy in operation. Reverse and forward motion possible. Maintenance is negligible. Easily accessible arms so easy to remove for cleaning.   Machine Output One Batch at a Time.   Electric Data Drive : 2 H.P. A.C.Supply : 440 V , 3 Phase Supply.   Dimensions Length : 950 mmWidth : 1200 mmHeight : 1250 mm   Weight 300 Kg.

batch roller is a highly efficient and versatile machine. It consists of four stainless steel rolls fitted in a technical manner. The rolls are different in diameter. The rolls are driven at a specific rpm by using gearbox so that batch stays in batch roller and comes in desired shape. The motion of rolls is first forward for some seconds ,it has no motion for further seconds and then backward motion for a desired seconds. The time of forward , hold and backward motion can be set as per the requirements. The batch is firstly kept in batch roller. It is started and batch rolls and forms in conical shape. Then for feeding in rope sizer the batch roller can be lifted from backwards using manual power. This allows the batch to move forward and easily feed into rope sizer. The rolls are robust in construction which ensures a proper operation of machine and a prolonged life. Salient Features : Rolls can be taken out without opening any mechanical component so easy to clean. Maintenance of batch roller is negligible. Rolls are having a robust construction so longer life. Batch roller can be used in toffee as well as candy processing line.

Pack-Make Engineer’s batch roller is a highly efficient and versatile machine. It consists of four stainless steel rolls fitted in a technical manner. The rolls are different in diameter. The rolls are driven at a specific rpm by using gearbox so that batch stays in batch roller and comes in desired shape. The motion of rolls is first forward for some seconds ,it has no motion for further seconds and then backward motion for a desired seconds. The time of forward , hold and backward motion can be set as per the requirements. The batch is firstly kept in batch roller. It is started and batch rolls and forms in conical shape. Then for feeding in rope sizer the batch roller can be lifted from backwards using manual power. This allows the batch to move forward and easily feed into rope sizer. The rolls are robust in construction which ensures a proper operation of machine and a prolonged life.   Salient Features  Rolls can be taken out without opening any mechanical component so easy to clean. Maintenance of batch roller is negligible. Rolls are having a robust construction so longer life. Batch roller can be used in toffee as well as candy processing line.   Machine Capacity  60-70 Kg Batch.   Electric Data  Drive : 0.5 H.P. A.C.Supply : 440 V , 3 Phase Supply   Dimensions Of The Machine  Length : 2200 mmWidth : 600 mmHeight : 1400 mm Dimensions of machine are approx. Dimensions are subject to change without notice.   Weight 750 Kg. Approx.

Our company is empowered by a vast distribution network that enables us to reach buyers anywhere and deliver orders on time. We make sure that all our products are in compliance with the industry standards and thus cross checked at all stages including manufacturing, warehousing, packaging and final dispatch.
