Pharmaceutical Machines Dealers in Isanpur, Ahmedabad

we offer Capsule Filling Machine. SALIENT FEATURES : New improved design gives negligible rejections and ensure better return on investment. Stainless steel contraction and use of non-corrosive approved materials eliminates contamination and facilitates easy cleaning. Simple design and robust construction ensure long life and trouble free operation. Table and partial filling attachments can be offered to suit filling of specific formulations. Precision manufacturing techniques ensure inter changeability of size parts and spares. Easy maintenance and ready availability of spares reduces downtime of the machine drastically. As on power is required for operating the machine it require the bare minimum of infrastructure facilities. Ideals for large variety and low volume encapsulation operations, Small manufacturing units, Hospital pharmacies, Filling of Ayurvedic formulation R & D Laboratories. Machine is built in 4 basic configurations according to capsule size:- (a) 00 0 (b) 0 1 2 (c) 3 4 or (d) 5.

Ampoule washing machine, The External Vial Washing & Drying Machine is designed for thorough removal of product spillage and contamination on the outer surface of the Vial.

We offer tablet and capsule counting machine specification as following •machine size length 1000mm , width 650 mm , height 1100 mm. •machine weight 150 kg. Approx. •machine structure stainless steel 304. •fully automatic machine ( p.l.c based ). •air pressure 1 kg. •variable speed available. •electric power 230 volt, single phase. •tablet / capsule per mint. Counting 700 pcs. ( depend on tablet shape /size ).

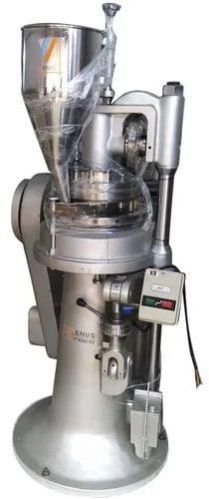

TABLET MAKING MACHINE - MINI ROTARY TABLETING MACHINE (LAB MODEL) OPTIONAL FEATURES : Compact Table top GMP Model Machine for Formulation & Development and Small Production Available in 4 Models 6 Stn., 8 Stn., 10 Stn., 12 Stn ‘D’ & ‘B’  Tooling  & Combine Tooling D & B for R & D Easy to clean and maintenance Optional Pre-Compression, AC Frequency Drive and Force Feeder Available.

Mixing Bowl & Cover: S.S. 304 Bowl Design In Three Sections I.e Flat Bottom, Cylindrical Mid Portion And Conical Top Portion For Efficient Mixing Operation & Provided With Counter Balanced Lid. Lid Provided With Vents, View Ports & Charging Openings. Main Impeller & Drive: The Main Impeller Consists Of Dual Speed 750/1500 Synchronous Dual HP TEFC Motor, Coupled Through A Belt Drive To A Worm Reduction Gearbox With Chain Coupling. The Impeller Is Designed To Provide Mixing At The Bottom And At The Centre Of The Bowl And Is Driven Through A Specially Designed Bearing Housing That Facilities Inside Wash Facility For Quick Change Over And Also Prevents Leakage Of Powder From Bottom Entry And Leads To Longer Life Of Gear Box. Chopper: The Chopper Drive Consists Of Dual HP Dual Speed (1440 / 2800 Synchronous Speed) TEFC MOTOR. The Motor Shaft Is Of S.S. And The Chopper Has Specially Designed 4 Blade S.S. Impeller. The Shaft Is Integral With The Motor. The Assembly Mounted Horizontally Into The Bowl. Discharge Port: The Discharge Port Is Mounted Horizontally Into The Bowl With Vertical Downward Opening. The Opening Is Operated By Pneumatic Cylinder And Discharged Can Be Regulated For Required Opening. Mounting : A Sturdy M.S. Channel Frame Is Used To House The Drive Assemblyat The Bottom. The Bowl Is Mounted On The Top. A S.S. Staircase And Railings Are Provided For The Platform. The Platform Is Half Covered With S.S, Dimpled Plates. For Safe Movement Of Operater And The Area Under The Bowl Is Covered With S.S. The Entire Body Is Covered From The Sides By Suitable S.S. Covers. Note : For RMG 25, Which Is A Lab Model Working Platform, Staircase And Railing Is Not Provided. The Operator Can Ascess The Machine From The Ground Level Of The Machine. Also The Entire Mounting Is Covered With S.S Mixing Bowl & Cover: S.S. 304 Bowl Design In Three Sections I.e Flat Bottom, Cylindrical Mid Portion And Conical Top Portion For Efficient Mixing Operation & Provided With Counter Balanced Lid. Lid Provided With Vents, View Ports & Charging Openings. Control Panel : The Control Panel Is Mounted On Platform And Is Provided With Actuators For ON / OFF , Slow , Fast Operation.   Auto / Manual Controls.  Timer.  Indicator Lights.   Ammeter / Voltmeter For Both Motors.   Controls For Discharge Opening / Closig.   Air Regulator & Pressure Guage & Air Filter. Optionally A PLC Based Control Panel Can Be Provided. Main Panel : Main Panel Consists Of All Prewired Connections And It Has Only To Be Connected To The Electrical Supply. The Circuits Consist Of MCCB And The Relay. Wires Coming Our Of The Connections Are Numbered For Easy Recognition. Special Features Of Rapid Mixer Granulator Air Purged Shaft Seals Eliminating Powder Entering The Seal.  Built In Cleaning System For Both Shaft Seals.  Layouts To Suit Indicidual Requirements Possible.  Machine Can Be Provided With Loading & Unloading Units To Form An Assembly Line & Reduce Material Handling (Optional Feature)Machine Can Be Provided With Loading & Unloading Units To Form An Assembly Line & Reduce Material Handling (Optional Feature) Fenner Taper Lock Pulley On Main Drive To Reduce Vibration And Better Transmission Efficiency.   Main Bearing Housing Provided With 3 Nos Oil Seals And Sleeve To Minimize Powder Leakages / Corss Contamination.   Chopper Motor With Built In S.S. Shaft To Eliminate Roller, Bearings And Reduce Maintainence.  Main Panel Provided With Pressure Switch Control For Proper Functioning Of The Machine At Desired Presure Of Air Only To Prevent Powder Entry Into Impeller And Eliminates Jamming Of Impellers.   Circuit Provided With Interlock Contactors So That Chopper Cannot Operate Directly , Independently.   Discharge Plunger Provided With 3 Position Solenoid Valve To Open And Close At Desired Levels, Thereby Regulating The Discharge And Preventing Discharge Of Large Lumps.   Pneumatic Circuit Provided With Non Return Valve And Water Inlet./ Outlet Connections For Facilitate Washing Of The Main Impeller Asembly Without Dismantling, To Facilitate Faster Change Over. Safety Features: Locking Arrangement For Motor To Eliminate Accidently Starting With Open Lid. Enclosed Movinf Parts. Pneumatic System : The Pneumatic Systems Requires Air Pressure Of 3 To 5 Kgs/sq Cm. It Is Used For Operating The Discharge Valve(opening & Closing) Air Purging Of Chopper Drive And Main Impeller Drive To Prevent Cross Contamination. The System Consists Of An Air Filter Pressure Guage A 2 Way Solenoid Valve (for Discharge Valve) And Other Pipes Ferules & Pneumatic Fittings.

Features  In compliance with cGMP guidelines Effective blending with help of mixing baffles. Quick Dismantling of mixing baffles for easy to clean bins and baffles. Fully Automatic Operation through Programmable Logic Controller (optional) Flameproof Construction (optional) ACVFD as an optional feature Pneumatic loading system (optional)

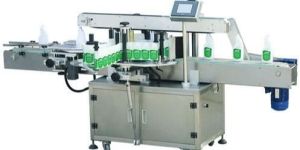

We are the Pioneers of Indigenous manufacturer of Pharmaceutical &  packaging machinery  (Vial Bottle Washing Machine & Air jet Cleaning Machine) in India since as early as 1965, Incorporated as BHAVANI started by the then CEO Mr. J. R. Mevada and reconstituted as BROTHERS Pharmamach (India) Pvt. Ltd., Presently the Chairman and Managing Director, supported by Ms. Mahesh Mevada and Nirav Mevada the Directors.Aligning with the latest trends in packaging industry, the company has introduced a series of economical Sticker Labelling Machines and Wet Glue Labeling Machines, Specifically for OTC products in Cosmetic, Food & Beverages, Healthcare, Pharmaceuticals and allied industries.The group has been catering to several thousands of satisfied customers in the Pharmaceutical, Agro-chemicals, Pesticide, Food, Beverage, Cosmetic, Chemical and Packaging industries through its Range of Washing, Filling, Capping and Labelling Machines for Ampoules, Vials, Bottles, Jars, Cartons, Shippers, Tin, Can and many other products used for Packaging.

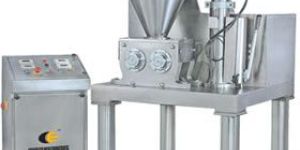

Rollercompactor machine is used for dry granulation of pharmaceutical ingredients in pharmaceutical industry, in food as well as chemical industry for densification and granulation of powder. The dry compaction of the powder between two rollers on high pressure for increased bulk density, making granules, dust free processing and reducing packing size. The material in form of powder passes through the two counter rotating rolls of roller compactor under very high pressure. As the volume decreases through the region of maximum pressure, the material is formed into a solid compact sheet or flakes of ingredients. These flakes or compact sheet of ingredients are reduced in size to obtain the desired grain size. The machine takes extra care to prevent the generation of fine during this process.

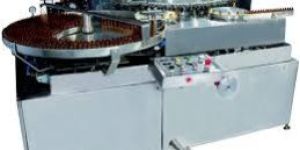

Ampoules feed from the Infeed tray are received on an Infeed Feed worm then moves on Infeed Star Wheel. The Grippers picks up the Ampoules from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. On completion of a cycle, washed ampoules are again inverted to neck upward position and feed to output star wheel. Washed ampoules received from output star wheel can be collected on Output Tray or can be pushed to tunnel.All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards.

High Shear Mixer Granulator-HSMG Rapid Mixer Granulator - RMG High Performance Mixing and Wet Granulation Process Technic Application & Process : The High Shear Mixer Granulator used for process of fast dry & wet mixing, homogenizing, humidifying and granulating of the powder in Pharmaceutical, Chemical, Cosmetic, Food, Plastic, General Mixing Industries. High Shear Mixer Granulator series is characterized by the compact construction, modern design and all the user and maintenance friendly attributes which form the ergonomics design aspects are essential for a wide range of application. The High Shear Mixer Granulator performs dry mixing & wet granulating by basic design of the special four arm of the mixing impeller and sequences of the mixing process in the cylindrical mixing drum with rounded connection to the base plate, achieve another special effect. The mixing process runs without varying pressure zone in the volume of mixing product. Separately driven multiple choppers can effectively intensify the mixing result in particular when liquid or paste components are added. During humidifying and granulating process of the products the chopper controls and regulates the granular spectrum and structure of the granules according to the product, chopper shape and time. The HSMG system requires only small quantities of granulating liquid or pastes to obtain the required granulate structure. This reduces the amount of drying energy required. Salient Features : High speed mixing & granulating Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316 & non contact parts AISI 304. Automated maxing and granulating process in single bowl. High Precision mixing and granulation with Short Batch Time, Problem free Cleaning and Residue Free Discharge. Unique design with four arm mixing impeller with blade angle to pushing product radically outward. Chopper blade designed to cuts lumps and make granules. Dual speed mixing impeller for mixing and intensify chopper for granulating. Flush fitting discharge plug is electro pneumatically operated. Air pursing for seal for both shafts. Optional Features : PLC Controls with HMI touch screen, Inline Milling at discharge, Variable speed drive for main impeller and chopper. Product bowl Jacketing for heating/ cooling and vacuumized mixing process. Binder adding by spraying system with peristaltic pump. Material charging by bin loader with IBC. Flame proof motor and electrical. Safety Features :   Total drive transmission system enclosed Limit switch installed in the top lid ensure lid is closed Air pressure switch installed to ensure pressure is in limit. Limit switch installed at discharge to ensure product container underneath of discharge. Overload relay Protection and Emergency stop button

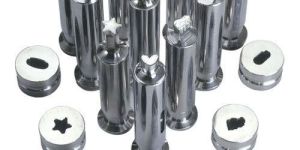

We are leading manufacturer and supplier of wide assortment of Pharmaceutical Machinery Parts. The offered part is manufactured using optimum grade stainless steel metal with the help of cutting-edge techniques in compliance with set industry norms. Our offered part is used in machines that is suitable for filling 5 mlgm to 100 ML GM of liquids, semi-solids, creams pests, inks in tubes, jars cans and bottles. Clients can avail this machine from us at pocket friendly price.

Over the years, we have become a high-flying name since our Pharmaceutical Machinery is qualitative and deliveries are time-bound. Ours is a well-established firm located in Ahmedabad(India) and engaged in the business of providing a wide assortment of quality products.   Salient Features : Construction AISI S.S. 304 quality. Three step pulley for different speed.  Special self-aligning bearings ensure smooth and trouble free operation. Suitable for different type of container. S.S. elegantly matt finished body. Reduction gears ensure jerk free and noiseless operation. Matt Finished body.   Optional : Castor Wheel with lock  A/c Frequency Drive Acrylic Cover Tray for loading or unloading of container.

Laxmi Pharmamach Automatic Plastic Bottle Unscramble unit. For Arranging the Plastic Container whether it’s Round or Flat shape bottle in vertical position and can be aligned with online filling activity. It’s widely used in Pharmaceutical, herbal and Cosmetic Industries.

We are offering Soft Blister Packing Machine for SV set surgical disposables, infusion set (I.V. set), medical tubes, surgical disposables, infusion set (I. V. Set), medical tubes and catheters, I. V. Cannula, scalp vein set.
