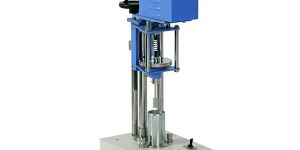

Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of a hand wheel which operates a worm gear arrangement turning the upper end of a calibrated torsion spring. Vane dia, rod dia, vane size & vane height are as per IS specification.The Vane shaft is attached through the hollow upper shaft to resettable pointer, which indicates the angle of torgue on a dial graduated in degrees. The dial reading multiplied by spring factory gives the torque. A container for soil tube of 38mm I.D. & 150 mm long can also be used as container. Complete with set of springs, one each of approx 0.2kg/cm,4kg/cm,6 kg/cm,8 kg/cm in a nice teak wooden carrying case.
Motorised Model
Complete with set of springs, one each of approx 0.2kg/cm, 4kg/cm,6 kg/cm,8 kg/cm in a nice teak wooden carrying case. but with motorised, rate of rotation is 1/60 RPM.
