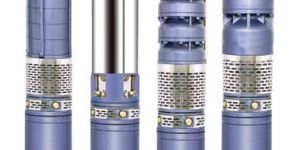

Water Filled Submersible Pumpset (100mm)
Get Price Quote
Naigra Industries is one of the leading Manufacturers, Suppliers, and Exporters of Water Filled Submersible Pumpset (100mm) in Ahmedabad, Gujarat. The pumpset has a superior design, optimum efficiency, and low power consumption. Due to its light weight and easy installation, buyers prefer to buy it, and we receive bulk orders for it. These pumpsets are manufactured from high-quality raw materials, and guarantee trouble-free services. The pump is available in radial and mixed flow designs, and it can used for irrigation, sprinkler, ornamental fountains, among others.
Special Features of Motor :
Motor suitable for wide voltage 180/230V for 1 Ph & 380/415V for 3 Ph
3000 RPM (Syn) speed.
Cap Start & Run (PSC), totally enclosed, water filled, squirrel cage induction motor suitable for 1 Ph & 3 Ph AC supply in 50 Hz.
Stainless steel stator body-rust preventive.
Winding wire poly propylene with insulation Class-B
Stainless steel rotor shaft - rust preventive and longer life.
Powder coated rotor and baked for rust prevention.
Rotor dynamically balanced-longer life.
Specially designed carbon thrust bearing set more life.
Ease in rewinding - serviceability.
Special Features of Pump :
Multistage pumps with new hydraulic design offers high level of performance, mechanically build to last long and provide un-interrupted service.
Suction and discharge outlets are made of Cast Iron with nickel coating. Also available in Stainless Steel on request.
Carefully designed impeller and Diffusers are made of resin impregnated thermoplastic. This material ensures high performance and longer life cycle of pump.
Pump casing is of PPO 20% GF & PC 10% GF
Pump shaft in SS410.
Hexagonal Bearing bush and Stainless Steel Sleeve with hard chrome increase the wear resistance of this pump against sand.
Efficiently designed check valve guarantees trouble free service. even in most critical application.
Cable guard and strainer in stainless steel.
Standard Specification :
Power range - 0.37 kw to 2.2 kw - Single Phase / 0.37 kw to 5.50 kw - Three Phase
Speed - 2880 RPM
Version - A.C. Single Phase, 180-230 V. 50 Hz Capacitor Start & Run [CSCR], A.C. Three Phase, 380-415 V. 50 Hz Direct on Line [DOL]
Type of Duty - S1 [Continuous]
Flow Rate upto - 0.20 to 7.0 Lps (Redial Flow)
Head Range upto - 8 to 180 mt. (Redial Flow)
Nominal Outlet Size - 25, 30, 40, & 50 mm
Maximum Liquid - Temperature - 35o C
General :
Better design - Optimum efficiency - Low power consumption.
Light weight - Ease in installation.
Silent running.
Reliable in operation.
Pumps & Motor Couplings are according to NEMA Standard For Export.
Applications :
Irrigation and Drip Irrigation.
Sprinkler, Gardening and Nursery.
Domestic water supply.
Bungalows.
Housing complexes.
Ornamental fountains.
Small farms.
Industrial water supply schemes.
Advantages and Specification
Naigra submersible pump suitable on 4" NEMA standard motor.
Naigra submersible pump sets are manufactured from high-quality raw materials, having passed through stringent quality control to offer trouble-free performance year after year.
Naigra 4" multistage pumps with new hydraulic design offers high level of performance mechanically build to last long and provide un-interrupted service.
Suction and discharge outlets are made of Cast iron with nickel coating. Also available in Stainless Steel on request.
Pump casing in S.S 304.
Pump shaft in S.S 420.
Hex rubber bush and stainless steel sleeve with hard chrome increase the wear resistance of this pump against sand.
Efficiently designed check valve guarantees trouble free service even in most critical application.
Can be easily dismantled and repaired.
Cable guard strainer in stainless steel.
Pump available in radial and mixed flow designs.
Connecting according to NEMA standard.
Extremely hardwearing parts.
Dynamically balance.
Pumped liquids.
Clean, thin, non aggressive, non explosive, clear, cold, fresh water without abrasives, solid particles of fiber. Clear cold water means water having the following characteristics.
Details :
Temperature --33o (max).
Permissible Amount of sand - 50 gm/m³ (max).
Chlorine ion density -500 ppm (max).
Allowable solids - 3000 ppm (max).
Specific gravity - 1.004 (max).
Hardness (drinking water) - 300 (max).
Turbidity -50 ppm silicon scale (max).
pH - 6.5 to 8.5.
Operating range
Head Range - 6mtr to 278 mtr
Flow rate - 10 lpm to 500 lpm
Immersion - 1 mtr, Minimum
Minimum level sand content : 50gm/m³
Application : These pumps are for domestic, agriculture & industrial Usage.000000000000000000000000
