Quality Engineers Vatva, Ahmedabad, Gujarat

Brand Name : Quality Engineers

Driven Type : Self Engine Driven.

Power : 76 BHP.

Availability : 3 Tons.

Production Capacity : 4.5 sq. meters.

Brand Name : Quality Engineers,QUALITY ENGINEERS

We are primarily engaged in the manufacturing, exporting, and supplying of Thermo Drum Unit in all over the world. The Thermo Drum Unit is designed by incorporating the latest technology as per the set industry standards. Our Thermo Drum Unit is acknowledged for its higher quality, cost effective nature, and durability. Description The thermodrum or Drier Cum Mixture unit is a long rotating cylindrical drum fabricated from an abrasive resistant 10 12 mm thick M.S. plate. It is mounted on a sturdy and robust steel structure fabricated from girders and channels. Four trunnion rollers running on heavy duty bearings support the drum. Three rollers mounted on thrust bearings support the guide ring, taking care of the downhill thrust produced due to the degree provided to the thermodrum. This unit of the drum mix asphalt plant is the heart of the plant. As called the aggregate is headed with automatic burner to require temperature and hot bitumen is added in the drum at suitable stage and bitumen is coated evenly to the aggregate in this drum. There are stages in the drum like preheating, heating, mixing Zone. That helps the aggregate and bitumen to heat and mix uniformly. li>

A. Honda Company Make Engine. . (1) Maximum Speed(Torque) :- 3600 RPM (2) Capacity ( Power) :- 03.0 HP (3) Starting Fuel :- PETROL (4) Running Fuel :- KEROSENE / DIESEL + 20 % PETROL. (5) Fuel Consumption :- 02.0 Liters Per Hour. B. Blower with Heavy Duty Impeller. (1) Impeller Capacity :- 1340 CFM C. Trolley with Pneumatic Tire. (1) Tire Size :- 15 x 3.50 D. Supporting Solid Tire with Standard Accessories.

Country of Origin : Made in India

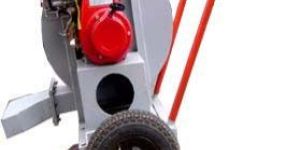

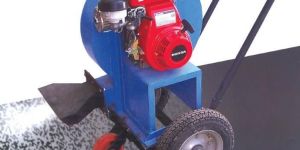

The company is chiefly engaged in the manufacturing, exporting, and supplying of Road Cleaning Machine in all over the globe. The Road Cleaning Machine efficiently cleans the sand from the road through powerful high pressure air blower. The Road Cleaning Machine is known for saving time, labor, as well as bitumen. Specifications Trolley with pneumatic tyre Honda company make engine Blower with heavy duty impeller Supporting solid tyre with standard accessories

Usage/Application : Road Construction

Capacity : 90 Ton

Driven Type : Diesel Engine

We are a celebrated Manufacturer, Exporter, and Supplier of cutting-edge Mobile Concrete Batching Plant in India. Most of the functions of the Mobile Concrete Batching Plant can be realized on a chassis like electrical weighing, collecting, lifting, and mixing. Mobile Concrete Batching Plant has easy installation and is portable. The Mobile Concrete Batching Plant is used at building sites and to produce base of bridges, roads, bridges, aerodromes, dams, etc. Salient Features In facility online printer system A single chassis model mobile batching mixing plant Re calibration is not required in change of installation plant Accurate electronic weighing system is reliable & fast Completely mobility free transportation Promote after sales & services & spares backup Free technical guide & online support Loading of aggregate & sand hopper by tractor mounted feeding Loader JCB Separate weighting system aggregate cement water & additive is dosing in system fast & accuracy high Plant only requires electric power supply, water connection aggregated, sand feeding Low investment, low maintenance Easy disassembling and pre-assembling Low cost and high efficiency

Brand Name : Quality Engineers

Power : 15-33 kW

Brand Name : QUALITY

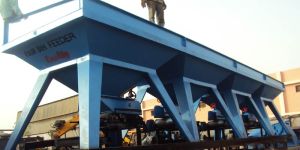

we are an eminent four bin feeders manufacturer, exporter, and supplier, based in india. The four bin feeders are offered by us in a wide range that is especially designed in compliance with the international quality standards. Our four bin feeders have been proved to be high in performance, rugged in designs, and cost effective in nature. salient features increased fuel efficiency storage capacity : 32, 40, 52 ton. trouble free performance minimal operational cost

Designed for the safe installation of control panels, the dust-free Control Panel Cabin helps in the smooth operations of these panels. With wide display feature, the user of Control Panel Cabin can easily overview all the operations undertaking around the cabin. We are a famous Control Panel Cabin Manufacturer, Exporter, and Supplier in India.

we are a well-reckoned concrete lifting hoist manufacturer, exporter, and supplier. Manufactured using high-grade raw material, the concrete lifting hoists are known for their longer functional life, corrosion & abrasion resistance, sturdy construction, low maintenance and easy handling. The offered concrete lifting hoists are also tested on various parameters so as to ensure their adherence with international quality norms & standards.

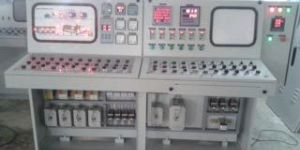

The Computerized Control Panel, which we offer, is fabricated from the best raw materials and components that add upon its strength and durability. We are ranked amidst the major Computerized Control Panel Manufacturers, Exporters, and Suppliers from India. The Computerized Control Panel is provided by us at the market leading prices. Salient Features All controls, including the motor control center circuit breakers are provided in the control panel. The control panel comprises of the automatic burner controls, aggregate and asphalt blending controls, motor controls, feeder bin controls and electric switchgear. All the parameters like, temperature of bitumen-hot mix material-exhaust gases and aggregate weight, asphalt percentage, hot mix material weight etc. are displayed on the control panel. It is equipped with protections like single phasing, overload, fuses, sequence interlock etc. Load wise data can be printed on the printer provided in the panel. The body of the panel is fabricated from CRC sheet and is duly powder coated.

Brand Name : Quality Engineers

Country of Origin : Made in India

Application : Constructional,Bitumen Spraying

Feature : Hassle free performance, Heat resistance , Durability

Application : Bitumen Pressure Distributor.

Capacity : 6000 Liters.

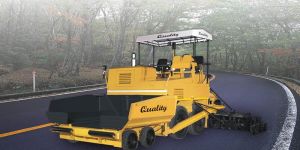

the company is a well-reckoned asphalt paver finisher manufacturer, exporter, and supplier from india. The asphalt paver finisher is a unique paver offered with combination of features designed and engineered to give maximum output with greater comforts and efficiency. The hydraulically expendable screed allows step less and hassle-free width adjustment. The heavy-duty traction unit ensures smooth paving in gradients. details types : sensor, semi-sensor & mechanical specially designed heavy duty & sturdy structure user friendly & easy operation unique power unit for more strength & stability easy availability of services and spare parts specifications minimun paving width : 2500 mm maximum paving width with hydraulicallyextendedscreed:4500mm maximum paving thickness : 200 mm paving speed : 1.25 to 23 trsmn maximum traveling speed : 14kmph hopper volume : 4cu. Metres screed vibration : by hydrulic motor tyre front (solid rubber) - 2nos. (sandwith type) : 22" x 7" tyre rear - 2nos. (pneumatic truck tyres) : 1000 x 20 auger dia. : 300mm hydraulic tank capacity : 80 ltrs screed heating oil burners : 2nos. crown : 1 to +3 string sensour ultra sonic sensour : moba - germany make accuracy levels : + -1 mm grade control, + 0.1% slope control

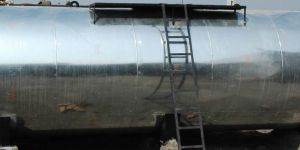

We are ranked amidst the major Asphalt Heating Tank Manufacturers, Exporters, and Suppliers from India. The Asphalt Heating Tank, which we offer, is fabricated from the best raw materials and components that add upon its strength and durability. The Asphalt Heating Tank is provided by us at the market leading prices. Description Asphalt Tank is fully insulated to minimize heat. The bitumen inside the tank is heated by U-shaped heating tube fitted with automatic burner of adequate capacity. A jacketed bitumen pump driven by variable speed motor through reduction gear box is provided to pump the bitumen to the drum. The bitumen flow rate is controlled by varying the RPM of variable speed motor. Storage capacity : 15, 20, 25, 30 Ton

We are ranked amidst the celebrated Asphalt Drum Mix Plant Manufacturers, Exporters, and Suppliers from India. The Asphalt Drum Mix Plant is available in a wide range i.e. from 45 to 120 TPH. Made from the finest MS plates, the Asphalt Drum Mix Plant is resistant against heat and abrasion. The Asphalt Drum Mix Plant can be availed from us at the most competitive prices. Salient Features Easy to operate Low dust emissions Less fuel consumption Accuracy in quality control Modern drum mix technology Easy Operation and less maintenance Fully Automatic Computerized Control Panel Board Dryer Mixing Unit Model No : DM 45, DM 50, DM 60 Drum Mix Asphalt Plant

Our Filler Hopper has been proved to be high in performance, rugged in design, and cost effective in nature. The Filler Hopper is offered by us in a wide range that is especially designed in compliance with the international quality standards. We are an eminent Filler Hopper Manufacturer, Exporter, and Supplier, based in India. Description The filler hopper is provided to add Filler / Mineral from a separate hopper, in the mix to the extent pre-selectable in percentage by weight of the maximum plant output. The unit is fabricated from 5 m thick steel plate and mounted on robust steel structure. The system is powered by a variable speed motor coupled with gear box to rotary valve and also synchronized with aggregate & bitumen output. The filler material from this unit is conveyed pneumatically up to mixing zone in the thermodrum.Storage capacity : 1, 1.5, 2, 2.5 Ton

The Oil Heating System is designed by incorporating the latest technology as per the set industry standards. Our Oil Heating System is acknowledged for its higher quality, cost effective nature, and durability. We are primarily engaged in the manufacturing, exporting, and supplying of Oil Heating System in all over the world. Description Thermic unit has the three oil heaters (boiler) of capacity 9 KWatt with temperature sensor and auto controller that are circulated to maintain precise bitumen temperature. 1hp pump boils oil up to 200 to 300 degrees which in turn maintains required material temperature (Coal-tar) and keeps material easy flow through the pipes without any blockage. The material circulates through Hot oil jacketing type bitumen pump with jacketing & insulation on bitumen pipeline.
