Shree Bhagwati Machtech India Pvt. Ltd. Rakhial, Ahmedabad, Gujarat

The basis of mixing system of Ultra Vacuum Mixer is a combination of counter - rotating paddle agitator and internal homogenizer. Gate-type agitator with cross baffles rotates in anti-clockwise direction while counter paddle revolves in clockwise direction, generating a disturbance in the normally circular flow pattern and dampen vortex formation. The blades of paddles are pitched to promote top - to bottom flow. In addition, adjustable scrapers are utilized to prevent the build-up of a stagnant film between the agitator and the vessel, and assure efficient heat transfer to product during heating and cooling steps. The speed of the agitator and the counter paddle can be varied separately. Homo disperser, locates at the bottom of the vessel, accomplishes emulsification by physical action and centrifugal forces created by high speed rotation of the rotor. These actions would break up oil phase/ aqueous phase liquid stream into tiny and discrete droplets. Then they will be intensively and continuously mixed by counter - rotating agitator mechanism, and become final products. For versatility of use, interchangeable high viscosity and low viscosity homo disperser heads are provided with the system. Homo disperser speed is adjustable by inverter control. Conical mixing vessel is jacketed for heating / cooling and completely enclosed. All contact parts are stainless steel 316. The vessel is designed to operate under vacuum; mixing and emulsification can then be performed without entrainment of air. A temperature measuring probe, extending directly into the product, allows exact setting of the temperature with a view to process management. For process reproducibility, mixing time, product temperature, agitator speed, counter paddle speed and homogenizer speed can be controlled to the desired condition. Raw material feeding to Prism Vacuum Mixer can be manual through the fully open lid, or completely automatic through vacuum system. Finished product is discharges by manual discharge valve or through special design transfer pump on mobile trolley into product container. Design Features : Designed strictly compliance with the stipulation of cGMP Product contact parts AISI 316 Quality and Non contact parts S.S.304 Quality. Machine compact in designed single base structure to for simplicity in mounting. Top Ultra mixer agitator with extremely efficient shearing force. Contra Movement of the agitator blade means the both anchor stirrer move anti direction. The both agitator having nos. paddle with 45°C Homogenizer located at lowest point in the vessel for internal homogenization. Top lid is mounted with hydraulic lifting device. Integrated vacuum pump and vacuum equipments with manual controls. Tilt able product bowl to discharge product or clean. Top lid having connection for vacuum and charging of the material and visualize window. Manual operated valves Outer agitator is fitted with self pressure adjustment Teflon scrapper and drives through hollow shaft gear box with motor. Centre agitator is having separate drive with gearbox with motor. The scrapper is made from Teflon. Optional Features : A C Frequency Drive with variable speed for main agitator, counter agitator and homogenizer. Mixing bowl with heating / cooling jacket and insulated. Mixing bowl tilting type/ Wheel Mounting / Fixed. Type of Mixing Blade: Single Anchor/Double with contra action/ planetary motion with single /double blade. High speed homogenizer mounting from top/bottom. Safety Features : Emergency stop button Safety vacuum relief valve Limit switch at top lid Over load protection by relay. Semi automatic control system and safety equipments.

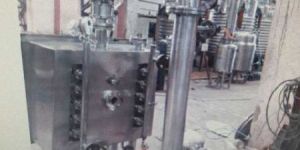

The Vacuum Tray Dryers are used to het and dry material under the state of vacuum is called vacuum drying and where difficulties in drying materials due to high toxic contents, hygroscopic in nature, heat sensitive. It is widely used in the pharmaceutical, Herbal, chemical & foodstuff. The Vacuum Dryer is basically a tray dryer working under vacuum conditions. Its use vacuum to pump air and humidity out from the closed heat chamber due to vacuum making the chamber on the vacuum state thus increased drying rate greatly and saved energy. The boiling point of the material to be brought down for drying and the entire system is in closed loops so, no contamination occurs. The evaporation's evolved during the drying process is cooled down through a connected condenser and collected in receiver. The vacuum dryer when combined with solvent extraction system, ensures that almost all of evaporating vapors is recovered and condensed in to a receiver. Vacuum dryer is closed chamber with heavy structure with air lock doors, Jacketed and insulated body. Inside chamber there are shelves for resting tray. Shelves are manufactured in hollow construction with baffles cum stiffeners, inlet and outlet nozzle. Hot media is passed through the Inlet Header to each , so heat transfer to the surface, which in turn heats up trays placed on the shelves. The hot media flows out from the shelves through the Outlet Header. salient Features : Design is cGMP with product contact parts AISI 316. Vacuumize shelves drying on low temperature system for high toxic. Hygroscopic & heat sensitive materials. Vacuumize closed system can be with condenser, Receiver for solvent recovery. Very low value of final moisture even at low drying temperatures. Safety feature: Vacuum relief valve, Safety pressure relief valve, Temperature Controller & Overload protection. Option for heating media can be steam/ hot water / hot tharmic fluid. Option features: condenser & Receiver for solvent recovery & Evaporation cooling, PLC Controls, Explosion Proof Electrical

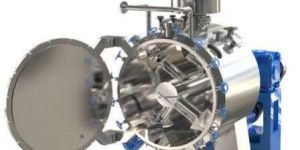

The Vacuum Paddle Mixer Dryer is suitable for mixing and drying the material which can not operate at low Temperature easily oxidized, poisonous in nature. It operates at low Temperature efficiently under vacuum. It is used for raw materials drying and mixing powder or granules of Pharmaceutical Materials, Crystalline, Insecticides, Pesticides, and Food industry and heat sensitive products. Material that cannot undertake high temperature. Material that is easy to oxidize. Material that do not permit to destruct. To recover material with residual volatile. Material with vigorous irritative and toxicity The Vacuum Paddle Mixer Dryer consists of a jacketed cylindrical shell with rotating with specially designed Paddle Agitator type blade by rigid fabricated structure motor, gear box. There is provision for application of vacuumized inside the shell and circulation of heating media in the jacket during the rotation of the stirrer. The large heating surface area presented by the internals surface of the shell ensures uniform drying of the product, as the product gently moving & fluidized while the Paddle stirrer rotates. The diffusive action induced by the mixing stirrer constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket. In operation, material is filled to the top of the shell. The shaft rotates at relatively low speed and the moving paddles push and fluidized the material back and forth mixing it. The outer Paddle rotation displaces the material from the ends to the center while the inner paddle rotations move the material from the center to the ends. This counter-current action results in homogenous blending. Mixing is achieved in 15 to 20 minutes with 90 to 95 % or better homogeneity. The bottom discharge provided for unloading of the material and easy cleaning of the mixing drum. Specially designed self adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into the mixing drum.     Salient Features : Design is cGMP- Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Continuous rotation of paddle stirrer, material will make continuous movement and fluidized in the container and reach to uniform mixing and drying at low temperature. Dust free operation. High vacuum operation Fast and uniform homogeneous mixing & draying at low temperature. Solvent recovery Continues vacuum maintain during process. Very low value of final moisture even at low drying temperatures. Option for two type design of shell 1. Cylindrical type and 2. "U" shape. Continues vacuum maintenance during process. Vacuumized closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle. Rapid & Complete discharge / Zero holdup after discharge Heating media can be used steam/ hot water / hot oil. Rigid drive with reduction gear box, motor and stuffing box for shaft sealing. Charging pot, Vacuum connection, sight glasses, Vacuum relief valve & gauge are provided on top of the shell. Connection at jacket will be provided for steam Inlet, safety valve, Pressure gauge and steam trap. The discharge with butterfly valve/Slide valve at bottom side of the shell Optional Features : Option for two type designed of shell 1. Cylindrical type and 2."U" shape. Option for Flame Proof Electrical. Option for Automatic Charging Option for lump breaker. Option for condenser, Receiver & Cyclone for solvent recovery. Option for advance PLC Controls with HMI touch screen. Safety Features : Temperature controls, Vacuum relief Valve, Over load protection and Emergency stop.

"V" Shape Blenders are used for mixing, lubricating and blending in Pharmaceutical, Nutraceutical, Pesticide, Plastics, Chemical, Ceramics, Cosmetics, Food and other Allied industries. The product containers have 'V" shape which creates continuous split and recombines the material to give more tumbler and friction effect to the material for fast and homogenizing mixing. It can perform homogenously the mixing and blending of particles with rapid intermixing irrespective of varying specific gravities, dry mixing of free flowing powders and granules requiring low shearing force. The material is loaded into the 'V" shape blender drum which tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity. salient Features : 'V' shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch. Product container having discharge with butterfly valve and man hole. Safety reeling provided for rotating area of product container. Design is CGMP - Current Good Manufacturing Practices compliance. "A" type rigid structure of the machine with two sides resting of product container. All Product contact parts AISI 316/ 316L & non-contact parts AISI 304. Available Capacity model in octagonal blender 25 kg to 2500 kg batch size. Electric controls panel with cycle time. Enclosed rigid drive with reduction gear box and motor. Fixed baffles provided for lumps braking. 2 Nos. Charging hole with hinged lid with seal for charging and cleaning. Optional Features : Charging Option : Vacuum conveying system. Loading & Unloading by Product container with jacking trolley. Bin loading by hydraulic hoist. Interchangeable with different capacity 'V" shape product container. AC Frequency variable drive for product container. PLC Controls with HMI touch screen Rotary Intensifier with AC variable drive. Inline milling and loading with vacuum transfer systems Flame proof motor and Push Button station. Safety Features : Safety reeling with limit switch. Overload protection and emergency stop.

Tray Drying Ovens are used for drying of pharmaceutical powders, granules, Pigments, Food, Bakery, Electrodes, Chemical, and Plastic etc in an effective and economical way by hot air re-circulation. Tray dryer is an enclosed insulated chamber in which trays are placed on top of each other. Heat transfer is done by circulation of hot air by electric heaters or any other heating media. Blower fans are installed inside to ensure proper circulation and transfer of heat. Salient Features : Available in 24, 48, 96 & 192 Trays. Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316/304 & non contact parts AISI 304/ M.S. with painted. Highly effective uniform air re-circulating system by low speed fan. Inlet air filter and damper at inlet and exhaust air damper for air flow controls. Controls panel with Digital temperature controller and process timer controller. Mobile trolleys are provided which are used to load and unload the trays into the dryer. Optional Features : Heating system Electrical / Steam / Gas Heating. Separate Inlet AHU with HEPA Filtration. Perforated tray Standard Painted Model. Safety Features : Automatic Temperature & controls, Process cycle controls. Overload relay Protection and Emergency stop button

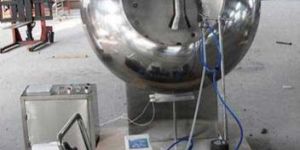

We manufacturer wide range of Tablet Coating Machine, Tablet Coating Equipment, Pharmaceutical Coating Machine , tablet coating pan for granules, tablet coating machine, tablet coating equipment, pharmaceutical Pellets/Tablets coating machine, tablet coating pan manufacturer, Candy tablet coating machine , tablet coating equipment, pharmaceutical coating machine manufacturer, Vitamins tablet coating pans, Food tablet coating machines Many different model we manufacturer Tablet Coating Pan for sugar and film coating of tablets, pallets and granules - Tablet Coating Machine, Tablet Coating Equipment, Pharmaceutical Coating Machine , tablet coating pan for granules, tablet coating machine, tablet coating equipment, pharmaceutical Pellets/Tablets coating machine, tablet coating pan manufacturer, Candy tablet coating machine , tablet coating equipment, pharmaceutical coating machine manufacturer, Vitamins tablet coating pans, Food tablet coating machines. Our range of tablet coating pans is extensively used for sugar and film coating of tablets, pallets and granules. The unit comprises of ellipsoidal shaped pan fabricated using stainless steel sheet and mounted on the gearbox shaft, which is driven by an electric motor. These tablet coating pan are available in standard and GMP model with SS 304 or 316 contact parts. FEATURES OF TABLET COATING PAN: The complete drive unit is enclosed in a sturdy cabinet Hot air blower with flexible SS Pipe heaters are provided with thermostat control for fast drying Heaters are interlocked with the blower motor therefore unless the blower is on, heater does not start

We manufacturer wide range of Tablet Coater , Auto Coater with film coating , Tablet Coating Machine , Tablet Auto Coater with sugar coating , Automatic Tablet Coating machine , Sugar Coating Pan machine, Conventional Coating machine, Pharma Tablet Auto Coater machine and equipment, Auto Coating Machine for tablet and pills ,Tablet Film Coating System , Coating Pan Machine , Confectionery Coating Pan machine, Chewing Gum Coating Machine ,Lab Auto Coater machine, Tablet Coater with film coating systems, Tablet Auto Coater, Pharmaceuticals Machines Manufacturer, Automatic Tablet Coating, Pharma Machinery Tablet Auto Coater, Auto Coating with Film & Sugar Coating system and equipments We manufacture Automatic Tablet Coating System with film and sugar coating machine, this machine is complete PLC base automated system with controlled movement of the Pan, controlled inflow and out flow of air, controlled movement of solution for spraying, controlled spraying inshort everything is controlled by PLC so that uniform Coating is achieved. Tablet Coating System is available from 12 inches to 60 inches auto coater and coating pan machines with help of different futures and technologies. Auto Coating machine for pallets, granules and tablets with various medium Film coating with organic solvent Film coating with aqueous coating Sugar coating Tablet Coater , Auto Coater with film coating , Tablet Coating Machine , Tablet Auto Coater with sugar coating , Automatic Tablet Coating machine , Sugar Coating Pan machine, Conventional Coating machine, Pharma Tablet Auto Coater machine and equipment, Auto Coating Machine for tablet and pills ,Tablet Film Coating System , Coating Pan Machine , Confectionery Coating Pan machine, Chewing Gum Coating Machine ,Lab Auto Coater machine, Tablet Coater with film coating systems, Tablet Auto Coater, Pharmaceuticals Machines Manufacturer, Automatic Tablet Coating, Pharma Machinery Tablet Auto Coater, Auto Coating with Film & Sugar Coating system and equipments.   FEATURES compliance with cGMP guidelines Accurate batch consistency with high production efficiency & effective spraying with special design anti bearding type guns Quick accessibility for maintenance & cleaning Programmable Logic Controller Sugar Coating System (optional) nterchangeable Pans (optional) lameproof Construction (optional)

We stock Stainless Steel, carbon and alloy specialty steels supplied in the as rolled, annealed and normalized conditions. We offer cut to size and heat treatment through our service centre.

Stainless steel pipe and tubing are used for a variety of reasons: to resist corrosion and oxidation, to resist high temperatures, for cleanliness and low maintenance costs, and to maintain the purity of materials which come in contact with stainless.

We are Importers & Exporters of Stainless Steel, Carbon Steel & Alloy Steel Tubes. Seamless SS Pipes are extensively used for conveyance of fluids intended for critical high temperature and general.

Seamless SS Pipes are extensively used for conveyance of fluids intended for critical high temperature and general. Seamless SS Tubes are used in Under similar service conditions in heat transfer process equipments like boilers, super heaters, heat exchangers, condensers etc. General engineering and Proscess Instrumentation.

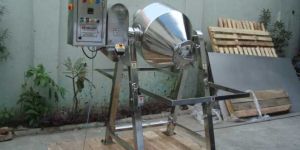

The Rota Double Cone Vacuum Dryer is suitable for drying the material which can not operate at low Temperature easily oxidized, poisonous in nature. The Double Cone Rotating Vacuum Drying Equipment is a new drier that integrates mixing and drying in the one body and equips with condenser and vacuum pump. Therefore the vacuum drier is formed. The drier is advanced in design, simple in inner structure, easy for cleaning, to discharge all raw material, convenient in operation and improving work environment. Meanwhile raw material is rotating accompanying with the rotating of container; raw materials cannot be accumulated onto the wall of container, so it has high efficiency heat transfer and high speed drying which save energy. Raw materials are dried uniformly and have good quality at low temperature. It can widely apply to dry raw materials of pharmaceuticals, chemical, Pesticides, foodstuff , dyestuff and so on industries. The equipment is in conformity with the requirements of "GMP". If the solvent does not recover, the condenser may be not used. 1. Material that cannot undertake high temperature.2. Material that is easy to oxidize.3. Material that do not permit to destruct.4. To recover material with residual volatile.5. Material with vigorous irritative and toxicity The Rota Cone Vacuum Drier consists of a jacketed double conical shell rotating around 6 RPM with under the state of vacuum inside the shell, pass steam or hot water in to jacket for heating. The large heating surface area presented by the internals of the cone ensures uniform drying of the product, as the product gently tumbles while the cone rotates slowly. The vaporized steam can be pumped out through vacuum exhaust pipe when the damp raw material absorbed heat. The diffusive action induced by the tumbling cone constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell, the dry speed of raw material is quickened and uniform drying efficiency is raised too. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket. salient Features : Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316/ 316L & non contact parts AISI 304. Simple & compact Design for Easy to operate, clean, convenient & user friendly. Automated mixing and Drying process in single bowl. Dust free operation. High vacuum operation Low temperature drying. Solvent recovery Continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing and drying at low temperature. Continues vacuum maintenance during process. Vacuumized closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle. Rapid & Complete discharge / Zero holdup after discharge The product dried is homogeneous with uniform properties. Very low value of final moisture even at low drying temperatures. Inside Filter assembly with 5 Micron. Optional Features : Option for advance PLC Controls with HMI touch screen. Option for Flame Proof Electrical. Option for lump breaker. Option for condenser, Receiver & Cyclone for solvent recovery. Option for heating media steam/ hot water / hot oil. Safety Features : Temperature controls, Process controls, Vacuum relief valve, Over load protection and Emergency stop.

The Ribbon Vacuum Mixer Dryer operates at low temperature efficiently under vacuum. It is used for raw materials drying and mixing powder or granules of Pharmaceutical Materials, Crystalline, Insecticides, Pesticides, and Food industry and heat sensitive products. The Ribbon Vacuum Mixer Dryer cannot operate at low Temperature easily as it gets oxidized and is poisonous by nature. The Ribbon Vacuum Mixer Dryer is specially designed with a Double Helical Ribbon Agitator type blade by rigid fabricated structure motor, gear box which consists of a jacketed cylindrical shell with rotator. During the rotation of the stirrer, there is provision for application of vacuum inside the shell and circulation of heating media in the jacket. As the product gently moving while the ribbon stirrer rotates, the large heating surface area presented by the internals of the cylindrical shell ensures uniform drying of the product. A fresh layer comes into contact with the indirectly heated walls of the shell when the diffusive action is induced by the mixing stirrer constantly. A well designed sealing system ensures positive circulation of a heating media in the jacket and also enables maintenance of deep vacuum inside the shell. Optional Features : Option for two type designed of shell 1. Cylindrical type and 2."U" shape. Option for Flame Proof Electrical. Option for Automatic Charging. Option for lump breaker. Option for condenser, Receiver & Cyclone for solvent recovery. Option for advance PLC Controls with HMI touch screen. Safety Features : Temperature controls, Vacuum relief Valve, Over load protection and Emergency stop. salient Features : Design is cGMP- Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Continuous rotation of ribbon blade, material will make continuous movement motion in the container and reach to uniform mixing and drying at low temperature Dust free operation. High vacuum operation Fast and uniform homogeneous mixing & draying at low temperature. Solvent recovery Continues vacuum maintain during process. Very low value of final moisture even at low drying temperatures. Option for two type design of shell 1. Cylindrical type and 2. "U" shape. Continues vacuum maintenance during process. Vacuumized closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle. Rapid & Complete discharge / Zero holdup after discharge Heating media can be used steam/ hot water / hot oil.

We manufacture of pneumatic systems and support equipment for conveying, weighing and batching of dry materials inclduding Vacuum Conveying Systems for Bulk Dry Powders , Vacuum Conveying System: Direct Charge Blender Loading , Mobile Vacuum Conveying Systems ,Potassium Permanganate & Dry Chemical Vacuum Conveying , Vacuum Conveying Systems , Batch Weighing Systems , Bulk Bag Unloader , Bulk Bag Loader ,Bag Dump Stations , Bag Compactors ,Flexible Screw Conveyors , Aero-Mechanical Conveyors , Industrial Vacuum Cleaners, Central Vacuum Systems with output available up to 5000 kg per hours. More than 100 models different types of vacuum transfer system for powder , pharmaceutical vacuum transfer system , powder transfer equipment, vacuum conveying system and design, vacuum conveyor belt system , vacuum transfer chemistry, vacuum conveyor design, pneumatic powder transfer system ,vacuum system, mobile vacuum system, centralized vacuum system ranging form R&D to high speed commercial model of single & three phase with instrumentation and automatic weight control models. Many new capabilities were built for the Domestic & International Customers with successful installation & services.

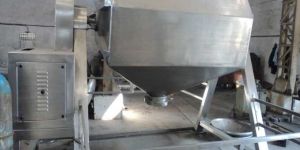

We offer many different model and customer is find with different name like octagonal blender, pharmaceutical octagonal blender, industrial octagonal blender, steel octagonal blender, stainless steel octagonal blender, pharma octagonal blender, automatic octagonal blender, STD octagonal blender, GMP octagonal blender, chemical octagonal blender, octagonal blender, pharmaceutical octagonal blender, octagonal blender manufacturer, pharmaceutical octagonal blender supplier, octagonal blender manufacturers, pharmaceutical octagonal blender manufacturer, octagonal blender exporter, pharmaceutical octagonal blender manufacturers, octagonal blender exporters, pharmaceutical octagonal blender exporter, octagonal blender supplier, pharmaceutical octagonal blender exporters, octagonal blender suppliers, pharmaceutical octagonal blender suppliers, octagonal blender wholesale, pharmaceutical octagonal blender wholesale, wholesale octagonal blender, wholesale pharmaceutical octagonal blender. Application & Process : Blenders are used for mixing, lubricating and blending in Pharmaceutical, Nutraceutical, Food, Chemical, cosmetics, ceramics, pesticide, plastics and other Allied industries. The octagonal shape blenders have six corner of product container for more tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the blender drum. The octagonal blender is tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity. salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All Product contact parts AISI 316 & non contact parts AISI 304. Octagonal shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch. Available Capacity model in octagonal blender 25 kg to 5000 kg batch size. Enclosed rigid drive with reduction gear box and motor. "A" type rigid structure of the machine with two sides resting of product container. Product container having discharge with butterfly valve and man hole. Charging hole with hinged lid with seal for charging and cleaning. Safety reeling provided for rotating area of product container. Fixed baffles provided for lumps braking. Electric controls panel with cycle time. Optional Features : Charging Option: Loading & Unloading by Product container with Jacking trolley. Vacuum conveying system. Bin loading by hydraulic hoist. Rotary intensifier with AC variable drive. Variable speed for product container by VFD. PLC Controls with HMI touch screen, Flame proof motor and Push Button station. Inline milling and loading with vacuum transfer systems. Safety Features : Safety reeling with limit switch. Overload protection and emergency stop.

The Mass Mixer is designed for uniformly mixing of dry and wet material and especially suitable for powder of Pharmaceuticals, Food, Herbals, Agro Chemicals & Chemicals. The mass mixer consists of a rigid fabricated structure motor, gear box, mixing drum, stirrer and tilting device. Specially designed self adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into the mixing drum. The material under mixing process can be monitoring through acrylic dust cover and its controls dusting and contaminations. The tilting device is provided to make easy the unloading of the material and easy cleaning of the mixing drum. salient Features : Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316 & non contact parts AISI 304. Uniform Mixing with paddle blade stirrer. Self adjusting sealing arrangement to avoid entire black particles. Tilting device for easy unloading and cleaning. The interlocked acrylic covers of product container, enclosed drive & Overloads relay protection. Optional Features : Flame proof electric. Safety Features : Total drive transmission system enclosed Limit switch installed in the top lid ensure lid is closed Overload relay Protection.

IPC BIN / IBC containers 300L, 400L, 600L, 800L, 1000L , 1200 L, 1500 Ltr or can be customized according to customer's requirements. Intermediate Bulk Container is one of the most popular shift-Ing containers used in the producing flow of solid dosage. Different process-Ing crafts for solid materials can be operated in the same container. The frequents charging and discharging of material are reduced and thus avoids the Dust and cross pollution. It's in conformity with GMP requirements IBC CONTAINERS FEATURES : It's made of Austenitic stainless steel. All angles are cambered. There is No dead angle, no concave-convex face and no screw on surface. The surface Outside and inside is polished to high quality. Roughness degree inside is Ra0.2μ M, and outside is Ra 0.4μ M. Applying sealing appliance made of sili-Con latex on the cover to gain good airproof quality. Tailor-made butterfly valve with No dead angle, no remnant, and appliance which is against wrong way Operation and easy to dismantle and clean. It's in conformity with GMP Requirements. SALIENT FEATURES : Capacities available from 60 Ltrs. To 1200 Ltrs. Available in cylindrical as well as square polygon shape. cGMP construction with SS 316 contact parts. Sanitary design offers easy cleaning. Antistatic leg pads Interior and exterior welds ground to smooth finish and flush to mirror finish. Outlet butterfly valve for ease in discharging the stored materials. Tailor made construction available on demand.

Drum/ Barrel mixer is staple machinery used in pharmaceutical and chemical industry. Drum mixers are highly efficient mixing equipment used for mixing of powders. These mixers have gallon drums which rotate in order to mix powder. The mixing process involves loading the material into the drum, which is secured in a hoop and rotated thereafter. This equipment is very useful for mixing of ingredients or raw materials to be dispatched in barrels. Unlike other mixers, this mixer does not have any internal moving parts like blades or impellers; so the mixer avoids deterioration of material from friction-induced heating, since the drum has no dead space, so the material is uniformly blended. The drum mixers are powered by pneumatic or electric motors and available in various sizes. These mixers are configured in such a manner so that proper mixing and quality control of the end product is attained. salient Features : Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316 & non contact parts AISI 304. Available Capacity: 100 kg and 200 kg. This is a closed and contained system for blending and store. Main advantage of this system is that it is totally dust free. Controls panel with Cycle timer. Totally dust free. Option for Variable speed. Safety Features : Interchangeable Product Container AC Frequency variable drive for product container. PLC Controls with HMI touch screen, Flame proof motor and Push Button station.

Blenders are used for mixing, lubricating and blending in Pharmaceutical, Nutraceutical, Food, Chemical, cosmetics, ceramics, pesticide, plastics and other Allied industries. The Double shape blenders have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity. salient Features : Design is cGMP - Current Good Manufacturing Practices compliance. All Product contact parts AISI 316 & non contact parts AISI 304. Double Cone shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch. Available Capacity model in octagonal blender 25 kg to 2500 kg batch size. Enclosed rigid drive with reduction gear box and motor. "A" type rigid structure of the machine with two sides resting of product container. Product container having discharge with butterfly valve and man hole. Charging hole with hinged lid with seal for charging and cleaning. The product container rotates on sped 8 RPM. Safety reeling provided for rotating area of product container. Fixed baffles provided for lumps braking. Electric controls panel with cycle time. Optional Features : Charging Option: Loading & Unloading by Product container with Jacking trolley. Vacuum conveying system. Bin loading by hydraulic hoist. Rotary Intensifier with AC variable drive. AC Frequency variable drive for product container. PLC Controls with HMI touch screen, Flame proof motor and Push Button station. Inline milling and loading with vacuum transfer systems. Safety Features : Safety reeling with limit switch. Overload protection and emergency stop.

Tumbler blenders or IBC Container tumblers are used mainly for blending of dry powders for tablet production and capsule, which facilitates better flow for tablets and capsules. This is a closed contained, totally dust free single step transfer system. It can handle more than one size of IBC container tumblers. In granulation room the dry granules enter to the IBC container for blending through a dust free connection and the same IBC container is loaded over to the blender for blending. The IBC bin locked in the resting frame in 15° then lifted by hydraulic system to up ward for moving height after that the IBC bin rotates for blending. This same IBC container after blending raised over the tablet press for unloading in to the tablet press hoppers. salient Features : Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316 & non contact parts AISI 304. IBC Bin Blender for Ideal dry mixer for lubrication of granules and homogenization mixing and conveying of the material to further process. Interchangeable different capacity IBC Bin can be used on same machine use for mixing. This is a closed and contained system where by a single step transfer material from Container of the Conta blender is transferred to the tablet press hopper. In granulation room the dry granules enter to the container for blending through a dust free connection and the same container is loaded over to the blender for blending Totally dust free. Also another advantage is adaptability of this system to handle more than one size of bunkers or containers so processing of different sizes of production batches in single equipment. Enclosed rigid drive with reduction gear box and motor in the machine pillar structure. Hydraulic power pack system for lifting of product bin for mixing. A suitable reeling around the cage with one entry point for the bin on detachable trolley The charging hole with cover is provided on top with quick opening and closing arrangement with dust proof joints for particle free transfer. IBC Bin having discharge with butterfly valve and trolley for easy mobility. Electric controls panel with cycle time Optional Features : Interchangeable Product Container AC Frequency variable drive for product container. PLC Controls with HMI touch screen, Flame proof motor and Push Button station. Safety Features : Limit switch. Overload relay protection & Emergency stop button.

Certification : ISO 9001:2008

Feature : Fine Finishing, Hard Structure,CGMP Compliance,Ideal Dry Mixer For Lubrication Of Granules,Homogenization Mixing And Conveying Of Material,Closed And Contained System For Single-step Transfer,Adaptability To Handle Multiple Sizes Of Containers,Enclosed Ri

Pattern : Plain

Capacity : 200-300ml

Thickness : 5-7mm

Appearance : Antique

Country of Origin : India

Type : Tumbler Blender

Material : Stainless Steel

Packaging : Box

Application : Blending Dry Powders For Tablet Production And Capsules

Bowl Lifting and Tilting Device is the well-designed device that assists in saving space in bakeries. It allows efficient discharge of bowls, thus making the complete process smooth and simple. The advantage of offered equipment include easy and convenient maintenance procedures, options for lifting as well as discharging bowls at different heights (as per bakery's requirements) and for allowing bowl to be tilt either to left or right as per bakery's specific requirements. The available options with the Bowl Lifting and Tilting Device equipment include different supports as well as clamping eyes for lifting as well as discharging two/three different bowls. THE TECHNICAL SPECIFICATIONS OF BOWL LIFTING AND TILTING DEVICE DP-1 comprise Load capacity (K) of 700, Installed power of ( Kw) 1.5, Connecting Voltage of 3 ph 415 V, 50 Hz and dimensions availability in (mm) 2860, 2400, 3770, 1600 and 1200. Further, the system is available in weight (kg) of 900 and come with features like easy and convenient maintenance procedures, options of lifting and discharging bowls at different heights, options of bowl to be tilted either to left or to right, different support as well as clamping eyes for lifting and discharging two/three different bowls. TIPPER- LIFTING & TIPPING DEVICE : It is on equipment operated hydraulically or mechanically for lifting and tipping FBD Bowl loaded with dried granules. Content of the Bowl is transferred smoothly to granulating equipment and through it to a BIN or on IPC container. It provides completely dust free operation and eliminates tedious scooping or manual handling. The process consists of bringing the FBD Bowl beneath the Tipper. The inverted cone of the Tipper is lowered so that the brim flange of the bowl touches the brim flange of the inverted cone. Both ore then clamped together with quick fixing clamps. The whole assembly is raised hydraulically to the required height and then rotated mechanically to 1 80 degree on Ms axis and lowered to a suitable height to align with the receiving container / equipment. The discharge point cone is fitted with an Iris / Butterfly valve by operating which the contents are discharged to Multi Mill or a sifter cum Multi Mill as per the process requirement. The flanged cone and the valve is of S.S.316 /304 malarial, as required. The bottom and the complete drives are covered with highly polished S.S.304 sheets to impart a cGMP finish. SALIENT FEATURES : Stainless steel lift yoke with integral Gearbox for rotation of discharge cone and container. Discharge cone clamps ore made of stainless steel with ease of secure, clamping design. Control cabinet is in powdered coated in M.S. and is tight, complete with hydraulic power pack and electric control. Complete fail safe design. Conforms to latest cGMP Standards. Discharge cone is fitted with a butterfly valve. The MOC is SS316/304. Standard power pack with safety features. OPTIONAL FEATURES : Free standing unit. Hydraulic/Pneumatic/Mechanical design. Adjustable stop. Additional lift column height. Double Column For heavier loads. Imported power packs. Hydraulic arrangement for tilting. 1800-SWIVELcolumn. Pneumatically actuated valve. Single cone for 2 sizes of FBD Bowl with adaptor.

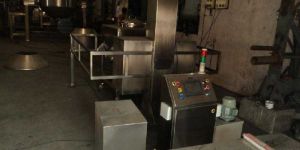

Bin blenders or Container tumblers are used mainly for blending of dry powders for tablet production and capsule, which facilitates better flow for tablets and capsules. This is a closed contained, totally dust free single step transfer system. It can handle more than one size of container tumblers. In granulation room the dry granules enter to the IBC container for blending through a dust free connection and the same IBC container is loaded over to the blender for blending. The IBC bin locked in the resting frame in 15° then lifted by hydraulic system in 15° inclined position after that the IBC bin rotates for blending with 3 dimension action. This same container after blending loaded over the tablet press for unloading in to the tablet press hoppers. salient Features : Design is cGMP - Current Good Manufacturing Practices compliance All Product contact parts AISI 316 & non contact parts AISI 304. IBC Bin Blender for Ideal dry mixer for lubrication of granules and homogenization mixing and conveying of the material to further process. Available Capacity model in octagonal blender 25 kg to 5000 kg batch size. Interchangeable different capacity IBC Bin can be used on same machine use for mixing. This is a closed and contained system where by a single step transfer material from Container of the Conta blender is transferred to the tablet press hopper. In granulation room the dry granules enter to the container for blending through a dust free connection and the same container is loaded over to the blender for blending Totally dust free. Also another advantage is adaptability of this system to handle more than one size of bunkers or containers so processing of different sizes of production batches in single equipment. Enclosed rigid drive with reduction gear box and motor in the machine structure. Hydraulic power pack system for lifting of product bin for mixing. A suitable reeling around the cage with one entry point for the bin on detachable trolley The charging hole with cover is provided on top with quick opening and closing arrangement with dust proof joints for particle free transfer. IBC Bin having discharge with butterfly valve and trolley for easy mobility. Electric controls panel with cycle time Optional Features : Interchangeable Product Container AC Frequency variable drive for product container. PLC Controls with HMI touch screen Flame proof motor and Push Button station. Safety Features : Limit switch on entry door to prevent the accidental operation of the cage Overload relay protection & Emergency stop button.

Stainless steel grades - aisi 201, 202 - aisi 301, 302, 303, 304, 304l, 310, 310s, 304h, 304hs, 316, 316l, 316ti, 317, 317l,321, 347 - aisi 410, 416, 420, 430, 431 - w.nr 1.4301, 1.4306, 1.4401, 1.4404, 1.4571, 1.4541, 1.4006, 1.4021, 1.4016, 1.4057.

Shree khodal industrial company is the leading manufacturer exporter of stainless steel plates in india. We provide stainless steel plates in different sizes. All the stainless steel sheets manufactured by us are designed in different way by having a clear picture of its utility in different industries. Stainless steel plates also carries resistance properties, as they have high resistance to heat, rust, stains and corrosion.
