Sun Engineering Services Odhav, Ahmedabad, Gujarat

The Industries that benefit Chemicals and Fertilizers, Refineries, Petrochemicals, Power stations, Steel Plants, Cement Plants, Pharmaceuticals, Industries, Pesticide Industries, Food Industries, Textiles, Paper and Pulp Industries,Sugar Plants, Municipalities, Corporations, Townships, Water Boards, Theme Parks, Hotels, Apartment Complexes, etc . We manufacturing wide range of chlorinator and accessories Vacuum feed type gas chlorinator Capacity range from 100 gms /hr to 10 kg/hr . Simple Design, Easy to Operate and Efficient Performance Principle of OperationMotive Water (water at high pressure) passes through the injector to produce vacuum. This vacuum extends upto remote Vacuum Regulator. The chlorine gas received (from Tonners / Cylinders or Chlorine Evaporators) under pressure is reduced to a lower pressure by Pressure Reducing Value and to a constant vacuum at the RVR. The gas under vacuum passes through a Rotameter and Flow Control Valve where the rate of flow can be control by manual or automaticFlow Meter Indicates Directly the flow Chlorine gas in terms of Grams/kilograms per hour. Made of Borosilicate glass and calibrated for 0.1, 0.2, 0.5, 1,2,3,5,6 10, kgs/hr Accuracy is +- 2 TO 4% of indicated flow. Safety Valves - The system is provided with Pressure Relief Valve. Vacuum Relief Valve, Check Valve and Emergency Drain Relief Valve.Flow control valve Manual control valve for manual chlorinator Electical actuator with flow control valve for automatic chlorinator InjectorThere are two type of Injector Fixed-throat Variable – throat types. Variable orifices can be provided along with throttle valve for capacities above 30 Kgs/hr thereby reducing water consumption to a minimum.MOC :- PVC/PVC FRP/ Cast Iron Rubber Lined / Mild Steel Rubberlined AND Stainless steel 304,316Material supplied with system Roller support Yoke Auxiliary container valve Copper tube Manifold valve Manifold (header line ) for one ,two , three , and four tonners. Pressure gauge with isolation valve Pressure reducing valve Remote vacuum regulator Flow meter Flow control valve Pressure relier valve Vacuum relief valve Injector Check valve with emergency drain valve.

Number Of Flower : Wall Mounted

Driven Type : Electric

Application : WTP & STP

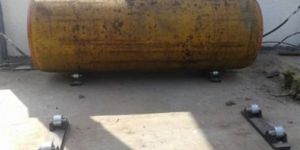

These help in the proper placement of tonners and to rotate the ton container easily for positioning the gas valves.

Number Of Flower : Roller Support

Material : Iron, Metal

Application : Industrial

Feature : Corrosion Resistance, Heavy Weight Bearing Capacity, High Quality, Non Breakable

Finishing : Polished

Technics : Yellow Zinc Plated

These help in the proper placement of tonners and to rotate the ton container easily for positioning the gas valves

Number Of Flower : Industrial Roller

Material : Metal

Feature : Durable Construction, Facilitates Easy Rotation

Application : Industrial, For Ton Containers

The Industries that benefit Chemicals and Fertilizers, Refineries, Petrochemicals, Power stations, Steel Plants, Cement Plants, Pharmaceuticals, Industries, Pesticide Industries, Food Industries, Textiles, Paper and Pulp Industries,Sugar Plants, Municipalities, Corporations, Townships, Water Boards, Theme Parks, Hotels, Apartment Complexes, swimming pool water distubution system etc. We manufacturing wide range of chlorinator and accessories Vacuum feed type gas chlorinator Capacity range from 100 gms /hr to 5 kg/hr . Simple Design, Easy to Operate and Efficient Performance Principle of OperationMotive Water (water at high pressure) passes through the injector to produce vacuum. This vacuum extends upto Vacuum Regulator. The chlorine gas received (from Tonnes / Cylinders under pressure this regulator is in build regulating system when we control the flow of chlorine through flow control valve the pressure regulate automatic and gas flow through a Rotameter to injector where chlorine and water mixes .Flow Meter Indicates Directly the flow Chlorine gas in terms of Grams/kilograms per hour. Made of Borosilicate glass and calibrated for 0.1, 0.2, 0.5, 1,2,3,5,6 10, 15, 20, 25, 30, 40, 50, 75, 90, 110, 150, 200, 250 kgs/hr. Accuracy is +- 2 TO 4% of indicated flow. Safety Valves - The system is provided with Pressure Relief Valve. Vacuum Relief Valve, Check Valve and Emergency Drain Relief Valve.Flow control valve Manual control valve for manual chlorinator Electical actuator with flow control valve for automatic chlorinator Injector- Fixed-throat MOC :- PVC/PVC FRPMaterial supplied with system Roller support for tonner only Yoke Vacuum regulator Flow meter Flow control valve Injector Check valve with emergency drain valve.

Capacity : 100gms/hr to 5 Kgs/hr of chlorine

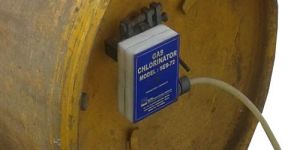

Number Of Flower : Tonner Mounted

Accuracy : + - 4% of Max Flowmeter capacity

Country of Origin : 240 V AC or 24 V DC

Power : Hydraulic

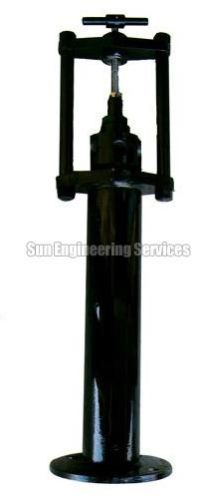

Telescoping valves are designed to control the height of liquid within a pond,reservoir, or other holding chamber. In modern sewage treatment facilities,  water treatment plant one specific use is to control the level of effluent in settling basins. Also called Decanting Valves or Sludge Draw-off Valves, the assembly consists of a drain tube which can slip up and down inside a stationary vertical pipe. Through a lifting device, the tube is raised and lowered to maintain the desired level within the chamber.

Number Of Flower : Telescoping Valve

Material : Carbon Steel

Specialities : Adjustable Height, Control Liquid Level, Slip-up Drain Tube

Usage : Sewage Treatment, Water Treatment Plants

We are engaged in the process of making available high quality Telescopic Sludge Valve. The range of Telescopic Sludge Valve made available by the company offers the features of durability and efficiency. We make Telescopic Sludge Valve available at the best prices in the market today. Our range of Telescopic Sludge Valve is designed to be useful for various industrial applications. Highlights Well-designed Durable Low maintenance requirements Highly efficient

Material : Metal

Finishing : Polished

Media : Liquid

Number Of Flower : Telescopic

Total Carbohydrate : 1 Year

Number Of Flower : Swimming Pool Filters

Material : Microfiber, Plastic, Polyester, Polypropylene

Shape : Round

Application : Filter Use

Length : 10inch, 20inch

Availability : 100-150gm, 150-200gm, 200-250gm250-300gm300-350gm

Outside Diameter : 30-32mm, 32-34mm, 34-36mm, 36-38mm, 38-40mm

Brand Name : Adwyn, Hydrise, Memento, Shell Water, Soft-Tech

Inside Diameter : 20-22mm, 22-24mm

Country of Origin : 220V AC

Sun Engineering Service manufactures Evaporators for Chlorine, Sulphur Dioxide and Ammonia. The capacity ranges are from 20 kgs/hr to 3000 kgs /hr. Evaporators are classified into two categories depending on type of energy used for vaporizing, namely Electrically heated Evaporator Capacity 200 KG/HR MAX Steam heated Evaporator Capacity 3000 KG/HR MAX VAPOURIZER is of heavy duty construction with all pressure parts in contact with chlorine liquid or gas of extra heavy pipe with a minimum of 3 mm corrosion allowance on chlorine side and 1.5mm corrosion allowance on steam side.Operating principleIn operation the liquid is introduced through liquid inlet which is piped to the bottom of the vapourizer tube by a dip pipe. Here the liquid rises to contact sufficient surface to supply vapour demand rate. After equilibrium is reached vapourizer operates at essentially liquid line pressure As gas demand is reduced. Vapourizer pressure raises, reducing the flow of liquid feed. On sudden shut down of gas valve, liquid Would be forced out of vaporizing chamber back to the container.With evaporation the vapour raises through the vapour baffle to the super heating chamber. Enters the indicated parts of the suction trap and leaves through the gas outlet.The steam chamber has nipple connections for steam inlet condensate outlet pressure gauge and pressure relief valve, insulation on shell must be done by the client.Design Temperature & Pressure for Tube.The evaporator tube is constructed of specified materials for 64.5 kg/cm² (920 psi ) pressure and 120 °c (250 °f ) temperature. Flanges are of class 300 ( ANSI B 16.5 – 1968 ) and the pipe is of sch 80 (ASA B 36.10 – 1950).Hydraulics Test Pressure for Tube102 kg/cm². (1450 psi ) as per ANSI B 16.5 – 1968.Description of Steam Heated Vapourizer Two numbers single tonner connection manifold are provided. When first tonner is getting empty, second tonner line will open automatically through inter lock system for which 3 – way ball valve with electric actuator (8) and pressure switches (6) are installed for auto operation chlorine tonner valve and corresponding valves should be kept open. Note :- before admitting liquid chlorine to vaporizer system. Steam shall be admitted first. So that vaporizer body will be heated and ready to receive liquid chlorine. The steam pressure shall be 1.0 kg/cm² unless steam pressure is available in vaporizer steam chamber. Automatic shut off valve (8) on manifold and auto shut off valve (19) on chlorine gas line will not open so that flooding of liquid chlorine is avoided .from manifold liquid chlorine will be fed to vaporizer through dip pipe. As soon as liquid chlorine is fed, gas is formed . please note that chlorine gas coming out will be at least 3 to 5°c above room temperature. The chlorine gas coming out of vaporizer passes through chlorine gas filter (16) where all impurities like ferric chloride will be trapped. The filtered gas will pass through automatic shut off valve (19) which is inter locked with pressure switch on steam chamber. As the gas reaches pressure reducing valve where chlorine gas pressure will be reduced from 8 kg/cm² to 0.5 to 3 kg/cm². the outlet of pressure reducing valve is taken to system bye oass valves (17) are provided in case pressure reducing valve is taken for maintenance. Excess pressure:-Chlorine vaporizer should be equipped with pressure relief valve to protect the system against rupture spring loaded safety valve are combined in series with a frangible disc ( rupture disc). The rupture disc is 19 to 21 kg//cm² rupture pressure. Because of this pressure relief valve opens when reupture disc burst vent connection shall be taken to chlorine absorption system. Expansion chamber on liquid chlorine line:During operation incase automatic shut off valve closes pressure will be developed in liquid chlorine line. In order to reduce the pressure in the line expansion chamber with rupture disc is provided. The repture disc bursts at 19 to 21 kg/cm² and liquid chlorine enters empty cylinder. Because of this action pressure in the line reduces.

Material : Steel

Feature : Durable, Easy To Use, Light Weight, Rust Proof

Driven Type : Electric

Application : Industrial

• Safety Shower and eyewash operates independently by pull rod and push lever Automiser heads : Twin soft flow automiser head which has aerators to control the stream straightness and diameter, thus reducing splash by aerating the stream. It also controls to save water and reduce energy costs. The twin flow has cover which protects from dust and opens with water pressure.

Number Of Flower : Pressure Filter

Certification : ISO 9001:2008

Condition : New, Used

Power : 1-3kw, 3-6kw, 6-9kw

Total Carbohydrate : 1year

Frequency : 50-60 Hz

Number Of Flower : Lifting Beam

Application : Industrial

Certification : CE Certified, ISO 9001:2008

Application : Construction, Industrial

Feature : Capable For Load, Customized Solutions, Easy To Use, Heavy Weight Lifting

Condition : New, Used

Power : 100-300bhp

Surface Treatment : Painted, Powder Coated

Load Capacity : 10-15tons, 15-20tons, 20-25tons, 25-30tons, 30-35tons

Total Carbohydrate : 1year, 2years

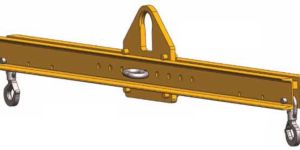

The Lifting Beam Is Very Essential For Safe Handing Of Chlorine Container The Lifting Beam Can Also Be Fitted With Crane Weighing Scale To Weigh The Chlorine Ton Container

Number Of Flower : Lifting Beam

Material : Metal

Feature : Can Be Fitted With Crane Weighing Scale

Application : Safe Handling Of Chlorine Containers

The Lifting Beam Is Very Essential For Safe Handing Of Chlorine Container The Lifting Beam Can Also Be Fitted With Crane Weighing Scale To Weigh The Chlorine Ton Container

Application : Industrial

Feature : Capable For Load, Easy To Use, Heavy Weight Lifting, Strong

Automatic Grade : Hydraulic, Mechanical

Surface Treatment : Painted

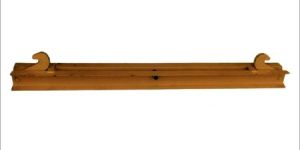

Number Of Flower : Lifting Beam for Chlorine Tonner

Automatic Grade : Automatic, Fully Automatic, Semi Automatic

Driven Type : Electric

Capacity : 50T/Hr

Capacity : 500 - 1, 00, 000 LPH

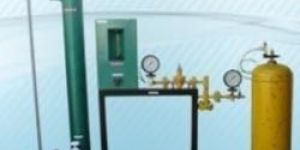

The Industries that benefit Chemicals and Fertilizers, Refineries, Petrochemicals, Power stations, Steel Plants, Cement Plants, Pharmaceuticals, Industries, Pesticide Industries, Food Industries, Textiles, Paper and Pulp Industries,Sugar Plants, Municipalities, Corporations, Townships, Water Boards, Theme Parks, Hotels, Apartment Complexes, etc . We manufacturing wide range of chlorinator and accessories Vacuum feed type gas chlorinator Capacity ranges from 100 Gms/hr to 250 Kgs/hr of chlorine. Simple Design, Easy to Operate and Efficient Performance

Country of Origin : 380V

Power : 9-12kw

Number Of Flower : Gas Chlorinators

Certification : CE Certified, ISI Certified

Country of Origin : 220V

Condition : New, Old

Frequency : 50Hz, 60Hz

Power : 1Kw, 3Kw, 5Kw

Driven Type : Electric

Feature : Auto Controller, Dipped In Epoxy Resin, Durable, High Performance, Stable Performance

Phase : Double Phase, Single Phase, Three Phase

Total Carbohydrate : 1Yr, 2Yrs

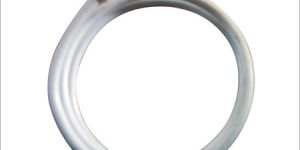

FLEXIBLE COPPER CONNECTOR – OFFERING POSITIVE CONNECTION BETWEEN TONNER AND THE MANIFOLD VALVES

Number Of Flower : Flexible Copper Connector

Material : Copper With PVC Coating

Feature : Positive Connection Between Tonner And Manifold Valves

Packaging Type : Industry Standard Packaging

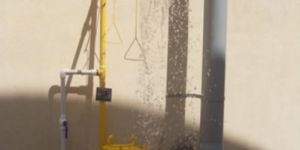

Description Safety Shower and eyewash operates independently by pull rod, hand push lever and foot lever Shower - Extra large drench shower head made of highly visible yellow ABS plastics Pipe - ISI marked GI pipe with powder coating for anti-corrosion Valve - SS stay open ball valve with yellow ABS push plate Bowl - Receptor bowl made of ABS and highly resistant to acid, alkali and oil among others. Automiser heads - Twin soft flow automiser head which has aerators to control the stream straightness and diameter, thus reducing splash by aerating the stream. It also controls to save water and reduce energy costs. The twin flow has cover which protects from dust and opens with water pressure Activation - For shower – Pull rod; For eyewash – Push plate/ Foot paddle Water inlet and drain - 1-1/4 inches BSP Standard - IS- 10592:1982

Number Of Flower : Safety Shower

Material : Stainless Steel

Finishing : Polished

Feature : Good Quality, Hard Structure, Rust Proof

Finishing : Color Coated

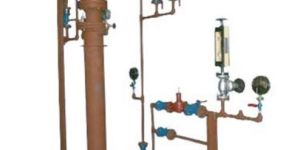

SUN ENGINEERING SERVICE manufactures Evaporators for Chlorine, Sulphur Dioxide and Ammonia. The capacity ranges are from 20 kgs/hr to 3000 kgs /hr. Evaporators are classified into two categories depending on type of energy used for vaporizing, namely Electrically heated Evaporator CAPACITY 200 KG/HR MAX Steam heated Evaporator CAPACITY 3000 KG/HR MAX VAPOURIZER is of heavy duty construction with all pressure parts in contact with chlorine liquid or gas of extra heavy pipe with a minimum of 3 mm corrosion allowance on chlorine side and 1.5mm corrosion allowance on steam side.x   Operating principle In operation the liquid is introduced through liquid inlet which is piped to the bottom of the vapourizer tube by a dip pipe. Here the liquid rises to contact sufficient surface to supply vapour demand rate. After equilibrium is reached vapourizer operates at essentially liquid line pressure As gas demand is reduced. Vapourizer pressure raises, reducing the flow of liquid feed. On sudden shut down of gas valve, liquid Would be forced out of vaporizing chamber back to the container. With evaporation the vapour raises through the vapour baffle to the super heating chamber. Enters the indicated parts of the suction trap and leaves through the gas outlet. The steam chamber has nipple connections for steam inlet condensate outlet pressure gauge and pressure relief valve, insulation on shell must be done by the client. Two numbers single tonner connection manifold are provided. When first tonner is getting empty, second tonner line will open automatically through inter lock system for which 3 – way ball valve with electric actuator (8) and pressure switches (6) are installed for auto operation chlorine tonner valve and corresponding valves should be kept open.Note :- before admitting liquid chlorine to vaporizer system. Steam shall be admitted first. So that vaporizer body will be heated and ready to receive liquid chlorine. The steam pressure shall be 1.0 kg/cm² unless steam pressure is available in vaporizer steam chamber. Automatic shut off valve (8) on manifold and auto shut off valve (19) on chlorine gas line will not open so that flooding of liquid chlorine is avoided .from manifold liquid chlorine will be fed to vaporizer through dip pipe. As soon as liquid chlorine is fed, gas is formed . please note that chlorine gas coming out will be at least 3 to 5°c above room temperature. The chlorine gas coming out of vaporizer passes through chlorine gas filter (16) where all impurities like ferric chloride will be trapped. The filtered gas will pass through automatic shut off valve (19) which is inter locked with pressure switch on steam chamber. As the gas reaches pressure reducing valve where chlorine gas pressure will be reduced from 8 kg/cm² to 0.5 to 3 kg/cm². the outlet of pressure reducing valve is taken to system bye oass valves (17) are provided in case pressure reducing valve is taken for maintenance. Excess pressure:- Chlorine vaporizer should be equipped with pressure relief valve to protect the system against rupture spring loaded safety valve are combined in series with a frangible disc ( rupture disc). The rupture disc is 19 to 21 kg//cm² rupture pressure. Because of this pressure relief valve opens when reupture disc burst vent connection shall be taken to chlorine absorption system. Expansion chamber on liquid chlorine line: During operation incase automatic shut off valve closes pressure will be developed in liquid chlorine line. In order to reduce the pressure in the line expansion chamber with rupture disc is provided. The repture disc bursts at 19 to 21 kg/cm² and liquid chlorine enters empty cylinder. Because of this action pressure in the line reduces.   DESIGN TEMPERATURE & PRESSURE FOR TUBE. The evaporator tube is constructed of specified materials for 64.5 kg/cm² (920 psi ) pressure and 120 °c (250 °f ) temperature. Flanges are of class 300 ( ANSI B 16.5 – 1968 ) and the pipe is of sch 80 (ASA B 36.10 – 1950). HYDRAULICS TEST PRESSURE FOR TUBE 102 kg/cm². (1450 psi ) as per ANSI B 16.5 – 1968.

Gasket : lead sheet – cut gasket

Gasket : asbestos

Certification : CE Certified

Country of Origin : 220V

Condition : New, Old

Capacity : Electro Chlorinator

Frequency : 50Hz, 60Hz

Power : 1Kw, 3Kw, 5Kw

Driven Type : Electric

Feature : Auto Controller, Dipped In Epoxy Resin, Durable, High Performance, Stable Performance

Phase : Double Phase, Single Phase, Three Phase

Total Carbohydrate : 1Yr

The Industries that benefit Chemicals and Fertilizers, Refineries, Petrochemicals, Power stations, Steel Plants, Cement Plants, Pharmaceuticals, Industries, Pesticide Industries, Food Industries, Textiles, Paper and Pulp Industries,Sugar Plants, Municipalities, Corporations, Townships, Water Boards, Theme Parks, Hotels, Apartment Complexes, swimming pool water distubution system etc.We manufacturing wide range of chlorinator and accessories Vacuum feed type gas chlorinator Capacity ranges from 100 Gms/hr to 5 Kgs/hr of chlorine. Simple Design, Easy to Operate and Efficient Performance Principle of OperationMotive Water (water at high pressure) passes through the injector to produce vacuum. This vacuum extends upto Vacuum Regulator. The chlorine gas received (from Tonnes / Cylinders under pressure this regulator is in build regulating system when we control the flow of chlorine through flow control valve the pressure regulate automatic and gas flow through a Rotameter to injector where chlorine and water mixes .Flow Meter Indicates Directly the flow Chlorine gas in terms of Grams/kilograms per hour. Made of Borosilicate glass and calibrated for 0.1, 0.2, 0.5, 1,2,3,4 and 5, kgs/hr. Accuracy is +- 2 TO 4% of indicated flow. Safety Valves - The system is provided Check Valve and Emergency Drain Relief Valve.Flow control valve Manual control valve for manual chlorinator Electical actuator with flow control valve for automatic chlorinator Injector- Fixed-throatMOC :- PVC/PVC FRPMaterial supplied with system Roller support for tonner only Yoke Vacuum regulator Flow meter Flow control valve Injector Check valve with emergency drain valve.

Number Of Flower : Cylinder Mounted

Frequency : 50Hz, 60Hz

Driven Type : Electric

Flexible Copper Connector – Offering Positive Connection Between Tonner and the Manifold Valves

Number Of Flower : Flexible Connector

Material : Copper

Application : Fittings Use, Pipe Use

Feature : Easy To Connect, Proper Working, Water Proof
