Suryam Filtech Ctm, Ahmedabad, Gujarat

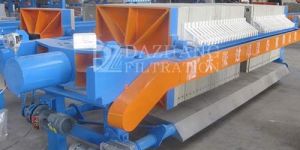

Despite being more expensive, these filters are becoming used more frequently. On the outside, these filter presses look like conventional filters but one of the inner surfaces of each chamber is coated with a polypropylene membrane or a rubber membrane .

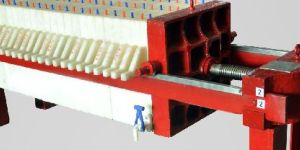

In this type of machine opening & closing of Filter Press is done with the help of screw mechanism , so that why it’s known as a manual filter press. This machine is cheaper in cost and very easy to maintain and operate.

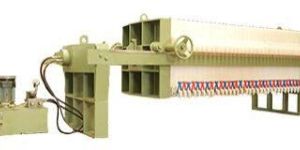

Hydraulic Filter Press is most suitable and user friendly solid and liquid separation equipment for all the industries. This product is mostly used in Dyes & Pigments of Hydraulic cylinder and suitable power pack.

Filter Press Function   Filter Presses in principal are pressure filters in where a filters pack comprising of a series of plates and frames or chamber plates in compressed between one fixed and one movable bulk head on the other end. The filter media is placed between each individual element. A pair of filter plates when closed form a cavity internally covered on all both sides by the filtering medium. Slurry with uniform distribution of finely dispersed solids in liquid is introduced under pressure in this cavity. Liquid passes out and solids with remaining discharged through a closed pipe formed in the plates or is passed out into open channel through externally mounted cocks. Once the filter cake is fully pressed and filtrate trickles out, the cake can be washed to remove any impurities and the cake can be further dried. Thus solid-liquid separation of a slurry is achieved leaving a filter cake in the cavity are directed through specially devised nozzles fitted in the fixed end. Cake which has built in the hollow space between the plates will fall our once the pack is opened.

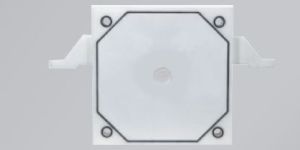

We are contributing our valuable clients an exclusive range of Filter Plate such as Recessed Chamber Filter Press Plates, Round PP Plate, Chamber Filter Plate, Hydraulic Filter Press Plates and Four Corner Plate. These filter plates are manufactured from top quality raw material with the help of latest techniques. The offered filter plates are known for their outstanding features like durability, reliability, robust construction, dimensional accuracy and longer service life. These filter plates are available in various specifications as per the need of clients at reasonable market price. We are the foremost manufacturer and supplier of a supreme quality range of Filter Press Plate. Available in various designs and sizes as per the requirements of clients; these plates are manufactured by our experts using optimum quality raw material and latest technology as per the international standards. Further, these plates are quality tested on defined parameters to ensure reliability.   Features:   High tensile strength Sturdy construction Elevated durability Abrasion resistance   Recessed Chamber Filter Press Plate   Traditional recessed chamber Filter Press operation employs a steady increase in pressure over time as the cake thickness increases, in order to achieve the optimum combination of chamber filling and cake dryness. At a significantly reduced filtrate rate, the filtration is stopped, the press discharged and a new cycle started. Chamber Filter Presses are reliable and robust in many different applications. The plate pack consists of uniform chamber plates with a recess of 15 – 50 mm to receive the filter cake. A chamber plate is a combination of a Filter Plate and two frames in once piece. The standard material for chamber plates is Polypropylene. Possible operating pressures: 6, 15 and 20 bar.   Features:   Accurate dimensions Corrosion resistance High strength Perfect finish

Suryam Filtech provide With the aid of our procuring agents, we have been able to bring quality-approved Filter Press Cloth. Products are fabricate by making use of the optimum quality raw material, obtained from the genuine and trusted vendor in the market. These are manufactured using Non Woven and Woven Filter media. Our product is highly appreciated in industries like beverages, chemicals, food and many other.   Features:   Leak proof High performance High linkage Long lasting durability Chemical resistive

Automatic Filter Press System Company has designed advance featured fully automatic filter press machine which ensures high efficiency to meet all the requirements of industrial needs. This filter press machine is best suitable to dyes & pigments , pharmaceuticals.

Most widely-user friendly filter press Opening & closing is done hydraulic cylinder & power pack assembly Hydraulic cylinder is designed for thefilter press locking instead of ratchet pinion locking   Two types of Hydraulic locking system available Hydraulic cylinder with mechanical lock not pull back type hydraulic cylinder operated by control panel
