Technocraft Industries Limited Odhav, Ahmedabad, Gujarat

  Weaver's beams for SULZER, TOYOTA, DORNIER, TSUDAKOMA, PICANOL, SOMET Looms having flange diameter from 600-1250mm, in single and twin section with driving gear.   Weaver's Beam for Toyota Jat 710 Model Looms Flange Dia - 1000 MM

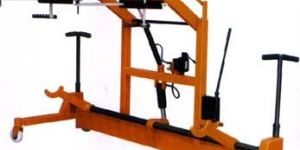

  For lifting single warp beam along with harness frames, warp stop motion serrated bars, drop pins & reed from draw-in stand & to put it on loom. Lifting of beam as well as harness frames will be hydraulic operated. This model is suitable for loom width up to 220 cm & carrying capacity up to 1500 kg.

Features: Compact design. Sensitive working. Longer roller length for strong nip. Best for brood fabric width. Can be used in vertical, horizontal or angular direction. Suitable for use in dry/wet fabrics. Ideal for wide and heavy fabric. For special opplicotion like steam, acid, colour, size -chemical fabric processing machine, the guider supplied with unit - corrosive material parts. Specifications: Fixed roller of 80mm dia, 280 length - Hylom / Stainless steel / Teflon Moving roller of 80mm din, 280mm length - Synthetic rubber / Polyurethane rubber/Stainless steel. Web edge sensing-mechanical by feeler lever. Operating pressure-1 bor. Weight 18 kg/pair.

it Can be used in vertical, horizontal or angular direction. Suitable for use in drywet fabrics. or special opplicotion like steam, acid, colour, size -chemical fabric processing machine, the guider supplied with unit - corrosive material parts.

Features: Minimum Space required for installation. Light weight and compact design. Easily mounted on adjustable type support. Suitable for dry/wet fabrics and for vertical running of fabrics. Ideal for cotton, synthetic fabrics. Easy to exchange the spares.   Specifications: Fixed Roller of 68mm dia, 210mm length - PVC / Hyrum. Moving Roller of 68dia, 210mm length - Synthetic robber. Weight 12 kg

A hand lever operated device with stopper is provided to get To and Fro motion of sliding table with calibration which guarantees the equal, accurate & high production of samples if is Ideal for cutting maximum fabric heap of 50mm & maximum 20 strokes per minute.

Features: Suitable for only dry areas. Steam, moisture, slovens, gas, water may cause accident in this guiders.  Highly recognized performance for printing / making-up machines.  The web edge sensing by feeler lever.  The electrical switching will apply/release the nip pressure on rollers Specifications: Fixed roller of 80mm dia, 280mm length - Hyrum / Stainless steel/ Teflon. Moving roller of 80mm dia, 280mm length - Synthetic rubber/ Polyurethane/ Stainless steel.  Web edge sensing - mechanical by feeler lever.  Operating voltage - D.C. 24 volts.  Roller nip - Electra-magnetic.  Weight 21 kg / pair

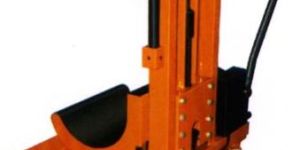

Useful for lifting & transporting the big batch (Cloth Roll) from botching motion / off loom's take-up. Lifting of cloth roll by rigid cradle top. Suitable for cloth roll diameter up to 1250 mm, cloth roll length up to 3000 mm & lifting capacity up to 2000 kg.

For lifting the cloth roll from loom & put it on floor. Suitable for maximum roll diameter up to 600 mm & lifting capacity up to 300 kg.

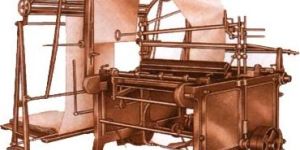

Features:   Very Compact design. Highly productive - Handy to operate. Versatile - able to handle all kind of fabric. Normal height of heap 15" Accurate in measurement. 1 meter plaits. Fabric speed 50 meters per minute. Available in 41" to 144" table size.
