Our company is an eminent name, which is counted among the top Manufacturers, Exporters and Suppliers of Tyre Changer. Only quality approved basic material is used in the manufacturing of our Tyre Changer (T624). It is tested under the supervision of experts so as to ensure accuracy and quality. One can obtain Tyre Changer from us at a very reasonable price.
The enlarged 24” turntabllle is suitable for mountingdemounting more larger and wider tyre, especially for low profile tyre.
The clamping jaws and mounting and demounting head are made of high-quality alloy steel and of scientific structural design which protects steel rim from any damage during operation.
An electro-pneumatic Tyre Changing machine designed to cope with the toughest duties and guarantees maximum efficiency and ensures fitment and removal of tyres (without touching the arm) in the fastest possible time.
Specifications :
Maximum Tyre Diameter
38"
External Rim Clamping
10" - 18"
Internal Rim Clamping
12" - 20"
Drive Motor
55 KW, 3 phase, 415 volts
Rim Width
Max. 10"
Compressed Air Supply
6 - 12 bar
Bead Breaking Pressure
16.5 KN at 12 bar
TC-720 is very attractive and efficient tyre changer in its series. It can be widely used for 12” to 22” Rim Diameter. It can be operate at just 8kg pressure. It is powered by very high torque motor and high force breadth breaker.
Features
High quality Chrome coated turn plate for tyre fitting.
High quality metal clamping jaws.
1 hp motor provided for better torque.
Heavy Metal Body.
Built in pressure gauge with nozzle for air filling purpose.
Breadth breaker cylinder with double acting at high force.
Easy operation of motor, clamp and breadth breaker with paddles.
Vertically and literally adjustable mounting head according to Rim.
Self Centering four jaw plates for correct clamping of Rims.
Mechanical tool lock.

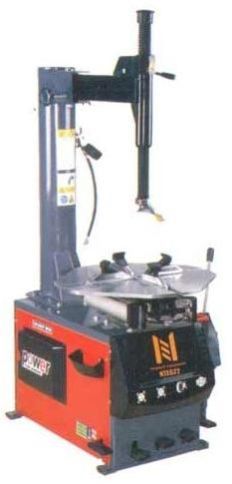

We are engaged in offering a range of Automatic Tyre Changer to our esteemed clients. The Automatic Tyre Changer is widely used in garages and service stations. The Automatic Tyre Changer, offered by us, is fabricated from superior quality materials that ensure durability and long working life. We offer Automatic Tyre Changer as per customersâ requirements with on time delivery.
Technical Data
External Rim Clamping : 10 min. 18 max.Internal Rim Clamping : 10" min. 20 max.Wheel Rim Width : 10"Max. Chuck rotating to torque : 100. 110 KgDrive Motor : 0.75 Kw./1 HP 3 Ph. 415 V or 0.75 Kw. /1 HP 1 Ph.230 VBead Breaker Opening : 13 (325 mm)Max. Wheel dia. : 40" (1010 mm)Bead breaking : 16.5 Kn at 12 Bar.Compressed Air required : 6 to 12 bars.Floor Space (L W x H) : 960 x 730 x 1560 (in mm)Net Weight of Machine : 200 Kgs. Approx.Gross Weight of Machine : 230 Kgs. Approx.
