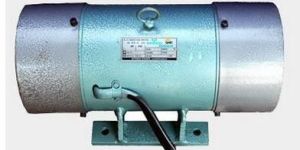

AC Vibrator Motor
We make sure that the packing of our products is done using quality materials and advanced machines. Our packaging experts handle the entire task of packaging keeping in mind the requirements of the clients. We can be trusted for delivering the orders in an efficient manner and that too within the given time frame.

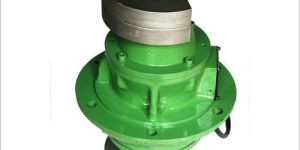

Flange Mounted Vibratory Motor
Application : Industrial Use
Weight : 20-30kg
Voltage : 220V
Power : 1-3kw
Driven Type : Electric
Phase : Single Phase
Current Type : AC
Vibrators Motors
Type : Vibratory Motor
Certification : CE Certified
Application : Industrial Use
Weight : 10-20kg, 20-30kg
Color : Blue
Voltage : 110V
Power : 1-3kw
Driven Type : Electric
Phase : Single Phase
Current Type : AC, DC
Speed : 1000-2000rpm
Country of Origin : India
Vibratory Motors
Detail Unbalance vibratory motor with special tough design is used as drive for the vibrating machines. The applications are feeding, screening, discharging etc. The vibration motors are available in 2800, 1440, 960 and 750 RPM. The special features includes sturdy frame with stiffing ribs, Body Fabricated with high grade ductile iron, Extra-large dia. Of Shaft to resist bending under high centrifugal force, Fitted with heavy duty cylindrical roller bearing, specially varnished winding with terminal box to withstand tough operating conditions, Specially designed electrical parameters for cool operation condition. Vibration motors are available from 0.25 HP to 10 HP in foot mounted design or flange mounted type. Vibration motor are widely used in process plants, Glass, Food, Metal, Coal power plant, Chemical, Ceramic, Iron and steel, Foundries, Packaging industries etc. unbalanced vibratory motor in 2,4,6 or 8 pole design motor available in flange or foot mounted. In brief movable unbalance plates can be adjusting on circumference for easy tracing of the weight which serves oscillation width from zero to maximum.
