We are offering weighing machine loadcell are many type. Like as compression loadcell, regular loadcell, cutsize loadcell, green lable loadcell, weighbridge loadcell, pancake loadcell, cupnball loadcell, double ended loadcell, single ended loadcell, table top loadcell, platform loadcell, jewellery loadcell etc.

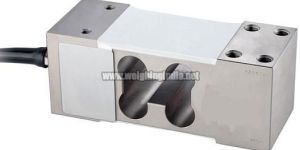

we are a well-known Weighing Scale Load Cell (SS 810) manufacturer, exporter and supplier. Weighing scale load cell, that we offer, is widely used in various industries. Owing to its reliability, accuracy and compactness, the weighing scale load cell is in extensive demand in market.
Features:
Single point capability for platform scale
Low profile
Compact and light weight
Moisture proof sealing
Minimum error for off centre loading
Supports the pan size 1000 x 1000 mm
500 kg. To 3000 kg. Capacities
Application:
Large platform scale
Steel weighers
Temperature Effect on Zero0.017% Full Scale / 10 °C
Temperature Effect on Span0.014% Full Scale / 10 °C
A load cell is a transducer that is used to convert a force into electrical signal. The most common use of this sensor is in weighing machine. Every weighing machine which shows weight has a loadcell as sensing element.
This conversion is indirect and happens in two stages. Through a mechanical arrangement, the force being sensed deforms a strain gauge. The strain gauge measures the deformation (strain) as an electrical signal, because the strain changes the effective electrical resistance of the wire. A load cell usually consists of four strain gauges in a Wheatstone bridge configuration. Load cells of one strain gauge (quarter bridge) or two strain gauges (half bridge) are also available.
The electrical signal output is typically in the order of a few millivolts and requires amplification by an instrumentation amplifier before it can be used. The output of the transducer is plugged into an algorithm to calculate the force applied to the transducer.
Load cells are used in several types of measuring instruments such as weighing scales, universal testing machines.
