ApplicationEOT Crane, Hoists, Material Handling Equipment
Country of OriginMade in India
Normal PositionNormally Open (NO), Normally Closed (NC)
Current Rating10 Amp. up to 500V AC
Warranty12 Months Company Warranty
Application :

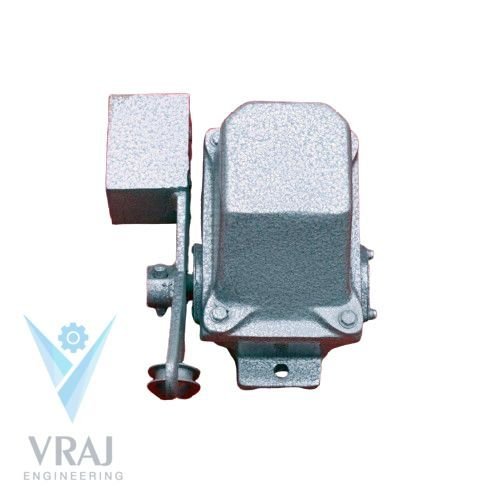

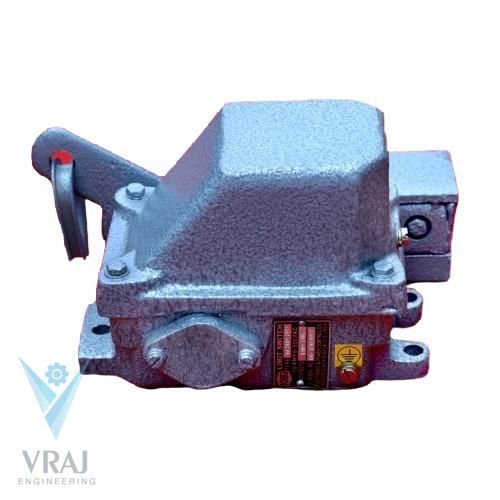

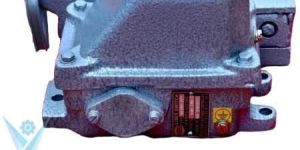

Kakku Limit Switch Series Kls-hd are used to provide electrical on/off signals for over travel of crane hook for safety purposes.
Special Features :
Double Brake contact with high quality Silver Alloy contacts tips.
Provided with specially treated oil resistance rubber gaskets at all the joints in the switch to make it completely dust proof.
Universal design for both AC DC application.
Cams and contact block are high grade phenolic fibrous molding material having excellent electrical and mechanical properties
Resist extreme shock and vibratory conditions.
Ease of maintenance, reliability of performance, flexible contact, long life.
Technical Features:
Operating mechanism - Counter Weight
No. of contacts - 2
Action - Self return by snatch block weight
No of operating Position = 0 - 1
Contact ratings :
Rated voltages - Up to 500V AC or DC
Permissible cont. current - 10AMP
Breaking current - At 110 v DC -2.5 AMP, At 220v DC -1.5AMP, At 440v DC -0.5AMP ,At 500v AC -10AMP.
Contact breaks - Double breaks
Contact tips - Silver cadmium oxide
Electrical life - 1.5 millions operations
Enclosure - IP55
Body - Cast Iron / Cast Al
Mechanical life - 15 millions operation
Ambient Temp. - 55 degree centigrade
Permissible switching - 600 Operations per hour.
