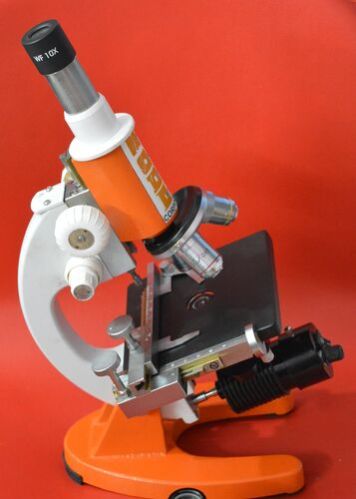

This Compact Reliable Microscope incorporates some of the most effective of MODI Optic Techniques. The Accurate and practical design of this instrument has resulted in a greately enlarged extension of its applications in laboratories, universities and hospitals.Standard Features :
Mechanical tube length of 160 ± 1mm
Fixed square stage 120mm x 120mm with detachable or built in graduated mechanical stage
Dust proff triple revolving nose piece with positive click stops
Focusing by coarse and fine adjustment with scale
Substage Abbe type N.A. 1.25 condenser with iris diaphragm & swing out filter holder focusable by Rack & Pinon
Illumination by plano concave mirror in fork mount
With dust cover dully packed in styofoam case

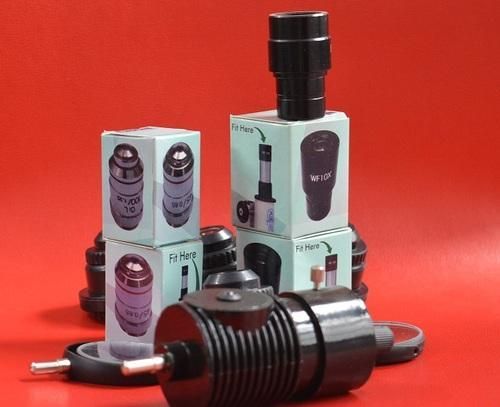

Optional Accessories :

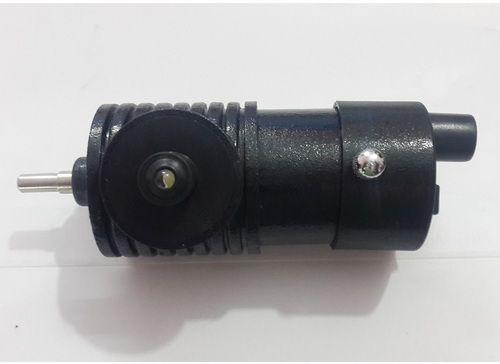

Illumination by sub stage pin type lamp working on 220 volts - 15 watt.
Model - ML-1
Objective-X4, X20, X45 S/L, X60 S/L

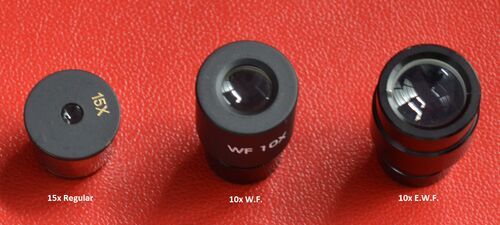

Eye Pieces...:...W.F. 10X
Interchangable 45º inclined Monocular Tube
