Radiation Tolerance100Gy [60Co] (H2O) 104 Rad [60Co] (H2O)
Operating Dose Rate100 Gy/hour (104 Rad/hour)
Range – PanContinuous
Range – Tilt+/-120°
Speed – PanVariable (up to 30°/sec)
Speed – TiltVariable (up to 15°/sec)
Description

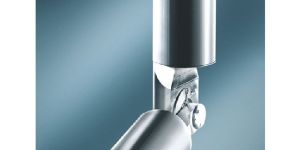

The IST-Rees Mini PTZ Mk2 provides a complete inspection system including a sealed, underwater capable, high performance, pan/tilt/zoom color CCD camera. The camera’s compact housing provides for cable or pole deployment through small openings whilst its unique slip clutch design allows fail-safe retrieval. The integrated high-intensity white LED lighting provides sufficient illumination for most inspection applications. The integrated microcontroller supports many additional features including position feedback, thermal management and also optional radiation dosimetry when the camera is used in radiation environments. An intelligent controller, available in a rack mounted or robust portable enclosure, provides a convenient user-interface to utilize the system’s advanced features.
FEATURES
High-intensity white LED lighting with independently controllable ‘spot’ and ‘flood’ lights
Continuous pan and +/- 120o tilt, each with variable speed which can automatically reduce as thecamera is zoomed in
The compact housing allows deployment through openings as small as 65mm diameter (2.56”)
Outstanding viewing performance achieved by using a high performance CCD module with 10:1optical and 4:1 digital variable speed zoom
Slip clutch for fail-safe retrieval
Position feedback system to provide for preset positioning and adjustable end stops
Temperature sensing to provide for temperature alarms and thermal management
Optional radiation dosimetry
Sealed housing for in-air and underwater operation
Optional high power tracking light for underwater use
S-Video output on rack mounted controller
Rack mounted controller with remote control capability. Or Optional folding case, portable controller with integrated flat screen monitor
APPLICATIONS
Refueling
Reactor Vessel Inspection
Fuel handling equipment maintenance
Fuel Movement
RV head disassembly/reassembly
Reactor internals inspection
Welding Applications
Corrosion Evaluation
Robotics and remote tooling
Control rod drive mechanism inspection
