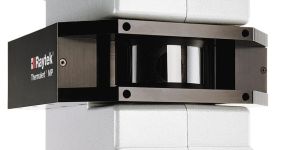

The Raytek MP150 infrared line scanner is designed for use in highly demanding industrial environments and provides accurate temperature images of moving objects. This multi-point measurement is achieved by a rotating optical system, which collects infrared radiation at up to 1024 points within a 90º field-of-view. The motorized mirror scans at rates up to 150 lines per second.
Temperature resolution:< 0,5K (32 Hz), < 1,5 K (256 Hz)

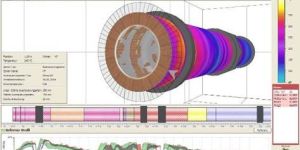

We are offering kiln shell scanner.
The company cmv systems gmbh & co.kg, germany is world leader in the furnace infrared technology measuring with 3.9 âµm. At this time we can point out over 100 installations worldwide in incinerators with grates and fluidized beds, rotary kiln and coal fired power plants. Ir-omt is a preventive tool for rotary kiln to avoid failure of bricks and coating etc. Irt kiln-monitor delivers a comprehensive environment for real-time data acquisition, analysis and process control. Irt kiln-monitor is a full featured computer system that allows you to monitor, process and trace data from several kilns at once.
The software includes scanners control module for real-time temperature acquisition, inputoutput control module, kiln visualization module (for 2d and 3d), thermography analysis module and historical storage module. Its main feature is that it has no moving part, so it requires low maintenance and has high life span. It provides solution for temperature-hot-spots on the kiln-shell, gives information about defects of the kiln brick lining, low-temperature zones within the brick lining range of the sinter zone permit conclusions on beginning of caking inside the rotary cement kiln.
