Allround vegetable processing machine pvt ltd Ambala, Haryana

The Allround vegetable washing machines are designed to operate with a water basin. In this water basin, the water used in the commercial vegetable washer is recirculated to be used again. The washing drum of the machine is designed to agitate produce in the machine. In combination with water, this process gives an optimal cleaning result.

Number Of Flower : Commercial Vegetable Washer

Material : Stainless Steel

Allround Vegetable Processing manufactures a range of skin separators that effectively remove loose pieces, skin, branches, and leaves from produce prior to the washing process. The skin separators work on different density principal, that the product is heavier than the pieces that are to be taken out and therefore separates them. A floating waste is carried out from the machine together either with the stream of water or optionally dirt mill can be integrated on top of the skin separator. Optionally a recirculation tank can be included on demand which receives the used water from the skin separator. In conjunction with the filter belt on top of the recirculation tank, dirt is separated from the used water streamed from the skin separator. Allround standard skin separator comes in a painted mild steel frame with bearings and drive/idle rollers are made of mild steel. However, on demand, it can supplied in stainless steel AISI304, but bearings and drive/idle rollers are of mild steel.

The transport conveyor is designed for conveying. This type of transport belt has high side panels. On demand, the belt can be made of PVC, PU, or rubber. Belts can be supplied with straight and round welded cleats. The shape of the cleats is 15×15. On demand, a cover is mounted on the top and bottom of the machine. This cover can be made from galvanized steel or stainless steel. On demand, a frequency inverter is included to control the speed.

Material : PVC, PU, Rubber, Galvanized Steel, Stainless Steel

The transport belt is designed for conveying. This type is the transport belt with high side panels and inner frame. On demand, the belt can be made of PVC, PU, or rubber. Belts can be supplied with straight cleats and the size of the cleats is 17 x 11 (W x H). On demand, a cover is mounted on the top and bottom of the machine. This cover can be made from zinc steel or stainless steel. On demand, a frequency inverter is included to control the speed.

Material : PVC, PU, Rubber, Zinc Steel, Stainless Steel

Usage : Conveying

The transport belt is designed for conveying. This type is the transport belt with an inner frame. On demand, the belt can be made of PVC, PU, or rubber. Belts can be supplied with straight cleats and the size of the cleats is 17 x 11 (W x H). On demand, a cover is mounted on the top and bottom of the machine. This cover can be made from zinc steel or stainless steel. On demand, a frequency inverter is included to control the speed.

Usage : Conveying

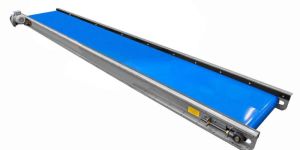

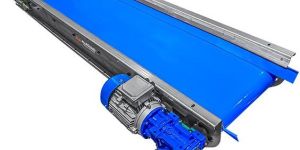

The transport conveyor is designed for conveying. This type is our standard transport belt. On demand, the belt can be made of PVC, PU, or rubber. The belt can be supplied with straight cleats and the size of the cleats is 17×11 (W x H). Produce is fed onto the conveyor and is transported in the direction of belt motion. On demand, a cover is mounted on the top and bottom of the machine. This cover can be made from galvanized steel or stainless steel. On demand, a frequency inverter is included to control the speed.

Number Of Flower : Transport Conveyor

Material : PVC, PU, Rubber, Galvanized Steel, Stainless Steel

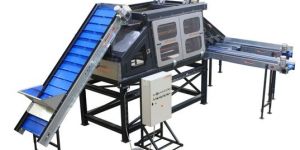

Onion, Potatoes Grading Machine, packing machine manufacturer

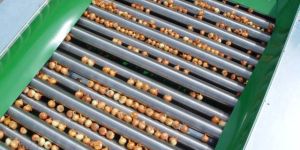

Type : Onion Grading Machine

Application : Onion Grading

Total Carbohydrate : 1 Year

Power : 1-5kw

Brand Name : Allround vegetable processing machine pvt ltd

After-Sales Service Provided : yes

we are world leading manufacturer of Onion, Potato, carrot, beetroot, garlic and other vegetable and fruits grading packing machine also cold storage for Potato and onion

The Allround hydro cooler is designed to cool down the produce, especially carrots, before transportation. Hydro cooling dramatically increases the shelf-life of the vegetables. Allround is able to deliver hydro coolers that are capable of cooling vegetables and other produce from a very low volume, to very large quantities.

Application : Cooling Produce Before Transportation

Capacity : Varies From Low Volume To Large Quantities

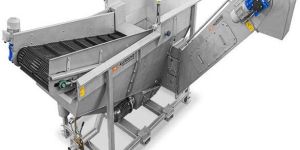

Allround Vegetable Processing manufactures a range of vegetable destoners that effectively remove stones, clods, high-density material, and debris from produce prior to the washing process. Removing stones from produce at the start of the handling process helps prevent damage to produce or equipment caused by stones present throughout the washing and processing line. Allround standard destoner comes in a painted mild steel frame with bearings and drive/idle rollers are made of mild steel. However, on demand, it can supplied in stainless steel AISI304, but bearings and drive/idle rollers are of mild steel. Allround standard destoner comes with an 8 mm spacing rubber coated mild steel 50 mm cleat height product conveyor and a 10 mm spacing mild steel 40 mm cleat height stone conveyor. However, on demand, it can supplied in stainless steel.

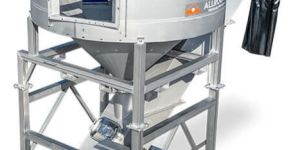

Allround Vegetable Processing cyclone destoner is designed to remove stones and dirt from the produce, using different densities of principal. Produce and stones are fed into a moving well of water in the cyclone destoner cone. The produce floats and is carried along with a rotating current of water, stone, and dirt sink to a stone conveyor at the bottom of the cone. The standard destoner has a stainless steel frame, but the bearing and drive/idle rollers are made of mild steel. The stone conveyor of the destoner is made of rubber. The cleats of the stone conveyor are “V” shaped with 60 mm height. The machine comes in automatic water management where valves and level meter control the pumps and water inlet/drains. If required, the destoner can be on a subframe to accommodate height difference. The subframe can be made from painted mild steel, stainless steel, and galvanized steel. The height of the subframe can vary from 0-3 meters.

Number Of Flower : Cyclone Destoner

Application : Remove Stones And Dirt From Produce

The brushing machine with waved brushes is designed to clean vegetables and potatoes using brushes. The produce is transferred over the brushes and rollers by other produce pushing it from behind, while soil, dust, or skins fall between the rollers. This machine can be only used for dry products. Allround standard brushing machine comes with a frame of painted mild steel. However, on demand frame can be made up of stainless steel AISI304. Various widths and numbers of rollers are available to choose from depending on the amount of dirt and crop type. If required, the brushing machine can be on the subframe to accommodate height differences. The subframe can be made from painted mild steel, stainless steel AISI304, and galvanized steel. The height of the subframe can be varies from 0-5 meters.

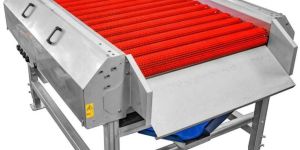

The brushing machine is designed to clean vegetables and potatoes using flat brushes. The produce is transferred over the brushes and rollers by other produce pushing it from behind, while soil, dust, or skins fall between the rollers. This machine can be used for wet and dry products. Allround standard brushing machine comes with a frame of painted mild steel. However, on demand frame can be made up of stainless steel AISI304. Various widths and numbers of rollers are available to choose from depending on the amount of dirt and crop type. On demand, each roller can be configured with different hardness brushes. Various types of brushes are available according to their hardness. On demand, the number of spray bars can be integrated on top of the machine for water rising and chemical applications.

Application : Cleaning Vegetables And Potatoes Using Flat Brushes
