ANALOG - DIGITAL TRAINER
Get Price Quote
Specifications Aesthetically designed injection moulded electronic desk / Master unit carrying useful experiment resources like variable. Power supplies / Status Switches / Indicator probe / Pulsar / Function Generator DPMs etc. Connection through study 4mm Banana Sockets & patch cords. Built in bread board panel with 1280 tie points and 400 distribution points totalling to 1680 points along with 4mm banana sockets for tapping from the trainer +5V, +/-12V/ GND for the circuits to be assembled on bread board using single stand (#22/24) wire.
ANALOG LAB TRAINER
Get Price Quote
Advanced lab trainer for students to perform more than 50 experiments of analog electronics Compatible with optional ready to use experimental modules. Glass Epoxy PCB used as front panel of 300mmx220mm & mounted on light weight shock proof plastic cabinet. On board power supplies, Function generator, and other input signals Bread board provided Supplied with connecting wires
Best Deals from Analog Trainer

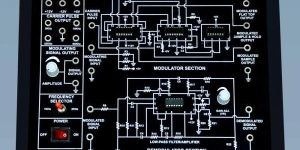

ANALOG SIGNAL SAMPLING
Get Price Quote
ANALOG SIGNAL SAMPLING & RECONSTRUCTION KIT ANALOG SIGNAL SAMPLING & RECONSTRUCTION KIT This kit helps the students to understand the principle of Sampling of Analog signals. By reconstructing the sampled signals and comparing with original signal one can clear his idea about sampling & reconstruction. Internal sine wave generator of 1KHz (5V P-P). Sampling frequency of 2KHz, 4KHz, 8KHz, 16KHz & 32KHz. Duty ratio of 10%-90% in 10% steps (switchable) Onboard Sample & Hold circuit. Ripple counter generating sampling frequencies of 20Hz to 20KHz. Onboard low pass filters of 2nd order & 4th order. Set of Patch Chord & User Manual. All relevant Tests points are brought out to observe the signals at various points

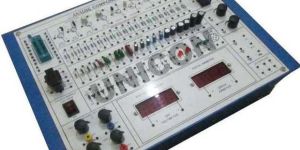

ANALOG COMPONENT TRAINER.
Get Price Quote
Brand Name : UNICON
Analog component trainer specification: trainer comprises of power supplies inside the trainer • power supplies on boards 0-12v, 250 ma and 0-5v,250ma variable • +12v150ma and +5v150ma fixed supplies provided on board. • on board bread board provided • ac power supply 15-0-15v for rectifier applications various components on the trainer set • 3 pairs of connected 2mm sockets • 4 rectifier diodes • 1 oa79 germanium diode • 3 different values of zener • n different values resistances • n different values capacitors • inductors 1mh, 10mh • 1 diac db33 • 1 scr tyn604 • 1 triac bt136 • 1 mosfet irf540 • 1 ujt 2n2646 • 1 jfet nf245 • sl100 and sk100 pair • bc547 1nos. • 1 ldr • 1 thermistor • 2 led’s features • trainer operated on 230v, 50 hz + 10% • supplied with instruction manual • supplied with sufficient nos. Of patch cords • supplied with computer lead • dimensions of the trainer will be 12’’x10’’ with plastic box highly shock proof .

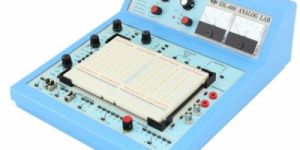

Analog Lab
Get Price Quote
Code: EEN0004 Analog Lab. Analog Lab Description The logic trainer is designed for the beginners to enhance the comprehension of analog theory. The design of is easy to operate and easy to understand

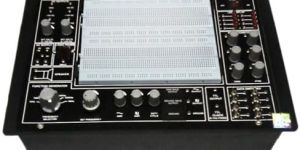

Analog Digital Trainer
Get Price Quote
We are one of the leading Electrical Equipment manufacturers and exporters. Different types of electronics equipment, electric equipment etc., are available with us which work faultless with the minimum consumption of electric power. Our electronics equipment, electric equipment etc., produce nearly zero level of noise while functioning. We have considerable expertise in the field of electronics equipment, electric equipment etc.
ANALOG BREAD BOARD TRAINER
Get Price Quote
ANALOG BREAD BOARD TRAINER, Masses Set, GE- 68 Rotary Microtome
ANALOG LAB TRAINERS
Get Price Quote
ANALOG LAB TRAINERS, OPERATIONAL AMPLIFIER TRAINERS, Function Generators
Digital and Analog Bread Board Trainer
Get Price Quote
Digital and Analog Bread Board Trainer, Ice Plant Trainer
