OPTOLAB ZONE Ambala Cantt, Haryana

Wall Mount Surgical Microscopes for Dental, E.N.T, Ophthalmology, Neuro & Spine Surgery, Plastic Surgery etc. Illumination: 15v-150W Twin Halogen Lamps with 100% coaxial through the lenses focused Fiber optics light guide 1.5 meter, bright light more than 80,000 Lux when maximum.

Power : AC 220V, 50/60 Hz. (110v on request)

TEST: Test chart contains six tests - dots, English, any regional language, numbers or pictures, ‘C’ or ‘E’ chart, spot light For Retinoscopy, Colour Test, Duochrome Test OPERATION: All functions can be operated by cord-less remote control i.e. chart up, chart down, vision test light, spot light, colour test light, Duochrome test light. Cord-less remote works from any direction REMOTE: Drum is supplied with two remote controls. One Cord-less and One with Cord. Remote control with cord can be used for stand by and emergency use when cord-less remote is not working properly. Both the remotes can be used simultaneously MOUNTING: Suitable mounting arrangements for ophthalmic chair unit mounting and wall mounting WARRANTY: One Year on sight warranty. Bulb, P.L. Tube Light and Battery cell is not covered under warranty

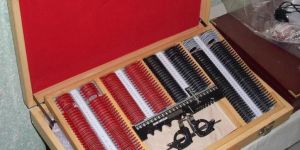

This is an ophthalmic instruments, suitable for examining refractive errors, such as myopia, hyperopic, astigmatism and presbyopia. Also for examination of strabismus & color blindness. It is essential for ophthalmology protection departments in hospitals, the health care departments in factories, schools and country areas, the refraction rooms in glasses shops, and for physical examination of soldiers and farmers. 32 pairs each cx and cc sph 0.25 to 4.00 in 0.25 steps 4.50 to 6.00 in 0.50 steps 7.00 to 14.00 in 1.00 steps 16.00 to 20.00 in 2.00 steps 20.00 pairs each cx and cc cyl 0.25 to 3.50 in 0.25 steps 4.00 to 6.00 in 0.50 steps prisms 12.1, 2, 3, 4, 5, 6, 8, 10, 12

Brand Name : OPTOLAB ZONE

We bring forth a range of temporal bone holders that are used in temporal bone dissection. Designed using advanced technology, these bone holders are structurally different, practical and effective for securing the bone. Our range is widely appreciated for its precise dimensions, optimum performance and affordable prices.

We are the main supplier of this product.

Abduction : 40 deg

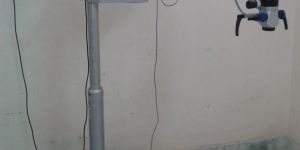

We are offering surgical operating microscope. Specifications:- head: indian zoom optical system zoom ratio: 6 : 1 binocular tubes: 45 degree inclined binocular optical head magnification: 5 steps magnification i.e., 4x, 6x, 10x, 16x & 25x eye pieces: 10x w.f. (pair) objective lens: f = 200 mm (300 mm and 400 mm on request) field of view: 50 mm i.p.d adjustment: 55 mm to 75 mm fine focusing: motorized foot control illumination: 15v-150w twin halogen lamps with 100% coaxial through the lenses focused fiber optics light guide 1.5 meter, bright light more than 80,000 lux when maximum. Field of illumination: 70 mm arm: counter balanced pantographic arm with 320 degree rotation. Vertical range of counter balanced arm: 250 mm to 300 mm floor stand: mobile floor stand on caster wheels for easy handling and absolute stability. Base: 600 mm x 500 mm (approx.) height: 1500 mm (approx.) gross weight: 70 kgs (approx.) vol. Weight: 50 kgs (approx.) power: ac 220v, 5060 hz. (100v on request) spares: dust cover for covering the microscope, set of sterilizable of silicon caps, 15v-150w bulbs, fuses. Optional accessories:- a. Beam splitter with c-mount b. Samsung ccd camera for live view c. 16” led screen

Brand Name : OPTOLAB ZONE

Head: Indian Zoom Optical System Zoom Ratio: 6: 1 Binocular Tubes: 45 degree Inclined Binocular Optical Head (0 to 180 degree Tilting Head is also available on request) Magnification: Continuous Zoom Magnification 5x to 25x (3 Steps & 5 Steps Magnifications are also available on request) Eye Pieces: 10x W.F. (Pair) {12.5x & 15x W.F eye pieces are also available)

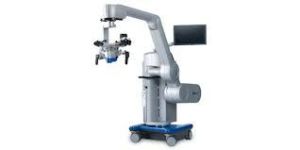

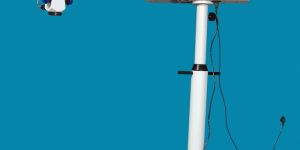

we are offering Surgical Microscope (ce Approved). Specifications:- head: indian zoom optical system zoom ratio: 6 : 1 binocular tubes: 45 degree inclined binocular optical head magnification: 5 steps magnification i.e., 4x, 6x, 10x, 16x & 25x eye pieces: 10x w.f. (pair) objective lens: f = 200 mm (300 mm and 400 mm on request) field of view: 50 mm i.p.d adjustment: 55 mm to 75 mm fine focusing: motorized foot control illumination: 15v-150w twin halogen lamps with 100% coaxial through the lenses focused fiber optics light guide 1.5 meter, bright light more than 80,000 lux when maximum. Field of illumination: 70 mm arm: counter balanced pantographic arm with 320 degree rotation. Vertical range of counter balanced arm: 250 mm to 300 mm floor stand: mobile floor stand on caster wheels for easy handling and absolute stability. Base: 600 mm x 500 mm (approx.) height: 1500 mm (approx.) gross weight: 70 kgs (approx.) vol. Weight: 50 kgs (approx.) power: ac 220v, 5060 hz. (100v on request) spares: dust cover for covering the microscope, set of sterilizable of silicon caps, 15v-150w bulbs, fuses. Optional accessories:- a. Beam splitter with c-mount b. Samsung ccd camera for live view c. 16� led screen

We are offering surgical loupes, dental loupes., it is a compact, light weight metal frame and low cost of the binocular loupe make it the ideal for all-purpose like general surgery, plastic surgery, dental surgery, ent surgery, and veterinary surgery. magnification : 3.5x, working distance : 350mm (35cm) approx. Field of view : 50mm

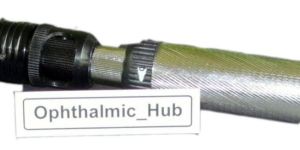

Streak retinoscope is an ophthalmic instrument which is used to objectively determine the refractive error of an eye. It is a streak and spot retinoscope in one and is converted by simply changing the bulb. Retinoscope with c size battery handles in case or zipper pouch packing. specifications: rotation and vergennes movements independently operated for those who prefer separate controls. continuous 360 degree rotation for easy and accurate positioning of streak for axis determination. smooth vergennes movement operated conveniently and easily by the column control. Dynamic retinoscopy option with near fixation target. Bright, well defined streak for easy detection of reversal point. Ring rheostat for smooth and easy control of illumination and all round accessibility.

Brand Name : OPTOLAB ZONE

Streak Retinoscope is an Ophthalmic Instrument which is used to objectively determine the refractive error of an eye. Streak Retinoscope is an Ophthalmic Instrument which is used to objectively determine the refractive error of an eye. It is a Streak and Spot Retinoscope in one and is converted by simply changing the bulb. Retinoscope with C size battery handles in case or zipper pouch packing.

Brand Name : OLZ

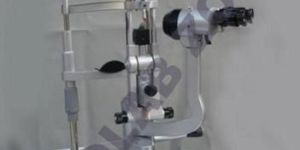

The slit lamp allows the orthoptist, through the use of a binocular microscope, to see a magnification of the front structure of the eye. this might be done for a patient with abnormalities of eyelids, conjunctiva, cornea, iris and lens. These abnormalities may be infections, foreign bodies or cataracts. in other words, this is an instruments, used in the treatment of eye diseases like cataract, myopia and other.

This is an ophthalmic instrument, used in the treatment of eye diseases like cataract, myopia and other. Our slit lamps are precession engineered and provide accurate performance. binocular microscope type : stereoscopic microscope eye pieces : 10x w.f. Total magnification : 5x, 10x & 20x diameter of visual field : 18mm, 14.5mm, 9mm illumination slit projection magnification : 23x slit width : continuous from 12mm to 0mm (at 10mm slit becomes a circle) slit length : continuous from 12mm to 1mm or aperture settings at 9,8,5,3,2,1 and 0.2mm dia. Slit angle : 0deg. To 180deg. With horizontal scanning capability slit inclination : 0, 5deg. 10deg. 15deg. And 20deg. Steps. Filters : blue, green & yellow lamp : 6v, 20w halogen lamp base longitudinal movement : 95mm lateral movement : 105mm fine base movement : 15mm (with joystick) vertical movement : 28mm chin rest vertical movement : 82mm fixation target : luminous target red led power input (primary) : ac 220v 110v frequency : 5060hz output (secondary) : main bulb 2.4v, 6.0v for brightness levels power consumption : 26v a dimensions & weight table model : 560 x 407mm unit model : 375 x 335mm weight : 18kg standard accessories dust cover, replacing lamp for illumination unit

Brand Name : OPTOLAB ZONE

This is an ophthalmic instrument, used in the treatment of eye diseases like cataract, myopia and other. Our slit lamps are precession engineered and provide accurate performance. binocular microscope type : stereoscopic microscope eye pieces : 10x objective : 1x, 1.6x total magnification : 10x, 16x diameter of visual field : 18mm, 14.5mm, 9mm illumination slit width : continuous from 12mm to 0mm (at 10mm slit becomes a circle) slit length : continuous from 12mm to 1mm or aperture settings at 12, 8, 5,3,2,1 and 0.2mm dia. Slit angle : 0deg. To 180deg. With horizontal scanning capability slit inclination : 0, 5deg. 10deg. 15deg. And 20deg. Steps. Filters : blue, green, yellow lamp : 6v, 20w halogen lamp base longitudinal movement : 95mm lateral movement : 105mm fine base movement : 15mm (with joystick) vertical movement : 25mm chin rest vertical movement : 82mm fixation target : luminous target red led power input (primary) : ac 220v frequency : 5060hz output (secondary) : main bulb 2.4v, 6.0v for brightness levels power consumption : 26v a dimensions & weight table model : 510 x 330 mm weight : 20kg approx. standard accessories dust cover, replacing lamp for illumination unit

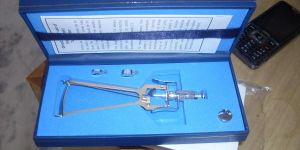

We are offering tonometer according to prof. Schiotz. The schiotz tonometer is an instrument used to measure intra-ocular pressure i.e. The pressure inside the eye. This is most important for the diagnosis and early treatment of glaucoma, which quickly leads to blindness if undiagnosed. All main parts are made of high quality brass and are chrome plated. Red needle enables easy reading of the scale. The instrument comes complete with 3 weights (5.5 gram, 7.5gram, 10 gram) and conversion table in blue presentation case.

Brand Name : OPTOLAB ZONE

Portable Surgical Microscopes for Dental, E.N.T, Ophthalmology, Neuro & Spine Surgery, Plastic Surgery etc. Illumination: 15v-150W Twin Halogen Lamps with 100% coaxial through the lenses focused Fiber optics light guide 1.5 meter, bright light more than 80,000 Lux when maximum. Dust Cover for covering the microscope, Set of sterilizable of Silicon Caps, 15v-150W Bulbs, Fuses.

Power : AC 220V, 50/60 Hz. (110v on request)

IPD Adjustment: 55 mm to 75 mm Fine Focusing: Manual OR by Motorized Foot Control Illumination: 15v-150W Twin Halogen Lamps with 100% coaxial through the lenses focused Fiber optics light guide 1.5 meter, bright light more than 80,000 Lux when maximum. Field of Illumination: 70 mm

Binocular Tubes: 45 degree Inclined, 90 degree Straight & 0 to 180 degree Tilting Head Magnification: Continuous Zoom Magnification 5x to 25x, 3 Steps & 5 Steps Magnifications Eye Pieces: 10x W.F. (Pair) {12.5x & 15x W.F eye pieces are also available) Objective Lens: F = 200 mm (F=175 mm, 250 mm, 300 mm & 400 mm is also available on request) Field of View: 50 mm

Ophthalmoscope is an instrument, used to examine the eye. Its use is crucial in determining the health of the retina and the vitreous humor.2.5v Ophthalmoscope unique aspherical optic system eliminates corneal and iris reflexes.This Ophthalmoscope has 6 diaphragms with separately interlocking “green interferential filter It is recommended for small or expanded pupils. Suitable for slit or fluorescent Ophthalmoscopy as well as for Fixation Test.

We are offering ophthalmology microscope (ce approved). Specifications:- head: indian zoom optical system zoom ratio: 6 : 1 binocular tubes: 45 degree inclined binocular optical head for ophthalmology magnification: 5 steps magnification i.e., 4x, 6x, 10x, 16x & 25x eye pieces: 10x w.f. (pair) objective lens: f = 200 mm (300 mm and 400 mm on request) field of view: 50 mm i.p.d adjustment: 55 mm to 75 mm fine focusing: motorized foot control illumination: 15v-150w twin halogen lamps with 100% coaxial through the lenses focused fiber optics light guide 1.5 meter, bright light more than 80,000 lux when maximum. Field of illumination: 70 mm arm: counter balanced pantographic arm with 320 degree rotation. Vertical range of counter balanced arm: 250 mm to 300 mm floor stand: mobile floor stand on caster wheels for easy handling and absolute stability. Base: 600 mm x 500 mm (approx.) height: 1500 mm (approx.) gross weight: 70 kgs (approx.) vol. Weight: 50 kgs (approx.) power: ac 220v, 5060 hz. (100v on request) spares: dust cover for covering the microscope, set of sterilizable of silicon caps, 15v-150w bulbs, fuses. Optional accessories:- a. Beam splitter with c-mount b. Samsung ccd camera for live view c. 16” led screen

Objective Lens: F = 200 mm (F=175 mm, 250 mm, 300 mm & 400 mm is also available on request) Field of View: 50 mm IPD Adjustment: 55 mm to 75 mm Fine Focusing: Manual OR by Motorized Foot Control Illumination: 15v-150W Twin Halogen Lamps with 100% coaxial through the lenses focused Fiber optics light guide 1.5 meter, bright light more than 80,000 Lux when maximum.C

We are offering operating microscopes. optical head : indian zoom optical system zoom ratio: 6:1 binocular tubes : 45deg.inclined magnification : 5x to 25x ( step magnifications are also available) eye pieces : 12.5x / 15x dioptric adjustment objective lens : f=200 mm field of view : 50mm ipd adjustment : 55mm to 75mm fine focusing : by motorized foot control illumination : 15v/150w twin halogen lamps with 100% coaxial through the lenses focused fiber optics light guide 1.5 meter, white bright light more than 80,000 lux when maximum. field of illumination : 70mm filter : cobalt blue, green arm : counter balanced pantographic arm with 320 degree rotation. vertical range of counter balanced arm: 250mm to 300mm floor stand : mobile floor stand on caster wheels for easy handling and absolute stability. base : 600mm x 500mm (approx) height : 1500mm (approx.) weight : 65kg (approx.) power : ac 220v /110v, 50/60hz. spares: dust cover for covering the microscope, set of sterilizable of silicon caps, 15v-150w bulbs, fuses. optional accessories:- 1. Beam splitter with camera mount 2. Ccd camera
