Radical Scientific Equipments Pvt Ltd Jagadhri Road, Ambala, Haryana

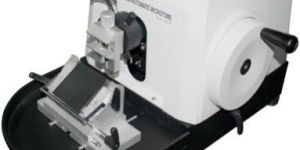

RMT-35 is a semi-automated rotary microtome ideal for routine sectioning and research application in pathology, histopathology textile and other research laboratories. Easy operation, safety & high precision specimen feed, stable performance to provide high quality sectioning results. Universal specimen holder is provided along with a standard cassette holder for paraffin embedded tissues. FEATURES: All important controls are easily accessible and conveniently located. Operations are from display board. LCD Screen shows section thickness range. It has different sectioning modes such continuous, single step stroke and program mode. It has stepper motor with range of 30mm feed motion and vertical stroke of 60mm. The coarse feed mode for both forward and backward movement through separate feather touch switch. Knife holder designed to use with high profile & low profile disposable blades with two pressure plates. It has integrated knife guard to hold disposable knives firmly for vibration and charter free operation. Knife holder has lateral adjustment facility to use of entire length of disposable knife. Supplied with a standard universal chuck/block holder with precise adjustment in X and Y axis for orientation of specimen. Smooth hand wheel with integrated quick lock mechanism for safety of operator. External Enclosure/Large Waste Tray provided, which is easy to clean and unload the waste. It works on a power supply of 110-220 VAC at 50 Hz. Pack of 50 disposable high profile blades is supplied with the microtome with universal specimen holder, operating instruction & vinyl cover etc in a sturdy Wooden Storing Box.

Magnification : 400X ON SCREEN

Country of Origin : Made in India

Brand Name : RADICAL

Magnification : 1000X

Power : .5 w

Feature : Heat Resistant, Corrosion Resistant

Material : MS

Size : 18x24x30 Inch

Freezing Microtome Model RMT - 40 is designed to the full purpose of accurate and quick diagnosis in surgery and also for the inspection of quality of rubbes and others. It has a table clamping device. The specimen rises accurately and automatically by a handle. The CO2 freezing attachment is provided with a hard rubber non-conducting plate between the corrugated surface to which the object is frozen and the rest of the apparatus, which prevents the conduction of heat from the other parts of the apparatus to the specimen; thus saving time and CO2. In operating this freezing attachment the valve at the bottom should first be closed and valve at the cylinder slightly opened to admit the gas into the tube.   The Automatic feed mechanism can be thrown out of action by turning the Index Finger to the extreme left or it may be set to cut sections of any desired thickness. Each division of the graduated scale marks 5 µm, the Microtome range being 5-40 µm. The sturdy Knife Holder can be tilted to a convenient angle of the Knife suitable to the object.

Country of Origin : Made in India

Country of Origin : Made in India

Brand Name : Radical

It is a universally approved, modern and reliable sectioning equipment designed for very precise sectioning of tissues upto 1 µm thickness. The feed indicator, located in front of microtome & is operated by the latest 'CAM DRIVE SYSTEM' for accurate feed setting from 1-50 µm in steps of 1 µm which is conveniently located in the front for instant references and its setting is controlled by a knurled knob at the front of the microtome. The interior mechanism rests on heavy metal base and is covered with a full protective cover for easier cleaning and lubrication. The salient features include independent feed mechanism with automatic safety device, universal knife holder with lateral movements permitting use of the entire knife edge, universal vice type object holder for accurate centring of the specimen. The instrument ensures life -long smooth operation. Individual components are fabricated and assembled using latest technology and selected material. The knife supplied with the microtome is fabricated from imported fine grain steel tested for micro-structure and is heat treated for optimum rigidity and sharpness. The following accessories are supplied with the microtome :-1. Razor 120 mm with back and handle in box: 1No.2. Object Holder Set of 3: 1No.3. Low Profile Disposable Blade Holder: 1No.4. Low Profile Disposable Blades: 5No.5. Honing Stone in box: 1No.6. Oil can: 1No.7. Dust Cover: 1No8. Illustrated operating manual: 1No.

Hand Microtome Model RMT-5 is used to cut thin sections of Microscopic materials, such as specimen parts of plants and animals. It is considered as the basic form of a microtome permitting microtomic cuts by hand in a quick and accurate way. The microtome is suitable for practical courses in microscopy, for field work during excursions, for school education and for a serious amateur of biology.A well constructed hand operated bench microtome can be securely attached to the edge of any bench, table or work surface with the help of fixing clamp. The section platform has a smooth wide flat top and durable glass surface to guide the sectioning razor & to protect the hand. The feed screw has fine and long threads so that the embedded material may be advanced very gradually to cut thin sections easily. The Razor is made of surgical quality steel with 75mm cutting edge.

Cambridge Rocking Microtome Model RMT - 10 is very well known and one of the best established microtomes in the world, which has given outstanding service to numerous microtomists through the years. It is designed for sectioning comparatively soft, wax-embedded tissues with a thickness range of 2 µm to 24 µm, in steps of 2 µm. Calibrated in 2 micron divisions, the section cutting thickness can be set easily and quickly by a single control. It is recommended for elementary biology & pathology students.The rocking microtome is an extremely reliable instrument comprising of three moving parts. The lead screw mechanism incorporates quality precision engineering and the cutting stroke is controlled by a single control lever which minimizes the operator skill required. It carries wide choice of specimen holders cylindrical holders, standard orientating & wood block holders for sectioning wax embedded specimens.

RADICAL Rotary Microtome Model RMT-20 is a highly versatile sectioning device suitable for Medical Institutions, Research & Pathological Laboratories. This microtome has special application for cutting thin sections of histopathological specimens and also caters to the demands of industries such as Plastic, Leather, Textiles, Rubber & Fertilizer. It is ideal for those who want to avail advantages of a Rotary Microtome at a moderate cost. The entire mechanism stands on a heavy cast iron base ensuring stability and rigidity. Its compound slide ways of critical tolerances guide the specimen block. The metal hinged cover housing protects the internal mechanism against dust and paraffin waste, it can be conveniently opened for resetting, cleaning and lubricating. The Microtome is driven by a handle which can also be locked. Cutting sections are obtained in different thickness by mechanically operated crank through a knurled knob in front of the instrument. The knurled knob is graduated in microns for feed setting and ready reference. A detent click action ensures positive adjustments in one micron increment.The knife holder unit is equipped with a rotating knife clamp to adjust desired angles for best sectioning. It has forward and backward movements to ensure contact of specimen with the knife and lateral movement to get maximum use of knife edge. Smooth & accurate specimen movement is achieved with the time proven operating principles of the feed mechanism. Travel is entirely independent to the vertical movement of the specimen block. When the feed limit reaches to an end point, it disengages itself. To bring the feed screw back, the vice is pressed slightly and the main gear wheel is turned clockwise till the screw reaches its starting position. All parts are fabricated from selected alloys and the Microtome knife is manufactured from fine grain steel tested to maintain optimum sharpness strength
