Shri Sai Mechanical Engineering Ambala Cantt, Haryana

We, hailing from Haryana, are among the high-standing Manufacturers and Suppliers of the Venturimeter & Orificemeter Setup across the country. Contrived using innovative technology and quality-examined raw materials, our Venturimeter & Orificemeter Setup assures infallible performance and durable life. Place order with us; bespoke or bulk & fetch lucrative offers.   Scope of Experimentations :- To determine co-efficient of discharge through Venturimeter and Orificemeter. To demonstrate the use of Venturimeter & Orificemeter as flow meters. Utilities Required :- Water Supply. Drain, Electricity 0.5 kW, 220V AC, Single Phase. Floor Area 1.5 x 0.75 m.  Technical Details :- Venturimeter : Material Clear Acrylic compatible to I" Dia. Pipe. Orificemeter : Material Clear Acrylic compatible to 1" Dia. Pipe. Water Circulation : FHP Pump, Compton / Sharp make. Flow Measurement : Using Measuring tank with piezometer. Capacity 25 Ltrs. Sump tank : Capacity 50 Ltd. Stop Watch : Electronic. Control Panel Comprises of : Standard make On/Off Switch, Mains Indicator, etc. Tanks will be made of Stainless Steel. The whole set-up is well designed and arranged in a good quality painted structure.

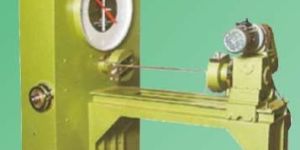

Purchase from us the Torsion Testing Machines (50Kg-m) at economical prices. These Torsion Testing Machines are performance-oriented, sturdy and durable. Further, they are in line with the international quality standards. To get these Machines at fair prices, contact us. Located in Haryana (India), we are a trustworthy Manufacturer and Supplier of Torsion Testing Machines (50Kg-m).Specification : Unique 'Talon-Claw" Grips for round and flat specimens Torsional speed of 0.1/0.2 RPM Torque Compensated motors Maintenance free gear box Auto Range selection with range selector wheel (Optional) 3 or 4 Torque ranges for higher accuracy (Optional) Load-Unload capability Variable speed drive (Optional) Digital Mode Also Available :  Torsion Testing Machine is designed for conduction torsion and twist tests on various metal wires, tubes sheet materials. Torque measurement is by pendulum dynamo meter system. Torque ranges can be adjusted. Torque can be applied to specimen by geared motor through gear box. Autographic recorder can be provided to know the relation between torque and angle of twist on specific request.

From Haryana (India), we are a distinguished Manufacturer and Supplier of Impact Testing Machine (Izod & Charpy). The Impact Testing Machines that we make available are widely acclaimed in the national market because of their several features like compact design, outstanding performance and longer functional life. With us, feel free to place medium as well as bulk orders of The Pendulum Impact Testers.Details : The impact energy absorbed by the specimen during reputure is measured as the difference between the height of drop before repute and the height of rise after rupture of the test specimen and is read on the dial scale.

Based in Haryana (India), we are a notable Manufacturer and Supplier of Universal Spring Testing Machine. We have a team of adroit professionals who use high-grade materials and the latest production methods for fabricating the Spring Testing Machines. Their features like sleek design, remarkable performance and high durability make them an attractive deal at such reasonable prices. Details : The machine is designed to conduct tention test and comperision test on spring specimen and calculate the "K" factor. The comperision plates are harded ground and polished with guides provide on the bottom platen to eliminate slippage of spring during testing. Specifications : Mechanical version Load indicated or graduated dial scale Electric digital version Load indicated on misprocesses based digital indicator Computerized version Load and elongation are displayed on computer monitor along with Data analysis and reporting software

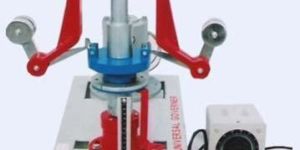

Backed with experience, we have carved niche for ourselves in the Indian markets as the Manufacturer and Supplier of the supreme-grade Universal Governor Apparatus. By deploying ultramodern technology and quality-examined raw materials, we fabricate the Universal Governor Apparatus that offers high speed functions to the clients for a very long time. For economical pricing, stay assured!   Description : The set up is designed to study the working of different governors normally used to control the speed. It consist of main spindle, mounted vertically on the base plate. This spindle is driven by a variable speed motor which is also mounted vertically on the same base plate. Any one governor assembly out of four ca be mounted on spindle. The spindle speed is controlled by speed control unit. A graduated scale is fitted to the sleeve to measure the displacement. Scope of Experimentation : Determination of characteristic curve of a sleeve position of rotation for all governor. To study the effect of varying the mass of the center sleeve in Porter and Proell governor. To study the effect of varying the initial spring compression in Hartnell Governor. To study the determination of characteristics curves of radium of rotation against controlling force (Actual and Theoretical) for all governors.  Utilities Required : Electricity supply : 230 V AC, Single Phase. Bench Area : 1.5 x 1.5 x 4m. Tachometer to find out RPM of Journal.  Technical Details : Governor Mechanism : Four Different Types of Governor Mechanism with spring and weights Watt Governor. Porter Governor Hartnell Governor Proell Governor. Motor : Variable Speed Motor ¼ H.P. Control Panel : For speed control of motor

We bring to afore the Lab Apparatus, which is meant to appropriately measure the Thermal Conductivity of the Insulating Powder. We share space with the A-listed Manufacturers and Suppliers of the Thermal Conductivity (Insulating Powder) Apparatus from Haryana, India. Our quality auditors fastidiously check these Heat Transfer Lab Equipments to ensure complete compliance. For rational pricing, count on us!   Scope of Experimentation : Determination of thermal conductivity of insulating powder. Comparison of thermal conductivity of insulating powder at different temperatures.  Utilities required : Electricity Supply: 1 phase, 220 V Ac, 2 Amp. Table for set up support.  Technical Details : Inner Sphere : Dia.- 100 mm. Outer Sphere : Dia.- 200 mm. Heater : Nichrome Wire. Counter Panel Comprising off :  Digital Voltmeter : 0-300 Volt. Digital Ammeter : 0- 2 Amp. Variac : 0 - 230 V, 2 A. Digital Temperature Indicator : 0 - 300oC, with multi- channel switch. Temperature Sensors : RTD PT - 100 type ( 10 Number )  Whole set up is mounted on powder coated base plate.

To cater the ever-evolving demands of laboratories, we have come up with the impeccable range of Static and Dynamic Balancing Apparatus, which is affordably priced. We are statured as the reliable Manufacturer and Supplier of the Static and Dynamic Balancing Apparatus in India. We fabricate our Balancing Apparatus from fine quality raw material which is procured from reliable sources.    Description : This equipment is designed for carrying out the experiment for balancing a rotation of mass system. The apparatus consists of a steel shaft fixed in a rectangular frame. A set of four blocks with a clamping arrangement is provided. For static balancing, each block is individually clamped on shaft and its relative weight is found out using cord and container system in terms of number of steel balls. For dynamic balancing, a moment polygon is drawn using relative weights and angular and axial position of blocks is determined. The block are clamped on shaft is rotated by a motor to check dynamic balance of the system. The system is provided with angular and longitudinal scales and is suspended with chains for dynamic balancing. Utilities Required : Electricity 0.5 KW, 220 V, Single Phase. Experimentation : Static and Dynamic Balancing of a simple rotating mass system. Observation of effect of unbalance in a rotation mass system.  Technical Details : Drive Motor : FHP Motor, Variable Speed, with speed controller. Balancing Weight : 4 Nos, with different sized eccentric mass for Varying unbalance.

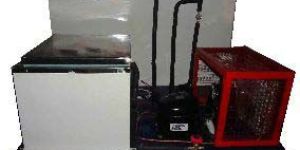

We are a reputed Manufacturer and Supplier from Ambala, Haryana involved in providing high quality Refrigeration Kit. Our Refrigeration Kit is easy to operate on and known for its accurate calculation. We ensure customer satisfaction by testing the kit on various parameters before dispatching. Buyers can acquire Refrigeration Kit at reasonable rates.Used for : To study vapor compression Refrigeration cycle To find the C.O.P. of the unit with capillary expansion at various To find C.O.P. of unit with thermostatic expansion valve at various condition To calculate cooling capacity of compressor To calculate the power consumption by the compressor   Details : Technical Specifications of the Equipment :- The refrigeration test ring is consisting with following controls and components. Compressor :- ISI Hermetically sealed kirloskar compressor. Condenser :- Fins and copper tube type air cooled condenser of capacity 1 H.P. size 14” x 14” x 4 row deep has been provided in the unit. Condenser Fan Motor :- One no. forced draft fan motor of capacity 1/10 FHP along with suitable capacity of fan blade has been provided to draft the air on the condenser. Receiver :- One no. heavy duty sheet type receiver along with valve fittings has been provided to store the liquid refrigerant to R-12 gas. Rotameter :- To measure the flow rate of R-12 in unit. Tank :- The tank has been fabricated out of 33 SWG stainless steal, Fitted with immersion heater. Cooling Coil :- Copper tube type cooling coil of size ¾” O/D has been fixed inside the inner S.S. tank. Control panel Board :- The following controls have been provided on 3/4“ thick dull sunmica.

Customers can get in touch with us for acquiring our range of Rear Axle Assembly. Located in Ambala, Haryana, we are a well-known Manufacturer and Supplier of Rear Axle Assembly. Our assembly is stable as it is fitted on heavy wooden base divided into various sections to show different parts including pinion and bevel, crown wheel, brake drums, etc. We are offering Rear Axle Assembly to customers at nominal prices.

Situated in Haryana, we are the credible Manufacturer and Supplier of the Multi Cylinder Four Stroke Petrol Engine Test Rig Rope Break Dynamometer in the country. Designed with perfection, these I.C. Engines are immensely demanded for the applications in laboratories, automobile industries & domestic and industrial sectors. Furnished in different stipulations, these are economically priced by us.   Description : IC engines are widely used in automobile, domestic and industrial sector. They are classified to cycle number of cylinders, arrangement of cylinder, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC engine, dynamometer, fuel measuring, air intake measuring and various other arrangements, provision for mores test is done. Scope of experimentation : To Determine Specific Fuel Consumption & Brake Horse Power. To Determine Brake Thermal Efficiency & Mechanical Efficiency To Determine indicated thermal Efficiency.  Technical Details : Engine : A four stroke, four cylinder, water cooled, self start, lubricating petrol engine provided with battery dynamics, lubrication oil filter, air cleaner, ignition and clutch arrangement. Type of Loading : Rope Brake Dynamometer: Rope brake arrangement fitted with the brake drum fitted on the engine shaft and provided with cooling water arrangement dial type spring balances in kg units.

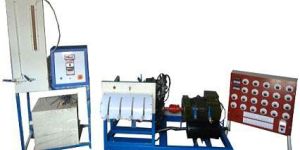

Our company has made its mark as the reputed Manufacturer and Supplier of Multi Cylinder Four Stroke Diesel With Electric Brake Dynamometer from Haryana (India). The Electric Brake Dynamometer, we offer, is fabricated using the latest technology under the guidance of our experts. Conforming to the international quality parameters, our Brake Dynamometer is performance oriented. Rely on us for reasonable price!Details : The engine is coupled with electrical alternator with resistance loading arrangement, digital voltmeter, digital ammeter and electronic energy meter are provided. Fuel measuring system: 1 Fuel measuring system consists of a fuel tank, a burette and a three way cock. Air Intake Measuring system: Air Tank fitted with orifice and water manometer Measurement of Heat Carried away by cooling water: It consist of inlet outlet piping with flow control valve, water meter to measure the rate of flow of cooling water and thermometers for measuring inlet and outlet water temperature. Panel Board Arrangement: Panel Board arrangement consisting of ignition and starting switch, ammeter, pilot lamp, a high voltage knife switch assembly for cutting of cylinder for morse test and temperature measuring system

We deal in the Motorized Gyroscopes that are accurately constructed, and performs without a flaw for the long duration. We are associated with the #1league Manufacturers and Suppliers of the Motorized Gyroscope in India. To assure unscathed delivery, we enclose the Motorized Gyroscopes in tamper-proof packaging. Also, the prices quoted by us are pretty reasonable.   Description : The set up consists of heavy disc mounted on a horizontal shaft, rotated by variable speed motor. The motor shaft is coupled to a motor mounted on a trunion frame having bearing in yoke frame, which is free to rotate about vertical axis. A weight pan on other side of disc balances the weight of motor. Rotor disc can be move about three axis. Torque can be applied by calculating the weight and distance of weight from the center of rotor. The gyroscopic couple can be determined. Scope of Experimentation : Observation of Gyroscopic behavior. Experimental justification of the equation T = 1w.wp for calculating the gyroscopic couple by observation and measurement of results for independent vibrations in applied couple T and precession wp. To study the gyroscopic effect of rotating disc.  Utilities Required : Electric supply : 230 V AC, single phase.  Bench area : 1m x 1m.  Tachometer to find out RPM of disc.  Technical Details : Disc : Dia 300mm x 12mm thick precisely balanced which can berotated in 3 mutually perpendicular axis. Motor : Variable speed of standard make. Supplied with speed control unit. Weights : 2 kg, 1 kg, ½ kg. Stop Watch : Electronic.

We are an illustrious Manufacturer and Supplier of Motor Car Steering from Ambala, Haryana. Our team of adroit professionals precisely construct the Car Steering system with all essential parts installed including front axle with wheel & braces, brake drum and steering arm, track rod which are completely mounted on base. Owing to our efficient logistics network, customers can rely on us for delivering small or bulk orders of Motor Car Steering.

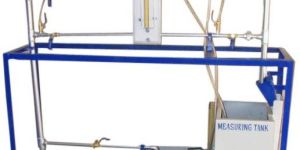

To prevent Losses Due to Friction in Pipelines, we have come up with the highly-efficient range of Fluid Machine and Hydraulic Lab Equipment. Made with inch perfection, these Machines are deeply appreciated for accurate functionality, high durability and low upkeep. We facilitate the buyers by offering these Machines & Equipments to them at unbeatable prices.   Scope of Experimentations :- To determine the losses due to fiction in pipes. To determine the friction factor for Darcy Weisback equation. Utilities Required :- Water Supply. Drain, Electricity 0.5 kW, 220V AC, Single Phase. Floor Area 1.5 x 0.75 m. Technical Details :- Pipes (2 Nos.) : Material GI of ½”& 1" diameter. Pipe Test Section : Length 1 m. Water Circulation : FHP Pump, Compton / Sharp make. Flow Measurement : Using Measuring tank with piezometer. Capacity 25 Ltrs. Sump Tank : Capacity 50 Ltd. Stop Watch : Electronic. Control Panel Comprises of : Standard make On/Off Switch, Mains Indicator, etc. Tanks will be made of Stainless Steel.  The whole set-up is well designed and arranged in a good quality painted structure.

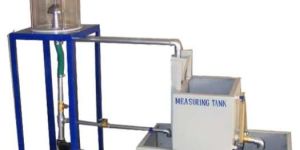

Buy from us the Impact of Jet Apparatus, at unbelievably low prices. We are the renowned entity from Haryana (India), engaged in the manufacturing and supplying of various kinds of Fluid Machine and Hydraulic Lab Equipment. The offered Jet Apparatus coming along with Ac Motor and 3 Speed Step Cone Pulley, is assured to work impeccably for a long period of time. Trust us!   Description : The present centrifugal pump test rig is a self contained unit operated on closed circuit basis containing a sump tank. The set up consists of a centrifugal pump coupled with a AC motor. Flow of water is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and pressure gauge is fitted on delivery line to measure the pressure.Scope of Experimentation : The centrifugal Pump test rig allows the students to under stand and draw the performance characteristics of centrifugal Pump at various speeds, heads and flow rates using AC Motor with step cone pulley.Utilities Required : Water Supply and Drain with floor area of 1.5 x 0.75 m. Electricity 1 KW, 220 V AC, Single Phase.  Technical Details : Pump : (Speed 2800 RPM max. and I (H.P). Medium Flow : Clear Water Drive : 1 H.P. Motor having cone pulley for Speeds for variable speed. Sump Tank : Suitable Capacity Flow measurement : Using measurement Tank Stop Watch : Electronic Pressure Gauge : Bourdon Type Control Panel : RPM indicator with proximity sensor. MCB : For Over Load Protection

We bring forth a qualitative range of ICE Plant Tutor Test Rig for our esteemed customers. Our test rig is preferred by professionals for its compact design, smooth operation and dependable result. Our company is a renowned Manufacturer and Supplier of ICE Plant Tutor Test Rig from Ambala, Haryana and known for our fair pricing policy. Used for : To study vapour compression Refrigeration cycle. To find the C.O.P. of the unit. To determine the ICE formatting capacity of the unit. To study the effect of Agitator motor in the unit. To study pump down the gas.   Details : Technical Specifications of the Equipment :- The Ice plant is consisting with following controls and components. Compressor :-  ISI Hermetically sealed kirloskar compressor. Condenser :- Fins and copper tube type air cooled condenser of capacity 1 H.P. size 14” x 14” x 4 row deep has been provided in the unit. Condenser Fan Motor :- One no. forced draft fan motor of capacity 1/10 FHP along with suitable capacity of fan blade has been provided to draft the air on the condenser. Receiver :- One no. heavy duty sheet type receiver along with valve fittings has been provided to store the liquid refrigerant to R-12 gas. Rotameter :- To measure the flow rate of R-12 in unit. Brine Tank :- The inner brine tank has been fabricated out of 22 SWG stainless steel. The outer tank is also made by the same sheet. There has been provided with 4” thick high density thermocoal insulation has provided between inner and outer tanks. Cooling Coil :- Copper tube type cooling coil of size ¾” O/D has been fixed inside the inner S.S. tank. Control panel Board :- The following controls have been provided on 3/4“ thick dull sunmica. Main Switch, Voltmeter, Amp. Meter, Energy meter, Indication lights, Digital Temp Indicator, Suction gauge, Discharge gauge, LP/HP cut out, Expansion valve, capillary tube, Solenoid value, Filter dryer, Thermostat, Liquid line indicator. Agitator with Elect. Motor :- One no. suitable capacity of agitator along with agitator motor has been fitted in the unit. Ice Cans :- 2 lot on Ice cans has been provided in unit. Base :- Heavy duty angle iron base has been provided in the unit to accommodate the condensing unit, sunmica board and brine tank.

Avail from us the top-notch Emissivity Measurement Apparatus in variety of dimensions, sizes and specifications, at rock-bottom prices. We are regarded as the preeminent Manufacturer and Supplier of the Emissivity Measurement Apparatus from Haryana, India. The Apparatus, we offer, are well designed using qualitative materials, so as to meet the desired performance expectations of the clients as well as the industry standards.   Scope of experimentation : Determining the Emissivity of test plate. Study the variation of emissivity of test plate with respect to absolute temperature. Utilities Required :  Electricity Supply: 1 Phase, 220 V AC, 4 Amp. Table for set up of support.  Technical Details :  Test Plate Dia. :160 mm Black Plate Dia. : 160 mm Heater ( 2 Nos ) : Nichrome Wire Heater. ( One each for testplate and black Plate) Control Pannel Comprising of : Digital Voltmeter : 0 - 300 Volts.  Digital Ammeter : 0 - 2 Amps.  DPDT Selector Switches : For Digital Voltmeter and Digital Ammeter.  Variacs : 0 - 230 v, 2 A, ( 2 Nos.)(one each for test plate and black plate)  Digital Temperature Indicator : 0-300, with multi - channel switch  Temperature sensors : RTD PT- 100 type (3 Nos) Cabinet to accommodate the slab assembly with front window of glass/ acrylic. The whole set up is mounted on a powder coated base plate.

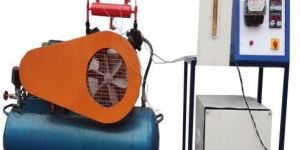

Based in Haryana, we have built a wealth of reputation for manufacturing and supplying the Double Stage Air Compressor Test Rig of superlative quality. Our deft team aligns these Double Stage Air Compressor Test Rigs with the prevailing industry standards to guarantee fail-safe functionality to the buyers. Plus, the prices quoted by us are insignificant in comparison to the quality!   Scope of Experimentations :- To calculate the volumetric efficiency. To calculate isothermal HP. To calculate compression ratio.  Utilities Required :-  Electricity 2 kW. 220V AC, Single Phase.  Floor Area 1.5 x 0.75 m.   Technical Details :- Compressor : Double Stage, Double Cylinder. Capacity 6.9 CFM max. Drive : 2HP/2 phase 5 HP. Spring Balance : Dial type. Manifold Tank : Suitable Capacity. Flow Measurement : Orifice meter with Manometer. Temp. Measurement : Thermometer 2 Nos. Air Tank : Capacity 100 Ltrs. with safety valve shut off valve. Bourdon Type. Pressure Gauge : Bourdon type. Control Panel Comprises of : RPM measurement : RPM Indicator with Proximity sensor. Energy measurement : Electronic Energy meter, L&T make. MCB : For overload protection. Standard make On/Off Switch, Mains Indicator, etc.  The whole set-up is well designed and arranged in a good quality painted structure.

We are ranked amongst the credible Manufacturers and Suppliers of Diesel Engine Fuel Supply System based in Ambala, Haryana. Our Diesel Supply System consists of original parts including diesel tank, Filter, Fuel injector pump and atomizer. We check the system on stringent quality parameters before delivery to ensure customer satisfaction. We are proficient in delivering any order of Diesel Engine Fuel Supply System to any part of the country.

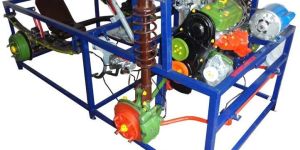

Owing to our rich industry experience, we are counted among the eminent Manufacturers and Suppliers of Car Chases. It is made out of full size original used car/van/LCV/Truck/tractor chassis. In order to meet the bulk and urgent requirements of the buyers, we maintain a large stock of the Chases in our state-of-the-art warehouse. Buyers can obtain these at market-leading rates from us. Details : The cut section model is constructed such that all the following systems can be demonstrated in working conditions   Engine : Maximum parts and accessories of an engine like of the cylinders, cylinder head, Inlet and Exhaust manifolds, Fuel system, Lubrication system, cooling system, self-starter, Alternator, etc, are sectioned to show the internal constructional details.This complete sectioned models is coupled with 220/230V A.C single phase Motor through a Reduction drive unit. By running the motor the complete working details of the individual parts, different mechanisms can be demonstrated as the model is running at a very low speed (about 15 to 20 rpm).Transmission System : It consists of a Clutch and gearbox assembly, the casing of which is suitably cut to demonstrate its operation. The Hydraulic/Mechanical circuit from the pedal to the Clutch is active and will help to demonstrate the response of clutch systems. The gearbox is coupled to Differential gear box with an axle and the different coupling used for this transmission can be demonstrated. The Differential gear box is also cut so as to clearly to demonstrate its complete operating principle. The gear shifting including the forward and reverse gear operation can be clearly shown. The speed variation and the rotation of the Differential gear box can be seen while gear shifting.Fuel System :The components related to fuel system will be suitably sectioned and made working to explain the internal details of the system.Exhaust System :It consists of Exhaust Manifold and silencer in cut section to explain internal construction.Lubrication System :It consists of the engine Lubrication system along with the Lubrication oil pump.Suspension System :This will explain both the front and rear Suspension systems along with necessary linkages etc. The construction and internal details can be explained using the same.Braking System :This Mechanical/Hydraulic/Air circuit of the Braking mechanism is suitably sectioned to show the internal constructional details. The principle of Pedal braking and hand braking can be explained . (Only Hydraulic Braking circuit will be made working.)Steering Mechanism :This can be seen and included in the Steering wheel, Steering gear and coupling at the wheels.Electrical System :The Electrical system gives a complete idea of the electrical system and circuit of a vehicle. It has been provided with Sectionised battery and terminals are provided to connect another working battery to show the working of the individual parts and accessories such as a Sectionised Self starter, Alternator, Wiper Motor, Distributor, Horn relay, etc., and working of head light Brake light, side indicator, Horn, parking lights, spark in spark plugs, etc
