Stereo Microscopes Dealers in Mahesh Nagar, Ambala

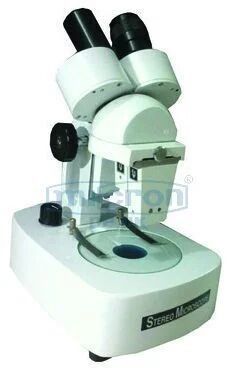

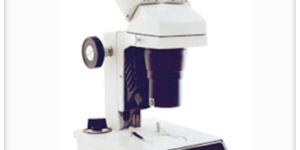

1. Flat sharp image erect and unreserved. Wide field eye pieces. 2. Paracfocal from high to low power quick changing paired objectives through 90º rotation. 3. Binocular tubes inclined at 45º. Adjustable interpupillary distance, Binocular head rotation in 360º. 4. Smooth rack and pinion focussing slide way tension controlled large knobs. 5. Built-in illumination both for incident light and transmitted light Transformer built in base 6v - 20w Lamps. Objectives : 2x and 4x or 3x & 5x paired mounted or revolving turret, changing from low to high by simple rotation and no exchange of slide. Eye Pieces : Extra wide field 10x Magnification : 20x to 60x or 30 x to 75x

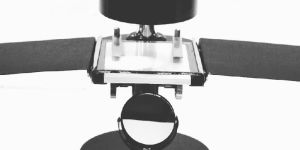

dissecting microscope a round base is designed for greater stability & beautiful look. Equipped with joint revolving arm for moving the magnifying lenses over the stage allowing the whole stage area to be scanned. focusable by rack & pinion. detachable rests on either side of the stage provide a steady support for hands during fine dissection. Supplied with high eye point 10x & 20x eye pieces is a wooden box.

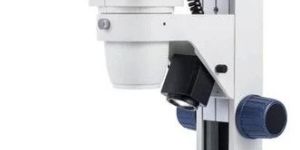

          STEREO ZOOM BINOCULAR MICROSCOPE : JS-BZ Stereo Zoom Binocular Microscope is used for viewing flat 3-Dimensional image having parafo called zoom objectives providing continuously variable magnification upto 200X depending upon eyepieces and auxiliary lenses. Standard Features: Binocular tube with an inclination of 45° for greater ease of observation Microscope Zooming ratio 1:5 Extra wide field eyepieces 10x (Paired) Magnification 10x to 50x. (Standard) Rack-Pinion focussing stroke 50 mm Crisp, erect images with high resolution and excellent stereoscopic effect Standard Working distance 80 mm, regardless of magnification Interpupillary distance from 54 to 75mm Binocular body can be rotated at full 360° and locked in any position desired Once brought in focus, image remains clear and sharp throughout the whole zoom range Dual Illumination system having incident and transmitted illuminators, for Individual use or both at a time controlled through solid state built-in transformer for 60V-20W halogen Bulbs. Packed in plywood Storing cabinet with operation manual, vinyl cover etc. JS-TZ: It is available with Trinocular Head. Additional Information: Item Code: JS-BZ

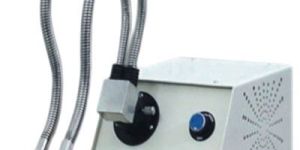

ZM-1 Spare Eypiece: WF10X-15X-20X (paired) ZM-2 Auxillary Objective: 0.5X & 2X for Stereo Zoom Microscope ZM-3 Dark Field Attachment: consisting of special system and movable Gem clamp. ZM-4 Universal Stand: for convenient examination of large parts or specimen. ZM-5 High Intensity Flourescent Ring Illuminator with circular flourescent tube & power supply. ZM-6 Space circular flourescent tube High intensity circular tube for illuminator. ZM-7 Spare Lamp: 20Watts halogen lamp for incident illuminator. ZM-8 Eyepiece with graticules: Micrometer disc, cross line, graph, accentric circles etc. ZM-9 Polarising Attachment for examination of geological specimen under polarised light. ZM-10 Gliding Stage: For quick scanning of the specimen in x-y direction. FI-1 Fibre Optic illuminator: Single light guide. FI-2 Fibre Optic Illuminator: Double light guide. FI-3 Fibre Optic Illuminator: Ring light guide. SI-7 Incident Halogen Illuminator: Spot light halogen illumination for Stereo Microscope. SI-8 Dark Field Attachment for Embryology: consists of dark field system and a adapter for petri-dishes.

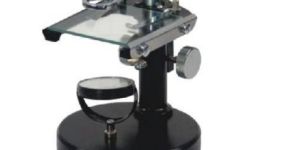

Dissecting Microscope Heavy round base with nicely designed body, sensitive focusing is done by rack and pinion. A joint revolving arm is provided for moving magnifying lens over full area of stage. It is Easily replaceable by a special Bull Eye lens 80mm dia to increase the field of version. A Plano concave mirror is fork for light reflection.

We are offering dissecting microscope ds-02 amtech india�s dissecting microscope ds-02 widely used in studying small organisms and dissecting work .it comprises a a unique base is designed for greater stability and beautiful look and all parts chrome plated like pipe, knobs & lens holding arm .the stage 85mm x 75mm provided with spring stage clips, has a glass plate with arrangement for inserting white metal plate for background. Sub stage plano-concave mirror reflects sufficient daylight & artificial light on the object. Detachable hand rests on both sides of stage provided fora study support during dissection. Complete set eyepieces with eyepieces 10x, 20x packed in thermocole box.

Fret not! We are here to help you out with the payment procedures. Be it online or offline payment method, we are here to assist you all the way through the payment process. Our comprehensive range of products is packed in sturdy, safe, and industrial grade materials that safeguard the contents inside from harm, dampness, dust, movement etc. Besides, the packing has printed product information.   Technical Specification : Stand- stable and robust with round base Body- equipped with joint revolving arm for moving the magnifying lens over the stage. Focusing- corse motion corse movement by rack and pinion. Eyepiece- Two Eyepiece of 10x and 20x. (packing in thermocol box)

Student Stereomicroscope is a straight tube Binocular Microscope basically developed for the use of students. It has high magnification with adjustable focusing. Specifications of Student Stereomicroscope :- One paired 10x WF eyepiece and a 2x ObjectiveTotal magnification of 20xRack and Pinion focusing systemRound glass stage of 90mm dia

Observation Head:Binocular head inclined at 45-deg., rotated through 360-deg with adjustable inter-pupillary distance. Focussing:By Rack and Pinion mechanism with adjustable tension collar. Magnification:Standard magnification 20X & 40X with flat field. Illumination:With integral illuminator, 2 lamps are fitted to provide both transmitted and incident illumination. Objectives: 2 sets of objectives 2X and 4X, selected by rotating nosepiece through 90-degrees. Eyepieces:Standard extra wide field eyepieces WF-10X is provided.

We are offering ks f2000 stereo microscope (educational). Ks f2000, dual light stable pole stand with ball bearing focusing controls binocular tube, 45° inclined, 360° rotatable, ipd 55-75 mm, with dioptric adjustment on left ocular wide field eyepiece wf 10x/20mm paired revolving turret with objectives 2x - 4x fluorescent transmitted light. Magnification: 20x /40x working distance 100 mm built-in illumination system 12v-15w halogen reflector type incident light and sub-stage 12v-7w power supply 220v input iso 9001, ce approved

A unique base is designed for greater stability and beautiful look. Equipped with joint revolving arm for maving the magnifying lense over the stage allowing the whole stage area to be scanned. Focussable by rack and pinion. Detachable rests on either side of the stage. Supplied with high eye point 10x & 20x eye pieces in a wooden box.

  DVZ-555 VIDEO ZOOM MICROSCOPE An outstanding multipurpose Video Zoom Microscope with built-in high resolution Digital Camera for perfect 3D effect and true image with optimum contrast. Zoom Head 45O inclined, 360O rotatable, with twin Zoom Objective 0.7x-4.5x with 6.5:1 Zoom ratio. High eyepoint wide field eyepieces Wf 10x (standard), Optionally WF 15x & WF 20x.Standard magnification with WF 10x eyepieces, 7x-45x, extendable to 3.5x - 180x with optional eyepieces and auxiliary objective. Supplied with built in transmitted and flexible incident illuminator, optionally offered with fiber optic and fluorescent illuminators.Model DVZ-555, is supplied with GIPPON-JAPAN, NAVIGATION SOFTWARE: For sorting, retrieving, E-Mailing images including various functions like zooming and image contrast etc

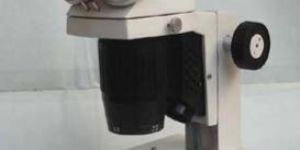

We Offer Stereo Microscopes - 01. Technical Performance: 1. Sharp stereo erect image over a vide field view. 2. 45º inclined and 360º rtational binocular head with locked-in eyepiece. The left ...

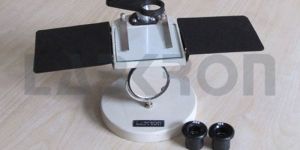

We offer Microscopes. Dissecting Microscope (LDM-50) DISSECTING MONOCULAR MICROSCOPE (LDM-50) LABKRON Dissecting Monocular Microscope is used for study of small organisms and for Dissection work. Heavy round Cast iron base for greater stability. It is also precisely designed with all brass parts which are chrome plated like: Eye piece pipe, knobs & lens holding arm. It comes with Black and white plate with Wide Square glass stage size 85mm X 75mm having two stage clips. detachable Hand Rests on both sides. Focusing by Rack & Pinion mechanism. Eye Pieces 10x & 20x made of optical Glass. Revolving arm allowing the whole stage area to be scanned. Magnification 10x and 20x. Illumination by Plano-Concave reflector mirror fitted in fork for light reflection. Complete microscope Packed in export worthy thermocole case with its accessories dust cover & cleaning cloth. Optional accessories: Plywood Cabinet box (price at an extra cost)

Base Heavy round base with precisely designed body. Focussing Sensitive focussing, done by rack and pinion arrangement. Revolving arm provided for moving magnifying lens over full stage area. Stage 100mm x 100mm with glass plate. Illumination A plano-concave lens fitted in fork for light reflection. Optics 10x & 20x Eyepieces & special Bull Eye Lens 83mm diameter.

Binocular tube with an inclination of 45° for greater ease of observation . Magnification 7x to 45x Microscope Zooming ratio 6.4:1 Rack-Pinion focussing stroke 50 mm. Wide field eyepiece 10x (paired). objective 0.7x to 4.5x. Crisp,erect images with high resolution and excellent stereoscopic effect. Standard working distance 100mm, regardless of magnification.

We are offering stereo microscope. Model : si-88 (with top & bottom light) suitable for precision dissection inspection assembly, shorting of minute specimens. standard specifications magnification 20x to 40x, 45ºinclined 360º rotatable head , 50 – 75mm ipd adjustments for comfort viewing, one eyepiece tube with diopter adjustment ring for spectacle wearer. 3-d true erect image, wide field of view 80mm to 55mm working distance 2x & 4x turret revolving high resolution achromatic objectives, wf10x 30mm dia multiplayer coated eyepieces for sharp vision rack & pinion fine focusing system incident and transmitted top & bottom light stand, 75mm dia glass stage with black & white plate for field contrast built-in top & bottom light of 6v-10w bulbs with on off switch, input 220-230v ac 50hz standard accessories two spare bulbs, dust cover, instruction manual, thermocol box packing
