AEC Machinery Company Pvt Ltd Focal Point, Amritsar, Punjab

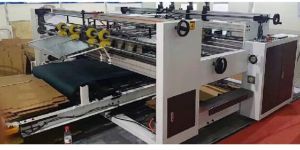

2 PC folder gluer is technology upgradtion of a normal folder gluer machine, this new model glue with box and joint it in centre and standard final folding adopts manual semi auto folding to make two PC box, this machine is ideal for such medium range printed and non printed boxes where the box mfrs. prefers small 2 PC to make one box.

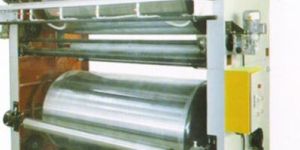

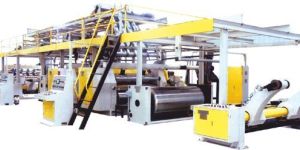

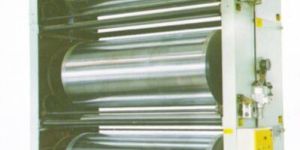

SPECIFICATIONS 1. Pre heater dia: 600-1000 MM (depending on design speed) 2. Working width: 1400-2000 MM 3. It can make single to multi layer depending on the choice of layer in production line. 4. Chrome plating – Optional

SPECIFICATIONS · Design speed : 80-120 Meter (Higher model option depending upon line speed) · Width : 1400-2000 mm · 4 blade 6 scorrer or 5 blade 8 scorrer option · Adopt electric lifting

SPECIFICATIONS · Working Speed 80-120 MIN · Width : 1400-2000

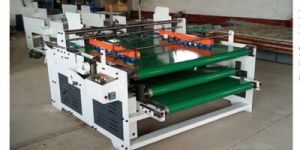

A new range of folder gluer for normal boxes, Die cut boxes printed boxes, Lock bottom boxes and two PC printed boxes is introduced now and giving customer a free hand of choice to select model an his requirement and budget, these machines not only save labour but give productivity with minimum investment.   SPECIFICATIONS Auto feeding Combined pressure conveyor delivery Simple fold method after gluing with fully sticking of box Options available single grinder, Double grinder, double gluer with single of double grinder Grinder options for those who stick coated and laminated printing box. Size available: 1500 x 1100, 1800 x 1100

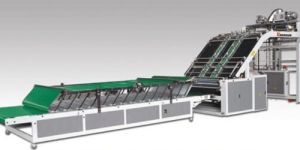

The top paper can pile up the height of 1.5m once in time. It makes delivery more easier and efficient. Using suction feeding automatic of bottom sheet according to the main machine operating speed, continuos automatic tracking. Entire new concept, font gauge registration, position high accuracy, bottom sheet never exceeds the top sheet. Machine uses touch-screen PLC control system.

SPECIFICATIONS Tumup bridge plate is convenient for cleaning, discontinuos wate-circulating system ensures washing cleam. Automatic feeding for bottom sheet manual feeding fortop sheet (feeding from side for top sheet is optional) manual feeding fortop sheet (feeding from side for top sheet is optional) Flexible font register, bottom sheet is not exceeding the top sheet and itis adjustable for the front and rear lamination between bottom sheet and top sheet. Bottom sheet can be paperboard more than 350 gsm, A/B/C/D/E/F corrugated cardboard. Lnedilligent control and compacted energysaving and controlling play from the stack of paper Using height-precision plastic block device sace glue

A new range of folder gluer for normal boxes, Die cut boxes printed boxes, Lock bottom boxes and two PC printed boxes is introduced now and giving customer a free hand of choice to select model an his requirement and budget, these machines not only save labour but give productivity with minimum investment.   SPECIFICATIONS Auto feeding Combined pressure conveyor delivery Simple fold method after gluing with fully sticking of box Options available single grinder, Double grinder, double gluer with single of double grinder Grinder options for those who stick coated and laminated printing box. Size available: 1500 x 1100, 1800 x 1100

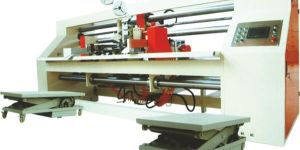

SPECIFICATIONS Semi auto box stitcher servo based option 1.2 and 4 servo models Stacker unit Counter Options of 1 and 2 PC Box

SPECIFICATIONS Semi auto box stitcher servo based option 1.2 and 4 servo models Stacker unit Counter Options of 1 and 2 PC Box

DESCRIPTION SDC Jumbo model is the series of extra heavy duty platens whicj can be used for various bigger format die cutting jobs on various materials, these models are with extra added features.         SALIENT FEATURES Separate control panel on wheel with safety tower and budget. Moveable adjustable chase. Auto Lubrication, operator walkway, double s-cam.

Printing Machines also available with Rotary Die Cutting options. It can be attached with a slotting head on Rotary cylinder as well as an independent slitter scorer unit.

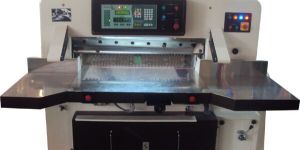

SPG SERIES SPG SERIESWe offer a wide range of Sujata Paper Guillotines. Sujata Guillotine are popular choice from more than 4 decades. These Guillotines are equipped with all features like Electro Magnetic clutch brake, photo Cell safety, Manual, Auto, Hydraulic Clamp, Air beds and many more

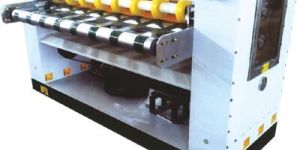

SPECIFICATIONS Speed : 120 M/min with straight knife/150 M/Min spiral knife Effective width 1400-2000 MM Length of cutting card board 500-9999 MM Precision of cutting 1 mm +-

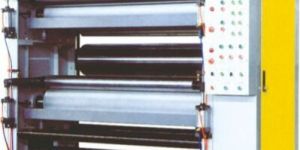

SPECIFICATIONS Effective width; 1400-2000 MM Wall board : Casted Glue diameter: 215 MM depending upto speed

Folder Gluer for lock bottom boxes is another upgradation in Semi Auto Folder Gluer Boxes. It is fitted with pneumatic spray glue gun which glue the flaps and locking mechanism close the box.

SPECIFICATIONS Tumup bridge plate is convenient for cleaning, discontinuos wate-circulating system ensures washing cleam. Automatic feeding for bottom sheet manual feeding fortop sheet (feeding from side for top sheet is optional) manual feeding fortop sheet (feeding from side for top sheet is optional) Flexible font register, bottom sheet is not exceeding the top sheet and itis adjustable for the front and rear lamination between bottom sheet and top sheet. Bottom sheet can be paperboard more than 350 gsm, A/B/C/D/E/F corrugated cardboard. Lnedilligent control and compacted energysaving and controlling play from the stack of paper Using height-precision plastic block device sace glue

SPECIFICATIONS The machine adopts unique pressing spring front lay registration design complan with PLC control system with makes run at high lamination precession and low rate of breaking down. The machine uses frequency on verter for speed regulation, PLC central simulation to digit program system. Double servo motors are used to control bottom sheets to get to the front lay timely and accurately. Thus the machine accuracy is ensures even in operation adjusting condition.

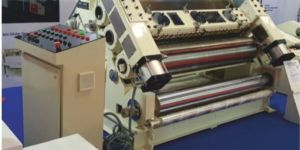

SPECIFICATIONS · Independent drive gear box ,Corrugated roll adopt high quality alloy steel · Pneumatic cylinder control up and down of corrugated roll · Pnematic pressure and gum roll control, Glue roll with hard chrome plating · Heavy duty air blower for fingerless operation

SPECIFICATIONS · Expiry Width 800-2500 mm · Mechanical brake (Pneumatic as option) · Multi movement hydraulic cylinders · Electric movement also available instead of hydraulic

SPECIFICATIONS High Speed, Pneumatic Pressure Heavy Duty air blower Auto Gum Circulation Flute A,B,C,E Upper Roll dia: 280 mm Middle Roll Dia: 300 mm Heavy Duty Pressure Speed 35-60 meter depending upon customer’s heating choice Attachable to electric/steam/Oil heating (As per customer’s choice)

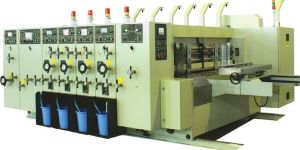

High speed feeding, printing, slotting, die cutting and stacking 5 components in one machine. PLC controls Spray type lubrication Pneumatic inking Electric type slotting unit (Full movement)

FEATURES High speed feeding, printing, slotting, die cutting and stacking 5 components in one machine. PLC controls Spray type lubrication Pneumatic inking Electric type slotting unit (Full movement)
