Die Punching Machine Dealers in Focal Point, Amritsar

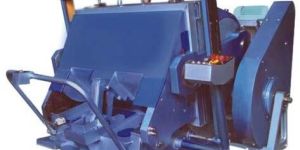

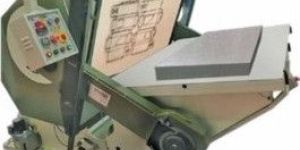

Salient Features 'Dwell timing device' can set timing of the moving platen from 0.5 to 10 seconds. At dwell option, the moving platen remains stationary in an open position for the set dwell time before resuming motion. This is very useful feature when large/difficult jobs are being fed or when fine registration of Die in a job is required. This feature minimizes wastage in jobs. 'Electromagnetic clutch & brake' enables push button control of the machine for easy and efficient operation. The advanced electromagnetic clutch & brake do not require lubrication. Multiple 'SAFETY DEVICES' viz. Off-position at Rotary Switch, Leg operated Safety Guard, Protective Wrap-Around Safety Guard, Trip Bar on the moving platen (optional), Safety is ensured by full electrical interlocking. All moving parts of the machine are protected by approved safety guards. Quick & simple adjustment of impression / pressure equalization independent for each side. The set value of impression can be read on graduated scale. High performance Precision Gears viz. Helical & Herringbone Gears (it works silently, without vibration and have capacity to bear extreme load). The Platen is driven by the ball bearing mounted shafts through a pair of reduction gears protected by guards. Rigid construction and compact design of the machine requires minimum floor space. Digital counter on the Operating Penal for counting impressions made by the machine. Main shaft & Connecting Arms are mounted on Phosphor Bronze Bushes. Minimum make ready time, hence more hourly production. One-piece casting, properly stress relieved All Shafts are of high quality Alloy Steel. Single piece connecting arms of steel. Moving Platen running on hardened steel rails.   Optional Features Hot Foil Printing Attachment (Detailed description available on request). Worm Gear impression adjustment mechanism. Hardened & Ground impression plate. Automatic Lubrication System. Trip Bar on Moving Platen. Full Heater on Stationery Platen. Variable Speed with inverter drive. Double 'S' cam in large sizes.

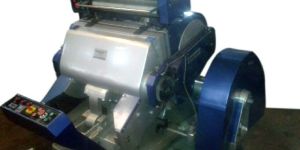

The Hot Foil Platen Die Cutting Machine comes with attachment available in single, double & triple colors. Equipped with electric heating & temperature control device, the Hot Foil Platen Die Cutting Machine has separate time controller for each step. The clients can avail Hot Foil Platen Die Cutting Machine from us in bulk quantity.

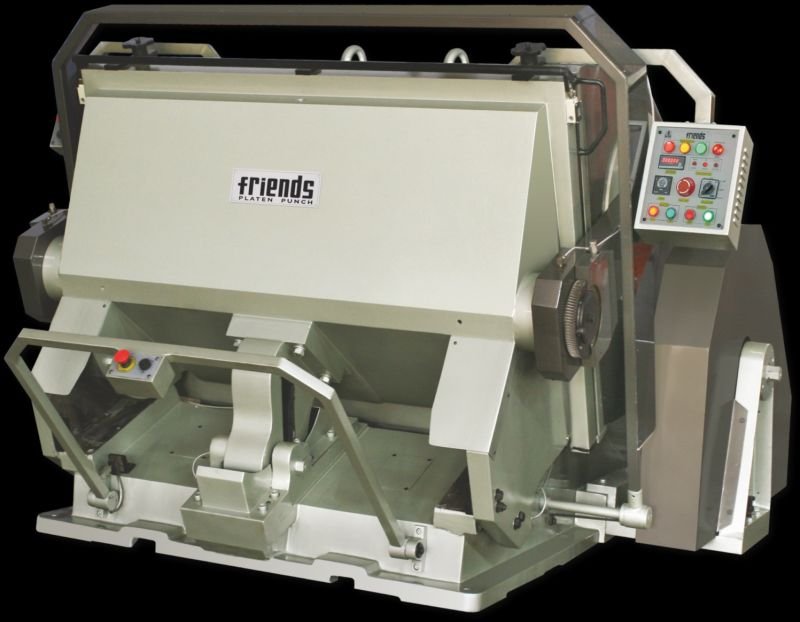

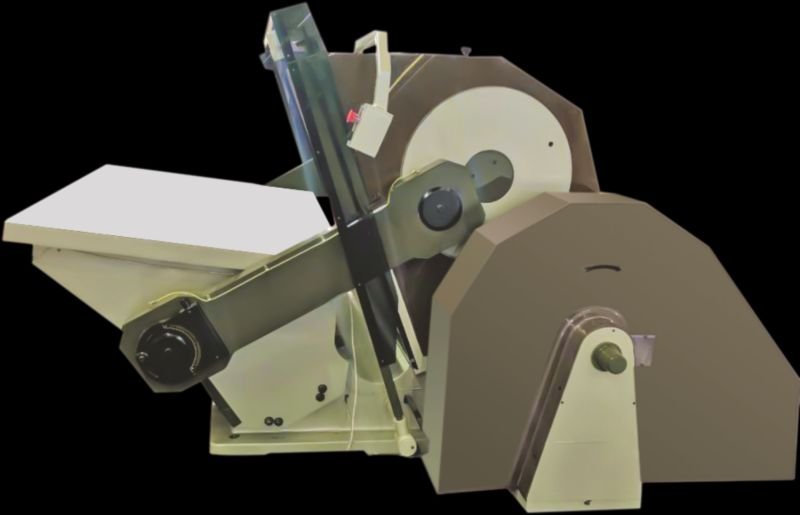

The company is bracketed with the top-notch Manufacturers and Suppliers of high-performance Die Punching Machine. Our hand fed cutting and creasing platens are designed to cut, crease and emboss paper, solid board, corrugated board, micro flute, rubber, linoleum, plastics, leather and other materials using a flat cutting die. We make available our defect-free Die Punching Machine at the most competitive rates. Contact us for bulk as well as urgent orders!   Standard Equipment Available : Single 'Dwell' Facility Two normal chases A complete set of services tools. Wrap-around safety device One of Make-ready plate Automatic sheet counter Centralized lubrication system

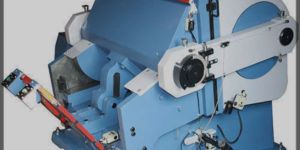

We are offering die punching, creasing machine etc.profile: the most advanced machine available today is fitted with: double sided helical gears electro magnetic clutch & brake delayed dwell system electronic timer & counter centralized lubrication specifically designed for die cutting excellent for scoring and creasing work on cardboard corrugated board, linoleum, fiber board, paper cork, leather, plastic & pvc. for adding a punch into packaging price register minimal make ready time, good hourly production, compact make for minimum floor space coverage, works well on short and long runs. sizes: 19" * 25", 25" * 37", 32" * 42", 36" * 50", 38" * 58" salient features basic description high tension cast iron perfectly seasoned & steel alloy are used to make the frame, platen & other parts of the machine. The powerful action of this machine is obtained by double helical reduction gearing through double helical gears. impression adjustment quick and simple adjustment of impression is made through two eccentric bushes and the amount of impression can be easily read off a graduated scale. electromagnetic clutch and brake electromagnetic clutch and brake enable push bottom control of the machine for easy and efficient operation. full electrical interlocking ensures complete safety. Synchronization of the both clutch and brake eliminates the possibility of time lag or over lag between drive and braking. dwell timing device: this timing device can be set to delay variable period from half to thirty seconds. This time for moving block remains stationary in the open position before automatically resuming motion at the end of the set dwell period. impression counter: the impression counter allows an accurate cheek to be kept on the number of impression made by the machine. standard accessories: each machine is supplied complete with self contained motor, one specially both side precision ground steel cutting. Plate, two steel chases, delivery feeding tables and a set of tools. technical specifications : inside chase size inches 20x26 22x32 25x37 32½ x 42½ 37x51 42x62 52x72 mm 508x660 559x813 635x940 825x1079 940x1295 1067x1575 1320x 1828 moving platen size inches 23x29 25x35 28x40 35½x45½ 40x54 45x65 56x76 mm 584x736 635x889 711x1016 901x1155 1016x1371 1143x1651 1422x1930 floor space inches 52x68 61x70 70x72 72x80 78x90 83x99 90x115 mm 1320x1727 1549x1778 1778x1828 1828x2032 1981x2286 2108x2514 2286x2921 impressions per hour 1600 1500 1400 1200 1100 1000 900 power required 3 h.p. 3 h.p. 5 h.p. 7.5 h.p. 7.5 h.p. 12.5 h.p. 15 h.p. weight apx.(kgs) 2700 3450 4400 5600 7100 11000 14500

We bring forth a comprehensive range of Die Punching Machine for buyers situated in India, Sri Lanka, Bangladesh and many other countries. We manufacture our Die Punching Machine using superior quality raw materials and advanced technology. Tested on defined parameters, we ensure a flawless product is delivered to our buyers. We are a prominent Die Punching Machine Manufacturer, Exporter and Supplier in Punjab (India). We can provide customization option on request. In addition, our products are packed in wooden boxes to protect them from any damage.

SPECIFICATIONS   This MACHINE manufactured by us are known for their efficiency and high level production output. These machines can also cut, crease and emboss materials like fibre glass, vinyl, foam, rubber, felt, plastic sheets etc. Features Motor H.P. required as per sizes Impression/hr amounts 1000 This machine can be run on single face motor For all sharped high quality steels, En9 ultra pass is used Each platen in carefully machined to obtain perfect level surfaces with zero effect Lubrication system is provided for all necessary points. We use CE certified components in all panels

Electro magnetic clutch-brake system for instant stop. Dwell timing device for easy operation, operators hand-safety device for safe operation. Sheet counter and piped oiling system.

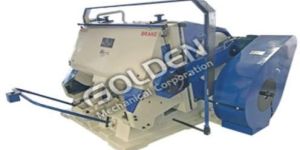

The Die Punching Machine, we offer, is manufactured using hard quality Alloy Steel and Cast Nylon. Each Die Punching Machine is tested on different parameters to ensure long hassle-free operational life. The Die Punching Machines are compact in design. We offer Die Punching Machine at affordable price. Known For : Exceptional durabilityRobust constructionHigh tensile strengthDimensional accuracy Used For Cutting, Creasing, & Embossing : PaperLinoleumCardboardCorrugated boardPlastic PVC material.

These machines are in massive in demand by printing and packaging industries jobs of punching and creasing. Die Punching Machine are used for various applications like: Embossing Creasing Job Die-Cutting Printing presses to emboss stereoscopic designs Printing letters on delicate printed matters Printing presses to emboss stereoscopic designs Jaikar Industrial Corporation has become a prominent name in manufacturing, supplying and exporting Industrial machineries in the period of few years because of the quality of products we manufacture at the least possible expense. Our range of machines are stringently tested on various parameters in order to ensure superior quality standards. We provide qualitative range of die platen punching and creasing machines that are specially designed for heavy jobs of punching and creasing. Eccentric Bush adjustment with worm system is provided which is ideal for Sticker Cutting and other accuracy jobs. In our Machines Crank comes with double Gear set which provides extra durability and strength while cutting heavy jobs We have been certified with Iso9001:2008 and our Die Punching Machines supplied to various cities all over India.Our Machines Crank comes with double Gear set which provides extra durability and strength while cutting heavy jobs. Products manufactured at Jaikar Industrial Corporation are fabricated in compliance with the international standards and for that reason our Die Punching Machines are even supplied to many overseas countries including Dubai, Oman, USA, Canada, Nigeria, Kenya, Egypt, Sweden, Brazil, Finland etc. Salient features: Electromagnetic Clutch & Brake to eliminate possibility of time lag between driving & breaking Dual Timing Device to give a variable period from half to ten seconds Three Safety Devices to stop the moving block immediately and isolate the starting mechanism Embedded with Standard Accessories like One Impression Plate, Two Steel Chases, Feed and delivery boards, Centralized lubrication system and tools Best after supply customer services

Heavy Duty Export Model Platen Die Punching Machine is meant for Creasing. Cutting & Punching of Paper, Linoleum, Fiber, Cork, Leather, Plastic PVC Thin Metal Sheets, Card Board as well as Corrugated Boxes. The Machine is provided with Safety Devices like Electro- magnetic Clutch, Timer, Brake, and Trip Bar & Safety Guard for Operator safety. The Machine is also equipped with Micron Impression Adjustment System, Dwell Timing Device, Centralized Lubricating System, Sheet Counter Along with all moving parts are protected by approved safety Guards and with all standard accessories.

Die Punching Machine, Heavy Duty Die Punching Machin
