Harbhajan Singh & Co. Focal Point, Amritsar, Punjab

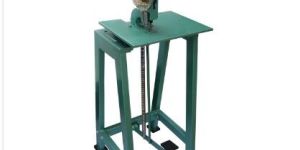

Model Id HSC-4MF2 (Double Head Treadle Model) Max. working Lenghtways Travels 60mm Binding Thickness Upto 4mm Eyeleting Diameter 4mm or 5. 5mm Overall Size 500mm x 470mm x 1200mm Gross Weight 43Kg Usage Well suited for fixing eyelets on bags, box, leather products, garments, shoes etc.

Usage : Fixing Eyelets On Bags, Boxes, Leather Products, Garments, Shoes, Etc.

Maximum Sewing "18 x 9" Maximum Sewing 41/2" x 4" Number of Stitches Up to 7Sets Number of Stitches 70 Sec/Min Power Requirements 1/2 Hp/037 KW

Number Of Flower : Sewing Machine

Number Of Stitches : Up To 7 Sets

Spiral coll size 1/4 " to 3/4 " Max. binding size 450 x 530mm Min. binding size: 130 x 85mm Max. book binding thickness 16mm Working speed 800-1300 books/hour Power 1kw 220V 1 ph. 50HZ Dimension 90x140 x 120 cm Machine Weight 250Kg

Number Of Flower : Spiral Forming And Binding Machine

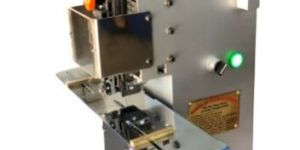

Stitching capacity: 6mm Motor: 60W 220V 61PH Wire Guage: 26SWG & 28SWG Net Weight: 30kgs

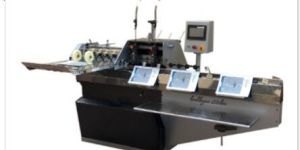

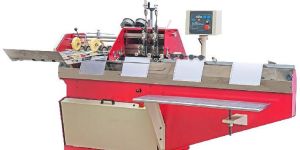

Wire Guage Supported 24, 26 S.W.G Machine Speed 500 to 5000 books per hour as per operator efficiency Silent Features Variable speed and collision detection sensors Power & Voltage 0.55 KW & 220V Colour Red and Beige Net Weight 490 Kgs. Machine Size 2280 X 1060 X 1320 (MM) Book Size 440 X 430 MM (Max.) 100 X 80 MM (Min.)

Number Of Flower : Semi Automatic Saddle Book Stitching Machine

Power : 0.55 KW

Country of Origin : 220V

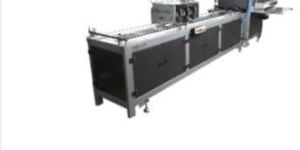

BOOK LENGTH 10 " MIN. / 30 " MAX BOOK WIDTH 10 " MIN / 18 " MAX BOOK THICKNESS 6MM STITCHING HEAD / 8MM STITCHING HEAD POWER 5 H.P. THREE PHASE SPEED 1000-1200 BOOKS PER HOUR DIMENSIONS L 192 " X W 60 " X H 72 " AIR SUPPLY COMPRESSOR REQUIRED PANEL L & T PLC BASED HMI NET WEIGHT 900 KGS

Power : 5 H.P. Three Phase

SIZE AVAILABLE: 36 " , 42 " , 45 " LENGTH OF CUT 36 " (900MM) , 42 " (1060MM) , 45 " (1150MM) HEIGHT OF CUT 4/1/2 " (113MM) , 5 " (127MM) , 5 " (127MM) CUT PER MINUTE 25 , 20 , 20 POWER 3 + 1/2 + 1/2 HP WEIGHT 1600 KGS, 2000 KGS , 2300 KGS OTHER DETAILS: WITH ELECTROMAGNETIC CLUTCH, SAFETY PHOTO SENSORS, STAINLESS STEEL PLATE

Automation Grade : Semi Automatic

Application : Industrial

Weight : 1600 Kgs, 2000 Kgs, 2300 Kgs

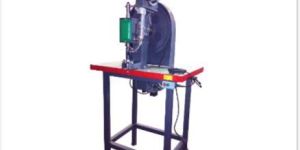

Model ID HSC-T Motor Power 0.25 Kw Max. Working Lenghtways Travels 120mm Net Weight 140Kg Gross Weight 140Kg Overall Size 104cm x 65cm x 150cm Usage Well suited for fixing on bags, box, leather products, garments, shoes etc. Features It is heavy build & very stable while opertaing. Made with high quality electrical components, it is good machine to meet the large scale production.

Number Of Flower : Semi Automatic Eyeleting Machine

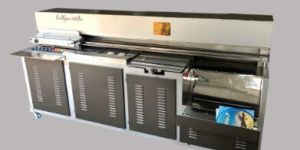

Binding Capacity Book Thickness 3mm to 50mm for both sizes Binding Capacity Book Lenght 50mm to 425mm (17 ") Machine Speed 720 Cycles per hour Binding Production 500 to 550 Books per hour as per operator efficiency Motor and Gear Box Crompton Electrical 440V 3 PhaseSupply, Siemens Panels Adhesives Hot Meit

Model ID HSC-4MF (Single Head Treadle Model) Max. working Lenghtways Travels 60mm Binding Thickness Upto 4mm Eyeleting Diameter 4mm or 5.5mm Overall Size 500mm x 470mm x 1200mm Gross Weight 38Kg Usage Well suited for fixing elelets on bags, box, leather products, garments, shoes etc.

Stitching Speed 130 Stitches per minute Motor o.75 H.P (Single phase) Net Weight 150 Kgs. (HMH-18) 200 Kgs. (HMH-24) Gross Weight 300 Kgs. (HMH-18) 350 Kgs. (HMH-24) Stiching Distance Min: 45mm: Max 360mm (HMH-18) Min: 45mm: Max 520mm (HMH-24) Table Size 785mm x 220mm (HMH-18) 935mm x 270mm (HMH-24) Stitching Capacity Variable as per stitching head (6mm or 8mm)

Stitch Speed : 130 Stitches Per Minute

Motor : 0.75 H.P (Single Phase)

Model ID HSC-120 Voltage/Power 200V/ 380V/ 750W Max. Cutting Height 110mm Cutting Speed 90 Cycles/min Overall Size 1050mm x 550mm x 1350mm Net Weight 270Kg Usage This machine is specialized in punching corner to tag, aluminum plastic, laminating film, bankbook, notebook, and various types of books. It can also be used for punching flat angles for high-grade notebook and oblique angle for cigarettes soft packing. Dies Specifications R1/R1.5/R2/R2.5/R3/R3.5/R4/R4.5/R5/R5.5/R6/R6.5/R7/R8/R10/R12/R14/R16/ 22MM Flat

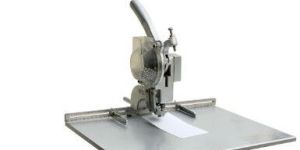

Model ID HSC-4MH (Available in Single & Double Head Model) Binding Thickness Upto 3mm Eyeleting Diameter 4mm Max. Working Lengthway Travel 60mm Gross Weight 13Kg Overall Size 440mm x 300mm x 390mm

Number Of Flower : Manual Eyeleting Machine

Model ID HSC-120 Voltage/ Power 200V/ 380V/ 750W Max. Cutting Height 110mm Cutting Speed 90 Cycles/min Overall Size 1050mm x 550mm x 1350mm Net Weight 270Kg Usage This machine is specalized in punching corner of tag, aluminum plastic, laminating film, bankbook, notebook, and various types of books. It can also be used for punching flat angels for high-grade notebook and oblique angle for cigarattes soft packing. Dies Specifications R1/R1.5/R2/R2.5/R3/R3.5/R4/R4.5/R5/R5.5/R6/R6.5/R7/R8/R10/R12/R14/R16/ 22MM Flat

Usage/Application : Punching Corner Of Tag, Aluminum Plastic, Laminating Film

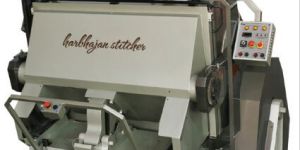

Heavy Duty Die Punching Machine Punching Machine Electro Magnetic Clutch - Brake System for instant stop.Dwell Timing Device for easy operation, Operators hand- safety device for safe operation.Sheet counter and piped Oiling System. Machine is fitted with best quality bearings and Bronze metal bushed. Automatic time delay from 0 to 30 Sec and digital electronic sheet counter Lubrication is provided to every revolving part From 25 "*37* size to abovr all thr sizes, we provide Double Set of Helical Gears inside the body. Size Inside chase 20 "*26* 22 "*32 " 25 "*37 " 32 "*42 " 36 "*50 " Platan Size 23 "*29 " 25 "*35 " 28 "*45 " 30 "*46 " 40 "*64 " Speed App Phr 1800 1800 1800 1500 1200 Power H.P 3 3 5 7.5 10 Area Req 62 "*53 " 68 "*56 " 72*63 " 74 "*72 " 30 "*62 "

Automation Grade : Automatic

Number Of Flower : Die Punching Machine

Application : Industrial

Power : 3 HP, 3 HP, 5 HP, 7.5 HP, 10 HP

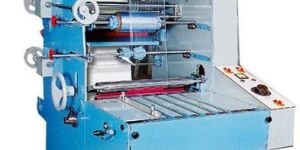

FEATURES Variable Speed (Drive Control) Adjustable gum tray Hard Chromed Rollers

Number Of Flower : Lamination Machine

Material : Hard Chromed Rollers

Usage : Laminating Documents

Number Of Flower : Manual Paper Cutting Machine

Usage/Application : Cutting Paper Sheets

Brand Name : Harbhajan

Model HES28 HES32 Book Block Width(Max) 710MM 810MM Spin thickness (Min-Max) 5.6MM 5.6MM Clamping Pressure(Kgs) 6000 7000 Squaring Pressure (Kgs) 2500 3000 Electrical Load Motor(Kw/hp) 3 H.P 3 H.P Hydraulic Oil Capacity (Ltrs) 80 80 Net Weight (Kgs) 800 800 Overall Dimensions (WxLxH) 40 "X42 "X41 " 40 "X49 "X41 "

Number Of Flower : Edge Squaring Machine

Application : Used For Squaring The Edges Of Materials

Double wire size 1/4 " -7/8 " Wire pitch 3:1 & 2:1 & 4:1. Book width Max 520mm Min 30mm Working speed 1200-1700 books/hour Power: 0.75kw 220v 50HZ Dimension 90x95 x 150 cm Machine Weight 300Kg

Power : 0.75kw, 220v, 50HZ

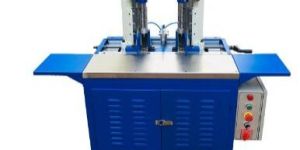

Max. Cutting Height 90mm Max. Distance Between Two Corners 480mm Min. Distance Between Two Corners 85mm Working Speed 70 Times/min Specification of Knife 2#, 3#, 4#, 5# Power 1.5KW, 220V, 3HP Machine Dimention 1200mm X 550mm X 1450mm Machine Weight 150Kg Usage This machine can cut two corners at one time with its two heads and hydraulic system. Diffrent sizes of knives are available to chose from. Machine will be supplied with two pieces of knives as per customer requirements.

Power : 1.5KW, 220V, 3HP

Number Of Flower : Corner Rounding Machine

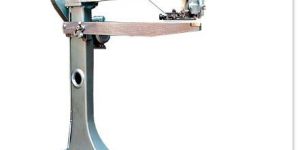

Stiching Capacity 2ply to 9ply Stitch Speed Stitch Speed 300 Stitches per minute Motor 1/2 H.P Single or three phase Wire 12/25,14/25 & 17/25 S.W.G Net Weight 235 Kgs. Gross Wight 380 Kgs. Machine Size L 60” W 25 " H 54 " Packing Box Size L 58” W 18 " H 34 " (Foot) L 58” W 19 " H 19 " (Body)

Number Of Flower : Box Stitching Machine

Net Weight : 235 Kgs.
