SENIOR MACHINES Sultanwind, Amritsar, Punjab

Sheet Pressing Machine is used for pressing of Corrugated Sheets. The glued sheets which are processed on pasting machine are piled on lower plate and then pressure is applied for some time by lowering upper moving plate.

Maximum paper roll diameter : 1400mm. Maximum support weight : 2T. Round-plate type manual brake, the web tension is adjusted at any time. Arm clamp and rotary structure set fixed torque clutch, operate safety. The structure is double rotary shaft with four arms; Support two paper mill rolls on both arms at the same time.

This machine can be operated in alignment of corrugating machine instead of rewinding and making roll of single phase. It will avoid the labour of 2 to 3 persons to cut on board cutter. The machine is attached with A.C. Drive motor with PLC controller .with digital size setting. Moreover the machine is provided with variable speed drive to align the corrugation. It can cut the paper into 2 to 3 Nos. at a time from paper reels with no variances.

Die cutter phase is adjusted by computer and electric digital control In a scope of 360°, Die Cutter horizontal movement is adjusted by computer and electric digital control of a scope of ± 5mm. Uniflair glue die cutting cushion roller servo traces simultaneously, when the restored roller is input inside the serveo computer system, it will calculate accurately and automatically and follow the printing speed to ensure the velocity of blade line the same as the cushion roller and make the formation of the die cutting beautiful and same in size. No matter how the diameter of the cushion changes, the die cutting plate will not be damaged. The upper and lower roller of the die cutting adopts the design of different sizes.

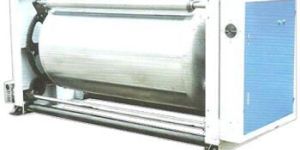

Main Structure and Features : Diameter of pre-heater roller: 600mm, 900mm, 1000mm, 1100mm Effective width : 1400mm-2500mm Electro motion heating angle adjustment. adjustable range of 360 Surface of all rollers are well treated by grind and plated hard chrome, glabrous and durable. Adopt dishing seal or plat design. Insure reel paper be heated averagely. Simplex, duplex, triplex or quad plex preheater according to requirement.

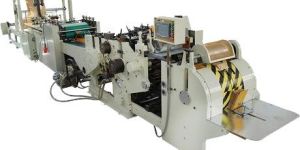

Modern Paper Bag Making Machines for manufacture of Flat and Satchel Paper Bags from kraft paper, vegetable parchment, poster, glassine and other papers of similar nature. These automatic paper bag making machines have been designed incorporating latest improvements and are available for manufacture of different ranges of paper bags for packing of foodstuffs, confectionery, readymade garments, tobacco and snuff, ice cream and many other items. These paper bag making machines are of excellent construction, all parts arranged in a most accessible way, making operation and adjustments simple and easy. These automatic paper bag machines work on the beater principle i.e. the tubed web is separated into the required tube length by a rotary beater against a serrated plate. These paper bag making machines are also supplied with flexographic printing (aniline printing) attachment for the production of the printed bags in huge quantities. Smooth fabric-roll unwind system Automatic unwind breaking management system Automatic film positioning management system Touch-screen computer interface Heavy duty motor for station movement Ultrasonic welding technology Automatic temperature controls Availability in two shapes ( L & I ) Model: SEN-600B & SEN-600C

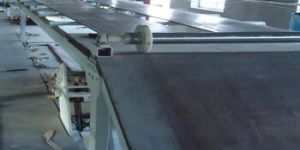

Main structure and Features Frame made of channel iron, angle iron and iron plate, the main frame made of I-shaped steel. There is a single-faced web-elevating device with cotton belt equipped above each single facer. Handrail and full covered reinforced footplates for safety protection. Additional safe hand rail and stair. Two sets of operation boxes with one at bridge and the other at glue machine.

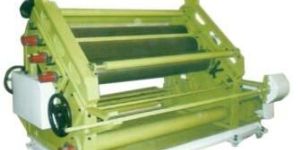

Flute Rolls are minutely finished and mounted on spherical Roller Bearings, to give perfect impression on Board. The setting of Flute Roll is from one side only. A Motor is fitted to keep the Gum Rolls Rotation for agitation of the gum while the gum Unit is disengaged from the Flute Rolls. A steam shower is provided for perfect formation of the flutes. Motorized self Loading Reel Stand is additionally provided with machine. The Machine is provided with Centralized Lubrication System.

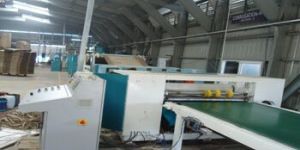

Main Structure and Features Effective width : 1200mm-2500mm. Length of cutting cardboard: 500-9999mm, Precision of cutting cardboard + 1mm. Short diameter of knife shaft, high average speed better to improve the productivity. Transmission system adopts Oil pump auto-Cyc lubricate. Exact and adjustable no gap gear assure knife –edge joggle exactly. Incision quality good, beeline degree high, protect knife. NC. Automatic follow the cardboard transmission speed and keeping synchronization . NC. Reserve groups of orders and auto-complete as the procedure or according as preferential condition, the screen display various production massage.

The structure is double rotary shafts with four arms Support two paper mill rolls on both arms at the same time. Hydraulic Control for paper mill roller up-down, clamp open and centering. Web tension is controlled by pneumatic brake or manual brake Springiness chucks are optional.

Special Line on the surface of the glue applicator roller, surface and hard chrome palting, even glue supply, low cost. The glue applicator drived by frequency conversion motor with inverter. Keep the synchronization for gluer applicator roller and double baker facer machine by inverter and independent running. Adjustment for gap between glue roller and doctor roller by electric or manual are optional,Digital read out of the gap between glue roll and doctor roll is optional. Self-circulating glue supplying system to avoid glue hardening and to control glue quantity Keeping the glue good quality and saving. Press roll and press bar are optional.

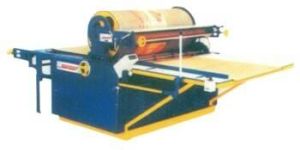

For printing Kraft paper and corrugated boards Distinct and precise impression, Instant drying, Extremely simple to operate, Easy accessibility for cleaning.

Packaging Type : Power Required (H.P.)

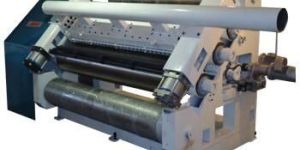

Drive reducer box with oil immersed type lubricating to reduce noise keep running stable. Adopt gimbal transmission. separate power. Corrugated roller, pressure roller and glue roller by pneumatic adjustment. Cardboard transmit adopt vacuum suction method, with wind control system. Keep flute profiles stable of the lower roller in the condition of running up. Bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly. The Upper Lower corrugating roller are made of 52crMo high quality alloy steel, after heat treatment. The hardness HRC58-60, The surface be grinded. The glue part surface are treated by special mash snicked and chromeplated. Motorized or manual glue width dividing to match the paper width. Glue part can be running independently or non independently while stopped.

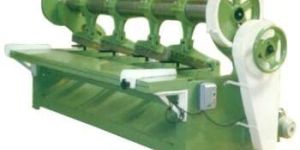

Slotting and corner cutting is done simultaneously over this machine. It is capable of slotting a number of sheets in one stroke. The distance between two slots and slots depth is adjustable. Two guides are provided for facilitating east feeding and correct dimensions.

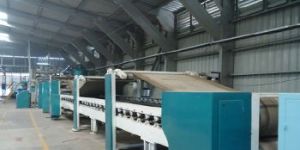

Main structure and Features Surface ground steel hot plates are of inner whirlpool structure, 175mm high and 550mm width. Dense weight rolls of heating unit are manually lifted and lowered as a whole and also manually press the web in section independently of each other. Dense weight rolls of cooling unit ensure perfect forming quality. If configured with cut-off, the drive unit must be driven with external power. Main drive roll knurling with diameter 645mm , featuring smooth and stable belt conveying.

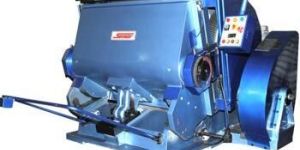

Heavy Duty Export Model Platen Die Punching Machine is meant for Creasing. Cutting & Punching of Paper, Linoleum, Fiber, Cork, Leather, Plastic PVC Thin Metal Sheets, Card Board as well as Corrugated Boxes. The Machine is provided with Safety Devices like Electro- magnetic Clutch, Timer, Brake, and Trip Bar & Safety Guard for Operator safety. The Machine is also equipped with Micron Impression Adjustment System, Dwell Timing Device, Centralized Lubricating System, Sheet Counter Along with all moving parts are protected by approved safety Guards and with all standard accessories.

Heavy Duty Export Model Platen Die Punching Machine is meant for Creasing. Cutting & Punching of Paper, Linoleum, Fiber, Cork, Leather, Plastic PVC Thin Metal Sheets, Card Board as well as Corrugated Boxes. The Machine is provided with Safety Devices like Electro- magnetic Clutch, Timer, Brake, and Trip Bar & Safety Guard for Operator safety. The Machine is also equipped with Micron Impression Adjustment System, Dwell Timing Device, Centralized Lubricating System, Sheet Counter Along with all moving parts are protected by approved safety Guards and with all standard accessories.

The Machine has flute rolls which are the main part of this machine. These are very minutely finished to give the perfect impression on the board. Motorized self loading twin shaft reel stand with three unwinding shafts helps in easy operation saving time. Electric heaters are fitted to provide lamination of board which help to increase the efficiency and production.

Four Bar Rotary Cutting and Creasing machine is useful for creasing and cutting simultaneously. The machine is with two pairs of shafts. The front pair is with cutting dies and rear pair is with creasing die. The lower shaft of each pair can be raised or lowered by revolving side wheel. For easy feeding two guides are provided

This machine can be operated in alignment of corrugating machine instead of rewinding and making roll of single phase. It will avoid the labour of 2 to 3 persons to cut on board cutter. The machine is attached with A.C. Drive motor with PLC controller .with digital size setting. Moreover the machine is provided with variable speed drive to align the corrugation. It can cut the paper into 2 to 3 Nos. at a time from paper reels with no variances.

Pasting Machine is useful for gluing the fluted side of the board and for pasting board to paper as will as to board for making 3-5-7 ply board. The model of this machine is different than the others and is full enclosed model. The Machine is adjustable by rotating handle provided on one side of machine.
