Expert Energy System LLP Vitthal Udyognagar, Anand, Gujarat

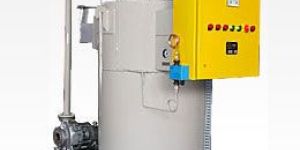

EXPERT ENERGY SYSTEM LLP offers thermic fluid heaters fired by a wide range of fuels. Our heaters are available in both solid fuel firing as well as oil/gas firing version for flexibility of economically available fuels. Flowtherm is a Fully/Semi Automatic, 3 pass, oil/gas fired packaged Thermic Fluid Heater capable of supplying process heat up to 300° C at near atmospheric pressure. As the same oil is re-circulated again between source and sinks. Thermic Fluid Heating system is adaptable to precise temperature control. FEATURES Range From 50,000 kcal/hr to 10,00,000 Kcal/hr (Above that we can customize) 88% ± 2% Efficiency (Based on NCV) Maximum Supply Temperature-320 ° C Easy And Economical Operation Fuel: FO/ LDO/ HSD/ Natural Gas/ Fully/Semi Automatic Outside Purview of IBR

EXPERT ENERGY SYSTEM LLP offers coil type steam boilers in capacitates up to 750 Kgs of steam per hour. The coil type boiler generates steam instantly and is extremely easy to install and operate. They are designed for safe and reliable operations and long service life. FEATURES Range From 100 To 300 Kgs/Hr 88% ± 2% Efficiency (Based on NCV) Working Pressure up to 15 Kgs/cm2 Easy And Economical Operation Fuel: FO/ LDO/ HSD/ Natural Gas/ Wood/ Coal Fully/Semi Automatic (if FO/ LDO/ HSD/ Gas Fired) Coal/Wood Operated Are Manual Outside Purview of IBR

The Rotary Dryers/Calcinators are mostly used in for free flowing powders and granular material and can operate with high through put, and if required can operate at high temperature also. They are sometime supplied with another rotary equipment to work as after cooler.The rotary shall is made of steel which is mounted on heavy duty rollers and driven by gear box/geared motor. The variable drive is employed to control trough put. They are having counter or Co-current design. The specially designed internal flights lifts the material, showers it on drying gases, ensuring proper heat transfer, and help in forward movement of material through rotary drum. The main rotary shell is insulated from outside to reduce hot losses.The hot is supplied from indirect or direct fried hot air generator, working on oil, gas or solid fuel fired.The exhaust equipment consist of cyclone, beg filter and exhaust blower and some time a chimney is also supplied as optional.The standard size starts from 300 mm to 1500 mm diameter and 5000 mm up to 15000 mm long

  STANDARD FEATURES Powder coating ovens are eighter batch type cabinet oven or conveyer ovens. They generally operate around 180 to 220 oC temperature. The heat source is electrical or thermic fluid heating or indirect type gas hot air generator. They are forced draft type with gentle air movement within the drying chamber to ensure uniform heating without damaging unbaked powdered surfaceThe dedicated electronically controlled temperature management

  A pneumatic conveying dryer are efficient, fast and easy to install. They are employed for free flowing powders,with low abrasive and non hydroscopic property. The hot conveying air is moiving in conyer's pipe,into which powder is fed through rotary feeder The powder get heated and moisture is separated along the length of conveyor and dried powder is separated in cyclone and Bag-Filter. The heat source may be Hot Air Generator steam or Thermic Fluid Heater heat exchanger or electrical heater. If occupys less space, have minimum maintance and work efficiently.

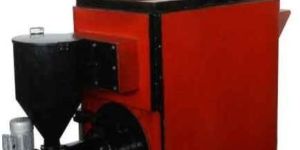

EXPERT ENERGY SYSTEM LLP's "AQUAFLOWTHERM" series LDO / HSD, FO or Gas Fired Hot Water Generators are fully automatic. They are an ideal source for supplying process heat through suitable hot water media upto a temperature range of 90°C at atmospheric pressure and upto 160°C for pressurized system. Water is low cost , eco friendly and has specific heat of one., which makes it it excellent medium for industrial heat transfer application. They are used where hot water is required in processes such as Steel Plants, Hotels, Hostels, Food processing, Textile industries, Rubber industries, etc. They are also used as once through system for obtaining hot water for hostels, hospitals, hotels, temples and laundry. FEATURES Range From 50,000 kcal/hr to 10,00,000 Kcal/hr (Above that we can customize) 88% ± 2% Efficiency (based on NCV) Easy And Economical Operation Fuel: FO / LDO / HSD / Natural Gas / Wood / Coal Fully/Semi Automatic (If FO / LDO / HSD / Gas Fired) No Scale Formation Coal/Wood Operated Are Manual Outside Purview of IBR

EXPERT ENERGY SYSTEM LLP's "VENTITHERM" direct and indirect type Hot Air Generators are fully automatic and run on gas and oil. They are ideal source of obtaining hot process air for Dryers, Ovens, Spray Dryers and other similar applications. Indirect fired have temperature limitation up to 400°C. Indirect fired Hot air generators do not have any refractory and all internal parts like combustion chambers, heat exchangers are highly reliable with low thermal inertia and have virtually no maintenance. Direct Fired ‘VENTITHERM’ for the applications where contamination by carbon particles or combustion products do not matter for the product to be dried or baked ( Maximum temperature : 800 °C) Indirect Fired 'VENTITHERM’ for the applications where clean hot process air is required for thr drying as in food processing , paint baking or for some fine chemicals. ( Maximum temperature : 400 °C ) FEATURES Range From 50,000 kcal/hr to 10,00,000 Kcal/hr (Above that we can customize) 88% ± 2% Efficiency (based on NCV) Easy And Economical Operation Fuel: FO/ LDO/ HSD/ Natural Gas/ Wood/ Coal Fully/Semi Automatic (If FO/ LDO/ HSD/ Gas fired) Coal/Wood Operated Are Manual Outside Purview of IBR

They are quick, efficient, continuous and less labour intensive. They can be used for drying wet cake/granular having up to 80% moisture but material should have charecrisitc of free following after drying.STANDARD FEATURES The material is feed in mixture, which disintegrates it into smaller lumps, which are then feed into drying chamber by variable feeder,driven by geared motor, having specially designed stirrer. The Hot Air enters the drying chamber and under high turbulence condition, drying process starts. The dried material travels upward in drying chamber under influence of process blower and is separated in cyclone and bag-filter. The material of construction is M.S., S.S, and Aluminum depending upon process requirements. The process air is heated by any of the option:- steam ,thermic fluid ,hot air generator, working on eighther oil, or gas or solid fuel f. The drying capacity up to 800 kg/hr moisture removal rate is offered as standard equipments

  STANDARD FEATURES The specially designed drum heating ovens are steam or thermice fluid radiated heated, electrical, gas fired. They are used for melting the material inside the metal drum and are designed to suit specific requirements of customers. They are essentially a cabinet ovens with one stage or two stage loading trolley fro drums, mostly from front side. The accurate electronic temperature controller, over shoot temperature shut off and forced circulation hot air generator ensured uniform and safe heating of drums

  They are Generally employed for mass or volume production. The material to be treated(dried/backed) are loaded uniformly on conveyor, which carries the material through the heated tunnel and dried material is taken out at other end.They are electrically heated or having finned tube heat exchanger working on steam or thermic fluid heater.The stand alone hot air generator, direct fired or indirect fired is also offered. The excaust blower takes care of fumes generated during the process. The dedicated electronic/electrical control panel is designed for controlling production and drying parameters. The material of construction are M.S., S.S, Aluminum depending upon process requirements

Vertical air flow Cabinet ovens specifically designed for work loads where the heated air must pass upward through the load, such as open ended cylinders or hanging parts. Two sizes, 14.9 and 28.6 cubic feet, at temperatures up to 850°F. STANDARD FEATURES Controls Digital, microprocessor based, thermocouple actuated, indicating temperature controller Modulating burner on gas ovens Motor control push buttons and on-off heat switch LED pilot lights Safety Equipment Electric Oven Adjustable, thermocouple actuated, manual reset excess temperature controller Separate heating element control contactors Recirculating blower air flow safety switch Safety Equipment Gas Oven Adjustable, thermocouple actuated, manual reset excess temperature controller

  Vertical air flow Cabinet ovens specifically designed for work loads where the heated air must pass upward through the load, such as open ended cylinders or hanging parts. Two sizes, 14.9 and 28.6 cubic feet, at temperatures up to 850°F.STANDARD FEATURES Controls Digital, microprocessor based, thermocouple actuated, indicating temperature controller Modulating burner on gas ovens Motor control push buttons and on-off heat switch LED pilot lights Safety Equipment Electric Oven Adjustable, thermocouple actuated, manual reset excess temperature controller Separate heating element control contactors Recirculating blower air flow safety switch Safety Equipment Gas Oven Adjustable, thermocouple actuated, manual reset excess temperature controller Electronic flame safeguard protection 325 CFM powered forced exhauster for combustion venting Exhauster air flow safety switch Recirculating blower air flow safety switch Purge timer High gas pressure switch Low gas pressure switch Two pilot safety shutoff valves with leak test stations Two main safety shutoff valves with leak test stations Valve position indicator on main safety shutoff valves         Construction Adjustable opposed louvers on full coverage supply and return duct work 304 stainless steel interior Aluminized steel exterior with enamel finish Brushed stainless steel control panel face Built-in baffles prevent radiant heat Exceptionally heavy duty doors and door frame with explosion venting latches High temperature door gasket with stainless steel spring insert Two (2) nickel plated wire shelves Channel shelf supports prevent shelves tipping Adjustable fresh air intake and exhaust dampers High pressure recirculating blower All welded construction 10 lbs/cf density industrial rockwool insulation 1 year limited warranty

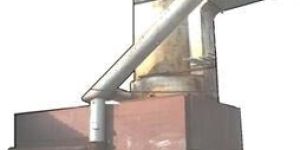

STANDARD FEATURES These are specially designed high temperature oven for clearing of painted/oil surface components and equipments. These are cabinet type oven with heavy duty loading trolley, fume extraction system and dedicated electrical control panel. The water sprinkers are also provided in case of fire. The fume extraction system with option gas scrubbing system ensures cleaner operation. Explosion door /wind is provided for additional safety. These ovens are electrical heated or gas or oil fired one.
