Shivam Cast Productss Vitthal Udyognagar, Anand, Gujarat

Universal Expansion Bellows are Designed to handle multi-directional movements, make them crucial component in piping system that require versatility and reliability. Shivam Cast Products manufacture high-quality Universal Expansion Joints made to accommodate axial, lateral, and angular movements in single unit, ensures the maximum longevity and efficiency. Material Stainless Steel, Inconel Applications Steam piping Chemical plants Oil & gas refineries and HVAC systems Features Accommodates multi-directional movements Reduces stress and vibration in piping systems Durable construction for high-pressure and high-temperature environments Pressure ranges from full vacuum to 80 kg/cm2 above two bellows elements are joined together by a center tube and fitted with either pipe ends or flanges. The assembly is capable of both axial and lateral movements but is limited to low pressure applications because of center tube instability.

Material : Stainless Steel,Inconel

Application : Steam Piping,Chemical Plants,Oil & Gas Refineries

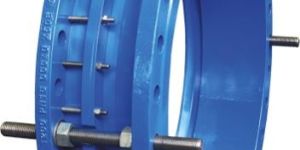

Slip Type Expansion Joints, also known as Dismantling Joints, are essential components in piping systems that allow for easy installation and removal of valves, pumps, and other equipment. These joints provide flexibility and absorb thermal expansion, ensuring the system remains stable under varying operational conditions. Material Stainless Steel, Inconel Applications Water treatment plants Chemical processing Power plants Industrial pipelines Features Facilitates quick assembly and disassembly of components Compensates for axial movement and thermal expansion Durable and resistant to high pressure and temperature Slip Type Expansion Bellow[Dismantling joint] are installed in pipelines to facilitate Removal and replacement of valves, pipes or fittings in the line. By removing and adjusting certain stud nuts, the stud & the loosened flanges can be retracted sufficiently to allow for the removal & replacement of the joint and associated pipe or fittings in the pipeline.

Number Of Flower : Expansion Joints

Material : Stainless Steel,Inconel

We manufacture hand crafted mandrel built & moulded rubber bellows to suit your application, specifications. The bellows are designed following the guidelines of the FSA (Fluid Sealing Association) Non-Metallic Expansion Joints Technical Handbook, ASTM F1123 - 87 Standard Specification for Non-Metallic Expansion Joints. Effective compensation: ShivamFlex® rubber expansion bellows (expansion joints) are widely used to provide efficient ways to relieve movement stresses, reduce noise, isolate vibration or to compensate misalignment. They are made out of several types of specially selected rubbers and are applicable up to more than 100°C and 40 Bar. Absorbs axial and lateral movements: ShivamFlex® rubber expansion bellows (expansion joints) can absorb axial and lateral movements and are suitable for cooling water, hot water, gases, oils, fats and other media. ShivamFlex® rubber expansion bellows can be delivered with or without inserts, limiters and/or connection flanges. The exact composition depends on the specific application and customers" wishes Common applications: Power generating stations, Oil & gas, Desalination, Cooling systems, Pumps, Chemical plants, Heating, ventilating and air conditioning, Shipbuilding, Off-shore applications, Water treatment plants, Sewage, Sanitary piping systems, Pulp and paper plants, Piping systems for chilled or hot water, Cooling systems power generation, Phosphate plants, Potable water, Food processing.

Material : Rubber

Rectangular and Square Expansion Bellows are carefully made to manage heat expansion and contraction in non-circular ducts and piping systems. These bellows widely used in HVAC systems, industrial exhausts, and power plants, where they provide the flexibility needed to handle complex movement patterns. These expansion bellows help to protect connected components, reduce maintenance costs, and improve overall system efficiency. Material Stainless Steel, Carbon Steel, Inconel Applications HVAC systems Industrial exhaust systems Power plants Ducting applications Features Designed for non-circular duct systems Accommodates axial, lateral, and angular movements High durability and corrosion resistance Can be supplied in a wide size range. These Bellows have special application in Cement Industries.

Material : Stainless Steel, Carbon Steel, Inconel

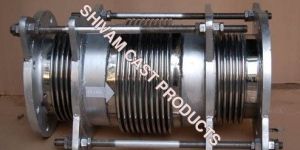

Pressure Balanced Expansion Joints are special components made to absorb heat expansion and contraction in piping applications and neutralize pressure thrust forces. These Pressure Balanced Expansion Bellows (Joints), make the system stable by accommodating axial, lateral, and angular movements without imposing additional loads on anchors and supports. These bellows are ideal for high pressure applications in industries like oil and gas, power plants, and chemical processing. Material Stainless Steel, Inconel Applications Oil & gas pipelines Power plants Chemical processing High-pressure systems Features Neutralizes pressure thrust forces Handles axial, lateral, and angular movements Designed for high-pressure and temperature environments Sizes types & pressure ranges to suit specific applications Pressure Balanced Bellows are used in piping system where pressure loads are critical, and where complex axial and lateral movements are involved with limited space. Using a pressurized bellows outside the system to counteract forces generated by bellows inside the system, large axial and lateral movements can be absorbed.

Material : Stainless Steel,Inconel

Packaging Type : Metallic

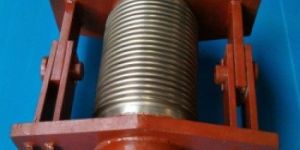

Hinged Expansion Bellows, also known as Hinged Expansion Joints, are basically made to hold angular movements in piping systems while controlling axial and lateral forces. Shivam Cast Products, Hinged Expansion Joints are carefully built using top-quality materials like stainless steel to make sure durability and performance in demanding industrial environments. These bellows control movements in single plane, equipped with hinge mechanism. With their robust construction and accurate engineering, they not only improve the flexibility of piping systems but also extend their life by reducing stress. Material Stainless Steel, Inconel Applications Steam pipelines Power plants HVAC systems industrial processing units Features Accommodates angular movement in a single plane Robust hinge mechanism for enhanced durability Resistant to high pressure and extreme temperatures Pressure ranges up 40 kg/cm2 Generally installed in multiples of two or three, there Bellow are designed for angular movements in one plane only. A hinged mechanism contains the pressure loads and ties back to an integral flanger or box restrained lug. Limit stop controls the degree of angular movement. These units can be fitted with either pipe ends or flanges, can be supplied with two hinged system also.

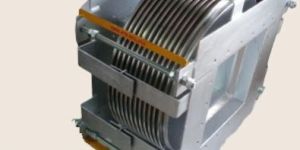

Gimbal Expansion Joints are specialized components designed to accommodate angular movements in multiple planes. They are essential for systems experiencing complex motion and misalignment, ensuring flexibility and protecting the integrity of piping networks. Material Stainless Steel, Inconel Applications Refineries Power plants shipbuilding high-temperature piping systems Features Allows angular movement in multiple planes Equipped with gimbal rings for enhanced stability Designed for high-pressure and temperature environments The most reliable form of flexible joint is Gimbal Joint capable of absorbing angular motion in all planes. The incorporation includes of absorbing angular motion in all planes. The incorporation includes a pair of hinges connected to a floating Gimbal ring which has a very special advantages like absorbing pressure thrust, supporting the dead weight of the system, transmission of wind & shear loads through the Gimbal Structure. These Bellow usually in pairs will permit piping to float in relation to the terminal points.

Material : Stainless Steel,Inconel

Number Of Flower : Expansion Joint

Fabric Expansion Bellows are lightweight, flexible, and cost-effective solutions designed to manage thermal expansion, vibration, and misalignment in ducting and piping systems. we manufacture high-quality Fabric Expansion Bellows using durable materials such as fiberglass, PTFE, or silicone-coated fabrics to ensure superior performance in challenging industrial environments. These bellows are highly resistant to extreme temperatures, corrosion, and chemical exposure, make them ideal for industries like power generation, cement manufacturing, and HVAC systems. With their ability to handle complex movements, Fabric Expansion Bellows protect connect components, reduce stress, and extend the life of the system. Whether you need a standard solution or a custom design, Shivam Cast Products provides reliable and efficient Fabric Expansion Bellows tailored to your unique requirements. Material Fiberglass, PTFE, Silicone-coated fabrics Applications Power generation Cement manufacturing HVAC systems Chemical processing Features Lightweight and flexible design High resistance to extreme temperatures and corrosion Customizable for complex ducting systems Pressure ranges up to 0.2 kg/cm2, Temperature range upto 1200 Degree C (special units for low pressure and high movements requirements) These are made from multi layered fabrics and fitted with either flanges or pipe ends these units are suitable for high amount of axial movement and lateral movements. Not suitable for liquid flow medium.

Material : Fiberglass,PTFE,Silicone-coated Fabrics

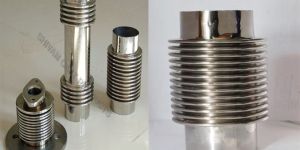

Axial Expansion Bellows (joints) are crucial components in modern industrial piping systems. These are designed to absorb axial movements caused by thermal expansion, contraction, and other mechanical forces. At Shivam Cast Products, we specialize in manufacturing high-quality axial expansion joints that ensure the efficiency and safety of piping systems. Material Stainless Steel Applications Steam piping Chemical processing Oil & gas And more Features Handles high pressure and temperature Customizable sizes for your requirements Corrosion-resistant materials Pressure ranges from full vacuum to 120 kg/cm2 (special units for higher pressures) These are the simplest form manufactured from single and multi-ply bellows elements and fitted with either flanges or pipe ends these units are suitable for axial movements only though in certain cases will take care of small lateral offset movements also.

Material : Stainless Steel

Application : Steam Piping,Chemical Processing,Oil & Gas
