The Columns of both the RC and TRC types are supported on precision crossroll bearings. The larger machines have pre-loaded cross-roll bearings, which eliminates the free play, and which is extremely important since any play in the cross-roll bearing is considerably increased at the end of the boom when it is in the fully raised and fully extended position. Column rotation can be motorized, but in any case all “AMIN” machines have a manual locking arrangement to lock the column in any of the 360°   Positions. The boom saddle, or carriage, is fitted with rollers which travel along the machine slide-ways. Each of the rollers is fitted with 2 pre-loaded Taper Roller bearings carried on eccentric shafts. The Rollers can be adjusted for wear and tear and also for precision and vibration-less travel. Boom elevation is through high torque AC geared motor incorporating an  electromagnetic brake, the final drive being through rack and pinion. Some of our competitors still employ chain elevation which we consider unsatisfactory since it is impossible to eliminate “bounce”. Bounce accumulates particularly where a Welder’s platform or Lay Trough is fitted and is aggravated by any movement of the welder. Some of our competitors use lead-screw elevation which is unsatisfactory since flux, dust etc. accumulate and the lead-screw then becomes locked in the lead-screw nut. Both chain and lead-screw method are used by this company and discarded some years ago. A further important point is that the actual boom elevation and boom traverse drive is mounted on the saddle itself. “AMIN” ensure that the boom / saddle / welding head, etc. are fully counterbalanced by a weight which moves up and down inside the column, which takes considerable strain away from the elevation gearing. The counter balance weight is connected to the saddle by a heavy duty wire rope which incorporates an anti-fall device. The boom traverse drive is achieved through AC Frequency Variable Drive & AC Motor, reduction gearing and rack and pinion drive. A most important feature of the “AMIN” machine is the design of the machine slide-ways along-with the very wide rollers, which are carried in the saddle, traverse. Speeds :- We understand that the Rotators and Column & Boom Manipulators may be used for cladding operations and we should mention that in these cases very slow movements are essential. We can incorporate in the “AMIN” traverse drive 2  speed gear box which enables the boom to be retracted very slowly, e.g. – The speeds could be 5 mm -  100 mmSecond gear 50 mm  - 1000 mm With these speeds it is possible to arrange for the boom to be retracted at very slow speed when spiral cladding, using either the strip method or the wire electrode method. Deflection :- We have mentioned above that one way of overcoming this matter is by using a precision cross-roll bearing on which the column rotates. The design of the slide-ways and the very wide service area on which the supporting rollers traverse also helps. However, we have had very considerable experience in Column and Boom design and developed a method of fabrication which enables us to offer Columns and Booms with a much better deflection figure than any of our competitors. We do in fact build in five different designs in order to ensure that the Column and Boom is correct with controlled deflection relative to height, boom travel and weight to be carried.

Positioners provide steel fabrication shops with the most up-to-date equipment for placing bulky fabrications in the ‘downhand’ position in the shortest possible time without the use of cranes and manpower. The positioners tables rotate at accurate and constant variable speeds and tilt through 135° with a high C.G. load rating covering almost all anglers for welding any angular job placed on it. Positioners can be supplied for interfacing with Column and Boom Manipulator. FEATURES: Robust all steel fabrication Variable or single speed table rotation through 360° Square or round table as desired. with T slots and concentric rings to facilate fast and accurate alignment and clamping. Power Operated Table tilting mechanism through 135°, including limit Switches to prevent over-run. Centre spindle carried in sealed pre-loaded Timken bearings or, depending on capacity Large diameter crossroll bearing is provided. Accurate machine cut steel gears. Efficient built-in earthling. Totally enclosed electrical motors including electromagnetic breaks. Pendant remote push button controls for all movements, together with speed potentiometer

Welding positioner is designed as per components size and height, base on that we can consider Center of gravity and torque to perform the machine with low power range. There is special features are added by variable speed drive and geared motor to control the speed during welding process. Also, there is provision in control panel for start, stop, reverse, forward etc.

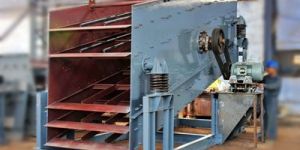

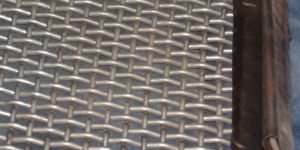

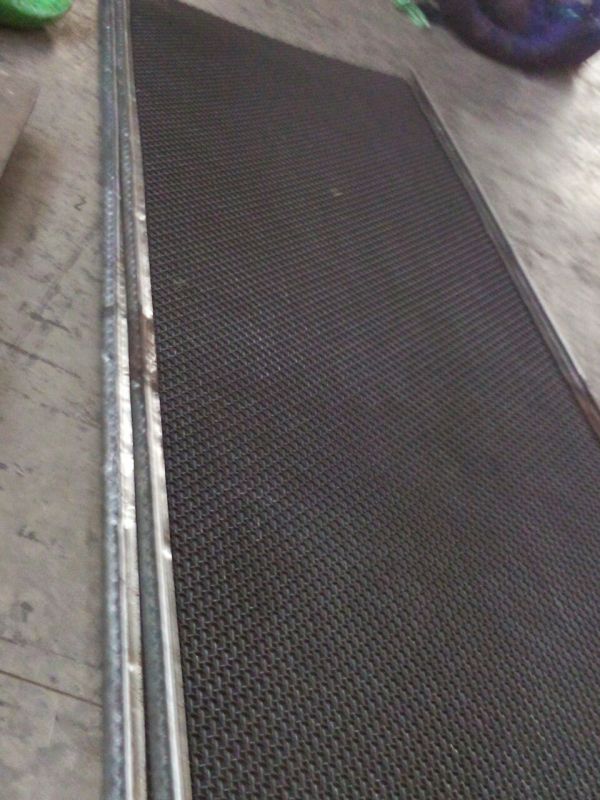

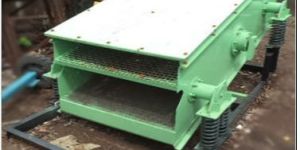

Circular Motion inclined Vibrating Screen is a two bearing free floating Vibrating Screen which efficiently screens all moderately free flowing materials. The circular throw action is derived from imbalance weights which are attached to the ends of the vibrator unit and transmit a uniform vibration to all screening surfaces and ensures that material travels over the screening surfaces at a constant rate. The amplitude or degree of vibration can be adjusted to suit a change of duty by adding or subtracting balance weight plates. Circular motion ensures rapid stratification at the feed end and produces an accurately size product in the shortest possible time. Screen's inclination normally varies between 15° to 25°. Speed of screen varies between 850 R.P.M. to 1150 R.P.M. depending upon the "G" Value desired. Screens are manufactured in following widths : 800, 1000, 1200, 1500, 1800, 2000, 2200 m.m. and lengths varying from 1500 m.m. to 7000 m.m. Number of decks, can be up-to four. Vibrator Unit : The Vibrator Unit is a steel shaft, completely housed in a protective steel tubular casing. Balance Weights are keyed to shaft. The bearings are specially designed for the use on screens and are a high capacity self aligning double roller type. These bearings have special tolerances and improved lubrication facilities to give extended bearing life under ardous working conditions. Labyrinth type grease sealings are provided to prevent dust getting into bearings. Supporting Coil Springs: Helical compression springs support the vibrating basket of the Vibrating Screen. They absorb all the working loads, without transmitting undesirable vibration to the supporting structure. Side Stretching Device: It is essential to keep the screen deck always in tension. For maintaining correct tension, side stretching arrangement is provided for the screen cloth. Selection of Screening Machine: Proper selection of screen size is very important. The size and type of screening machine to be used requires a very close scrutiny of the material to be screened, its screen analysis, moisture content, shape of particles, separation required etc. Special Features of Vibrating Screens : High specific screening capacity. Compact Design. Bolted construction. Easy interchangeability of screen cloths. Long working life. Tailor made to customer's needs.

we are involved in the manufacture and supply of Vibrating Screen. Manufactured in accordance with the predefined industry guidelines, these high functionality screens are extensively popular in the market. Due to the tough construction, these screens are massively asked for. Features : Robust construction Longer operational life Required low maintenance   ENQUIRY

Welding Positioners, Welding Equipment, Welding Manipulator

MIG Welding Copper Nozzles, MS Turning Parts, Nuts, Screw, Precision Bras

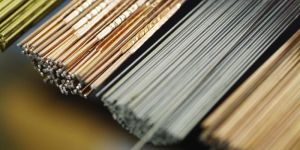

TIG Welding Wire, Flux Cored Welding Wire, MIG / CO2 WELDING WIR

Welding Component, Heat Exchangers, Fabricated Equipment

Welding Torches, Welding Accessories, Welding Flux, CO2 Welding Wir

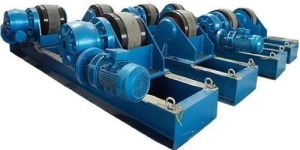

Welding Rotator, EOT Cranes, Welding Colum
