UsageUsed To Filter Particulate 10-20 Microns-avoid Loading On Secondary Filters
Rating1-3 Micron Or More
FeaturesHigh Dirt Holding Capacity & Reusable
MediaPolypropylene, PES, HDPE, Glass Fiber
Sizes/TypesCustomized - Flanged Type / Boxtype Depending On Installation Requirement.
Housing/Frame Size- Gi, Ms,ss304,powder Coated/ Crd Or Zinc Coated 610 Mm X610 Mm X50 Mm/100/150/300 545 Mm X 545 Mmx 50 Mm /100/150/300- Or As Per Specs
Diameter of Element150mm O.D , 225mm O.D , 325mm O.D
Length of ElementFrom 300mm to 1400mm as per customer’s requirement
Fitment ConfigurationFlange Type Model , Three Lug Type Model , Standard Type Model
Filtration Area0.96 M2 to 20.0 M2

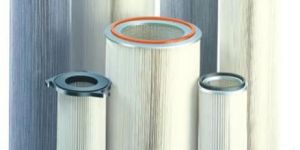

Pleated dust collection cartridges are made of100 % polyester media with different coatings on it , as per requirement of applications.Manufacturer of dust collectors originally designed to build the dust collection cartridges in equipment, where as pleated bags can be used for existing dust collector in place of conventional dust collection bags, without modifications. This polyester media is made of high tenacity filament yarn without using any binding agent. Thus hard finished material is very stable against hot gas attach & structurally durable. This unique & hard finished material provides features of good pleat ability, high durability, and unique structure of very fine filament yarn which offer high performance infiltration. Thermally tight bonded media provide washability, excellent pleat ability,stable structure, fine dust release & good resistance of particle penetration in to the media. This filter media are pleated in different pleated depths & height to accommodated desired filtration area. Construction Pleated spun bonded filter media placed in a cylindrical configuration with support of metal core & encapsulated with metal end caps to form a pleated dust collection cartridges. The end caps are configured to mount as clean side or dirt side fitment. In case of metal caps these bags are supported with soft sponge rubber sealing to ensure positive sealing of filter while fitment.
FEATURES & BENEFITS
High filtration area up to 20 m2
Universal Fixing arrangements
Open Pleat Spacing
Low Consumption Of Compressed Air (For Cleaning)
High Efficiency Due To Surface Filtration
Very High Air To cloth Ratio
Very high filtration efficiency
COATING
PTFE coating for oil & moisture removal
Aluminum coating for antistatic application
Stainless steel coating for antistatic application
Fire retardant coating
PTFE lamination for very stick dust
APPLICATIONS :
Pharmaceuticals
Steel & Power
Powder coating
Cement
Chemicals
Metals & Minerals
Paints & Pigments
