Insulating Gaskets Dealers in Ankleshwar

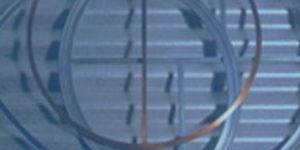

These gaskets are made from Metal Jacketted, Corrugared Metal Jacketted, CAF Metallic (Ferrule) Gaskets with filler material of CAF, Non CAF, Graphite, PTFE and Ceramic.These Metal Jacketted gaskets are used for heat exchangers, autoclaves, columns, pressure vessels, flue stacks, boilers, valve nommets and similar services.

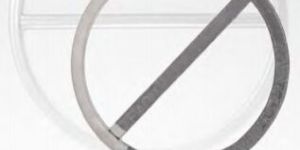

TEADIT double-jacketed gaskets are particularly suited for applications like heat-exchangers and boilers. The gasket is constructed of a soft, heat resistant, non-asbestos filler material, which is completely enclosed in a two-piece metal jacket. When pass partition bars are required, we offer a welded pass bar construction. With a welded pass bar arrangement the fluid is retained by the primary seal at the inner diameter of the gasket. Thus the primary seal maintains its function, providing a seal of higher integrity. Material standard       • Metal jacket: carbon steel, soft iron, 304 (1.4301), 316L (1.4404)       • Filler material: graphite Many standard bar configurations are available, special configurations on request.

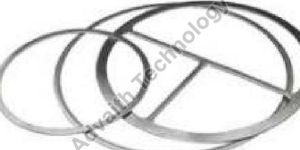

All gaskets are custom built to provide accurate & easy assembly of pass partition bars into tube sheet grooves. Metal jacketed gaskets are custom built gaskets with or without ribs & can be supplied in Carbon Steel, Soft Iron, SS304,& SS316.
