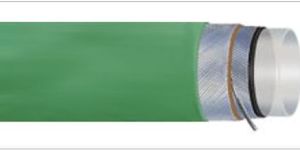

XLPE hose is designed to handle many types of chemicals and solvents in both full suction and discharge applications. The clear cross-linked polyethylene tube will handle many types of chemicals, acids and solvents without leaching and contaminating the product conveyed. Refer to the chemical resistance chart to determine compatibility
Tube : Cross linked polyethylene transparent (XLPE)
Reinforcement : Yarn and wire helix reinforcement with anti-static copper wire
Cover : Smooth EPDM rubber
XLPE hose is designed to handle many types of chemicals and solvents in both full suction and discharge applications. The clear cross-linked polyethylene tube will handle many types of chemicals, acids and solvents without leaching and contaminating the product conveyed. Refer to the chemical resistance chart to determine compatibility
Tube : Cross linked polyethylene transparent (XLPE)
Reinforcement : Yarn and wire helix reinforcement with anti-static copper wire
Cover : Smooth EPDM rubber
Temperature-40°C(-40°F)to+70°C(+158°F) depending on medium.
Tube: Smooth, cross-linked polyethylene Reinforcement: high strength synthetic cord, steel helix wire and antistatic copper wire. Cover: green, smooth (wrapped finish). Application of XLPE Chemical Suction Hose: hard wall hose suitable for handling a wide range of chemicals, petroleum products and oils. Normally installed on tank trucks and discharge platforms in chemical and oil industries.
Tube: Smooth, cross-linked polyethylene Reinforcement: high strength synthetic cord, steel helix wire and antistatic copper wire. Cover: green, smooth (wrapped finish). Application of XLPE Chemical Suction Hose: hard wall hose suitable for handling a wide range of chemicals, petroleum products and oils. Normally installed on tank trucks and discharge platforms in chemical and oil industries.
Universal expansion joints can absorb movements in several planes.
Standard range
Standard dimension: DN 50 - 6000 Design pressure: PN 6 Customized solutions: All designs, all sizes and all materials
\
Accessories
Universal expansion joints are available with:
Inner sleeves
Cover
Tie rods
Universal expansion joints can absorb movements in several planes.
Standard range
Standard dimension: DN 50 - 6000 Design pressure: PN 6 Customized solutions: All designs, all sizes and all materials
\
Accessories
Universal expansion joints are available with:
Inner sleeves
Cover
Tie rods
Temperature-40°C(-40°F) +100°C(+212°F) depending on medium.

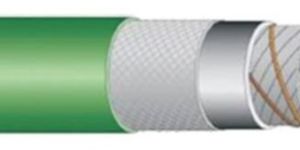

Standards: EN 12115:11 Tube: Food quality, smooth, high weight cross-linked polyethylene (UHMWPE). Reinforcement : High strength synthetic cord, steel helix wire and antistatic copper wire. Cover: Green, smooth (wrapped finish). Application: hardwall hose suitable for handling a wide range of chemicals, petroleum products and oils. Normally installed on tank trucks and discharge platforms in chemical and oil industries
Standards: EN 12115:11 Tube: Food quality, smooth, high weight cross-linked polyethylene (UHMWPE). Reinforcement : High strength synthetic cord, steel helix wire and antistatic copper wire. Cover: Green, smooth (wrapped finish). Application: hardwall hose suitable for handling a wide range of chemicals, petroleum products and oils. Normally installed on tank trucks and discharge platforms in chemical and oil industries
ConstructionFlexible tubing, single thickwall corrugation, without packing, annular corrugation hydraulically formed.
ProfileClose pitch corrugation
Size Range6 mm upto 350 mm
Pressure RangeUpto 150 kg/cm³ or higher against specific requirement. The pressure value indicated in the table (technical data) is function of the diameter, of the temperature, of the number of braids, of the material used and of the type of application.
Temperature: Upto 800°C
Core Material321/304/316/316L * Monel/Bronze.
Braid MaterialSS 304/SS 321
End FittingsTig welded, mechanical, soldered, silver brazed
Note :
The above technical details are subject to change without notice.
We can also supply the above hoses for higher pressures.
The above values apply only to braided hoses and assemblies at ambient temperature of 20 Deg. C.
The burst pressure is 4 times of the max. working pressure.
Application: The main application of Stainless Steel Corrugated hose assemblies is where synthetic rubber hoses & plastic hoses do not work well i.e. for hot water, steam, condensate, gas, corrosive liquids, acids, ammonia, carbonic & tartaric acids, tannic acid, nitric acid, sulphuric acid, dye stuff, mercury etc. In refineries: To convey oils; gasoline, LPG, benzol, petrol, alcohol, LSHS, liquid gases, steam, and other derivates In Chemical Industry: For the changing, mixing & Conveyerlines In power Plants: For cooling lines etc. In Reactor Installation: For cooling lines etc. In steel Plants: For supply of air and oxygen and for blast furnaces.
Note :
The above technical details are subject to change without notice.
We can also supply the above hoses for higher pressures.
The above values apply only to braided hoses and assemblies at ambient temperature of 20 Deg. C.
The burst pressure is 4 times of the max. working pressure.
Application: The main application of Stainless Steel Corrugated hose assemblies is where synthetic rubber hoses & plastic hoses do not work well i.e. for hot water, steam, condensate, gas, corrosive liquids, acids, ammonia, carbonic & tartaric acids, tannic acid, nitric acid, sulphuric acid, dye stuff, mercury etc. In refineries: To convey oils; gasoline, LPG, benzol, petrol, alcohol, LSHS, liquid gases, steam, and other derivates In Chemical Industry: For the changing, mixing & Conveyerlines In power Plants: For cooling lines etc. In Reactor Installation: For cooling lines etc. In steel Plants: For supply of air and oxygen and for blast furnaces.
Braid of Core & Jacket: SS 304 / 304L / 316 /316L.
Operating Temperature: 400ºC max.600ºC is possible as a special design.
For the Internal hose and the Jacketed hose our stainless steel corrugated hoses used, In each case with stainless steel Braiding. The internal and the Jacketed hose are joined with pressure tight fit.
Application : When ordinary insulation is not sufficient for certain applications, or when specific minimum temperatures are needed to convey viscous substances, traced piping is generally used; this consists of two tubes, one inside the other, with various differences in cross-section. One of the tubes, generally the inner one, carries the medium, and the other one carries a heating or cooling agent ; sometimes it is the other way around .In other cases, the external tube is used as a safety measure. Occasionally, such traced piping has to be flexible. It is for such applications that we supply our Jacketed hose. It's high flexibility makes this hose very suitable for angular and lateral (offset) movements. The Jacketed hose is pressure-and vaccum-proof and, due to the materials used in its manufacture, resistant to temperature and corrosion. The large surface area of the corrugated section results in particularly high heat transfer efficiency, the hose combining the functions of a flexible conduit and a highly efficient heat exchanger in the simplest possible form.
For the Internal hose and the Jacketed hose our stainless steel corrugated hoses used, In each case with stainless steel Braiding. The internal and the Jacketed hose are joined with pressure tight fit.
Application : When ordinary insulation is not sufficient for certain applications, or when specific minimum temperatures are needed to convey viscous substances, traced piping is generally used; this consists of two tubes, one inside the other, with various differences in cross-section. One of the tubes, generally the inner one, carries the medium, and the other one carries a heating or cooling agent ; sometimes it is the other way around .In other cases, the external tube is used as a safety measure. Occasionally, such traced piping has to be flexible. It is for such applications that we supply our Jacketed hose. It's high flexibility makes this hose very suitable for angular and lateral (offset) movements. The Jacketed hose is pressure-and vaccum-proof and, due to the materials used in its manufacture, resistant to temperature and corrosion. The large surface area of the corrugated section results in particularly high heat transfer efficiency, the hose combining the functions of a flexible conduit and a highly efficient heat exchanger in the simplest possible form.

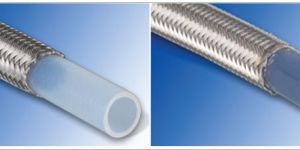

Parthflex is a quality engineered smooth bore plain PTFE tube with AISI 304 high tensile stainless steel braid. Produced specifically for industrial use where reliability and long life are required or where hostile temperatures or corrosive considerations make PTFE the only logical choice. Parthflex is available with translucent virgin PTFE or anti-static black where fluids with a high electrical resistance such as solvents and fuels are passed through the hose and allow the dissipation to any static charge.
Application: Parthflex hose and assemblies can be used at temperatures ranging from -70° C to 260° C. Suitable for most known chemicals, acids, oils, corrosives, alkalis, gases, steam, pharmaceutical and foodstuffs industries.
Fittings: Male, female, flanged, Triclover and PTFE flared / encapsulated fittings available in all the material.
Parthflex is a quality engineered smooth bore plain PTFE tube with AISI 304 high tensile stainless steel braid. Produced specifically for industrial use where reliability and long life are required or where hostile temperatures or corrosive considerations make PTFE the only logical choice. Parthflex is available with translucent virgin PTFE or anti-static black where fluids with a high electrical resistance such as solvents and fuels are passed through the hose and allow the dissipation to any static charge.
Application: Parthflex hose and assemblies can be used at temperatures ranging from -70° C to 260° C. Suitable for most known chemicals, acids, oils, corrosives, alkalis, gases, steam, pharmaceutical and foodstuffs industries.
Fittings: Male, female, flanged, Triclover and PTFE flared / encapsulated fittings available in all the material.

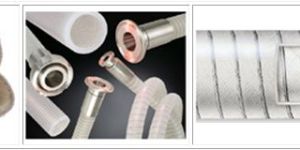

Pfhe’s high purity Platinum-cured silicone hose is internally reinforced with polyester yarn and SS304 spiral wire for pressure as well as vacuum application. The hose meets USP Class VI, FDA CFR 177.2600, ISO 10993, European Pharmacopoeia 3.1.9 and 3A standards.
Features
Suitable for pharmaceutical, biomedical, cosmetic and food applications
Full vacuum rating
Translucent for visual flow detection
Temperature range -70° C to 205° C
Crush and kink resistant
Imparts no taste or odour to critical media
Sterilization by autoclave, CIP, SIP and gamma radiation
Pfhe’s high purity Platinum-cured silicone hose is internally reinforced with polyester yarn and SS304 spiral wire for pressure as well as vacuum application. The hose meets USP Class VI, FDA CFR 177.2600, ISO 10993, European Pharmacopoeia 3.1.9 and 3A standards.
Features
Suitable for pharmaceutical, biomedical, cosmetic and food applications
Full vacuum rating
Translucent for visual flow detection
Temperature range -70° C to 205° C
Crush and kink resistant
Imparts no taste or odour to critical media
Sterilization by autoclave, CIP, SIP and gamma radiation

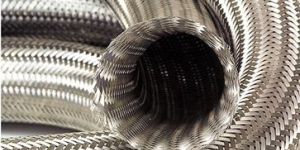

When pressure is applied, unbraided hose tends to elongate axially; to restrain this, an external layer of SS wire braid is provided. The braid also makes the assembly pressure compatible.
Sometimes two or even three layers of braiding are provided for high pressure applications. The braiding is highly flexible and follows the movement of the hose. The braid is normally manufactured in SS 304 wire. However SS 316 and 321 braids can also be manufactured. We also supply wire braid in different configurations as per customer specifications.
Note :
The above technical details are subject to change without notice.
We can also supply the above hoses for higher pressures.
The above values apply only to braided hoses and assemblies at ambient temperature of 20 Deg. C.
The burst pressure is 4 times of the max. working pressure.
Note :
The above technical details are subject to change without notice.
We can also supply the above hoses for higher pressures.
The above values apply only to braided hoses and assemblies at ambient temperature of 20 Deg. C.
The burst pressure is 4 times of the max. working pressure.
When pressure is applied, unbraided hose tends to elongate axially; to restrain this, an external layer of SS wire braid is provided. The braid also makes the assembly pressure compatible.
Sometimes two or even three layers of braiding are provided for high pressure applications. The braiding is highly flexible and follows the movement of the hose. The braid is normally manufactured in SS 304 wire. However SS 316 and 321 braids can also be manufactured. We also supply wire braid in different configurations as per customer specifications.
Note :
The above technical details are subject to change without notice.
We can also supply the above hoses for higher pressures.
The above values apply only to braided hoses and assemblies at ambient temperature of 20 Deg. C.
The burst pressure is 4 times of the max. working pressure.
Note :
The above technical details are subject to change without notice.
We can also supply the above hoses for higher pressures.
The above values apply only to braided hoses and assemblies at ambient temperature of 20 Deg. C.
The burst pressure is 4 times of the max. working pressure.
With Flare through connections, the PTFE tube passes through the end fitting and is flared radially outward against the sealing face of the fitting. This design creates continuous end to end PTFE liner thus all wetted parts are PTFE lined. Fittings such as stub, flange, male, female, Triclover and Camlock can be lined in this fashion.
With Flare through connections, the PTFE tube passes through the end fitting and is flared radially outward against the sealing face of the fitting. This design creates continuous end to end PTFE liner thus all wetted parts are PTFE lined. Fittings such as stub, flange, male, female, Triclover and Camlock can be lined in this fashion.
Specially designed convoluted PTFE suction/pressure hose, with external vacuum high tensile wire and high tensile stainless steel braid. The hose has very good vacuum and kink resistance
Specially designed convoluted PTFE suction/pressure hose, with external vacuum high tensile wire and high tensile stainless steel braid. The hose has very good vacuum and kink resistance

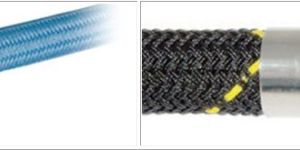

Polypropylene braided hose is often preferred in applications where aggressive environment tend to corrode SS braid. PP braid is lighter in weight and provides extreme flexibility. The tube is available in virgin or conductive black where electrostatic dissipation is required. Also available special vacuum resistant hose. Application: PP braided assemblies can be used for temperatures ranging from -70° C to 90° C. Suitable for exotic chemical transfer and applications requiring frequent handling and high flexibility. Fittings: Male, female, flanged, Triclover and PTFE flared / encapsulated fittings available in all the material.
Polypropylene braided hose is often preferred in applications where aggressive environment tend to corrode SS braid. PP braid is lighter in weight and provides extreme flexibility. The tube is available in virgin or conductive black where electrostatic dissipation is required. Also available special vacuum resistant hose. Application: PP braided assemblies can be used for temperatures ranging from -70° C to 90° C. Suitable for exotic chemical transfer and applications requiring frequent handling and high flexibility. Fittings: Male, female, flanged, Triclover and PTFE flared / encapsulated fittings available in all the material.
MANUFACTURING STANDARD: BS 3492 Type 1B/2B BS 1435 Type S7/S10/S15 EN 1765 Type S7/S10/S15 IS 10733 Type 1B/2B IS 10733 Type S7/S10/S15 LINING Smooth bore, mandrel built, Nitrile lining to convey all grades of petroleum products, including crude oils and other liquid petroleum products having a maximum aromatics content of 40% (For 100% aromatic content a Viton lining is available). REINFORCEMENT Fabric to reinforced lining, with multiple plies of synthetic cord fabric surrounding embedded high tensile steel wire helix. Hoses are supplied electrically continuous unless specifically requested to be electrically discontinuous. COVER Smooth, Polychloroprene (Neoprene) rubber compounded to resist abrasion, weathering and oil. WORKING PRESSURE – VACUUM A 600 7 bar -0.85 BAR A 501 10 BAR -0.85 BAR A 602 15 BAR -0.85 BAR SAFETY FACTOR 2 : 1
MANUFACTURING STANDARD: BS 3492 Type 1B/2B BS 1435 Type S7/S10/S15 EN 1765 Type S7/S10/S15 IS 10733 Type 1B/2B IS 10733 Type S7/S10/S15 LINING Smooth bore, mandrel built, Nitrile lining to convey all grades of petroleum products, including crude oils and other liquid petroleum products having a maximum aromatics content of 40% (For 100% aromatic content a Viton lining is available). REINFORCEMENT Fabric to reinforced lining, with multiple plies of synthetic cord fabric surrounding embedded high tensile steel wire helix. Hoses are supplied electrically continuous unless specifically requested to be electrically discontinuous. COVER Smooth, Polychloroprene (Neoprene) rubber compounded to resist abrasion, weathering and oil. WORKING PRESSURE – VACUUM A 600 7 bar -0.85 BAR A 501 10 BAR -0.85 BAR A 602 15 BAR -0.85 BAR SAFETY FACTOR 2 : 1
Hose specification: BS EN 1762:2003 Type SD Lining: NBR rubber compound, smooth bore, resistant to n-pentane and aromatic contents up to 50%. Reinforcement: Multiple plies of Polyester Tyre cords plus stainless steel helical wire embedded in synthetic rubber Cover Synthetic black chloroprene rubber compound, weather, oil, abrasion and seawater resistant. Working Pressure: 25 Bar Safety Factor: 4 : 1 Nominal bore 3", 4", 6", 10", 12" Temperature Range -30°C to + 70°C
Hose specification: BS EN 1762:2003 Type SD Lining: NBR rubber compound, smooth bore, resistant to n-pentane and aromatic contents up to 50%. Reinforcement: Multiple plies of Polyester Tyre cords plus stainless steel helical wire embedded in synthetic rubber Cover Synthetic black chloroprene rubber compound, weather, oil, abrasion and seawater resistant. Working Pressure: 25 Bar Safety Factor: 4 : 1 Nominal bore 3", 4", 6", 10", 12" Temperature Range -30°C to + 70°C
