Catalyst reduction heaterCatalyst hot H2 stripping heater

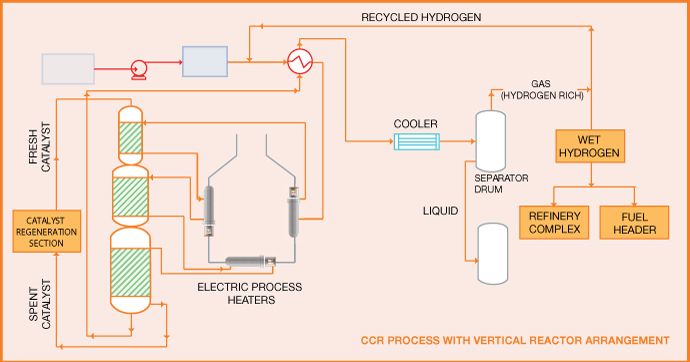

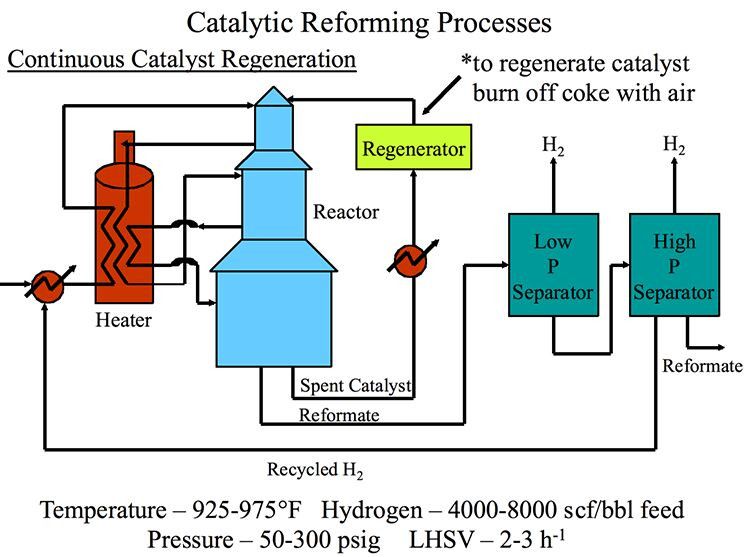

Continuous Catalytic Regeneration (CCR) is a critical process in petroleum and petrochemical industries, where aromatics are produced from naphthenic and paraffinic feedstocks. During the CCR process, hydro-treated naphtha is heated to 495–535°C (923–977°F) and mixed with recycled hydrogen gas. As the reactions are endothermic, multiple electric process heaters are required at different stages to maintain temperature and ensure optimal conversion.

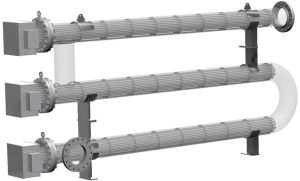

FITZER are engineered to deliver precise temperature control, maximum efficiency, and long service life — meeting stringent licensor requirements such as UOP, Axens, and others.
Material of Construction (MOC) Heating Elements
Alloy 800 Seamless Tubes
SS 321 Seamless Tubes
Pressure Vessel
P11
SS304
SS316
SS321
Certifications
ATEX Ex'd (Flameproof)
ASME U Stamp
Other regional certifications available on request
Key Features
Compact design, ideal for integration in CCR packages
Virtually 100% efficiency due to electric heating
No fouling, eliminating frequent cleaning requirements
Precise and reliable control via thyristor control systems
Safe operation with ATEX / ASME certifications
Design Specialties
Oxy-Chlorination Heater
Calcination Heater
Burning Step Heater
Catalyst Reduction Heater
Catalyst Hot H₂ Stripping Heater
Applications in CCR Reactors
Depending on the licensor and process configuration, multiple reactors may be used in a CCR unit. FITZER provides customized electric heaters for each specific step, ensuring stable performance and long operational life.
Technical Specifications
ParameterSpecification
Temperature Range
10°C to 600°C (50°F to 1112°F)
Heater Rating
1 kW to 10,000 kW
Design Efficiency
~100%
Control System
Thyristor-Based Control Panel
Design Standard
As per UOP / Axens Licensor Norms
