BODY MATERIAL OPTIONS   Ductile Iron ASTM A 395. Cast Steel ASTM A216 Gr.WCB. ASTM A351 Gr. CF8/AISI S.S. 304. ASTM A351 Gr. CF8M/AISI S.S. 316. LINING MATERIAL OPTIONS   TEFLON PFA – ASTM D 3307, Type II. TEFLON FEP – ASTM D 2116, Type IV. TECHNICAL SPECIFICATIONS   Flange : AS Per ANSI B 16.5. Drilling : ASA 150# / DIN 2632 / 33 / BS 10 Table D, E & F. Lining Thickness : 3 mm to 5 mm. Degree of Filtration : ø 1.6 mm Perforated PTFE Filter. TEST & INSPECTION DATA   Hydraulic Test – Body (Shell) : 20 Kg/Cm². Spark Test : 15 K.V D.C. Dimension Check.

Sigma can supply with complete range of full piping system in SS 304 and SS 316 Lined Pipes & Fittings, we also offer PFA lined stainless steel ball valves, stainless steel poppet check valves and sight glasses. We manufacture piping system with all wetted parts PTFE / PFA and steel external finish of stainless steel. Corrosion performance of the stainless steel is well known, hence spending 20 % to 25 % cost on painting lines can be saved besides life of the systems is incresed consideraly if it is to be used for the longer time.

Features   Full Length Sparging Anti Siphoning safeguard Most Economical design Perfectly suited for vessels with agitator

  HOUSING MATERIAL   Flanges : IS 1865 : 1991 Grade 400/15 Lining : FEP OPTIONS   Flange : Drilling DIN PN 10 / 16, BS 10, ASME 300, Mixed, Threads-Metrics Extras : Earthing Studs / Lugs, Vent Extensions Material : Stainless Steel Lining : PFA Lined / HDPE Lined / PP Lined DESIGN SPECIFICATION   Flange : As per ANSI B 16.5 / B 16.42 Face to Face : As per ANSI B16.5#150 Lining Thickness : 3 to 5 mm Other Flanges Drilling like DIN 2632/2633, BS 10 Table D, E or F are also available on request TEST & INSPECTION DATA   Resins are conforming to the requirements of ASTM F 1545-97 (2003) Spark Test : 15 KV D.C After Lining

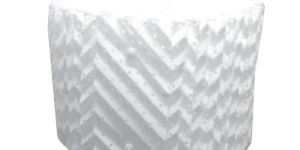

PTFE Structured Packing refers to a range of specially designed materials for use in absorption and distillation columns and chemical reactions. PTFE Structured Packing typically consist of thin corrugated . PTFE sheets arranged in a way that they force fluids to take complicated paths through the column, thereby creating a large surface area for the contact between different phases. PTFE being hydrophobic in nature and treated rough surface is necessary to achieve a good separation efficiency . It is possible to achieve 2.5 or more theoritical stages per meter of column height by our PTFE structure packing. Advantages   It is completely chemically inert material It is strong but light in weight. It gives rise to adequate passages for both Gas & Liquid streams without excessive liquid hold up or pressure drop. It provides a good contact between liquid and gas. It is washable and reusable. It is unbreakable too. It is energy conserving. The packings are available for column sizes from DN – 50 to DN – 450 in standard lengths of 200mm pad modules .

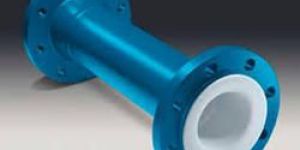

MATERIAL   Pipe : 1. Seamless Carbon Steel ASTM A 106 Gr.B.Sch-402. ASTM A 312 TP 304,Sch-40 Flanges : 1. Made from IS 2062 Plates/ASTM A 1052. ASTM A 351 Gr.CF 8 Liner : PTFE in accordance with ASTM D 1457 Vent Extensions   When the lined piping system will be lagged, please specify that the spools and fittings should be supplied with vent extensions, these 75mm long extension protrude through the lagging allowing the correct venting of the lined equipment. Venting   All lined piping systems must have vent holes drilled through the steel body. This is for 2 reasons, firstly to vent any gasses that may permeate through the liner witch can be detrimental to liner life to the atmosphere rather than allow them to build up behind the liner trapped within the steel pipe. Pipe spools less than 500mm have 2 off vent holes located centrally, longer spools have 4 vent holes 1 pair located at each end.

HOUSING MATERIAL   Body : Made from IS 2062 Plates Liner : PTFE in accordance with ASTM D 1457 OPTIONS   Extras : Earthing Studs / Lugs, Vent Extensions to suit DIN PN 10 / 16, BS 10, ASME 300 Flange Material : Stainless Steel Liner : HDPE / PP

We are the best manufacture of plastic lined systems. our other Flange Drilling like DIN 26322633, BS 10 Table D, E or F are also available on request

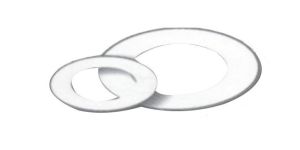

PTFE lined piping technology was developed to meet serve operating conditions in the chemical handling industry to solve the problems of Corrosion, Erosion & maintenance free operation for many years. PTFE Envelope Gasket is the substitute for MS / SS piping & PP / HDPE plastic piping which causes Corrosion and maintenance problems frequently. MATERIAL OF CONSTRUCTION   Insert Gasket : Style 20 – Metallic / Non – metallic AF 120 – Non Asbestos Teflon : 0.6 mm thick Virgin Joint : Through Thermal Fusion Size in range : 1.5″ (40 NB) to 10″ (250 NB) (Slit Type) PTFE Envelope Gaskets are available from 250 mm to 2000 mm ( Jointed Type )PTFE Envelope Gaskets Above 2000 mm will be done on Customer Request

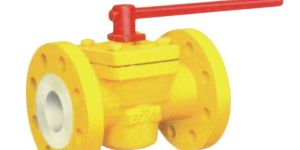

MATERIAL OPTIONS For Lined Plug Valves   Ductile Iron ASTM A395. Cast Steel ASTM A216 Gr.WCB. ASTM A351 Gr. CF8/AISI S.S. 304. ASTM A351 Gr. CF8M/AISI S.S. 316. LINING MATERIAL OPTIONS For Lined Plug Valve   Teflon® PFA – ASTM D 3307, Type II. Teflon® FEP – ASTM D 2116, Type IV. TECHNICAL SPECIFICATIONS Of Lined Plug Valve   Design Standard : BS 5351. Drilling : ASA 150# DIN 2632/2633/BS 10 Table D, E or F are also available on request. Face to Face : ANSI B 16.10. Lining Thickness : 3 mm to 5 mm. TEST & INSPECTION DATA Of  Lined Plug Valve :   Hydraulic Test – Body (Shell) : 20 Kg/Cm².– Seat : 10 Kg/Cm². Pneumatic Test – Seat : 6 Kg/Cm². Spark Test : 15 K.V D.C.

BODY MATERIAL OPTIONS   Ductile Iron ASTM A395. Cast Steel ASTM A216 Gr.WCB. ASTM A351 Gr. CF8/AISI S.S. 304. ASTM A351 Gr. CF8M/AISI S.S. 316. LINING MATERIAL OPTIONS   Teflon® PFA – ASTM D 3307, Type II. Teflon® FEP – ASTM D 2116, Type IV. PTFE Solid Type Ball – D 1457. TECHNICAL SPECIFICATIONS   Design Standard : BS EN ISO 17292 : 2004 (Formerly BS 5351) Drilling : ASA 150# DIN 2632/2633/BS 10 Table D, E or F are also available on request. Face to Face : ANSI B 16.10 / DIN 3202/BS EN 558-1/2. Lining Thickness : 3 mm to 5 mm TEST & INSPECTION DATA   Hydraulic Test – Body (Shell) : 20 Kg/Cm².– Seat : 10 Kg/Cm². Pneumatic Test – Seat : 6 Kg/Cm². Spark Test : 15 K.V D.C.

Fabricated Tee   Body : MS Round bar Pipe : ASTM A 106 Grade B Flanges : Made from IS 2062 Plates Cast Tee   SG Iron to IS 1865 : 1991 Grade 400 / 15 Lining : FEP OPTIONS   Flange : Rotating DIN PN10/16, BS 10, ASME 300, Mixed Extras : Earthing Studs / Lugs, Vent Extensions Material : Stainless Steel Lining : PFA / HDPE / PP Geometry : Non Standard Dimensions DESIGN SPECIFICATION   Flange : As per ANSI B 16.5/B 16.42 Face to Face : As per ANSI B 16.5 # 150 Lining Thickness : 3 to 5 mm Other Flanges Drilling like DIN 2632 / 2633, BS 10 Table D, E or F are also available on request TEST & INSPECTION DATA   Resins are conforming to the requirements of ASTM F 1545-97 (2003) Hydraulic Test : 20 Kg / Cm2 After Lining Spark Test : 15 KV D.C After Lining

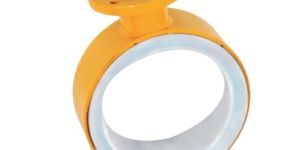

Flange : IS 2062 ASA 150#. Nozzle : MS.

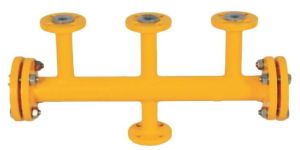

MATERIAL SPECIFICATIONS   Flange : Plate Flange From Carbon Steel Plates As Per ASTM A 105 / IS 2062. Pipe : Simless Carbon Steel Pipes As Per ASTM A – 106, Sch. 40. Lining : PFA / FEP DIMENSION SPECIFICATIONS   All Dimension are in mm. Pipe Dimension as Per ANSI B 36.10. Liner Thickness Minimum 3.0 mm. Header Length Maximum 600 mm. Flange Size : On Party Requirement. TEST & INSPECTION DATA   Hydraulic Test – Body (Shell) : 20 Kg/Cm². – Seat : 10 Kg/Cm². Spark Test : 10 K.V D.C.

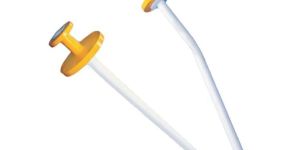

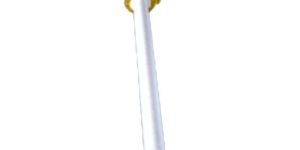

 FEATURES   All wetted parts PTFE Lined, giving optimum corrosion resistance Liner Construction : Single piece, past extruded PTFE Carbon Steel construction providing good mechanical strength AVAILABLE DIP PIPE   Lined Dip Pipe with Sparger Lined Slanted ( Angular ) Dip Pipe Lined ‘ J ‘ type Dip Pipe PTFE solid ‘ J ‘ type Dip Pipe Solid PTFE & PTFE Lined Feed Pipe for Columns HOUSING MATERIAL   Pipe : ANSI B 36.10, ASTM A 106 Gr. B Schedule 40 Flanges : ANSI B 16.5 ASA 150 # , ASTM A 105 Liner : PTFE in accordance with ASTM D 1457 OPTIONS   Flange : Fixed/Rotating,PN 10/16, BS 10, Table D/E Extras : Earthing Studs/Lugs, Vent Extensions Liner : PTFE DESIGN SPECIFICATION   Flange : As per ANSI B 16.5/B 16.42 Face to Face : As per ANSI B 16.5 # 150 Lining Thickness : 3 to 5 mm Other Flanges Drilling like DIN 2632/2633, BS 10 Table D, E or F are also available on request TEST & INSPECTION DATA   Resins are conforming to the requirements of ASTM F 1545-97(2003) Hydraulic Test : 20 Kg/Cm2 After Lining Spark Test : 15 KV D.C After Linin FEATURES   Unique jointless PTFE construction for prolonged service G Perfectly suited for vessels with agitator G Angular spool option for tilting upto 20 deg. G Unique jointless PTFE construction for prolonged service G Proven performance in various industries PP/HDPE lining with weld joint at bottom also available on request

HOUSING MATERIAL   Flanges : Made from IS 2062 plates Liner : PTFE in accordance with ASTM D 1457 OPTIONS   Flange : DIN PN10/16, BS 10, ASME 300, Mixed Extras : Earthing Studs / Lugs, Vent Extensions Material : Stainless Steel Lining : PFA / HDPE / PP DESIGN SPECIFICATION   Flange : As per ANSI B 16.5 / B 16.42 Face to Face : As per ANSI B 16.5 # 150 Lining Thickness : 3 to 5 mm Other Flanges Drilling like DIN PN 2632 / 2633, BS 10 Table D, E or F are also available on request TEST & INSPECTION DATA   Resins are conforming to the requirements of ASTM F 1545 -97 (2003) Spark Test : 15 KV D.C After Lining

Body material options   s.s 304 / s.s 316 braided hose. flange : astm a 351 gr. Cf8 / cf8m ansi 150# rating. lining material options   ptfe : as per astm d 1457. hose pipe length on party required. test & inspection data   hydraulic test – body (shell) :10 kg/cm². spark test : 15 k.v d.c after lining

  size (nb)         material specifications   flange : is 2062 asa 150#. nozzle : ms. lining material   pfa / fep / ptfe. testing   spark test : 15 k.v d.c. After lining.

PTFE lined piping technology was developed to meet serve operating conditions in the chemical handling industry to solve the problems of Corrosion, Erosion & maintenance free operation for many years. This product is the substitute for MS / SS piping & PP / HDPE plastic piping which causes Corrosion and maintenance problems frequently

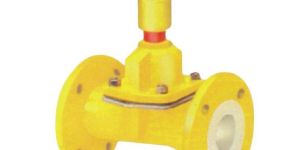

Material : Teflon® PFA / FEP.

Hydraulic Test – Body (Shell) : 20 Kg/Cm². Seat : 10 Kg/Cm². Pneumatic Test – Seat : 6 Kg/Cm².(Class VI Sealing) Spark Test : 15 K.V D.C

HOUSING MATERIAL   Fabricated : Flanges made from IS 2062 Plates Tee : Pipe as per ASTM A 106 Gr.B Cast Tee : SG Iron as per IS 1865-1991 Lining : FEP OPTIONS   Flange : Rotating, Fixed On/Off center DIN PN 10/16, BS 10, ASME 300, Mixed Extras : Earthing Studs / Lugs, Vent Extensions Material : Stainless Steel Lining : PFA / HDPE / PP Geometry : Non Standard Dimensions DESIGN SPECIFICATION   Flange : As per ANSI B 16.5/B 6.42 Face to Face : As per ANSI B 16.5 # 150 Lining Thickness : 3 to 5 mm Other Flange Drilling like DIN 2632/2633, BS 10 Table D, E or F are also available on request. Sizes above 6″ are fabricated from pipe TEST & INSPECTION DATA   Resins are conforming to the requirements of ASTM F 1545-97 (2003) Hydraulic Test : 20 Kg / Cm2 After Lining Spark Test : 15 KV D.C After Lining
