Wet Strength Pulvarizer (WSP-900)
Special Features
• Can pulverize sack kraft, insulation paper, beer boxes, security paper, textile core boxes, currency paper
• 3 function equipment scissoring, agitation, pumping
• Facility to use steam and chemical for efficient working
• Flakes are reduced to individual cellulose fibers and produce out pulp lower intensity
• Truncated conical geometry facilities fiberizing scissor action
Objective – Parason WSP
Facilities the use of high-strength fibers without sacrificing defibering effectiveness or energy usage efficiency
Provide increased agitation for greater effectiveness in defibering and increased recirculation
The rotor design and method of operation of rotor-stator pair, which can readily compensate for wear at the rotor-stator interface while maintaining the aforementioned operational advantages, even when processing highly abrasive materials
Main Specifications:
WSPMOTOR RPM=980
MODELTPDPOWER(Kw)
500
15-25
100-150
600
20-35
150-200
900
40-50
250-315
Photos:
Wet Strength Pulvarizer (WSP-900)
Special Features
• Can pulverize sack kraft, insulation paper, beer boxes, security paper, textile core boxes, currency paper
• 3 function equipment scissoring, agitation, pumping
• Facility to use steam and chemical for efficient working
• Flakes are reduced to individual cellulose fibers and produce out pulp lower intensity
• Truncated conical geometry facilities fiberizing scissor action
Objective – Parason WSP
Facilities the use of high-strength fibers without sacrificing defibering effectiveness or energy usage efficiency
Provide increased agitation for greater effectiveness in defibering and increased recirculation
The rotor design and method of operation of rotor-stator pair, which can readily compensate for wear at the rotor-stator interface while maintaining the aforementioned operational advantages, even when processing highly abrasive materials
Main Specifications:
WSPMOTOR RPM=980
MODELTPDPOWER(Kw)
500
15-25
100-150
600
20-35
150-200
900
40-50
250-315
Photos:
Parason Under Pulper (UTM)
Parason Under Pulper UTM
Use PUP for higher capacity & higher consistency pulping
Parason Under Pulper (PUP) is a solution developed with proven & reliable technology for higher capacity and higher consistency pulping needs. The vat is designed such as to improve the pulp circulation and achieve a better deflaking effect.
The rotor is fixed in the accept chamber with a perforated screen plate and discharge nozzle. The operation is based on active circulation with the help of pumping vanes and deflaking using spoke vanes.
Feature
– Optimum rotor size for excellent slushing
– Suitable for dry broke and press broke
– 3% 6% pulp consistency with lower power consumption
– Compact design with low VAT height for effective slushing
Applications
– Slushing wet strength, board, coated, and special grades/slabs
– Higher capacity operations
– Suitable for high consistency pulping requirements
Main Specifications:
PUP Model
PUP 24
PUP 33
PUP 42
PUP 50
PUP 63
Rotor Dia (mm)
610
845
1060
1270
1600
Power (kW)
30 90
75 200
110 400
132 500
250 710
Parason Under Pulper (UTM)
Parason Under Pulper UTM
Use PUP for higher capacity & higher consistency pulping
Parason Under Pulper (PUP) is a solution developed with proven & reliable technology for higher capacity and higher consistency pulping needs. The vat is designed such as to improve the pulp circulation and achieve a better deflaking effect.
The rotor is fixed in the accept chamber with a perforated screen plate and discharge nozzle. The operation is based on active circulation with the help of pumping vanes and deflaking using spoke vanes.
Feature
– Optimum rotor size for excellent slushing
– Suitable for dry broke and press broke
– 3% 6% pulp consistency with lower power consumption
– Compact design with low VAT height for effective slushing
Applications
– Slushing wet strength, board, coated, and special grades/slabs
– Higher capacity operations
– Suitable for high consistency pulping requirements
Main Specifications:
PUP Model
PUP 24
PUP 33
PUP 42
PUP 50
PUP 63
Rotor Dia (mm)
610
845
1060
1270
1600
Power (kW)
30 90
75 200
110 400
132 500
250 710

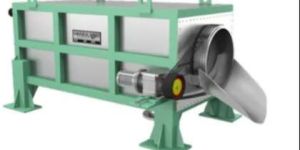

Trommel Screen
Applications & Salient Features
To lessen the contaminant load on Fiber Saver(PFS), the light rejects normally directed to Trommel Screen. Special heavy-duty perforated drum with hole size in ascending order and aided by the suitable shower inside & outside allowing the recovery of fibers. The coarse contaminants getting rejected and accept returned to the Pulper.
The Advantages Are
Easy Installation
The perforated drum of SS-304, drive arrangement, inside helical screw, outlet chute of SS-304, and Supporting Structure of M.S
Drum is driven through Geared Motor, Pulleys, and Belts
C-I drive and driven pulleys properly machined
Shower pipe with nozzles of SS-304
Main Specifications:
TSRMOTOR RPM=1500
MODELTPDPOWER(Kw)
1
8–15
3.7
2
15–20
5.5
3
20–25
7.5
4
25–30
9.5
7
35–40
11
Photos:
Trommel Screen
Applications & Salient Features
To lessen the contaminant load on Fiber Saver(PFS), the light rejects normally directed to Trommel Screen. Special heavy-duty perforated drum with hole size in ascending order and aided by the suitable shower inside & outside allowing the recovery of fibers. The coarse contaminants getting rejected and accept returned to the Pulper.
The Advantages Are
Easy Installation
The perforated drum of SS-304, drive arrangement, inside helical screw, outlet chute of SS-304, and Supporting Structure of M.S
Drum is driven through Geared Motor, Pulleys, and Belts
C-I drive and driven pulleys properly machined
Shower pipe with nozzles of SS-304
Main Specifications:
TSRMOTOR RPM=1500
MODELTPDPOWER(Kw)
1
8–15
3.7
2
15–20
5.5
3
20–25
7.5
4
25–30
9.5
7
35–40
11
Photos:
Trash Pump
Trash Pump
Application & Features
The main function of Parason Trash Pump is to efficiently move the rejects onwards to the Reject Compactor for further processing. Parason Trash Pump is designed so that it is perfect to be adjusted in smaller/tight locations.
The drive unit of the Trash Pump is equipped with an impeller, mounting, belt drive, belt guard, and motor. The Trash Pump consists of housing with a cover. This equipment is designed with a modern 3D technology approach and is targeted to perform more efficiently to gain extra productivity.
Advantages
– Highspeed– Operation execution– Easy to install– Low maintenance requirements– Lower power consumption & greater throughput– Longer service life
Pulping Offset Machinery Trash Pulp
Technical Specifications:
PTP MODEL
PTP 515
PTP 650
PTP 800
LPM
6000 – 7000
7000 – 10000
11000 – 15000
Power (kW)
55
75
110
Trash Pump
Trash Pump
Application & Features
The main function of Parason Trash Pump is to efficiently move the rejects onwards to the Reject Compactor for further processing. Parason Trash Pump is designed so that it is perfect to be adjusted in smaller/tight locations.
The drive unit of the Trash Pump is equipped with an impeller, mounting, belt drive, belt guard, and motor. The Trash Pump consists of housing with a cover. This equipment is designed with a modern 3D technology approach and is targeted to perform more efficiently to gain extra productivity.
Advantages
– Highspeed– Operation execution– Easy to install– Low maintenance requirements– Lower power consumption & greater throughput– Longer service life
Pulping Offset Machinery Trash Pulp
Technical Specifications:
PTP MODEL
PTP 515
PTP 650
PTP 800
LPM
6000 – 7000
7000 – 10000
11000 – 15000
Power (kW)
55
75
110
SharpEdge Drum Pulper
SharpEdge Drum Pulper
Parason SharpEdge Drum Pulper For Effective Fiber Treatment
Parason SharpEdge Drum Pulper follows an effective pulping process for recovered fibers that require careful & gentle pulping to meet the various requirements of the paper industry.
Parason SharpEdge Drum Pulper is a machine developed for efficient pulping of stock consistencies up to 15% – 18% and for gentle and effective separation of fibers and contaminants.
Principle Of Parason SharpEdge Drum Pulper
Parason SharpEdge Drum Pulper uses the concept of a washing machine for its working. The HiTech Bar Knives Metallurgy is adopted for the first time in the world. It is a superb combination at a lower cost and reduced power in the Refining process. The pulp & the water are mixed, and the concept of the Drum screen is used. The Drum Pulper consists of two zones: Slushing Zone and Screening Zone.
For writing printing paper, the slushing zone is divided into two parts, and the screening zone is one part with one chest. For kraft paper, the slushing zone is one part, the slushing zone + screening zone is the second part, and the screening zone is the third part. It is supported by two chests.
Main Specifications:
Installation size
PDP15
PDP30
PDP45
PDP60
PDP80
PDP100
Production (T/Day)
150
300
450
600
800
1000
Installed capacity [kW]
132
250
400
560
800
1000
Advantages of The Parason SharpEdge Drum Pulper
It comes with a maintenance-free girth gear drive
Elimination of tyres for the drive
It uses the replaceable refiner plate bars with Parason ERP’” for slushing the pulp
Manufacturing up to 1500 TPD of SharpEdge Drum Pulper
Parason SharpEdge Drum Pulper can be used for Writing Printing, News Print, Kraft Paper, Low BF 14, 16,18 BF of paper
Low maintenance cost
Features Of Newly Modified Design
Standard diameter
At this diameter, the pulp falling stock between 11 O’clock to 11.30 so that the maximum height is achieved
The length of the Parason SharpEdge Drum Pulper varies as per the capacity
Raw material flexibility: Slush highly contaminated recycled paper
Gentle processing: Removal of an easy-to-slush fine fraction as soon as possible
Operation with low net energy consumption between 15-25 kWh/t
Low fiber loss due to non-shredding of contaminants
Reduced power
Photos:
SharpEdge Drum Pulper
SharpEdge Drum Pulper
Parason SharpEdge Drum Pulper For Effective Fiber Treatment
Parason SharpEdge Drum Pulper follows an effective pulping process for recovered fibers that require careful & gentle pulping to meet the various requirements of the paper industry.
Parason SharpEdge Drum Pulper is a machine developed for efficient pulping of stock consistencies up to 15% – 18% and for gentle and effective separation of fibers and contaminants.
Principle Of Parason SharpEdge Drum Pulper
Parason SharpEdge Drum Pulper uses the concept of a washing machine for its working. The HiTech Bar Knives Metallurgy is adopted for the first time in the world. It is a superb combination at a lower cost and reduced power in the Refining process. The pulp & the water are mixed, and the concept of the Drum screen is used. The Drum Pulper consists of two zones: Slushing Zone and Screening Zone.
For writing printing paper, the slushing zone is divided into two parts, and the screening zone is one part with one chest. For kraft paper, the slushing zone is one part, the slushing zone + screening zone is the second part, and the screening zone is the third part. It is supported by two chests.
Main Specifications:
Installation size
PDP15
PDP30
PDP45
PDP60
PDP80
PDP100
Production (T/Day)
150
300
450
600
800
1000
Installed capacity [kW]
132
250
400
560
800
1000
Advantages of The Parason SharpEdge Drum Pulper
It comes with a maintenance-free girth gear drive
Elimination of tyres for the drive
It uses the replaceable refiner plate bars with Parason ERP’” for slushing the pulp
Manufacturing up to 1500 TPD of SharpEdge Drum Pulper
Parason SharpEdge Drum Pulper can be used for Writing Printing, News Print, Kraft Paper, Low BF 14, 16,18 BF of paper
Low maintenance cost
Features Of Newly Modified Design
Standard diameter
At this diameter, the pulp falling stock between 11 O’clock to 11.30 so that the maximum height is achieved
The length of the Parason SharpEdge Drum Pulper varies as per the capacity
Raw material flexibility: Slush highly contaminated recycled paper
Gentle processing: Removal of an easy-to-slush fine fraction as soon as possible
Operation with low net energy consumption between 15-25 kWh/t
Low fiber loss due to non-shredding of contaminants
Reduced power
Photos:
Rope Cutter
It is an integral part of the Ragger system whereby the Ragger Rope string is cut at regular interval
Applications and Salient Features
Used for cutting Ragger Rope
Double hydraulic cylinders give it a strong cutting ability
Photos:
Rope Cutter
It is an integral part of the Ragger system whereby the Ragger Rope string is cut at regular interval
Applications and Salient Features
Used for cutting Ragger Rope
Double hydraulic cylinders give it a strong cutting ability
Photos:

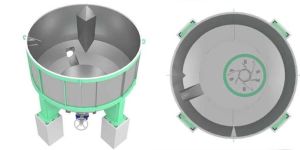

Low Consistency Offset Pulper
Operating Principles
Parason newly developed Offset Pulper which is designed with a combination of double-coned bottom and baffle where the baffle guides the pulp towards the rotor for achieving efficient and extensive slushing. Intensive turbulence is generated on the part of the rotor, whereas low-level turbulence is generated at the baffle which causes the stock to rotate repeatedly thus obtaining excellent quality pulp
The troublefree ragger operation provides reliable operating conditions across large throughput. The combination of double-cone bottom & baffle pushes the core contaminants towards reject discharge.
Application & Features
– Offset pulping process for uniform pulp
– Improved throughput
– Double cone bottom provides excellent slushing
– Reliable ragger operation and low maintenance costs
– Improved removal of coarse rejects
– Specially built rotor for power-efficient pulping
Technical Specifications:
Capacity m³
12
16
20
25
32
40
TPD
60 70
100 110
110 120
150 160
300 400
300 400
Power (kW)
110
150
180
250
355
355
Capacity m³
52
73
95
120
145
170
TPD
400 – 450
600 – 650
700 – 750
900 – 950
1100 – 1150
1300 – 1400
Power (kW)
450
560
710
900
1100
1250
Low Consistency Offset Pulper
Operating Principles
Parason newly developed Offset Pulper which is designed with a combination of double-coned bottom and baffle where the baffle guides the pulp towards the rotor for achieving efficient and extensive slushing. Intensive turbulence is generated on the part of the rotor, whereas low-level turbulence is generated at the baffle which causes the stock to rotate repeatedly thus obtaining excellent quality pulp
The troublefree ragger operation provides reliable operating conditions across large throughput. The combination of double-cone bottom & baffle pushes the core contaminants towards reject discharge.
Application & Features
– Offset pulping process for uniform pulp
– Improved throughput
– Double cone bottom provides excellent slushing
– Reliable ragger operation and low maintenance costs
– Improved removal of coarse rejects
– Specially built rotor for power-efficient pulping
Technical Specifications:
Capacity m³
12
16
20
25
32
40
TPD
60 70
100 110
110 120
150 160
300 400
300 400
Power (kW)
110
150
180
250
355
355
Capacity m³
52
73
95
120
145
170
TPD
400 – 450
600 – 650
700 – 750
900 – 950
1100 – 1150
1300 – 1400
Power (kW)
450
560
710
900
1100
1250
Grapple
Grapple is mainly used in continuous pulping system for grappling heavy and large impurities from sediment well.
Application and Salient Feature
• Mainly used for grappling heavy and large impurities from sediment well
• Four”petal” is air pressure type operation
• Easy to maintain and operate
• Adopts stainless steel material, long service life
Grapple
Grapple is mainly used in continuous pulping system for grappling heavy and large impurities from sediment well.
Application and Salient Feature
• Mainly used for grappling heavy and large impurities from sediment well
• Four”petal” is air pressure type operation
• Easy to maintain and operate
• Adopts stainless steel material, long service life

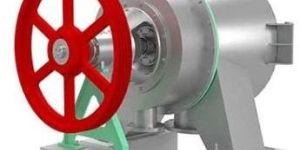

Parason Fiber Guard
Application & Features
Parason Fiber Guard is extensive equipment that gives effective separation of contaminants from the stock suspension. The stock with impurities and contaminants is transferred from the pulper to the Fiber Guard. Fiber Guard works on the pressure produced by the rotor and effectively separates contaminants and forwards the stock to the screening of disintegrated fibers.
Advantages
Uncut contaminants from Hi-Consistency Pulper are removed with negligible fiber loss
The Hi-Consistency pulper becomes ready for the next batch immediately after emptying out
The isolating valve isolates the Dilution pulper from the main pulper
The dilution pulper works as the first coarse screen thus reducing the load on next stage equipment
Removal of large foreign contaminants eliminates the risk of pulp jamming in successive operation
Main Specifications:
MOTOR RPM = 1470
PFG MODEL
PFG 01
PFG 02
Capacity (m3)
12
11
Power (kW)
90
160

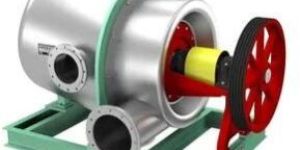

Parason Fiber Guard
Application & Features
Parason Fiber Guard is extensive equipment that gives effective separation of contaminants from the stock suspension. The stock with impurities and contaminants is transferred from the pulper to the Fiber Guard. Fiber Guard works on the pressure produced by the rotor and effectively separates contaminants and forwards the stock to the screening of disintegrated fibers.
Advantages
Uncut contaminants from Hi-Consistency Pulper are removed with negligible fiber loss
The Hi-Consistency pulper becomes ready for the next batch immediately after emptying out
The isolating valve isolates the Dilution pulper from the main pulper
The dilution pulper works as the first coarse screen thus reducing the load on next stage equipment
Removal of large foreign contaminants eliminates the risk of pulp jamming in successive operation
Main Specifications:
MOTOR RPM = 1470
PFG MODEL
PFG 01
PFG 02
Capacity (m3)
12
11
Power (kW)
90
160

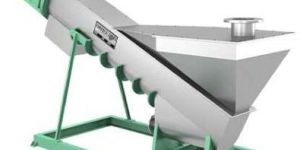

Dehydrating Screw Conveyor
Applications & Salient Features
• Separation of contaminants(plastic etc.) and water from pulper reject discharge
• Separation of sand and water coming from High Density Cleaner and Centricleaner rejects
• Conveying of wood chips, straw, sawdust, fiber sludge
• Conveying waste, rubbish, ashes, and metal grindings
Salient Features
• For solids-liquid separation, consists of sedimentation hopper with perforated trough bottom section for water and fiber reclaiming and an inclined shaft screw for reject extraction
•To reduce maintenance, the geared motor is directly connected to the shaft screw on the top end of the conveyor
• Designed for efficient transportation and separation of fiber & water with minimum maintenance and higher reliability
• All parts coming in contact with the water of SS-304
• Conveyor trough is provided with top bolted cover for simplified maintenance
• Can be mounted horizontally or inclined
Photos:
Dehydrating Screw Conveyor
Applications & Salient Features
• Separation of contaminants(plastic etc.) and water from pulper reject discharge
• Separation of sand and water coming from High Density Cleaner and Centricleaner rejects
• Conveying of wood chips, straw, sawdust, fiber sludge
• Conveying waste, rubbish, ashes, and metal grindings
Salient Features
• For solids-liquid separation, consists of sedimentation hopper with perforated trough bottom section for water and fiber reclaiming and an inclined shaft screw for reject extraction
•To reduce maintenance, the geared motor is directly connected to the shaft screw on the top end of the conveyor
• Designed for efficient transportation and separation of fiber & water with minimum maintenance and higher reliability
• All parts coming in contact with the water of SS-304
• Conveyor trough is provided with top bolted cover for simplified maintenance
• Can be mounted horizontally or inclined
Photos:
Ownership TypeCorporation/Limited Liability Company
GSTIN Number27AABCP5078K1Z1
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
About Desarda Group of Industries is a Pioneer in the manufacturing of Refiners and Refiner Plates/Fillings in India. It is serving the Paper Industry since last more than two and half decades. Started with a small Foundry in the year 1977, by Dr. Champalal Desarada, who had completed his Doctorate in Metallurgy from BRNO University, Czechoslovakia with specialisation in High Chrome Steel Alloys. Company Overview Parason Group is one of the largest manufacturers & suppliers of pulp and paper machinery. Renowned scientist & metallurgist Dr. Desarda is the Founder of the Company. Parason started its first research unit for pulp and paper machinery in 1977. Parason is focused on Research & Development. Many types of research done by Parason have shown that the latest technology proposed by Parason not only enables Paper Mills to increase its Paper quality but also reduces huge power consumptions of machines which is the key point of Profit for the Paper Industry. Parason offered products are widely used by Kraft, Tissue, Writing Printing, and Hard Board Paper Mills. Parason also has specialization in Refiner Discs and these are one of the best discs available for Paper mills across the globe. Parason manufactures various range of products that can be used for a number of operations in stock preparation. Parason have global consultancy services, which supports organization to setup New Paper Mills and also helps existing Paper Mills to archive higher goals. Parason also have international consultants based in Germany, Europe and USA. Parason have worldwide client base and having majority market in Germany, USA, France, Thailand, Italy, Brazil, Spain, Portugal, Philippines, Indonesia, and Bangladesh, Parason serving more than 60 countries across world. Parason has successfully completed many installations for Paper Mills ranging from 25TPD to 400TPD. Group Companies 1. Parason Machinery (India) Pvt. Ltd. 2. Pratishthan Alloy Pvt. Ltd.
Reviews & Ratings
Write a Review
Post Free Ad
