FeaturesThe phone are plus / tone switchable,Flash,Last number Redial facility,Ringer volume control,Available in attractive colours (Red, Black, white and Grey),Wall mountable / table top
LT HT Electrical,Bus bar Assemblies,AMF Manual Panels for DG,Power Control Centers (PCC),Motor Control Centers (MCC),5000 Sq ft of module Assembly Wire harnessing,20,000 Sq ft of Panel Assembly,2 Tonne Crane facility to load and unload.Aeon can assemble around 150 panels (avg) a month, of various types and sizes:MCC PANELS,Single front (fixed and draw out - module type),Double front (fixed and draw out - module type).
LT HT Electrical,Bus bar Assemblies,AMF Manual Panels for DG,Power Control Centers (PCC),Motor Control Centers (MCC),5000 Sq ft of module Assembly Wire harnessing,20,000 Sq ft of Panel Assembly,2 Tonne Crane facility to load and unload.Aeon can assemble around 150 panels (avg) a month, of various types and sizes:MCC PANELS,Single front (fixed and draw out - module type),Double front (fixed and draw out - module type).

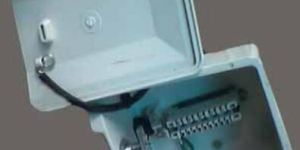

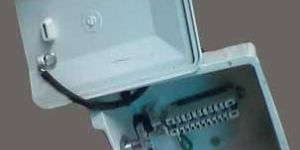

Features5 pair dp boxes consist of a 5 pair disconnection/connection module for inlet & outlet of the cable.The boxes are made of all weather polycarbonate material and injection moulded
5 pair dp boxes consist of a 5 pair disconnectionconnection module for inlet & outlet of the cable.The boxes are made of all weather polycarbonate material and injection moulded,They are provided with lock to prevent tampering of the connection,5 pair disconnection connection are of contacts which are housed in high quality plastic housing.Each module can take 5 pairs of cable wire on one side & 5 pair of jumper wire on the other side.
5 pair dp boxes consist of a 5 pair disconnectionconnection module for inlet & outlet of the cable.The boxes are made of all weather polycarbonate material and injection moulded,They are provided with lock to prevent tampering of the connection,5 pair disconnection connection are of contacts which are housed in high quality plastic housing.Each module can take 5 pairs of cable wire on one side & 5 pair of jumper wire on the other side.
FeaturesRinger volume adjustment from 0 to 3 levels, 4 levels of LCD contrast, Temporary ringer mute, Adjustable Flash time, Mute and redial function, Back light facility with ON/OFF (back light works with batteries only).
DTMF detectionG.711 A Law, G.711 U Law, G729, G.723.1, LBC(optional)
Call progress Tones and User Defined Tones generationG.168-2000 compliant 128m sec lengthadaptive Echo Cancel
Ring generationHigh performance Voice Activity Detector(VAD) and Comfort Noise Generator
Reverse voltage to support billingHigh quality Bad Frame Interpolation
Support 5 CID standards: Bellcore1,Bellcore2, ETSI 1, ETSI 2 and NTTAutomatic input and output gain control
PortsRJ11 port
LAN port1 10/100BaseTX port (RJ-45 connector).
WAN port1 WAN port
Optional inter-communicabilitySupports server standard protocol such as SIP/MGCP and so on.
Configure and manageSupports WEB/SNMP/Telnet/Console configuration methods
UpdateYou can choose different ways to update the software such as Http .FTP or series port to get new features of the products without changing the hardware.
FeaturesEasy Maintenance, Excellent D-electric strength, No power leakage, Maintenance free, rust proof and shock proof, Vandal proof, Lower Field Complaint.
Return lossThe return loss of Tele port and line port against 600 Ohms is 200Hz -3400Hz = 12 dB
Insertion LossThe tele-port to Line port insertion loss is < 1 db at 1 KHz for 600 Ohms.
IsolationIsolation resistance between tip, ring and between earth = 10 Mega-ohms. Isolation resistance with line port = 10 Mega-ohms.
Delay distortionThe delay distortion caused by POTS splitter is as follows:From 0.6 -3.2 kHz delay distortion is 200 microseconds.From 0.2 - 4.0kHz delays distortion is 250 microseconds.
Longitudinal balance of POTS splitterThe balance is greater than 58 dB for frequency between 200 Hz - 1 kHz with a straight line-level decreasing to 53 dB at 3 kHz.
Unbalance about earth :25Hz-50 Hz > 40 db terminated with 600hms.50Hz- 600 Hz > 46 db terminated with 600 Ohms.600Hz-3400Hz > 52db terminated with 600ohms.
Connectors PSTN LineThe PSTN line is the PIJF cable with 0.5 copper pairs.
Longitudinal balanceThe longitudinal balance at ATU-C and ATU-R is greater than 40 dB over the 5 kHz to 1104 kHz frequency range.•DC characteristics
ADSL-band attenuationThe insertion loss of low-pass filter is greater than 65dB at CO POTS and 70dB in remote POTS for frequencies ranging from 25 to 300 KHz with an input level of 10dBm. For frequencies ranging from 300 kHz to 1104 kHz, the attenuation is greater than 55dB f
ADSL-band Return LossThe return loss caused by loading the low-pass filter in the band from 25 kHz to 1104 kHz against the reference impedance of 100 ohms is greater than 14dB.
Metering PulseThe metering pulse after passing through DSLAM is available at the interface with frequency 16 KHz ± 1%. The distortion is not more than 10% and the level is minimum 500 mV rms ± 10%. The interface will work independent of polarity reversal.
Loop CurrentThe maximum loop current drawn from exchange is less than 60 mA.
The ringing voltageGenerated / detected at the subscriber unit is at least 40 V rms with frequency as 25 +/ - 3Hz. The Ringing voltage is generated by the DSLAM is 75V rms with frequency as 25 + / - 3Hz
Signal PowerMaximum peak signal power in 200-4000Hz is <3dbm. Loop current is <63mA.
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
Aeon Group - A Bangalore based group with diversified interests in the Mouldings, Electronic Assemblies, Electrical and Telecom Sectors. Commenced business operations in 1974 as LEOTECH A 39+ year old company with over 120 man years of experience amongst the core management team Full understanding of “Original Equipment Manufacturer & Electronic Manufacturing Services” as per customers needs High value Business Model Focusing on Part and full life cycle services (Engineering, Manufacturing, Assembly and After Sales) Demonstrated competence in the latest and evolving technologies ISO Certified Manufacturing facility
