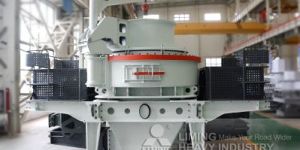

VSI6X Series Vertical Shaft Impact Crusher is a newly-developed and highly-efficient stone-crushing and sand-making machine with many national patent technologies. This machine adopts years of research and development experience and technical philosophy. Technologies such as new design of four opening impeller structure and special seal structure, which can prevent oil leak from bearing cylinder, are adopted. This machine has characteristics as high efficiency and energy saving, long service life and wide application, etc. It will help big sand making plants gradually become large-scale and centralized production in order to meet the national requirements on environmental protection and productivity. Features 1.New design, efficient crushingImpeller structure adopts the design of four openings to improve the material throughput. Compared to the three opening impeller, the crushing efficiency is improved by 20%.2.Technology upgrade, cost decreasing and benefit increasing“Crushing between material” work pattern is adopted to reduce wear-resisting type and cost; adjust some impeller structure and craft. Comparing with the earlier equipment, the impeller lifespan is raise up by 30-200% on the situation of same material.3.Unique design, quality assuranceEquipment transmission parts special sealed cartridge bearing structure prevents leakage, won three national patents; good bearings, reduce transmission failure.4.Efficient working, easy maintenanceNew lifting device to facilitate customer maintenance of the equipment, saving labor; minimalist design effectively prevent blocking when the moisture content of the raw material is high, reduce downtime, and efficient operation. Working Principle The motor drives the main shaft to make the impeller to rotate at a high speed. The material which entered impeller will speed up and ejected to crushing chamber, and then impact with the material liner that shaped in crushing chamber. In this process, to make the kinetic energy got from speeding up transform to energy need for crushing and shaping. The material will recycle for many times in the crushing chamber. After many times crushing and shaping, by the function of around gas eddy, to achieve constantly crushing and shaping. The final products are discharged from bottom outlet of machine body. This crushing method is ‘crushing between materials’, and it is used for material shaping. Besides, this machine also has another crushing method ‘crushing between material and liner’. To compare with ‘crushing between materials’, the difference is: After material ejected from impeller, the material will impact with liner installed in crushing chamber. After impacting, the material will discharge from bottom outlet of machine body directly, and it does not recycle many times in crushing chamber. This crushing method is mainly used for crushing (target for large crushing ratio). Processed Materials : pebble, Granite, basalt, iron ore, dolomite, calcite, quartzite, diabase, coal, calcium carbide, etc.. Applications : metallic and non-metallic ore, building material, artificial sand making and every kind of metallurgical slag

Type : tertiary crusher

LM series vertical mill is one advanced mill, adopting top technology domestic and abroad, and based on many years’ mill experiences. It can crush, dry, grind, and classify the materials.LM series vertical milling machine can be widely used in such industries as cement, power, metallurgy, chemical industry, non-metallic mineral. It is used to grind granular and powdered materials into powder with required fineness. Features 1. Low Investment Cost.This mill itself can crush, dry, grinding, classifying, so the system is simple, and occupation area is about 50% of ball mill system. In addition, it can be installed outside, so it will reduce a large number of investment costs.2. Low Operation Cost. ⑴ High efficiency: roller compacted materials directly onto the grinding disc, so power consumption is low. Compared with ball mill, it saves energy consumption by 30% ~ 40%.⑵ Less wear and tear: As the roller is not in direct contact with the disc, and material of the roller and liner is high quality, so life lime is long.3. High Drying Ability.As the hot air inside contacts directly with the material, drying ability is higher, and it saves energy. By regulating the air temperature, it can meet requirements with different humidity.4. Simple and reliable operation.⑴ It is equipped with automatic control systems, so remote control makes it easy to operate. ⑵ It is equipped with one device,which prevents the roller from contacting with the liner directly, and avoids the destructive impact and severe vibration.5. The stability of product quality. As the material stays in the mill for a short time, it is easy to detect and control the product particle size and chemical composition, to reduce duplication of milling, stable product quality.6. Maintenance convenience.By repairing fuel tank, rotating the arm, it is fast to replace the roller sleeve, and liner, and reduce the downtime loss.7. Environmental protection.It is with small vibration, low noise, and the overall sealing. The system works under negative pressure,   Working Principle Vertical mill has two pairs of grinding rollers, each pair of roller composed of two narrow rollers, mounted on the same axis and can rotate at different speeds. There are two circular disc slot, and roller to the tire shape, work pressure in the tank. Disc roller and the relative sliding velocity between small and roller can swing, even if the roller sleeve and the disc after the liner wear can guarantee a good abrasive, will not affect the grinding effect. Roller symmetrical structure, one side can be upside down after use and wear. Material grinding process: hydraulic pneumatic roller device through the pressure applied to the material on the crushing of materials, the materials have been moved to crush the edge of disc, from the disc around the nozzle from the exhaust air to improve these materials to Separator.Meal to separate returns after a concentrated mill, fine powder was collected in the precipitator unloading. In the gas flow is small, the meal can not be increased to enhance air flow, they would fall through the nozzle discharged outside the mill, bucket elevator to be transported to the feeder of vertical mill and was re-grinding mill feed people.This cycle features of the way there:ring by adjusting the air valve, can change the product fineness can shide mill bed load material uniformity and stability, improving the grinding efficiency; coarse particles in the external circulation, helps reduce Fan power consumption and overall system power.   Processed Materials : Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, clinker, ect. Applications : Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Type : Mineral Ore Powder Making

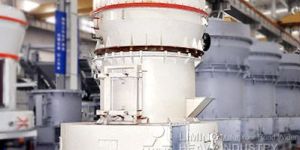

TGM Series Super Pressure Trapezium Mill is the latest grinding mill. TGM Series Supper Pressure Trapezium Mill is researched and designed by our experts basing on long term experiences of mill research and development, and according to numbers of customers' using requirements and suggestions home and aboard. The TGM Series Super Pressure Trapezium Mill adopts our patented technologies, like trapezium working surface, flexible connection, roller linked pressure boost, etc. TGM Series Super Pressure Trapezium Mill has reached the advanced international level of powder making equipment manufacturing. TGM Series Super Pressure Trapezium Mill mainly consists of mainframe, speed reducer, powder separator, blower, bag filter, pipes, powder collector, motor, etc. The peripheral equipments are jaw crusher, bucket elevator, feeder, hopper, electric control panel, etc. TGM Series Super Pressure Trapezium Mill can grind all kinds of non-flammable and non-explosive minerals with Moh’s hardness lower than 9 and humidity less than 6%，and TGM Series Super Pressure Trapezium Mill is widely used in metallurgy, manufacture of building materials, chemical industry, mining industry, etc. Features  The diameters of each part of rollers and rings are different, the upper part is big and the lower part is small, then they formed a trapezium form. This form can reduce materials’ sliding speed downwards and prolong the grinding time for materials, thus the grinding efficiency is increased.; the pressing springs have the functions of balancing and pressure increasing; the flexible connection can make the mill stable, decrease the shocking and avoid sympathetic vibration; high density powder separator impeller decreases the air resistance and increases powder collecting fineness and capacity; the efficiency of energy saving and high efficient centrifugal blower is as high as 83%. Working Principle  Large materials are crushed by Jaw crusher to the needed sizes firstly, then the materials are elevated to storage hopper by bucket elevator, third, the materials are fed into the grinding chamber for grinding by vibrating feeder equably and continuously. The powder after grinding goes upwards together with the airflow, after separating by powder separator, those which can meet the fineness requirement enters into the cyclone powder collector through pipe together with the airflow, and then discharged from the discharge valve as final products. The airflow is sucked into centrifugal blower through wind recycling pipe at the upper part of cyclone powder collector. The mainframe is driven by the speed reducer through the central axis in the mill. The quincunx stand connected with the upper part of central axis, at the quincunx stand, rollers are set and by which the vibrating pivot formed. Below the quincunx stand and rollers there is shovel system. Materials are fed into the space between rollers and shovels when they are turning, and then be grinded by the pressure produced when rollers are turning, thus powder is made. Processed Materials : Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, rock phosphate, manganese ore, quartz, active carbon, coal, etc. Applications : Cement, Coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Type : Mineral Ore Powder Making

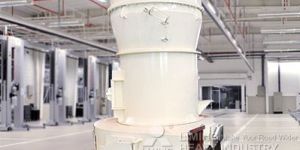

High Pressure Suspension mill is mainly made up of the mainframe, separator, blower, finished powder cyclone collector, bag filter and connecting pipes, etc. According to users’ need, the mill can also be equipped with accessory equipments like crusher, bucket elevators, hopper, electromagnetic vibrating feeder and switch box, etc. Inside the mainframe, the roller subassembly is suspended on the roller suspender through horizontal supporting axis, and the roller suspender fixed up with the main shaft and shovel stand. Located outside of the roller bearing house, the pressure springs make rollers push down the inside surface of ring through horizontal supporting axis. Shovels installed on the shovel stand and rollers rotate together when the motor drives main shaft through transmission device and the rollers roll appressed the inside surface of ring and rotate at the same time. The separator impellers are driven by motor through transmission device to rotate, more higher the speed of separator impellor, more fine the powders been separated. Features   1. Compared with other mills, its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.2. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).3. High Pressure Suspension Mill meets the requirement of national dust-dump standard.4. The separator can be adjusted very easily.5. The multi-class seals are adopted to keep the grinding equipment tightly closed. Working Principle  When entering grinding chamber, the raw materials are shoveled up by the shovels and grinded between the rollers and ring; the materials after grinding are brought into the separator along with the air from the blower, and the qualified fine powder became final products and come into the cyclone powder collector, the other unqualified powder fall down to be re-grinded. The circular air returns back to the blower that the above process will be repeated, and the remaining air enters the bag filter in order to protect the environment. Processed Materials : Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, iron ore, quartz, active carbon, coal, etc. . Applications : Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Type : Mineral Ore Powder Making

The machine is mainly used in processing powder of mineral materials of metallurgy, building materials, chemical industry, mining, etc. It can grind non-flammable and non-explosive materials with moisture less than 6% such as Feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese ore, iron ore, copper ore, phosphate rock, iron oxide red, slag, slag, activated carbon, dolomite, granite, iron oxide yellow, bean cake, chemical fertilizer, compound fertilizer, fly ash, bituminous coal, coke, lignite, Ling U.S. sand, gold, red mud, clay, Kaolin, coke, coal gangue, porcelain clay, kyanite, fluorspar, bentonite, muddy green rock, leaf wax rock, shale, purple rock, Diego rock, basalt, gypsum, graphite, insulation material, etc. Features T130X superfine grinding mill with innovative design is a new-type grinding machine evolving from the original patented product - TGM Super Pressure Trapezium Mill based on market research, feedbacks and suggestions of customers both at home and abroad. It's optimized on the foundation of TGM Super Pressure Trapezium Mill in function and structure, coming into being its own unique characteristics:1, The main frame and the base are completely soft-linked rather than rigid-contacted. It avoids the vibration from the chamber transferring to the main frame and the classifier,which improving the precision of the classifier.2, The base are made of anti-crack nodular cast iron which boasts the strength of cast steel,the anti-vibration of cast iron and good impact resistance.3, It adopts the reducer that simulates German Flender. Technological advantage of professional reducer manufacturers are made full use of to improve machine stability.Reducer and motor are connected by V-belt which is conducive to overload protection.4, The main frame and reducer are connected by pin coupling with elastic sleeve to ward off the breaking of nylon pin ,which improves the reliability of the whole equipment.5, The classifier adopts high density impeller which can improve the fineness and capacity. Practice shows that in the case of constant speed, increasing the density of leaves can increase the fineness of the finished product.In other words,in the condition of same fineness, the high-density impeller rotates slower than the low-density one,which reduces the air resistance and increases production meanwhile.6, The classifier adopts frequency control of motor speed with the characteristics of energy-saving, precision, good process control mobility and high degree of automation.7, Bypass powder collector with a dust isolation chamber make more dust go into the bottom of cyclone by the bypass system to avoid the dust escaping from air vents. Compared with general powder collector,it has the character of low pressure loss and high efficiency, particularly being conducive to collect the powder particles which is difficult to collect. 8, Same resistance arrangement avoids difference in power from two powder collector, which increases the efficiency,capacity and decreases internal circulation.9, The discharges of the collector and dust remover are in the same line which is convenient for powder collecting and packing and reduces the amount of work.10, The maintenance platform makes maintenance work safer and more convenient. Working Principle Large materials are crushed by jaw crusher into required size for mainframe, then the crushed materials are elevated to the hopper by bucket elevator，then to the grinding chamber for grinding by vibrating feeder evenly and continuously. The powder goes upwards with the airflow, after separating by the classifier, those which can meet the fineness requirement enters into the collector through pipes for separating and collecting, and discharged from the discharged valve as finished products. The airflow is sucked into blower through wind recycling pipe at the upper part of cyclone power collector. And the closed airflow circulation system with negative pressure ensures the environmental health of production line site. Processed Materials : Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc. . Applications : Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics

Type : Mineral Ore Powder Making

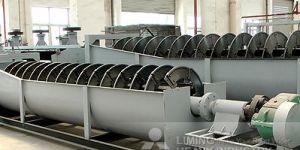

Spiral Classifier is widely used in different particle ore,grading pulp and process of ore desilter in the concentrator. Features 1. Simple structure, reliable running and easy operation.2. It mechanically classifies through the mechanism of different sedimentation speed of solid particle in liquid due to different size and different specific gravity.3. It can classify the ground material powder from the grinder, spiral the coarse grain into material inlet of grinder through the spiral chip, and discharge the classified fine grain from overflow surface.4. Its base is made from channel steel, and its body is welded from steel plate.5. The lower support of spiral bearing is of engine-bearing structure of good wear-resistance and durability.6. The lifting device is of electric and manual mode. Working Principle The flotation cell is driven by a motor triangular substituting transmission when impeller rotates,on the one hand, suction sufficient air is mixed with the slurry, on the other hand, stir the slurry mixed with the drug while refinement of the foam, make the mineral adhesive above of the foam. To adjust the height of the gate and to control of the liquid level are the useful ways for foam scraper by being scraped off. Processed Materials : Spiral classifier is beneficiation equipment. Because of the principle that solid particles with different specific gravity will get different deposition rate in liquid, spiral classifier can realize mechanical classification effectively. This machine takes advantages of simple structure and reliable running. Applications : Widely used in combine with ball grinder into closed circulation for ore-sand separation in the ore separation plant; classify ore sand and fine sludge in gravity ore separation plant; classify the grain of ore pulp at the metal ore separation process; and remove sludge/water at the ore separation process.

Type : Mining benefit teams

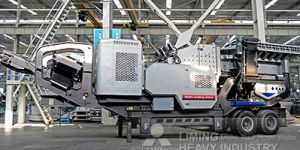

1.The plant is designed with ship-form structure made of steel and low chassis.It is light in weight.Owning to the reasonably designed body,its transportation turning radius is quite small with high maneuverability.2.The vehicle control cabinet is equipped with high-tech LCD touch screen and PLC control system.LCD touch screen with human-machine dialogue function makes it process the functions of key start,misuse warning,protection,electrical control operations,fault and safe tips,which is convenient,high-efficient and secure.3.The automatic-portable conveyor for return material make the installation of the whole plant quite easy.4.Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.5.The mobile crushing&screening plant can be customized in design.It can be manufactured either crushing first or conversely.   Features  1.High capacity2.High performance of secondary crushing3.Flexible 4.Integral crushing&screening5.Belt conveyor self-loaded Processed Materials : Iron ore, copper ore, gold ore , manganese ore, limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc.. Applications : Secondary medium & fine crusher is widely used in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Type : Secondary Crusher

After many years of practice and improvement, its structure is getting perfect day by day. For low consumption, low investment, environment friendly , small occupation area, and more efficient than the traditional mill, it is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder. The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products change from 613 micron to 44 micron. Through the function of separator and blower, it can meet different customers’ demand. Features 1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room. Working Principle Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind. After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure. Processed Materials : Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc. . Applications : Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Type : Mineral Ore Powder Making

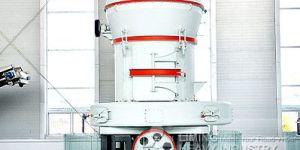

MTW European Type Trapezium Mill--- the latest type of Raymond Mill, has become one of the most advanced grinding mills in the world with its so many intellectual properties like bear-gear drive, inner oil lubricating system, arc air channel, etc. Features 1. EfficientBevel gear overall drive reduces noise and increases drive efficiency and capacity.Inner automatic thin-oil lubricating system makes better lubrication for bearings2. EconomicalEdge-replaceable shovel saves you money and frequency-control separator and cyclone powder collector ensure high capacity3. AdvancedArc air channel reduces energy consumption and intelligent control ensures better operation4. Environmentally friendlyUnique air recycling system and dust collector make clean environment Working Principle The system consists of grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc.Big lump materials are crushed to required size by jaw crusher, then elevated to buffering hopper through elevator, after that fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closed system. Processed Materials : Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc.. Applications : Cement, coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Type : Mineral Ore Powder Making

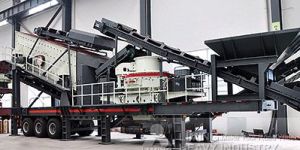

Mobile VSI Crushers are ideal for tertiary crushing and screening applications in quarrying, mining, concrete recycling, infrastructure and construction industries. It is especially used to process raw material to excellent aggregate and sand for railway, highway, freeway and building construction. Processed Materials : Iron ore, copper ore, gold ore and silver ore, zinc ore, manganese ore,limestone、granite、basalt、river stone、coal gangue、quartz. Applications : Mechanism sand, bituminous concrete, metal mine, aggregates shaping   Features 1. High capacity2. fine crushing and shape adjusting3. high performance, flexible4. integral crushing & screeing5. belt conveyor self-loaded

Type : tertiary crusher

Built either as a double or triple-deck screen with or without feed hopper, as a banana screen, with finger screening surface, with rubberised perforated panels, etc. the screens are suitable for use wherever high outputs are required and where difficult to screen material has to be separated.The screens are all diesel-electric driven and are particularly suitable for combined operation with an upstream Liming crusher. The performance range for mobile screens nowadays extends to 1,000 t/h depending on the type and composition of the feed material and the grading ranges to be screened. Processed Materials : Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc. Applications : Mining, metallurgy, construction, highway, railway, and water conservative, etc.   Features   Built either as a double or triple-deck screen with or without feed hopper, as a banana screen, with finger screening surface, with rubberised perforated panels, etc. the screens are suitable for use wherever high outputs are required and where difficult to screen material has to be separated.The screens are all diesel-electric driven and are particularly suitable for combined operation with an upstream Liming crusher. The performance range for mobile screens nowadays extends to 1,000 t/h depending on the type and composition of the feed material and the grading ranges to be screened.

Type : Vibrating Screen

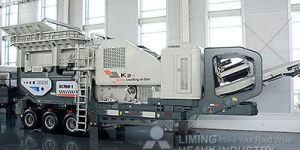

The mobile primary jaw crushers are characterised by their uncompromising design and sturdiness. The outstanding overall performance of the machines results from the harmonious interplay of all components. In this way, the series of machine provide a variety of innovative solutions with regard to efficiency, availability, versatility and, last but not least, the quality of the end product.   Processed Materials : Iron ore, copper ore, gold ore, manganese ore, limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc.. Applications : Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.   Features 1、It adopts ship form steel structure and low vehicle chassis with light weight. The volume is controlled reasonably. Hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small.2、Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.3、Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.4、The vehicle control cabinet is equipped with high-tech LCD touch screen and PLC control system. LCD touch screen with man-machine dialogue function makes it possess the functions of key start, misuse tips and protection, electrical control operations, fault and safe tips. It is convenient, efficient and secure.5、Grizzly bars of the feeder is capable to separate out the small-sized material as the wastes. By adopting the automatic separatory hatch door, materials in the wastes hopper would flow either with the side-opening belt conveyor, or with the main materials.6、Height of belt conveyor is adjustable. It also can be twisted and folded.7、Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.8、With overall streamlined body design and metallic paint spraying, this plant is the perfect combination of mechanics and aesthetics.

Type : Primary Crusher

1. It adopts ship form steel structure and low vehicle chassis with light weight. The volume is controlled reasonably. Hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small.2. Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.3. Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.4. The vehicle control cabinet is equipped with high-tech LCD touch screen and PLC control system. LCD touch screen with man-machine dialogue function makes it possess the functions of key start, misuse tips and protection, electrical control operations, fault and safe tips. It is convenient, efficient and secure.5. Grizzly bars of the feeder is capable to separate out the small-sized material as the wastes. By adopting the automatic separatory hatch door, materials in the wastes hopper would flow either with the side-opening belt conveyor, or with the main materials.6. Height of belt conveyor is adjustable. It also can be twisted and folded.7. Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.8. With overall streamlined body design and metallic paint spraying, this plant is the perfect combination of mechanics and aesthetics.   Processed Materials : Iron ore, copper ore, gold ore , manganese ore, limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc.. Applications : Primary coarse & medium crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.   The mobile impact crushers are used for soft to medium-hard natural stone and for the reprocessing of residual construction materials. What is important today, in addition to the quality of the end product, is environmental and cost awareness, availability and a wide field of application. The series of machines unite all these requirements. In the process, they guarantee an end product that represents the high demands of concrete and asphalt granulation standards with regard to grain shape, grain distribution and cleanliness.

Type : Primary Crusher

Nowadays, micro-powder is widely used in many industries, like sopa, toothpaste, cosmetics, rubber, paint, paper, PVC, glass, etc. MW Micro-Powder Mill is specially designed for micro-powder making. It can be used for non-metallic ores like limestone, calcite, kaolin, talc, illite, etc. Features  1. EfficientCompared with jet mill, mixing grinder and ball mill of same finished product size and motor power, MW Micro-Powder Mill has double capacity and saves 30% energy.2. Long Life of Spare PartsForged by special material, the ring and roller can be used for about one year while grinding calcium carbonate.3. High fineness and flexible adjustmentThe product size can be adjusted between 325 mesh to 2500 mesh (47-5micron).4. Environmentally friendlyThe application of pulse dust collector and muffler greatly reduce dust pollution and noise. Working Principle  The motor drives the main shaft and every turnplate through the reducer. The reducer drives dozens of rollers to rotate against race way of ring through pin. Small material crushed by hammer crusher is transported into hopper by elevator, and then vibrating feeder shall feed material to the central part of upper turnplate evenly. The material falls to circle under the centrifugal force and comes down to raceway of ring to be crushed into powder. After grinded in the first race way, the material goes to the second and third turnplate. The blower inhales the external air into the mill and carries the powder after third turnplate into powder-separator. Turbine in the separator makes the coarse powder drop down and regrinded and the fine powder shall go into cyclone powder collector together with air current and go down through discharge valve as final product; at the same time, air current with a little dust goes out through blower and muffler after purified by filter. Processed Materials : Kaolin, limestone, calcite, talcum, barite, pottery clay, dolomite, bentonite, mica, illite, pyeophyllite, vermiculite,sepiolite,attapulgite, rectorite,diatomite, graphite, alunite, floatstone,etc.. Applications : Chemical Industry, paint, cosmetics, medicine, food additive,etc.

Type : Mineral Ore Powder Making

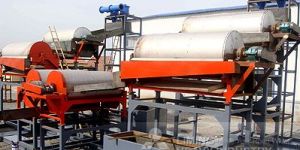

Magnetic separator is used for sorting magnetic minerals or removing non-magnetic minerals mixed in the magnetic minerals. Features Magnetic separators have many features compact structure, no cooling system, no power excitation system, rectifying the belt automatically, simple structure, large capacity, easy to operate, easy to maintain, etc. Working Principle The material is evenly given to the magnetic field region of upper the rotating roller, magnetic substance is adsorbed on the surface of the roller and rotated together with the roller.As the non-magnetic particles and magnetic particles are suffered different magnetic force in a magnetic field,the magnetic particles are adsorbed on the surface of the roller by the magnetic field,and removed to the non-magnetic region.Non-magnetic and weakly magnetic particles are suffered by their different magnetic force.The outstripped track are different. Processed Materials : Iron ore Applications : Magnetic separator is used for particle size below 3mm magnetite, pyrrhotite, roasted ore, ilmenite and other materials wet magnetic separator, and also for coal, non-metallic minerals, building materials and other materials iron remover.

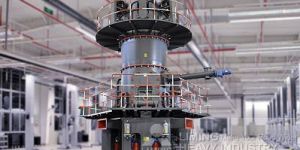

LUM series superfine vertical roller grinding mills can be widely used to process the superfine dry powder of non-metal ores such as calcite, marble, limestone, coarse whiting, talc, barite and dolomite and so on. Features 1. High grinding efficiency, little pollution to the final products.2. Advanced, efficient and energy-saving powder-concentrating technology.3. Secure and efficient operating principles, intelligent operating system.4. Little attrition.5. Convenient and easy to maintenance.6. Environmental friendly. Working Principle The main motor drives the millstone to rotate through the reduction box, meanwhile, the air flow gets into the mill through air intake. The materials come out of the screw feeder and fall on the center of the millstone, and then they will move from the center to the edge of the millstone under the affect of centrifugal force. When they move across the grinding zone, they will get grinded by the rollers. Those materials in big pieces will be crushed and grinded directly while those small ones will get extruded and they will form a material bed in which intergranule and mutual grinding will take place. The grinded materials keep moving to the edge of the millstone until they are taken away by the air current at the air ring, and the big pieces will fall again on the millstone to be grinded. The materials in the air flow will go through the rotor vanes on the separator above. The coarse powder will go back to the millstone while the eligible powder will go out of the mill together with the air flow and get collected by the powder collector. Those collected powder is the final products of the LUM grinding mill. The sundries mixed in the materials that go into the mill, iron piece for instance, will move to the edge of the millstone with the materials and fall down to the bottom part of the mill since they can not be blown up because of their own weight. And then these sundries will be scraped to the slag-discharge opening and discharged out of the mill. The final products can be in different fineness through adjusting the rotating speed of the rotor of the powder concentrator. The pressure on the rollers can also be changed by adjusting the pressure of the hydraulic system so that the mills can process the materials in different hardness. Besides, the load and capacity of the mill can be affected through adjusting the materials’ feeding amount. Processed Materials : Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc.. Applications : Superfine dry powder of none-metal ores such as calcite, marble, limestone, coarse whiting, talc, barite and dolomite and so on.

Type : Mineral Ore Powder Making

According to well-knit processing technology and 30 years’experiences about research and development production, C6X Series Jaw Crusher was produced by optimizing structure. The equipment takes advantages of higher quality, longer life, lower cost and higher efficiency at the same energy consumption. Aiming at the hard materials, C6X Series Jaw Crusher has become typical equipment of perfect crushing because of high crushing ratio and quality wear resistant parts, which provides easier production process for customers. Processed Materials : Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.. Applications :  Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.     Features 1.Optimizing crushing chamber and trajectory parameters of moving jaw can get reasonable inertial moment and crushing stroke, and higher efficiency will be obtained when energy consumption is equal to others.2.Replacing welded machine with bolted fastening, the structure is more compact because the problem about stress concentration caused by welding is avoid.3.Replacing plates with wedges, the discharge opening can be adjusted simply, efficiently and safely.4.Quality materials and components are chose, and main parts are changed easily, which reduce costs effectively.5.Replacing anchor connection with elastic position limiters and rubber damping, the crusher has reduced the impact that influences other components, which can improve its service life.6.Integrative motor cabinet reduces mounting space.    Working Principle Input dynamic by motor, the pulley drives eccentric shaft to make the movable jaw move upwards and downwards with SPC belt. When the movable jaw moves forth toward the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which met the requirements will be discharged from the outlet. Since the motor keeps working, the crusher will crush and discharge periodically to achieve mass production.

Type : Primary Crusher

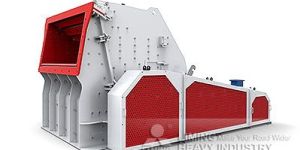

CI5X Series Impact Crusher is new equipment satisfied customers’ requirements abut efficiency and output size. Depending on unique design, advanced processing technology and quality raw materials, CI5X Series Impact Crusher has been the leading equipment. Compared to traditional impact crushers, the equipment utilize newest achievements in scientific research including heavy rotor, multipurpose hydraulic system and efficient involute-shaped crushing chamber, which takes advantages of high efficiency, low costs, easy operation and reliability. The equipment is widely used for coarse crushing and medium crushing in railway, construction, crushing, etc., which creates higher value for customers. Features 1.Adopting ANSYS finite element analysis and computer aided design, the plant is made of quality steels, whose weight is reduced substantially, and the ways of transport and installation are more convenient.2.Introducing theory about ergonomics, the equipment takes advantages of simple maintenance, little down time and low costs.3.The design of heavy rotor with rotational inertia and high precision makes the speed increased by 20%.4.The positioning accuracy is more reliable because of the new design of bearing block positioning device, which satisfy the requirements of usage and maintenance.5.Adopting the design of hydraulic system to realize intelligent control for frame, impact rack, output size and maintenance. Besides, the operation is much easier and operating rate is improved.6.Efficient involute-shaped crushing chamber makes the efficiency higher and final product size well-distributed.7.Ensuring optimized working, the equipment adopts wearable hammer and impact plate which can adapt to various situations.8.Accurate match for motor power makes the costs reasonable.9.The equipment with quality bearing made by famous brands is running continuously and steadily.10.Low fault rate, steady running.  Working Principle CI5X Series Impact Crusher crushes material by striking energy.when it works,the motor drives the rotor rotate at a high speed,on which the blow bar is installed .as soon as the material get into the affecting area of the blow bar,they will be stroke by the blow bar and be thrown to the impact devices around the rotor.the high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size.the clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product. Processed Materials : River stone, granite, basalt, iron ore, limestone, quartz, dolerite, etc.. Applications : Mining, metallurgy, construction, chemical, cement, refractory material, etc.

Type : Secondary Crushing

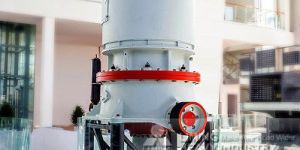

The HST series hydraulic cone crusher is a high efficiency cone crusher designed by introducing American technology and combining the metal nature on the world market. It is widely used in metal mine, metallurgical, chemistry, construction, cement, sand and stone production industry. It applies to the primary and secondary crushing of various of mines and rocks, the Protodyakonov hardness of which is f=5-16, such as iron ore, nonferrous ore, granite, limestone, quartzite ore, sandstone, pebble and so on. Features  1.High efficiency: The hydraulic cone crusher has support on both ends of the spindle, which is able to bear greater crushing force and greater stroke, coupled with the special shape of crushing chamber adapted to laminated principle, the machine has higher crushing efficiency.2.Large production capacity: The hydraulic cone crusher has the perfect combination of design with crush stroke, crushing speed and crushing chamber shape, which make the machine's moving cone big end diameter in the same circumstances, the output is 35% ~ 60% higher than the old spring cone crusher.3.High quality stones: The hydraulic cone crusher adopts special crushing chamber and laminated crushing principle, resulting in inter-particle crushing effect, so that the finished product significantly increased the proportion of the cube, flake stone needles reduced and grain is more uniform.4.Just replacing the fixed cone can achieve a variety of cavity shapes for fine crushing.5.Double insurance controlled hydraulic and lubrication system can ensure the machine's overload protection and good bearing lubrication.6.Easy maintenance: The structure of cone crusher is simple and compact.It has the features of stable performance, not easy to fault and convenient maintenance. Working Principle The electromotor leads the eccentric sleeve to rotate by the V-belt, drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom. Processed Materials : Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt,mine ore,quartz,diabase,etc. (For hard stone). Applications : Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.

Type : Secondary Crushing

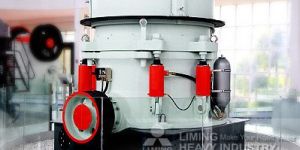

HPT Series highly efficient Hydraulic Cone Crusher is a world-level cone crusher introduced the up-to-the-minute technology of Germany. The cone crusher not only improves the production capacity and crushing efficiency, but also widens applying area, hardness range of materials from limestone to basalt. It has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the field of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry. Features HPT Series of highly efficient Hydraulic Cone Crusher has a better performance compared with spring cone crusher and ordinary Hydraulic Cone Crusher:1. High crushing ratio and production efficiency.—— Connection of higher turning speed and stroke makes rated power and passing capacity improved greatly and crushing ratio and capacity increased.2. Less spare part consumption and low operation cost.——advanced crushing principle and technical data, reliable operation and low operation cost. All parts of the crusher have anti-wearing protection, which can make the life time of spare parts increased by 30% and the maintenance cost decreased to the lowest. The crusher avoids the disadvantages of impact crusher like low average crushing ratio, large energy consumption, fast abrasion of blow bar, impact plate and lining board.3. Between-layer pressuring crushing and better finished product shape.——The crusher adopts between-layer pressuring crushing principle and suitable turning speed, not the traditional single particle crushing principle. The special crushing cavity can make the crusher crush materials selectively, thus the proportion of fine product and product of cubic shape is increased distinctly and product of lump size is decreased by a large extent.4. Hydraulic protection and hydraulic cavity clearing, high automatization and less stopping production and repairing time.——Discharge opening is adjusted by hydraulic device and overload protection makes performance of the crusher increased by a large extent, maintenance and operation are easier, repairing time is shorter.; the bidirectional metal releasing hydraulic vat makes slab pass through crushing cavity；the crusher can discharges material automatically when the hydraulic device works under the condition of iron passing and instantaneous overloading, thus there is no trouble of stopping the crusher to discharge material by hand.5. Thin oil lubrication makes the life time increased.——Unique design of thin oil lubrication system prolongs life time of the crusher, high performance and not touchable labyrinth airproof part block off dust and remove common disorders like mixture of oil and water in spring cone crusher.6. Various crushing cavity.——It only need change fixed cone lining board and movable cone lining board; , the type of crushing cavity can be changed from standard coarse cavity to short head fine cavity, which can meet various kinds of requirements.7. Easy maintenance and operation.——all parts of HPT series of cone crusher can be assembled, disassembled and repaired from the top and side part, including the fixed cone and movable cone. If change, no need to disassemble the crusher body and fasten the bolts. Hydraulic motor makes the performance of crusher better.8. The crusher can provide customers larger capacity, better product shape, and easy operation. Working Principle Under the leading role of eccentric sleeve, the movable cone of the HPT Series high-efficiency hydraulic cone crusher does rotary and pendulum movement which drives the broken walls squeeze and twist the raw material between the rolling ace tabular wall and it. According to laminated theory, the raw material is crushed and polished following their own texture by the force from different directions. Stable aggregate are produced finally. The eligible raw material falls down from the gap of the broken wall. The others will be kept crushing until it reaches the desired size. Processed Materials : Iron ore, copper ore, gold ore, manganese ore, river stone, gravel,granite,basalt,mine ore,quartz,diabase,etc. (for hard stone). Applications : Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.

Type : Secondary Crushing

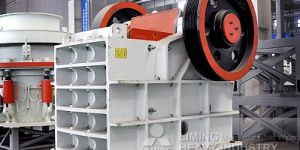

According to the actual needs of customer, on the basis of introducing and absorbing advanced technology at home and abroad, our company designs a modern high performance crusher, HJ series high efficiency jaw crusher. It is based on the design concept of low input - high output, integrating the characteristics of low power - high productivity. Practice has proved that HJ series jaw crusher, with its excellent performance, reliable quality and high cost-effective, has won the trust of customers around the world, being an ideal upgrade alternative of the traditional jaw crusher. Features 1. High Performance. The model has a large output, by the optimization of the trajectory of movable jaw plate and the cavity, to determine the optimum engagement angle and stroke property values, so that the productivity of this model has risen considerably with the same power.2. High stability. By the optimization of the whole structure and the counterweight section to determine the structure of flywheel and driving wheel and the weight of counterweight section, so its function of vibration has been greatly improved. Compared with the same unit jaw crusher, HJ series possess a greater stability.3. High reliability. Heat-treated forged eccentric shaft, extra large bearings, “E” frame, labyrinth seals, etc, making equipment sturdy and durable, more reliable.4. Easy maintenance and operation. Advanced side fender bolt system makes the replacing of the side shield more faster; reasonable machine structure makes it more convenient for discharge setting and replacement of toggle plate. All this can effectively shorten the operation and maintenance time5. Wide application. HJ series jaw crusher has a compact structure, compared with the same unit jaw crusher, it possess a smaller footprint. So that it can play a greater role in the limited space to suit a variety of crushing process. Working Principle HJ series high efficiency jaw crusher is composed by the parts of frame, rotor, insurance device and adjusting device of discharging opening. And the supporting parts are lubrication system, and adjusting system. Motor drives the wheel by triangular belt, and then drives eccentric shaft to move the moving jaw, when moving jaw moves moving jaw plate to fixed jaw plate, the materials are crushed or chopped. When moving jaw plate that is driven by moving jaw keeps away from fixed jaw plate, the crushed materials are discharged from the discharging opening, which is under the jaw plate. Along with the continuous rotation of motor, the crusher crushes and discharges periodically. Processed Materials : Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.. Applications : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

Type : Primary Crusher

Absorbing mature experiences from the last four-generation grinding mills, MB5X Pendulum Suspension Grinding Mill comes into market surprisingly with many advanced patented technologies. This new version grinding mill adopts multiple core technologies, like automatic thin-oil lubricating system in the main shaft, no cylinder structure for shovels and damping structure in the volute, etc. Thesecharacters greatly increase the grinding rollers’grinding effect and abrasion performance. MB5X Pendulous Suspension Grinding Mill is specific for processing non-metallic minerals. Features 1.Automatic thin-oil lubricating system.All the bearings are lubricated by the oil pump attached at the bottom of the main shaft, the lubricating system will start and off along with the mill.2.Thin-oil lubrication system for grinding roller.Compared with grease lubrication, oil bath lubrication can extend lubrication cycle and decrease the running costs. Touch-sensitive oil level detection technology can monitor oil level with the small observation hole without opening large access door.3.No shovel cylinder structure.The increased chamberspace willallow bigger roller diameter, thus increase the grinding pressure. Besides, larger vent area will reduce wind resistance.4.Volute elastic damping structure.MB5X Grinding Mill is different from other grinding plants which has rigidity connection by bolts between volute and bed. This new mill adopts damping structure with thickened rubber mat, which avoidsdamage by vibrationof volute and airframe and reduce vibration of classifier. Working Principle Through vibrating feeder, the raw materials are continuously and quantitatively transported from hopper to grinding chamber. Materials are grinded in the grinding chamber. The grinded powder will be blown up and be classified by cage-type classifier. The qualified powder goes through the cyclone collector for separation and collection, and then be discharged by pneumatic discharging valve as final powders. The air current is sucked into centrifugal blower from upper pipe of cyclone collector. It is a closed air flow system and circulates under negative pressure. Processed Materials : Feldspar, calcite, limestone, talc, barite, rare earth, marble, bauxite, phosphate ore, iron oxide red, dolomite, granite, bitumite, anthracite, lignite, kaolin, bentonite, gypsum, etc.. Applications : Metallurgy, construction, mining, chemical industry, etc.

Type : Mineral Ore Powder Making
