Amada Miyachi India Pvt Ltd Kalyan Nagar, Bangalore, Karnataka

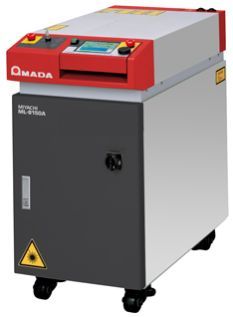

The ML-8150A SHG green pulse laser welder is specially designed to weld copper and gold. Copper and gold are materials with high reflectance so that those are known as hard-to-weld materials. Wavelength of SHG laser is 532nm which is a half of fundamental laser (1064nm) and that makes laser absorptance to copper and gold 4.5 to 20 times higher than fundamental laser. Even copper and gold does not reflect SHG laser. + SHG laser increases laser absorptancy of copper and gold! Perfect solution for welding thin copper wires with PCB, welding of bus bars and more. + For solder-less joining of semiconductor substrate SHG laser can weld copper wire directly onto a semiconductor substrate without using solder. +Welding sample Welding of 3 sheet (0.5mm each) overlap of CuSn6 has been performed at a maxium penetration of 1.25mm. Tor more details and specifications on our Green Pulse Laser Welder, download the Technical Datasheet under "More Information".

5W ML-8150A   5W+600W MLE-300A

ML-2150A - ML-2050A ML-2051A - ML-2052A YAG Laser Welder   ML-2450A - ML-2350A - ML-2351A - ML2350 AF - ML2351AF YAG Laser Welder   ML-2550A - ML2551A - ML-2552A YAG Laser Welder   ML-2650B - ML2651B YAG Laser Welder   200W ML-2553C NEW!

The MFP25 is used with the AWS3 Active Welding System. The AWS3 integrates the process control of all mechanical and electrical parameters, static and dynamic process monitoring, quality analysis with advanced SPC feature and datalogging. More information can be found in the Technical Data Sheet of the AWS3 Active Welding System. Programmable electrode speed, force and position,Robust design gives very low force oscillations.

the very latest technology in resistance weld monitoring; it provides precision real-time dynamic measurement of all the welding variables. A special version was made available for the AWS3 and has a variety of functionalities which are described in the Technical Data Sheet of AWS3. The following description as well as the Technical Data Sheet which can be downloaded in "More Information" apply to the MG3 product. With increased emphasis on accountability, the MG3 Digital Weld Monitor offers the tools required for process development, production monitoring, data collection, and analysis to support your ISO, GMP and TQM requirements.

ML-7112AH/AI Vandate Laser Marker   ML-7111A Vanadate Laser Marker   ML-9001A Vanadate Laser Marker

Possible to measure current, voltage, welding time, weld force, and displacement value.Measured data and waveform data can be saved in a USB memory device.Connected MM-370C with a PC, data can be both write and read.Turn the dial to scroll the screen, move the cursor, and select items. Press the dial to select the item where the cursor is located.You can select the language from Japanese, English, Chinese, Korean, German, French, and Spanish.

Multiple connection: MDA-10000A NEW!   Standard type: MDA-8000B, MDA-4000B, MDA-1000B   Polar switchable type: MDB-4000B, MDB-2000B   Two-channel type: MDC-2000B

Thermocouple beads Designed to Operate Either in a Production or Laboratory Environment,Wire Gauge Selection from 38 AWG to 20 AWG,he TCW Thermocouple Welder welds thermocouple wires together to form a uniform bead junction, consistent in size and quality, without detrimental oxide layers. The TCW will make thermocouples of all commercially available thermocouple alloys.

Laser Welding Station with Motorized Rotary Stage

Packed With Advanced Features, The Windows-based SM8500, Reliably Performs Hermetic Resistance Welding, Brazing, And Soldering Processes On A Variety Of Metals, Alloys, Plated Materials, And Solder Pr-forms. SM8500 Can Be Operated As Either A Stand-alone Unit Or Fully Integrated Into A Glovebox Enclosure For A Complete Closed-loop Hermetic Sealing Process For Applications Including Optoelectronic Packaging, Semiconductor Packaging, Transistor Outline Package Welding, And More. + Current control mode for both the hermetic welding and sealing process + Programmable Electrode Force + Most Complete Line Of Power Supplies In The Industry + Extended electrode life with electrode Auto-Trak software + Position-based Weld Pulses + Electrode Roll-back Feature + Process inhibits

AMADA MIYACHI Sigma Laser Tube Cutting System is the ideal solution for precision laser cutting of medical hypo tubes and stents. High speed direct drive stages are mounted to granite isolated from a supporting welded frame. Multi-axis options allow users to customize the laser tube cutter according to the cutting application for both on and off axis cut geometries. The fiber laser offers excellent beam quality and high pulse repetition rates for high speed precision cutting of metals. The tube cutter may be configured with either a microsecond fiber (Yb:fiber) or femtosecond disk (Yb:KYW thin disk) laser. The femtosecond disk laser offers best-in-class cut quality using cold ablation cutting to produce an unrivalled edge quality that significantly reduces post processing costs on metals such as nitinol, as well as providing cutting capability for bio-absorbable polymers. Laser cutting systems are rapidly emerging as the preferred choice for many fine laser cutting or machining applications, particularly when superior edge quality, tight dimensional tolerances and/or high volume production is required as in the medical, automotive, electronics, aerospace, and solar industries. Solid state industrial lasers, which emit light at a short wavelength (typically near 1 micron), provide a reliable, stable energy source, have exceptional beam quality and are relatively easy to integrate into existing manufacturing productio Features of the Fiber Laser Cutter are: + 2, 3 and 4 axes motion options + 0.01 - 0.98" tube diameter capability + Available for wet and dry cutting + Automated tube feeder option + Laser source options

WL-CSP Marking System   Laser Marking System for IC Packaging   Wafer Marking System

Laser Sealing System for Square-shaped Battery Case   Laser Welding System for Explosion-proof Valve of Battery

Resistance Welding Systems       + Resistance Welding System Capabilities       + Saw Blade Welding Systems       + NOVA3 Resistance Welding Workstations       + Hot Crimping Systems

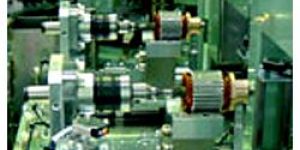

Motor Fusing System   Compacting System

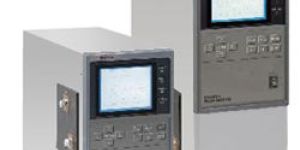

MIYACHI PECO Power Supplies       + ISQ Series - Inverter Power Supply       + M2, M4 Series - AC Control   MIYACHI UNITEK Power Supplies       + HF25 - High Frequency Basic Inverter       + HF27 - Full Featured HF Inverter       + HF 2/2S - Highly Versatile Inverter Welder       + 125, 300, 1000 ADP Series - Advanced Capacitive Discharge Welders       + UB29, DC29 - Linear DC Spot Welding Control with Built-in Monitor       + ISA Series- Mid Frequency Inverter Resistance Welding Power Supply       + TCW - Thermocouple Welder

The electrodes described on this page fit perfectly to the needs identified when using MIYACHI PECO products Die auf dieser Seite beschriebenen Elektroden passen perfekt zu den Anwendungen for die MIYACHI PECO Produktlinie und sind im Detail beschrieben in den Technischen Daten, die als pdf unter "Mehr Informationen" heruntergeladen werden konnen.   MIYACHI PECO Electrodes   Miyachi UNITEK Electrodes

MIYACHI PECO Weld Monitoring       + MG3 Series - Weld Monitoring and Control   MIYACHI Checker and Tester       + Weld checker (desk-top type): MM-370C, MM-122A       + Weld tester (handheld type): MM-315A       + Head controller: MU-100A       + Force tester (handheld type): MM-601B       + MM-380A - Handheld Weld Checker   MIYACHI UNITEK Weld Monitoring       + ADAM - Advanced Data Analysis Monitoring

MIYACHI PECO Hand Held Units       + FZ1, FZA1, FZ160 Hand Held Units   MIYACHI PECO Workbenches       + Workbenches   MIYACHI UNITEK Hand Held Units       + MTH, PHP, THP, GHP, HFP - Hand Held Units

MIYACHI PECO Weld Heads       + MFP25 - High Precision Weld Head       + MFP60 - Low Force Weld Head       + MFP1 and MFP2 - AWS3 Weld Heads       + F120, F160, FD120 - Weld Heads       + FP 190, FP200, FP5 - Weld Heads       + M60, M90, M200 - Weld Heads   MIYACHI PECO Weld Pincers       + MFP-Z - Weld Pincers       + F120-Z and F160-Z - Weld Pincers for Automation       + FP190-Z and FP200-Z - Weld Pincers for Automation   MIYACHI UNITEK Weld Heads       + 80, 180 Series - Thinline Series Weld Heads       + 50 Series - Light Force Microjoining Weld Head       + 70 Series - Servo Motor Driven Weld Head       + 73 Series - High Force Servo Weld Head       + 300 Series - Electromagnetic Weld Head System   MIYACHI Weld Head       + Servo Motor Driven Weld Head       + Pneumatic Weld Head (Vertical type)       + Pneumatic Weld Head (Horizontal type)       + Foot Pedal Type Weld Head       + Weld Head for Seam Welding       + Accessories

MIYACHI EAPRO Reflow Soldering Desktop Systems       + DT-250-PH & DT-260-PH Uni-Slide Desktop Systems       + DT-270-PH Uni-Slide Desktop System       + DT-350-PH & DT-360-PH Uni-Slide Desktop Systems       + DT-370-PH Uni-Slide Desktop System       + DT-440-PH & DT-450-PH Uni-Turn Desktop Systems   MIYACHI EAPRO Reflow Soldering Stand-alone Systems       + Uni-Base Stand-alone System       + Uni-Slide Stand-alone System       + Uni-Slide Plus Stand-alone System       + Uni-Turn Stand-alone System       + Uni-Turn Plus Stand-alone System

MAWA-050A MH-TL01A Best choice for precise welding of copper, high melting point material, dissimilar metal Selectable start method (High voltage start and touch start) will improve weld reliability What is MAWA-050A PULSETIG Welding Power Supply? This DC type TIG welder generates arcs between an object to be welded and the tungsten electrode and carries out welding using the generated heat. Effective for welding of precision devices and minute parts. Individual lineup of high voltage start special purpose machines and touch start special purpose machines. Selecting the start method appropriate for the workpiece improves the welding reliability. Arc welding image Precision control by constant current and short time welding
