Corrugating Machine Dealers in Bangalore

PRODUCT APPLICATION Allout Liquid Bottle FILLING As per requirement OUTPUT Minimum 22 to Maximum 25 Carton per Minute. MANPOWER One operator for running the machine, loading of cartons in the magazine & for filling glue units etc. CARTON OUTFEED Height to carton base: 500mm approx. NO. OF STATIONS 14 Station CARTON DIMENSION (mm) As Per requirement DOSING SYSTEM Manual Feeding PRODUCT CONTACT PARTS SS OTHER PARTS M.S COATED, C.I & SS ELECTRICAL MOTORS HINDUSTAN / CROMPTON ELECTRICAL COMPONENTS STANDARD GRADE SIZE CHANGE All carton dimensions can be changed within given range ELECTRIC SUPPLY Standard 440 / 220 volt, 3 phase, 50Hz. POWER CONSUMPTION 4-5 KW, (depending on equipment) FLOOR SPACE 6 x 4.5 meter (working space) MACHINE WEIGHT 1200-1500 KGS. Approx. FILLING Filling can be done only at 1 station. COMPRESSED AIR REQUIREMENT 4 CFM @ 4 Kg / Sq. cm.

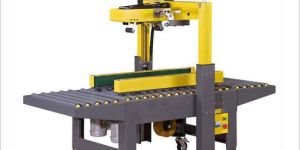

The 700-20 is a semi-automatic manually adjustable Side Belt Drive Case Sealer that is built with the operator and maintenance staff in mind. Threading of the Champion 502 or 503 Tape Head is very simple and the head is designed to be virtually maintenance free. The adjusting hand cranks can be located on either side of the machine for operator convenience and comfort. A feature of the 700-20 is that it can be quickly adjusted to seal narrow width or short height cartons, while still handling cartons up to 20” width and height. Our Tape Heads are durable, simple to thread and have few moving parts making it uncomplicated to work with. Features Side Belt Drive Two - 502 Easy Load 2" Tape Heads (top & bottom seal) Top Tape Head can be repositioned for off center seal Top Squeezers help keep top seam closed Set Of 4 locking Casters Pop Out and Interchangeable Tape Heads Adjustable Legs from 22"-32" with Casters Stainless Steel Roller Bed Infeed Table (16" in Length) Exit Table (16" in Length) Specifications Minimum Carton Capacity: 4.75"L x 4"W x 4.75"H (Custom carton sizes available) Maximum Carton Capacity:~ L x 20"W x 20"H (Custom carton sizes available) Electricity Required: 120 V, 60hz, 10amp Belt Speed: 77 Feet per minute Machine Footprint: 67.5"L x 33.5"W x 53.25"H (length includes tables) Machine Shipping Weight: 385 lbs. (on a pallet) Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.

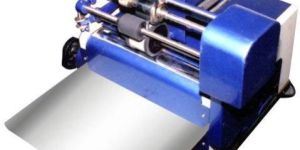

CARTONS / LABEL CODER Automatic feeding , compact & high speed coder for accurate registered printing , Label / Cartons stack is fed automatically by slant magazine & picked up by rubber friction insert, fed to timing chain at variable speeds. Oscillating distributor roller spreads ink evenly on the ink roll for uniform printing. Print Area: A: 45mmx45mm B: 57mmx200mm

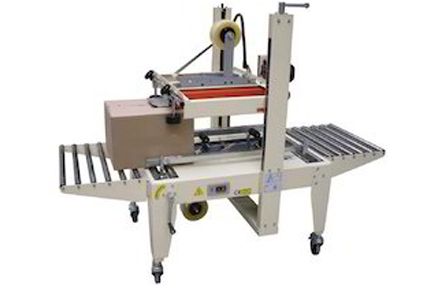

We are proud to declare that our organization has been rated as one of the best known providers Carton Taping Machine to our clients. Ability to operate in hassle free manner for years makes this taping machine one of the best available in market. It has user-friendly setting and other important parts using which this machine works in excellent manner. This taping machine has compact body and therefore can be installed quite easily. Features Abrasion resistant coating Low maintenance cost No defects

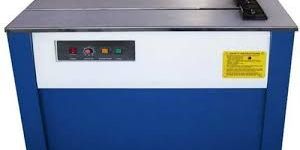

Strap, bundle or palletise cartons and boxes securely and quickly with our line of strapping machines. Both the fully automatic strapping machine and semi auto strapping machine are especially designed to reduce stress and time strapping your loads and packages. They are suitable for 9-12mm wide strapping and can produce up to 20-30 straps a minute.While its speed increases your productivity, our machine strapping equipment also enables easy handling because it can create box handles. Straightforward to use, the strapping machines are a reliable solution in different work areas, particularly in warehouses and packing departments.

Specifications:   Power: 300W Weight: 145 kg Dimension(L x W x H): 1730 x 850 x 1380mm

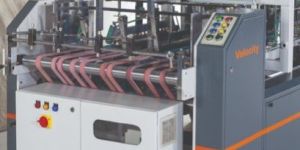

we are manufacture automatic carton and folder and gluer machines customized sizes 35cm upto 150 cm side pasting  pre-folding lock bottom four corner six corner carton liner pasting machines other packaging machinery

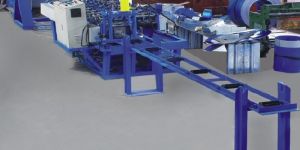

Device name: 2 in 1 Keel Forming Machine Equipment profile length X width X Height 11mX1.3mX1.5m Equipment configuration uncoiler-mainframe-cutter-bracket-hydraulic station-control cabinet Main motor power,cutter motor power 4kw Hydraulic power 1.5kw Total weight: 4t

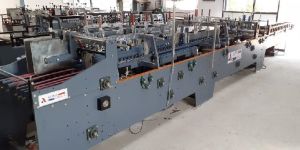

Automatic carton folding machine This gives the freedom of switching off of the feeder while the machine is still running.In the pre-folding unit, the creasing lines, 1 and 3 of the blank are pre-folding by 180 and lay flat again. This operation is vital for easy opening of the folded box.It involves Water based gluing system,Double dispatcher,Variable speed drive at feeder unit and Batch counter.

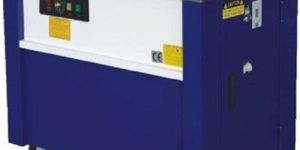

Aluminum Arch-all in one design, Prosperity in the future, To increase the width or the height, no need to change the whole set, only add some parts to the original. Easy and convenient, Time saved, money saved. The guide of the brush is a big help to strap the package at the proper position. Brilliant performance. Auto strap feeding-to make strap threading easier and faster to accomplish. To eliminate the trouble of manual strap threading. When strap not setting up or failure, this device ensures accurate strap feeding again, be ready to strap.

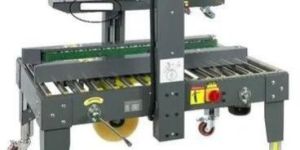

Carton Taping Machines automate your boxing and packaging processes, saving you time and money. These systems are built to last and are designed to provide years of trouble-free service. They are used to close cartons that have the same height and width. The unit’s flexible and considered design will allow users to operate it with ease.
