Dispensing Booth Dealers in Bangalore

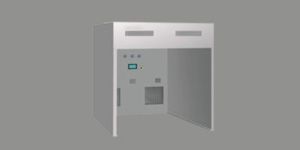

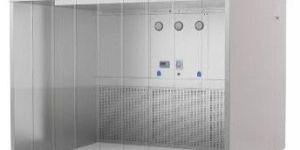

Generally used by all pharmaceutical companies when raw material needs to be sampled and dispensed within a clean environment. They are designed to provide operator and products protected from outdoor or external contaminations. The equipments designed in accordance with US FED 209 E standards. The equipment construction with SS 304 sheets. The lighting is provided on both side panels ensures shadow less lighting through the booth. The room air taken by a slotted air grill located at low level inside the booth with pre filter down to 5 micron and larger size particle. The filtered air is forced through a HEPA filter which creates a laminar floor effect of clean air on the work table surface to ensure required cleanliness level to meet the process. Separate electrical power switches is provided for supply air blower & lighting, additional power socket is provided inside to connect weighing scale. A megnehellic pressure gauge is provided to monitor the pressure drop across the HEPA filter. It is also constructed using epoxy powder coated galvanized sheets depending on the user specification. The general standard sizes are 4’x2’ & 6’x2’. It can also be made according to users requirement

Price varies with the model dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with hepa filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Dispensing booth is also called sampling booth or weighing booth.

When the raw material needs to be sampled/dispensed within a clean environment, the Sampling/Dispensing booths will provide both operator as well as product protections from external contamination.Designed and manufactured to meet the cleanliness level, as per US Federal Standards 209 E. The main body constructed out of SS 304.White lights situated in the side panels offers excellent illumination throughout the work zone through translucent sheet and is outside operators line of sight. Separate switches have been provided for the blower and white lights.In addition 5/15 amps socket/s provided inside the work zone for connecting the balance. Superior electrical safety for the operator since all cabinets are factory tested after production at manufacturing site.Permanently lubricated direct driven centrifugal blower[s] having extremely low noises and vibration due to propriety construction and are suspended on springs.All components are designed for maximum chemical resistance for longer service life, durability and are clean room compatible.Two pressure gauges are mounted on top plenum to indicate the pressure of HEPA [supply] and return air plenum respectively. Room air is taken in from the bottom of the cabinet through a pre filter this serves to trap larger particles and increase the life of the main filter.Air is forced evenly across the HEPA filter, the result is a stream of unidirectional air within the safe work zone of the cabinet.A nominal filter face velocity of 0.45 m/s or 90 rpm ensures that there is a sufficient member of air changes within the enclosed safe area of the cabinet in order to maintain cleanliness.The purified air (80%) travels in a vertical unidirectional stream and remaining air is exhausted through the exhaust HEPA in the top plenum.

Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with hepa filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Dispensing booth is also called sampling booth or weighing booth. Features： 1. Customized design is welcome. 2. Unique designed air duct effectively controls the noise. 3. Smooth transitions of wall and ground can eliminate the blind angle. 4. Differential pressure gauge is equipped to real-time monitor the filters. 5. Intelligent control mode and alarm system ensure the reliability of running. 6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area. 7. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products. 8. Dispensing booth(sampling or weighing booth) has primary filters, medium efficiency filters and hepa filters to keep air cleanliness of work area.
