Dolphin Technologies Nandini Layout, Bangalore, Karnataka

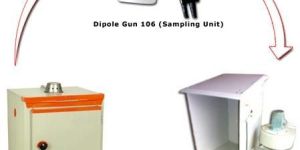

We have available with us Paint Spray Equipment that are used for varied applications. The Paint Spray Guns has a compact design and is used for coating different products. Besides, the caps that are provided with Paint Spray Guns help in usage of varied types of powders and shades. Applications Powder Coating Job-work industry (sampling of shades & types of powder)DIY Kit Liquid painted itemsPowder Manufacturing (Labs sampling)Lacquer curing Exhibition purpose Composition Powder Spray Gun (Cup Type) with control panelPowder Coating Booth36" x 24" x 24" chamberpowder recovery systempowder collector bin of 5KgsElectrical Lab. Model Oven18" x 18" 18"Inside Stainless Steel ChamberWire mesh traysHanging rodsDigital Temp. Controller Air circulation blowerInside the ovenCompressor to operate spray system with Air Pressure 15 PSI maximum.

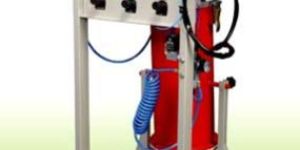

We provide Electrostatic Powder Coating System that is light in weight with Gun Weight of around 500 gms. The Electrostatic Powder Coating System offered by us is used for increasing efficiency and easy cleaning. Attributes Insulated electrode inside the nozzleEasy maintenanceCleaned charging edge with pattern settersHigh charging efficiencyModular constructionFatigue free-operation with feather touch triggerNegligible cage effect Technical Specifications Weight of Gun500 gmsFerquency17 KHz.Voltage Out put90 KVH-V Engagement modeInside GunAir ConsumptionMax. 13 Nm3 hrPower Consumption30WMax. Current Output125 UAmpPower Source220 240v (AC)Voltage InputDC 24V (12-012)PolarityNegativeMax. Injection capacity650 gmin.

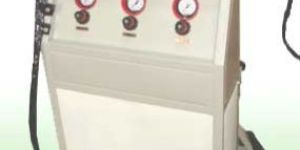

The Electrostatic Powder Coating System is incorporated with digital electronics along with latest inverter technology. The Electrostatic Powder Coating System is famous amidst the clients for automatic power control as well as short circuit protection. Features High charging efficiencyModular constructionFatigue free-operation with feather touch triggerEasy maintenanceCleaned charging edge with pattern settersInsulated electrode inside the nozzleNegligible cage effect Technical Specifications Max. HV Output80KV (-ve) , Max. 125 µAmp Current. Powder Output30 KgHr. Nominal at 75 PSI Max. Air Pressure7.5 bar (Kg) Pressure.Operation5.0 bar (Kg) Voltage Frequency220240 V, 1?, 50 Hz.Electricity Consumption50 VAPowder Hopper Capacity15 Kg.Powder Pipe5 Mts.Spray PatternVariable to suit work.

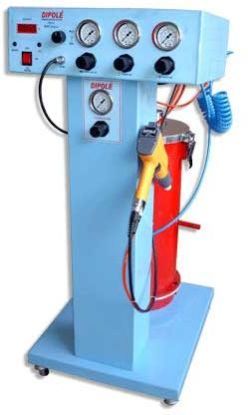

We offer Electrostatic Powder Coating System that is composed of Powder Spray Gun, High Voltage Generator, Hopper and other sturdy components. The Electrostatic Powder Coating System is widely demanded in different parts of the globe. Attributes Versatile Rough-usage manual spray gunEconomical equipmentEasy to maintain Technical Specifications Max. HV Output80KV (-ve) , Max. 125 µAmp Current. Powder Output30 KgHr. Nominal at 75 PSI Max. Air Pressure7.5 bar (Kg) Pressure.Operation5.0 bar (Kg) Voltage Frequency220240 V, 1?, 50 Hz.Electricity Consumption50 VAPowder Hopper Capacity15 Kg.Powder Pipe5 Mts.Spray PatternVariable to suit work.

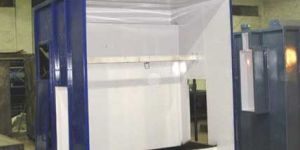

Offered by us is Liquid Paint Booth that is available in different models as per the requirements of the customers. The Liquid Paint Booth that we bring forth is appreciated for possessing features like high performance, trouble free functioning, longer service life and many others. Models Available Downdraft Wet Type Down Draft BoothDowndraft Dry Back TypeDowndraft Single SidedDowndraft Central suction type down draft boothDowndraft Pit type with collection tank under the finished floor levelDowndraft specialized Uplifted Tank Conveyorised schemes forChassisTransformersCar bodyLarge enginesExport containersTruck body cabins Basic Concept (Wet Type) Water wash spray booth with wateralkali mixture in washing tank breaks down sticky resinsCollects broken down resin in the tankWater Screen catches the water spray and move it to washing tankCirculating pump, Pipe works, Nozzles, and Filters are involved in the processAir velocities are maintained for lowest explosive level Attributes Uniform water distribution at Stainless Steel ScreenSpecial design and high efficacyConstructed with heavy MSGI sheetsRust resistance with Fiber lining or rubber liningInner super white booth paintOuter silver hammer tone booth paintFree from dust.

We offer hot water generator that possesses dust proof cabinet for control replays, starters, timers and main isolator. The hot water generator that we deal in is ideal for pretreatment line as well as for electro plating line. Besides, the hot water generator is used for mass production and designed especially for chemical or water heating load. features centralized heating systemreliable & ideal for heating 'n' nos. Of tanksdigital control for temperaturesafe to use suitable for 250 to 70oceasy combustion and electronic control for burnersaves energyfree from noise and pollutionautomatically maintains the temperature of tank composition centrifugal feed pumpisi makeelectric motor and guardmild steel base frameburner arrangementelectric ignition equipmentforced draught fandrive motorphotoelectric cell (oil)ultra violet cell (gas) flame equipmentautomatic combustion equipment formoduling typeonoff controlhighlowoff control.
