Epoch Instruments Basaveshwara Nagar, Bangalore, Karnataka

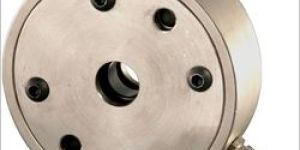

Epoch Web Tension Load Cell measures and monitors precise tension on web process or wire machinery that utilizes either rotating shafts or dead shaft rollers. It is especially beneficial in tension load cell applications where space is tight, web tensions are typically low, and the environment is demanding. With a maintenance free lubricated bearing with very low friction, it is ideal for low tension applications, extending usable tension ranges of web machinery by measuring both low and high tensions.

Epoch Make LTK series Tension Load Cell is a high precision force sensor for load measurement. The innovative design of this load cell offers high accuracy towards force measuring techniques. The unique feature of this design brings high accuracy, full temperature compensation, High repeatability. These load cells is used for Tower Testing, Rope Testing etc.

7 Segment LED & Graphic LCD (Dual) Display for Clarity High & Stable Measurement & Easy Tension Calibration Strain Gauge based Tension Sensor Build‐in PI Algorithm Acceleration & Deceleration Operation Automatic/Manual Tension Control Parameters Protection by Password, avoid inadvertent Modification Wide Range Input Switching Power Supply (120 ‐ 240 V AC)

The LDYB Mounting Kit Series Tank Weighing Assembly is ideally suited for use in a wide variety of medium to high capacity, vesset weighinh systems. LDYB Mounting assemblies are available in fabricated mild steel construction with capacities ranging from 100 kgs to 5000 kgs. Fabricated mild steel mounts utilize the LDYB Shear Beam Cantilever Load Cells. Self-checking, easy-to-use desing allows assembly to be bolted directly to tank leg without requiring additional mounting plates or load button.

Epoch Model LCF series is a super precision high performance Load Cell for a compression measurements. Designed specially for Road and Rail weigh bridge applications, to meet stringent load and environmental conditions. These load cells can be used for other applications like Tank weighing, Hopper weighing etc.

SPECIAL FEATURES : Small Size Unique Design Easy Installation

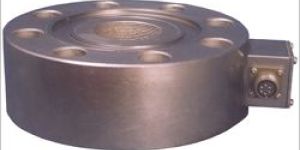

High Precision strain gauge based Shear Web Load Cell is universal type. It is used for measurement, weighing, industrial automation, Universal Testing Machines. It is universal Load Cell Suitable for both tension and compression modes.

Ultra Precision strain gauge based ‘S’ beam Load Cell is versatile, compact and Rugged. It is used for tension measurement, weighing, industrial automation, and research application. It is universal Load Cell Suitable for both tension and compression modes. SPECIAL FEATURES Good Linearity Good Repeatability Easy to Install Temp Compensated Wide Range Good Reliability

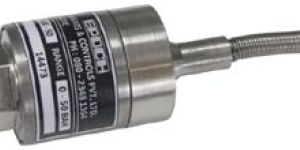

Epoch Pressure Transducer is a high performance pressure sensor designed for specially for critical applications to meet stringent pressure and other environmental conditions. The design offers high accuracy, full temperature compensation and high overload protection. The state of the art capabilities in transducer provide a convenient and reliable means of measuring the pressures of gases and liquids.

The pedal force, which is applied during a roller brake or plate brake test, can be measured with the pedal force meter. The applied pedal force is visible on the LCD display.

The BEML PAYLOAD MONITORING SYSTEM (PLMS) is used to measure, monitor and store the loading and unloading process of dumper trucks.  System receives analog inputs (4 to 20 mA) from pressure sensors for load. It is a 24v battery-operated system. It accepts 3 potential free inputs and gives 4 relay outputs.   PLMS prints out the summary of trips through RS232 serial communication.  selection are possible through password. upper part of the LCD display shows the material weight on the dumper. Lower part of the LCD display shows various readings according to the user selection like current date and time, no. of trips, cumulative weight and no. of overload trips

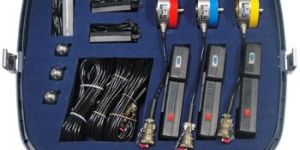

The Kit contains necessary equipment for weighing Helicopter with the exception of specialized jacks and power source. The kit can be operated with built in battery and it can be charged by 9V DC adapter. The portable kit to house necessary equipment for weighing are provided. The Kit contains three digital readouts one for each channel. In this case, the electronic weigh portable indicator, three load cells fitted with jack adapters one for each channel, three Load Cell Cables, three 9 V DC Adaptors and three Steel Balls are readily removable from their particular spaces provided in the case for weighing operation.

The Double Ended Shear Beam load cell, is readily capable for tough environments associated with Truck scales. Its construction of high alloy tool steel provides optimum protection under impact loading and adverse conditions. The cell is environmentally protected with waterproof seal and is electro-less nickel-plated to assure resistance against corrosion.We offer high quality Double Ended Shear Beam Load cell is readily capable for tough environments associated with truck scales. Its construction is of high alloy tool steel provides optimum protection under impact loading and adverse conditions.

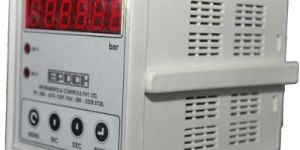

Epoch Micro Processor Digital Indicator is a state of the art digital indicator, which takes good advantage of processor techniques. To increase the read our accuracy, the processor takes maximum advantage of A to D converter by utilizing its full range. The process indicator is designed to accept strain gauge based load cells & pressure transducers.

Epoch Compression Load Cell is a high precision force sensor for stringent load measurement. The innovative design of this sensor offers high degree of accuracy towards force measuring techniques. A precision machined flexure with superior quality strain gauges is used as the load sensing element. The unique feature of this design brings high accuracy, full temperature compensation and high over Load Protectio

The Cantilever load cell is a strain gauge based low profile bending beam load cell and is for precision single point load applications. It is designed for eccentric load sensitivity. Its alloy steel construction is very rugged to withstand shock load. These load cells can be used in Tank Weighing, Hopper Weighing, Truck weighing etc. Epoch compression series-Load cell is a high precision force sensor for stringent load measurement. The innovative design of this sensor offers high degree of accuracy towards force measuring techniques. A precision machined flexure with superior quality strain gauges is used as the load sensing element. The unique feature of this design brings high accuracy, full temperature compensation and high over Load Protection. These load cells finds the application in hopper weighing, tank weighing, tension/compression measurements, crane weighing, platform scales, weigh bridges, silo weighing etc.,

Epoch electronic Aircraft weighing kit is designed primarily to cater the accurate weighing needs of aircraft and aerospace vehicles, but can be used for other precision weighing application as well as for the calibration of force generating machines. These kits are factory calibrated. Apart from this, test certificate from Government agencies like M/s. C.P.R.I or IISc will be provided. Epoch combines state-of-the-art electronic end mechanical design features to provide the highest quality weigh measurement. Weighing kits are microprocessor based and are more accurate. The capacity resolution and decimal points are user programmable.
