Fenwick And Ravi Abbigere, Bangalore, Karnataka

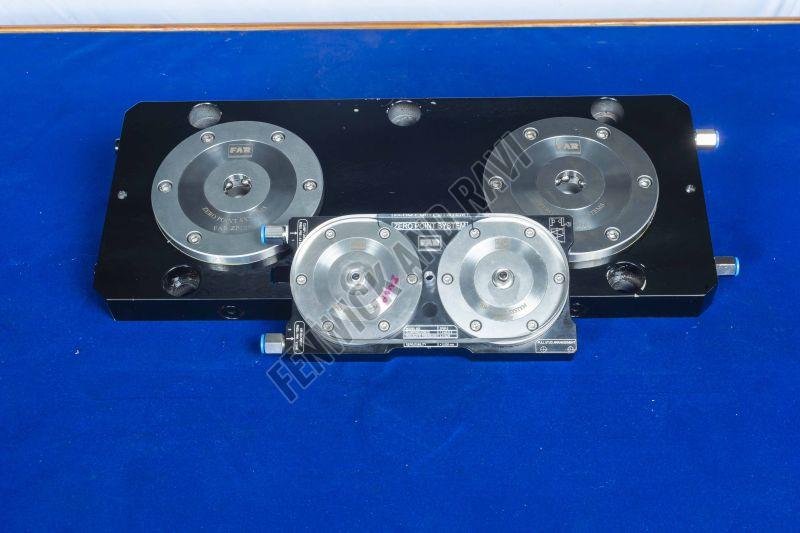

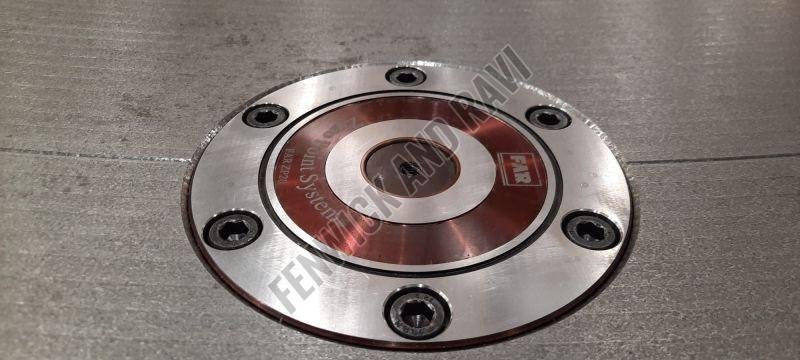

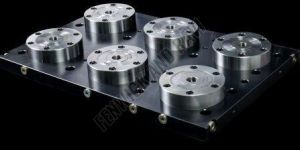

FAR ZPS  Hydraulic Models FAR ZPS hydraulic versions are used on  Vertical Machining Centers,  Horizontal Machining centers, Gear Hobbing Machines, Vertical Turret Lathes, tombstones. FAR Make hydraulic zero clamping system is available in different clamping forces ZP5, ZP10, ZP20, ZP40, all these models are also available with integral type.   Key Advantage of FAR Zero clamping Systems are : Accurate Positioning of the component. Rigid clamping of the Job. Easily suitable for manual and automatic Loading / unloading of Machines. Up to 90% saving on Machine set-up time. Reduction of rejection from better control of the Loading process. Suitable for controlling Multiple Machines. Provided an optional feature -Pneumatic blowout for chips removal. High repeatability  <0.01.

Driven Type : Hydraulic,Pneumatic

Automatic Grade : Semi Automatic

Certification : ISO 9001:2015

Number Of Flower : Clamping System

Total Carbohydrate : 1yrs

Country of Origin : India

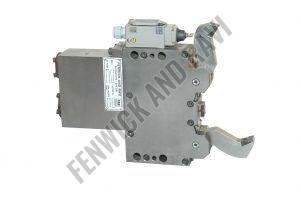

These steadies are for cylindrical and camshaft grinding. This series is designed to be used on machines where GHS series steadies cannot be used. It comes with a top arm which is fully openable so as to load components to the machine centre. The opening action can be identified through a sensor integrated to the steady itself.

Application : Industrial

Feature : High Performance, Optimum Strength

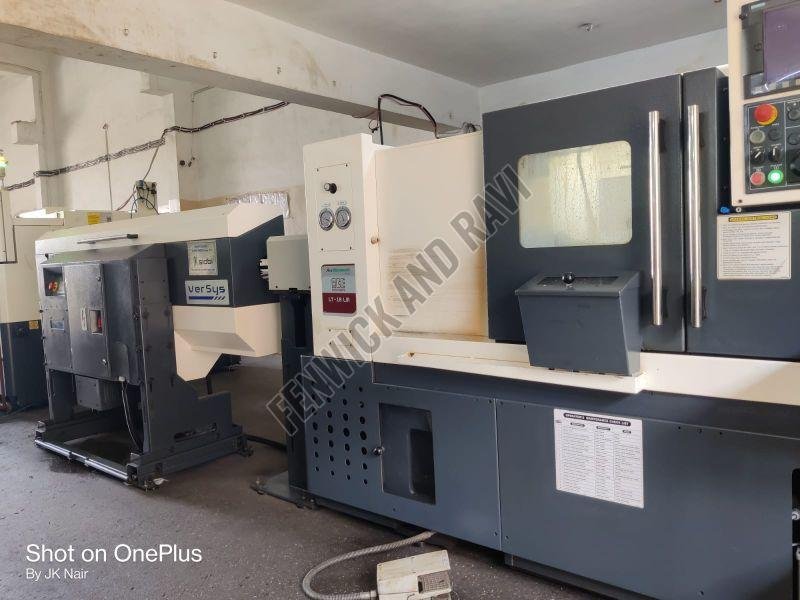

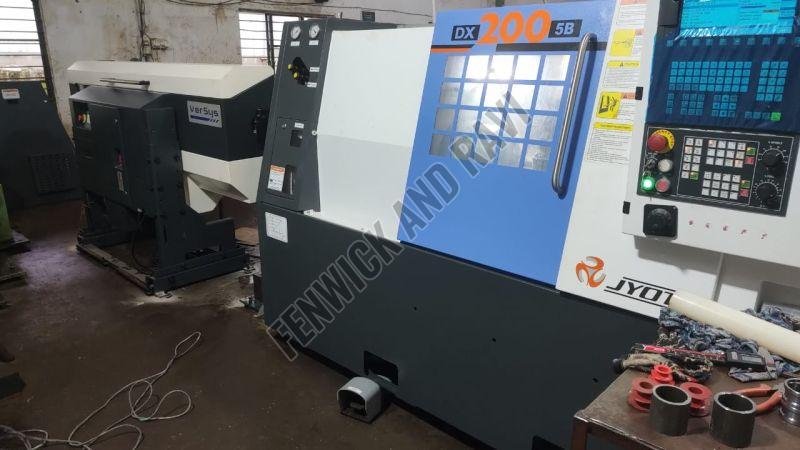

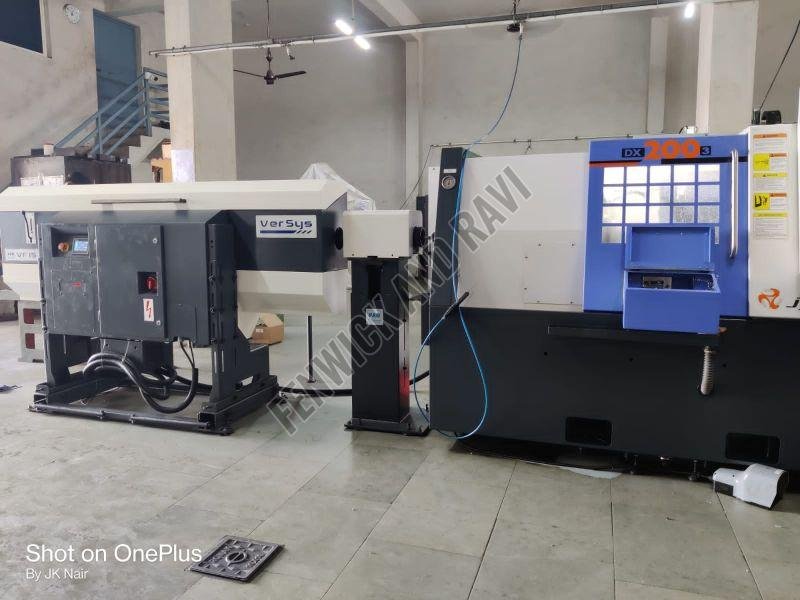

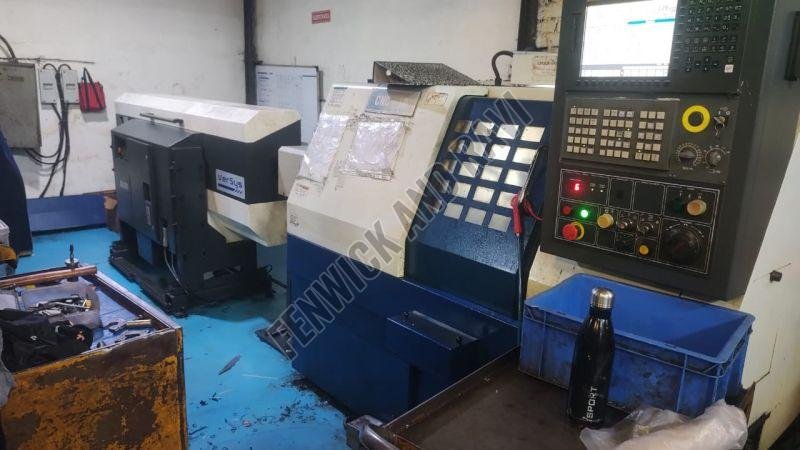

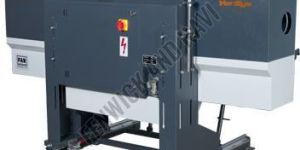

Our  Versatile Bar Feeder system VF ,which completely eliminates setup change over time like pusher/push rod manual changing,Bar stock centre  adjustment etc. This will tremendously save machine down time. Also bar changeover time is less than 15 seconds, thanks to the automatic bar setting  mechanism.   KEY FEATURES Ultra fast automatic bar change over Double axis servo control system Fully automatic performance Highly reliable and flexible Great Sustainability Ultra fast automatic change over for round and hexagonal bar stocks with in the whole diameter range.   Double axis Servo control system  for two axis movement .Truly automatic diameter adjustment and pusher/push rod change over.   Fast reliable and improved position accuracy,Great sustainability,Versatile and flexible   Less power consumption and Eco-Friendly, No hydraulic oil or compressed air required

Brand Name : FAR-VF-15 - Bar-Feeder

Automatic Grade : Fully Automatic

Certification : ISO 9001:2015

Number Of Flower : Bar Feeders

Total Carbohydrate : 1yrs

Country of Origin : India

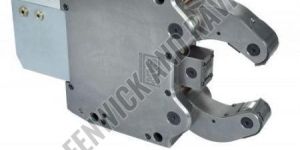

FRUN Series self centering steady rest is the latest development from FAR. FRUN hydraulic steady rest is with the following advantage over other standard series hydraulic self centering steady rests. Fully sealed body for better protection from coolant and swarf Compact in size Hydraulic ports on top and side of cylinder Inbuilt safety valve Feed back for maximum opening Port for compressed air. Provision for centralized lubrication suitable for Grease or oil lubrication Mounting dimensions are similar to FRU series. Front body profile for easy chip flow

Number Of Flower : Hydraulic Self Centering Steady Rest

Application : Industrial

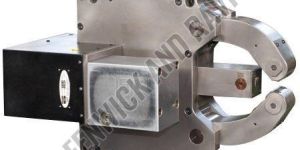

FAR FRUB series is Standard Steady rest with side mounted actuating cylinder designed to accommodate machines where the rear mounted cylinder may interfere with the door.   Clamping diameter starts from minimum 8mm and  and Maximum holding Range  630mm

Number Of Flower : Steady Rests

Material : Metal

Application : Accommodate Machines With Rear Mounted Cylinder Interference

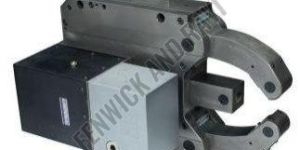

The  FRUAB Hydraulic Self Centering Steady Rest from  FAR, has  side mounted hydraulic actuating cylinders. It also has  an extra opening for top arm. This steady rest is utilized in applications where vertical loading is required    Standard models are available with Diameter clamping range from 12mm to 600mm

Number Of Flower : Hydraulic Self Centering Steady Rest

Application : Vertical Loading

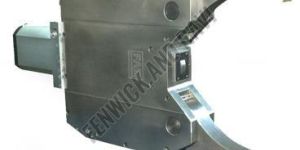

FAR FRUA Steady rest with rear mounted hydraulic actuating cylinder  and extra opening for top arm. This steady rest is utilized in applications where vertical loading is required

Material : Metal

Application : Applications Requiring Vertical Loading

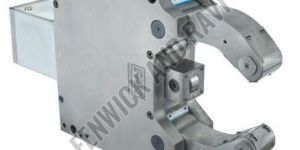

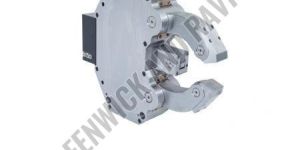

Standard Hydraulic Self steady rest with rear mounted hydraulic actuating cylinder The FRU steady rests can be mounted on flat or slant bed lathes CNC lathes,  CNC milling machines etc. FRU Hydraulic Steady rests are available with different models to hold a job diameter from 6mm to 630mm.   FAR self centering steady rests standard features Inbuilt safety check valve Provision for Proximity Feed back for maximum opening Provision for compressed air. Provision for centralized lubrication suitable for oil lubrication Rollers 3 piece swarf guards for all three arms.

Number Of Flower : Hydraulic Self Steady Rest

Feature : Inbuilt Safety Check Valve,Proximity Feed Back For Maximum Opening

Features : Ultra compact steady rest Integrated actuating cylinder Provision for centralized lubrication Provision for proximity feedback for maximum opening Provision for coolant flush

Number Of Flower : Steady Rests

Feature : Ultra Compact,Integrated Actuating Cylinder,Provision For Centralized Lubrication,Provision For Proximity Feedback,Provision For Coolant Flush

Application : Support Workpieces During Turning Operations

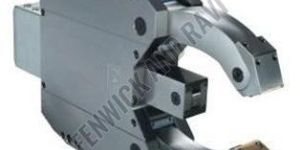

COMPACT SERIES (CS) CS Series steady rests are compact to fit smaller machines with bigger clamping ranges. CS steady rest is comes with fully sealed body  Clamping range starts from 65mm and Maximum 510mm Rear Mounted Hydraulic actuating cylinder. Provision for coolant flush through arms is standard

Number Of Flower : Steady Rests

Application : Suitable For Smaller Machines

FAR developed different type of self centering steady rests. Such as Self centering steady rests for Milling Machines Self centering steady rests for Screw cutting machined Self centering steady rests for Induction hardening machines Self centering steady rests for Friction welding machines Self centering steady rests with Pneumatic cylinders Steady rests for job  feeding on Friction welding machines Steady rests for Shell machining Self centering steady rests for deep hole drilling machines Self centering steady rests for gun drilling machines Self centering steady rests for flute grinding of drill bits. Self centering steady rests for fuel injection parts.

Country of Origin : India

Number Of Flower : Steady Rests

Feature : Easy To Use, Fine Finished, Good Quality, High Performance, Optimum Strength, Robustness, Strong Construction

Application : Industrial

Condition : New

Finishing : Polished

Material : Stainless Steel

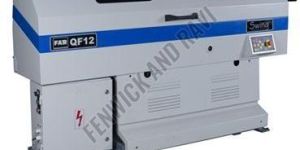

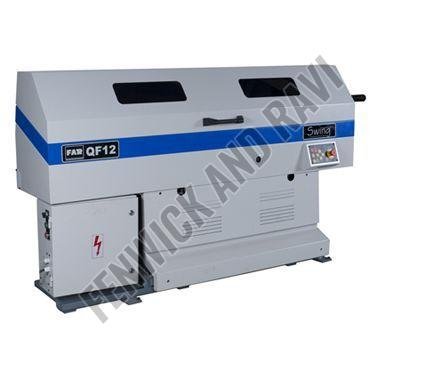

Salient Features : Increase productivity up to 40% Simple automation Absolute unattended machining No Spindle speed restriction 95% up time for turning centers Suitable for all imported and Indian CNC lathes Suitable for Round, Hexagon Options available for Square and other profiles High speed turning End preparation of bar is not required (Deburring is enough) Black bars can be used Compact design Operator friendly control panel.

Brand Name : FAR-QF-12/15 - Hydraulic Bar-Feeder

Driven Type : Hydraulic

Condition : New

Automatic Grade : Semi Automatic

Application : BAR Loading

Certification : ISO 9001:2015

Number Of Flower : Bar Feeders

Total Carbohydrate : 1yrs

Country of Origin : India

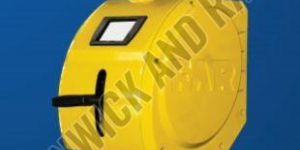

Application Productassemblyapplications Hardwarestoreorwarehouseapplications Componentloadingandunloadingtomachines Applicationsinprocesslinessuchaspaperindustries Applicationsinfurnacesorheattreatmentplants

Brand Name : Eagle Ton

This series is specially designed for crank shaft grinding to accommodate the maximum eccentric throw and journal diameter of crank shafts. Custom made design are available to accommodate in-process gauge and vertical loading.

Condition : New

Application : Industrial

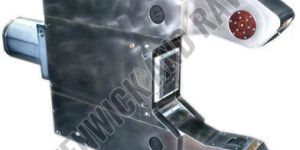

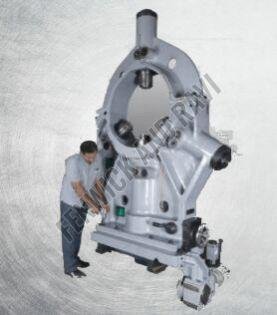

FAR has developed heavy duty hydraulic self centering steady rests for various kind of applications. Very Heavy duty construction of steady rest. Large rollers to handle very heavy loads (10 – 40 Tonnes) and clamping diameters up to 1300mm Hydraulic support to Bottom arm for using on large flat bed lathes. For turbine shaft, windmill shaft, marine crank shafts

Number Of Flower : Hydraulic Self Centering Steady Rest

Material : Metal

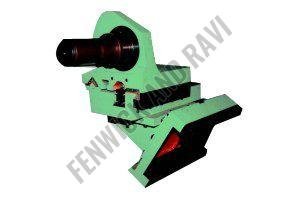

Heavy duty manual steady rests are used on very large machines to support very heavy components during turning, milling, drilling, etc. Diameter range-100mm to 1200mm Component weight-15 tonnes to 30 tonnes Provision for motorized axial movement along the guide way Contact point will be White metal or Rollers

Material : Stainless Steel

Condition : New

Application : Manual

Feature : High Performance

Number Of Flower : Steady Rests

Country of Origin : India

Operation Method : Manual

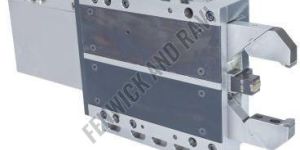

GHS  series is a low cost option for all standard grinding applications such as cylindrical grinding, camshaft grinding, cam lobe grinding etc., We also manufacture custom design to accommodate in-process gauge.

Material : Stainless Steel

Finishing : Polished

Condition : New

Feature : Easy To Use,Optimum Strength,Strong Construction

Number Of Flower : Steady Rests

Country of Origin : India

Operation Method : Hydraulic

Driven Type : Electric

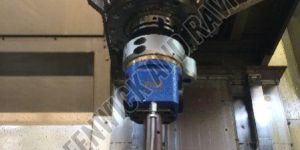

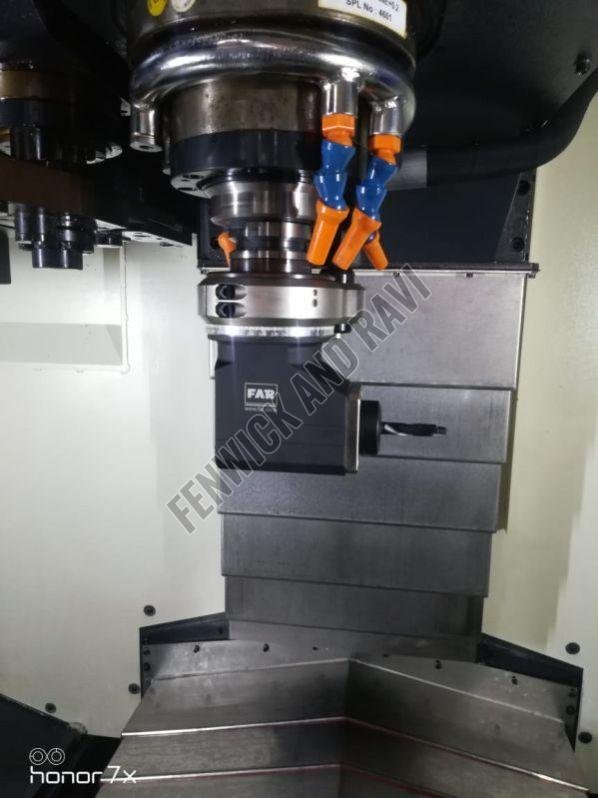

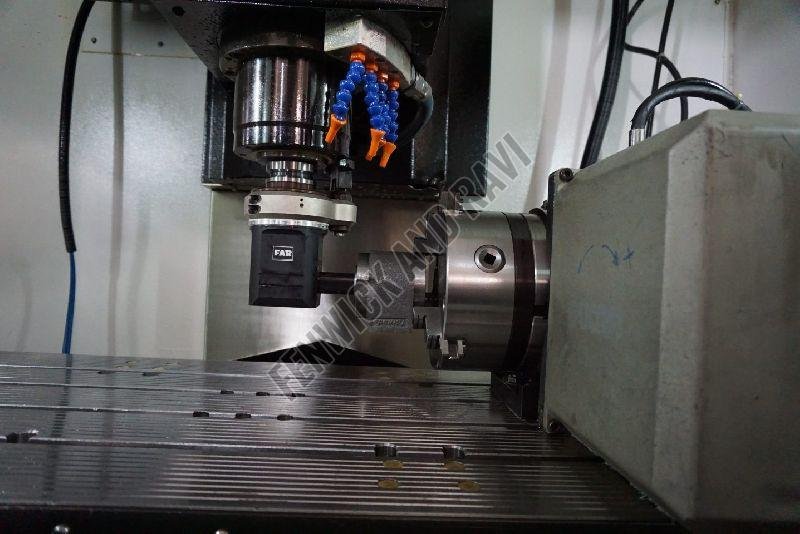

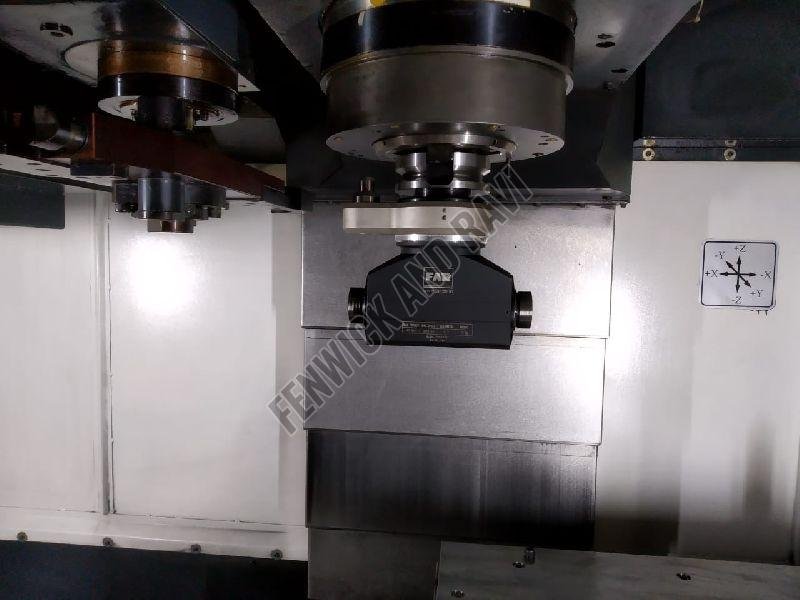

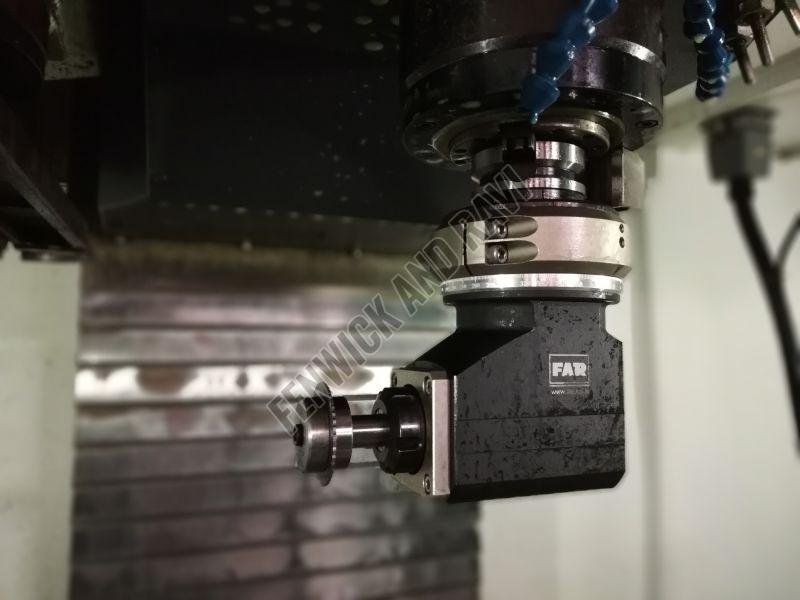

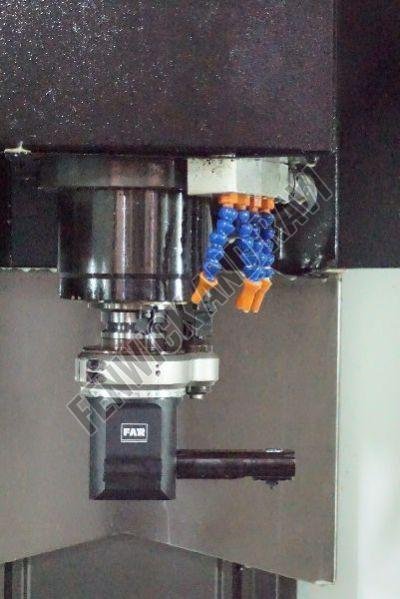

Features These Mill heads with precision bearings and superior bevel gears will provide an excellent strength and precision in cantilever machining operations Spindles are supported by pairs of pre loaded angular contact ball bearings. Designed for superior heat dissipation and for sustained periods of high speed operations. Speed Positioning pin with locking arrangement for ATC Special pitch from adapter to positioning pin. Special length from gauge plane Multi point flange instead of single positioning pin Coolant provision

Brand Name : FAR

Material : Cast Iron, Metal, Mild Steel, Stainless Steel

Surface Finishing : Coated, Polished

Condition : New

Certification : ISO 9001:2015

Packaging Type : Box

Number Of Flower : Angle Head

Total Carbohydrate : 1yrs

Country of Origin : India

Speed Rpm : 4000 RPM

Torque Nm : 1.5 NM

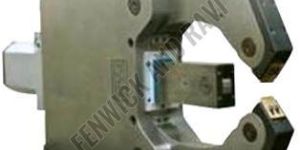

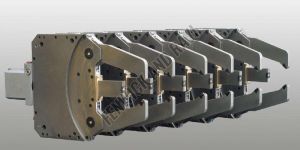

Hydraulic self centering Steady rest for crank shaft machining is a very important variant of steady rests. FAR has developed and supplied the entire range of steady rests required for crank shaft machining applications such as motor car to heavy railway and marine crank shafts. FAR have 2 different type of Self centering steady rests for crank shaft machining. KRHS The KRHS Series is a steady rest designed for crankshaft machining with rear mounted hydraulic cylinder with narrow arms. FAR can supply steady rest with provision for coolant flush through arms.  KRSHS The KRSHS Series is a steady rest designed for crankshaft machining with side mounted hydraulic cylinder with narrow arms.. These steady rest are used on  machines where the rear mounted cylinder may interfere with the door. FAR can supply steady rest with provision for coolant flush through arms.

Material : Stainless Steel

Finishing : Polished

Condition : New

Application : Industrial

Feature : Easy To Use, Fine Finished, Good Quality, High Performance, Optimum Strength, Robustness, Strong Construction

Country of Origin : India

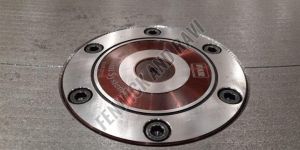

Easily suitable for manual and automatic Loading / Unloading of Machines. Upto 90% saving on Machine set-up time Very versatile. Can be used for an innumerable range of applications on a wide range of machines. Reduction of rejection from better control of the Loading process

Material : Stainless Steel

Condition : New

Number Of Flower : Clamping Fixture

Availability : 3-5kg

Country of Origin : India

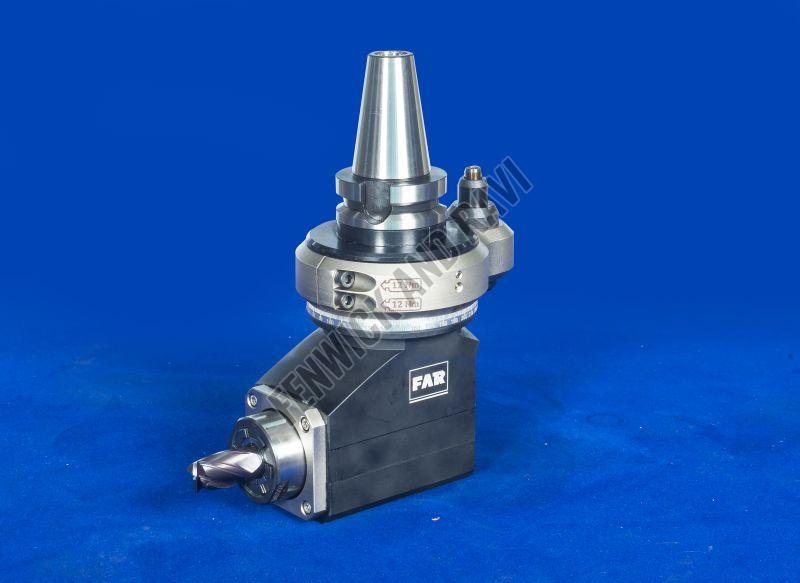

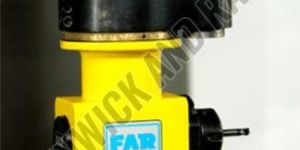

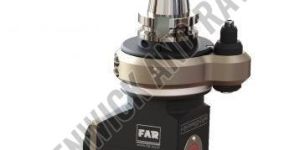

Features These Mill heads with precision bearings and superior bevel gears will provide an excellent strength and precision in cantilever machining operations Spindles are supported by pairs of pre loaded angular contact ball bearings. Designed for superior heat dissipation and for sustained periods of high speed operations. Speed Positioning pin with locking arrangement for ATC Special pitch from adapter to positioning pin. Special length from gauge plane Multi point flange instead of single positioning pin Coolant provision

Brand Name : MX-FXA-ER32-BT50-160

Material : Aluminum,Cast Iron,Metal,Mild Steel

Surface Finishing : Coated,Polished

Condition : New

Size : 0-40mm

Certification : ISO 9001:2015

Packaging Type : Box

Number Of Flower : Angle Head

Shaft Diameter : 03MM-20MM

Total Carbohydrate : 1yrs

Country of Origin : India

Speed Rpm : 4000 RPM

Torque Nm : 45 NM

Head Angle : FIX ANGLE HEAD

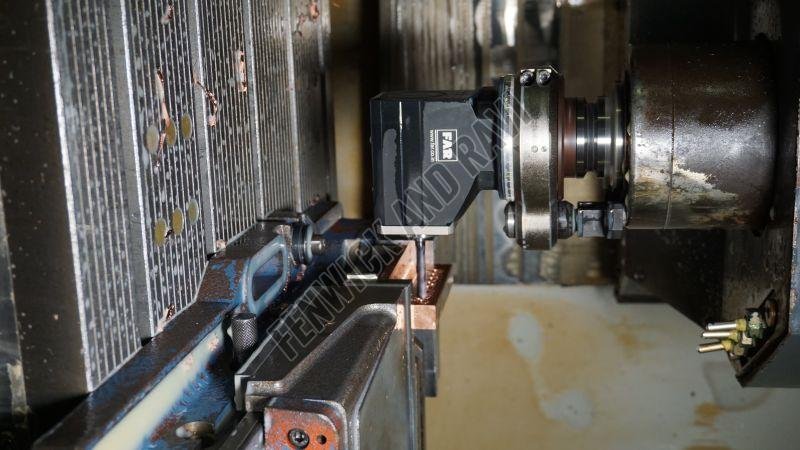

Features These Mill heads with precision bearings and superior bevel gears will provide an excellent strength and precision in cantilever machining operations Spindles are supported by pairs of pre loaded angular contact ball bearings. Designed for superior heat dissipation and for sustained periods of high speed operations. Speed Positioning pin with locking arrangement for ATC Special pitch from adapter to positioning pin. Special length from gauge plane Multi point flange instead of single positioning pin Coolant provision

Brand Name : MX-FXA-ER32-BT40-150

Material : Aluminum, Metal, Stainless Steel

Surface Finishing : Coated, Polished

Condition : New

Application : On Drillin Application

Size : 3mm - 20 Mm

Certification : ISO 9001:2015

Packaging Type : Box

Number Of Flower : Angle Head

Shaft Diameter : 03MM-20MM

Total Carbohydrate : 1yrs

Country of Origin : India

Speed Rpm : 4000 RPM

Torque Nm : 45 NM
