Himlite Products (India) Rajajinagar, Bangalore, Karnataka

Thermal Overload Relay Unit Type M1-BR is a three pole Bimetallic unit housed in a Bakelite enclosure. It is individually calibrated & tested on automatic machines to ensure foolproof protection to the motor from overload, Single Phasing & resulting burnouts. The relay is ambient temperature compensated for operation between -5degC to 40degC. The reset mechanism can be adjusted to hand or Auto mode; in manual mode, the red button needs to be pressed to reset the relay after an overload has occurred, after allowing sufficient cooling time. In Auto mode, the relay will reset on its own after cooling down. Available in a wide range of current ranges with easily adjustable, front accesable current setting knob, The tripping mechanism can be tested a trip test mechanism without electrically connecting the relay.

Thermal Overload Relay Unit Type M1-BR is a three pole Bimetallic unit housed in a Bakelite enclosure. It is individually calibrated & tested on automatic machines to ensure foolproof protection to the motor from overload, Single Phasing & resulting burnouts. The relay is ambient temperature compensated for operation between -5degC to 40degC. The reset mechanism can be adjusted to hand or Auto mode; in manual mode, the red button needs to be pressed to reset the relay after an overload has occurred, after allowing sufficient cooling time. In Auto mode, the relay will reset on its own after cooling down. Available in a wide range of current ranges with easily adjustable, front accesable current setting knob, The tripping mechanism can be tested a trip test mechanism without electrically connecting the relay.

Thermal Overload Relay Unit Type LK1 is a three pole Bimetallic unit housed in a Bakelite enclosure. It is individually calibrated & tested on automatic machines to ensure foolproof protection to the motor from overload & resulting burnouts. The relay is ambient temperature compensated for operation between 5degC to 55degC. Available in a wide range of current ranges with easily adjustable current setting knob in the front for easy access, the relay comes with a Manual reset button that also acts as the STOP button.

Thermal Overload Relay Unit Type HK is a three pole Bimetallic unit housed in a Bakelite enclosure. It is individually calibrated & tested on automatic machines to ensure foolproof protection to the motor from overload & resulting burnouts. The relay is ambient temperature compensated for operation between -5degC to 40degC. The reset mechanism can be adjusted to hand or Auto mode; in manual mode, the red button needs to be pressed to reset the relay after an overload has occurred, after allowing sufficient cooling time. In Auto mode, the relay will reset on its own after cooling down. Available in a wide range of current ranges with easily adjustable current setting knob, that is covered by a shroud to avoid unintentional change. The tripping mechanism can be tested a trip test mechanism without electrically connecting the relay.

Using 3 rugged N46 contactors, one independent mounted Thermal Overload Relay & a special Star delta Timer type SDT-1, the N46 Star delta comes with incoming and outgoing connectors, housed in a powder coated fabricated enclosure. The SDT-1 timer is an adjustable timer with a time lag between the Break and Make operation which allows the star arc to die down before the delta makes.

Country of Origin : 380V

The LK1 Star Delta motor starters are available in 2 identical distinct designs, suitable wired & inter-connected with three solenoid operated air break contactors Type LK1 and one triple pole thermal overload relay Type LK1, fopr overload & under voltage protection It is available in Semi Automatic & Fully Automatic version in 16A & 25A contactor ratings. In the Semi-automatic version, the motor starts in STAR on pressing the START button & changes over to DELTA on releasing the start button after the motor has picked up its full speed. In the Fully-Automatic version, the changeover from STAR to DELTA is controlled by an adjustable electronic timer & the user needs to press the Start button only once, where from the timer take over.

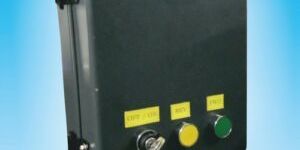

Himlite offers Reversing Motor Starters in ratings from 0.5 hp to 20 hp. 2 Electrically interlocked Air Break Contactors, wired to a Thermal Overload Relay Unit are operated by 3 push buttons: Forward, Reverse & OFF. The starters come with incoming & outgoing connectors for ease of wiring. Various options like key switches etc are available on request.

Himlite XL DOL 3 Phase Motor Control Panels offer protection features that are essential for the safe running of your pump. Safety features like accurate overload protection, protection from phase failure (single phasing), protection from short circuit conditions, and no-volt protection are all incorporated in this panel. And for your convenience and ease of usage, the panel incorporates an optional time delayed Autostart function that will restart your pump on resumption of power supply. The panel is enclosed in a elegant deep drawn powder coated enclosure. It features the popular LKHK Air break contactor with a wide band No-Volt coil for longer life and ease of servicing. The spares and accessories used in the panel are of high quality and are used in the panel after individual testing. The Panel is reliable, robust, compact in size, and easy to use and maintain. It is able to withstand the toughest Indian conditions of dusty, humid and corrosive atmosphere and wide fluctuating voltages. In all, the panel has been designed and manufactured to provide maximum safety to your pump for a long period of time.

Himlite XL Panels are reliable, robust, compact in size, elegant in looks, easy to use and maintain; They are able to withstand toughest Indian conditions of dusty, humid & corrosive atmosphere & wide fluctuating voltage, ensuring long & dependable service. They have been scientifically designed and built to provide maximum safety to your pump motor from variousl faults, for a long period of time. Housed in a deep drawn sheet steel, powder coated enclosure, the Panels come with the best Start and Run capacitors available, in suitable ratings as per motor HP. Other combinations of capacitors can be provided on request. For Contactors & OLRs, a choice of LK1 & HK options are available. Option of square and round meters is also available. All accessories like push buttons, connectors, cables, Indicators etc used in these panels are sourced from reputed manufacturers to ensure trouble free operation & long life.

Brand Name : Himlite

Manually operated ( hand operated) Mini Motor starter Type LF1 offers overload & isolation protection for your motor. It, consists of a double break three pole on-load switch ,operated by means of a toggle link mechanism. Overload protection is provided by three accurately calibrated bimetal heater coils.

Manually operated ( hand operated) Mini Motor starter Type HP1 offers overload & isolation protection for your motor. It, consists of a double break three pole on-load switch ,operated by means of a toggle link mechanism. Overload protection is provided by three accurately calibrated bimetal heater coils.

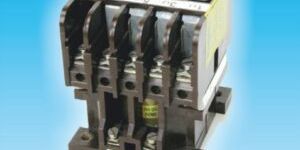

Power contactor Type MPS 1 MPS 1.5, Thermal overload Relay Unit Type M1BR and a 4 pole 3 position Control switch are wired in this Handle operated Air Break Star Delta Motor Starter. The OFF position of the handle is in the centre to provide safety during heavy starting. It is operated by turning the handle from OFF to STAR and then to DELTA , passing through OFF.

Country of Origin : 380V

Based on India most popular design of motor starter, the new DOL Motor Starter Type LK1 + SPP, is India’s only DOL starter with inbuilt current sensing single phasing protection that ensures protection during starting as well as running. There is no additional wiring required as the preventor is prec-connected.

Country of Origin : 360V / 440V / 415V Wide band

The XL range of Oil Immersed DOL Motor starters are light in weight, simple in construction & yet robust, making them ideal for long usage in hot and tropical areas. The double break contact system & the no volt coil are immersed in the oil that has to be filled in a deep drawn powder coated tank mounted on a non-breakable aluminium casting frame , making the arc quenching faster & saving the system from dust & heat.

India First DOL Motor Starter with ISI mark, the LK-1 DOL is India most popular design of motor starter. The entire moving system of the starter can be inspected by removing just one screw on the moving bridge. The triple pole bimetallic thermal overload relay is temperature compensated, individually calibrated & tested to ensure accurate overload protection. The silver alloy contacts ensure longer life & higher than rated current carrying capacity.

Country of Origin : 140V / 220V / 360V / 440V / 415V Wide band

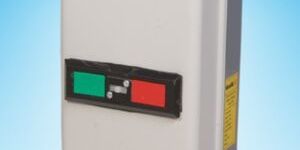

The new DOL Motor Starter Type HK2 includes the popular Air Break contactor type HK-) connected to thermal overload Relay unit Type HKR. This starter comes with incoming and outgoing terminals that ensure that internal wiring is not disturbed.

Based on India’s most popular design of motor starter, the CC2 DOL comes in a bigger enclosure & is pre-wired along with incoming & outgoing terminal for ease of wiring. It is available in 25A current rating & hence popular in agriculture, where low voltage is a common problem.

This 46A powerful contactor comes with 3 Power poles & 1 NO+1NC inbuilt & is thus ideal not just for starter applications for higher HP motors, but various other applications as well. Its arc chambers come with arc grids along with arc runners that act efficiently to extinguish arcs & thus increase contact life.

Country of Origin : 230V / 415V

This 5 pole contactor is a versatile contactor offering in 16A & 25A rating, available in various Power & Auxilliary Contact combinations like 3P+1NO+1NC or 2 P+2NO+1NC etc.

Air Break Contactor Type LK1 is India’s most popular design.; time tested rugged & ideal for extreme tropical conditions. The entire moving system of the contactor can be inspected replaced by removing just one screw on the moving bridge.

Country of Origin : 220V / 360V / 415V / Wide Band

2 Pole Contactor Type HK-O of rating 16 & 25Amps are modified versions of the 4 pole versions and are the ideal option for various applications using Single Phase power control like Single Phase Submersible pumps. The fully encapsulated coil, that resists moisture, corrosive atmopsphere and damages while handling, is suited for tropical conditions of India. Fixed & moving contacts are easily accessible without disturbance to the contactor mounting by removing two screws only.

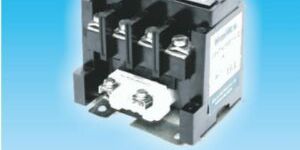

Air Break contactors Type HK-O of 16 & 25Amps with common physical and mounting dimensions, are 4 pole contactors, popular across agriculture & industry. The fully encapsulated coil, that resists moisture, corrosive atmopsphere and damages while handling, is suited for tropical conditions of India. Fixed & moving contacts are easily accessible without disturbance to the contactor mounting by removing two screws only.

Country of Origin : 220V / 380V
