Ika India Pvt. Ltd. Mysore Road, Bangalore, Karnataka

Motor rating input 20 W Motor rating output 17 W Viscosity max. 5000 mPas Speed range 300 - 6000 rpm Speed deviation 10 % Speed display scale Speed control stepless Noise without element 50 dB(A) Process type batch Dimensions (W x H x D) 100 x 40 x 160 mm Weight 0.75 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 20 Voltage 100 - 240 V Frequency 5060 Hz Power input 20 W DC Voltage 24 V= Current consumption 800 mA

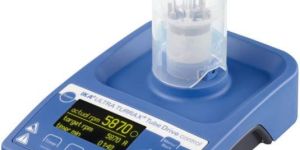

Motor rating input 28 W Motor rating output 17 W Viscosity max. 5000 mPas Speed range 400 - 8000 rpm Reversible direction of rotation yes Speed deviation 1 % Speed display OLED Speed control 10 RPM Steps Noise without element 50 dB(A) Process type batch Timer yes Timer display OLED Dimensions (W x H x D) 122 x 54 x 178 mm Weight 0.9 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 20 USB interface yes Voltage 100 - 240 V Frequency 5060 Hz Power input 20 W DC Voltage 24 V= Current consumption 800 mA

Motor rating input 28 W Motor rating output 17 W Viscosity max. 5000 mPas Speed range 400 - 8000 rpm Reversible direction of rotation yes Speed deviation 1 % Speed control 10 RPM Steps Speed display OLED Noise without element 50 dB(A) Process type batch Timer yes Timer display OLED Dimensions (W x H x D) 122 x 54 x 178 mm Weight 0.9 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 20 USB interface yes Voltage 100 - 240 V Frequency 5060 Hz Power input 20 W DC Voltage 24 V= Current consumption 800 mA

Motor rating input 20 W Motor rating output 17 W Viscosity max. 5000 mPas Speed range 300 - 6000 rpm Speed deviation 10 % Speed display scale Speed control stepless Noise without element 50 dB(A) Process type batch Dimensions (W x H x D) 100 x 40 x 160 mm Weight 0.75 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 20 Voltage 100 - 240 V Frequency 5060 Hz Power input 20 W DC Voltage 24 V= Current consumption 800 mA

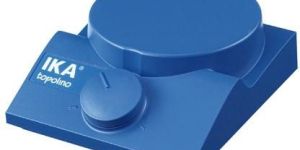

Number of stirring positions 1 Stirring quantity max. per stirring position (H2O) 0.25 l Stirring quantity max. (H2O) 0.25 l Motor rating input 1 W Motor rating output 0.8 W Speed range 300 - 1800 rpm Stirring bar length max. 30 mm Speed control stepless Set-up plate material synthetic (PP) Set-up plate dimensions Ø 80 mm Dimensions (W x H x D) 95 x 37 x 115 mm Weight 0.32 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 21 RS 232 interface no Analog output no Voltage 100 - 240 V Frequency 5060 Hz Power input 10 W

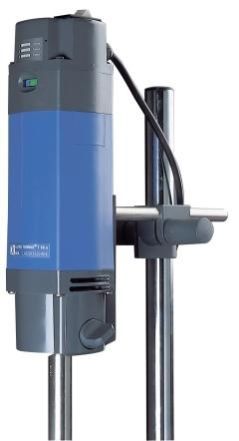

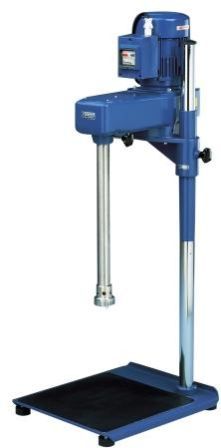

Motor rating input 1800 W Motor rating output 1500 W Volume range min. (H2O) 2 l Volume range max. (H2O) 50 l Viscosity max. 5000 mPas Speed max. 7200 rpm Noise without element 75 dB(A) Process type batch Dimensions (W x H x D) 190 x 380 x 580 mm Weight 28 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 54 Voltage 3 x 400 Y V Frequency 50 Hz Power input 1800 W

Motor rating input 1800 W Motor rating output 1500 W Volume range min. (H2O) 2 l Volume range max. (H2O) 50 l Viscosity max. 5000 mPas Speed max. 7200 rpm Noise without element 75 dB(A) Process type batch Dimensions (W x H x D) 190 x 380 x 580 mm Weight 28 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 54 Voltage 3 x 400 Y 3 x 230 V Frequency 50 Hz Power input 1800 W

Motor rating input 1100 W Motor rating output 700 W Volume range min. (H2O) 0.25 l Volume range max. (H2O) 30 l Viscosity max. 5000 mPas Speed range 500 - 10000 rpm Speed deviation 1 % Speed control stepless Speed display scale Noise without element 72 dB(A) Extension arm diameter 16 mm Extension arm length 220 mm Process type batch Dimensions (W x H x D) 125 x 367 x 120 mm Weight 6 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 20 Voltage 230 V Frequency 5060 Hz Power input 1100 W

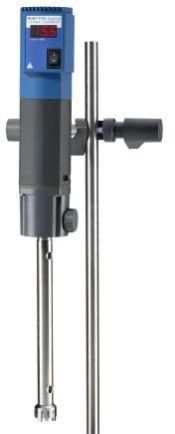

Motor rating input 500 W Motor rating output 300 W Volume range min. (H2O) 0.001 l Volume range max. (H2O) 2 l Viscosity max. 5000 mPas Speed range 3400 - 24000 rpm Speed deviation 1 % Speed display LED Speed control stepless Noise without element 73 dB(A) Extension arm diameter 13 mm Extension arm length 175 mm Process type batch Dimensions (W x H x D) 65 x 240 x 80 mm Weight 1.6 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface no Analog output no Voltage 220 - 240 100 - 120 V Frequency 5060 Hz Power input 500 W

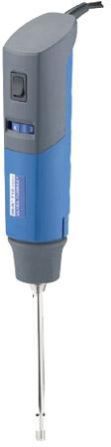

Motor rating input 500 W Motor rating output 300 W Volume range min. (H2O) 0.001 l Volume range max. (H2O) 1.5 l Viscosity max. 5000 mPas Speed range 3500 - 24000 rpm Speed deviation 1 % Speed control stepless Speed display scale Noise without element 73 dB(A) Extension arm diameter 13 mm Extension arm length 175 mm Process type batch Dimensions (W x H x D) 65 x 240 x 80 mm Weight 1.6 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface no Analog output no Voltage 220 - 240 V Frequency 5060 Hz Power input 500 W

Motor rating input 125 W Motor rating output 75 W Volume range min. (H2O) 0.0005 l Volume range max. (H2O) 0.1 l Viscosity max. 5000 mPas Speed range 8000 - 30000 rpm Speed display scale Speed control stepless Noise without element 65 dB(A) Extension arm diameter 8 mm Extension arm length 100 mm Process type batch Power-on time ON 10 min Power-om time OFF 5 min Dimensions (W x H x D) 46 x 201 x 57 mm Weight 0.4 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 30 Voltage 230 115 100 V Frequency 5060 Hz Power input 125 W

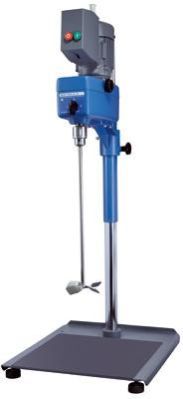

Stirring quantity max. (H2O) 200 l Motor rating input 513 W Motor rating output 370 W Speed display scale Speed range 57 - 1300 rpm Viscosity max. 100000 mPas Output max. at stirring shaft 300 W Permissible ON time 100 % Torque max. at stirring shaft 3000 Ncm Torque max. at stirring shaft at 60 1min (overload) 4642 Ncm Torque max. at stirring shaft at 100 1min 3000 Ncm Torque max. at stirring shaft at 1.000 1min 285 Ncm Speed range I (50 Hz) 57 - 275 rpm Speed range II (50 Hz) 275 - 1300 rpm Speed control stepless Stirring element fastening chuck Chuck range min. diameter 3 mm Chuck range max. diameter 16 mm Hollow shaft, inner diameter 13 mm Hollow shaft (push-through ¿ when stopped) no Fastening on stand flange Torque display no Nominal torque 30 Nm Dimensions (W x H x D) 145 x 445 x 340 mm Weight 15 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 54 RS 232 interface no Analog output no Voltage 3 x 400 Y V Frequency 50 Hz Power input 513 W

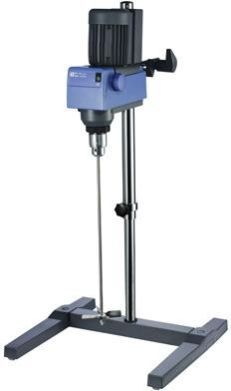

Stirring quantity max. (H2O) 80 l Motor rating input 220 W Motor rating output 90 W Speed display scale Speed range 60 - 1400 rpm Viscosity max. 50000 mPas Output max. at stirring shaft 90 W Permissible ON time 100 % Torque max. at stirring shaft 900 Ncm Torque max. at stirring shaft at 60 1min (overload) 1144 Ncm Torque max. at stirring shaft at 100 1min 900 Ncm Torque max. at stirring shaft at 1.000 1min 86 Ncm Speed range I (50 Hz) 60 - 400 rpm Speed range II (50 Hz) 240 - 1400 rpm Speed range I (60 Hz) 72 - 480 rpm Speed range II (60 Hz) 288 - 1680 rpm Speed control stepless Stirring element fastening chuck Chuck range min. diameter 1 mm Chuck range max. diameter 10 mm Hollow shaft, inner diameter 10.5 mm Hollow shaft (push-through ¿ when stopped) yes Fastening on stand extension arm Extension arm diameter 16 mm Extension arm length 145 mm Torque display no Nominal torque 9.0 Nm Dimensions (W x H x D) 123 x 364 x 252 mm Weight 7.4 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 42 RS 232 interface no Analog output no Voltage 220 - 240 V Frequency 5060 Hz Power input 220 W

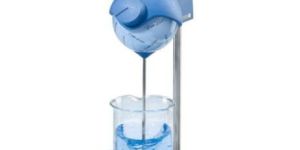

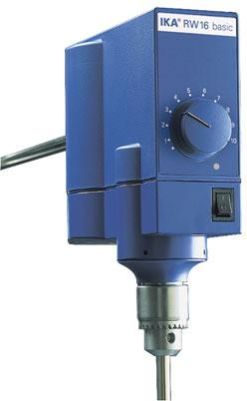

Stirring quantity max. (H2O) 10 l Motor rating input 75 W Motor rating output 55 W Speed display scale Speed range 40 - 1200 rpm Viscosity max. 10000 mPas Output max. at stirring shaft 53 W Permissible ON time 100 % Torque max. at stirring shaft 40 Ncm Torque max. at stirring shaft at 60 1min (overload) 50 Ncm Torque max. at stirring shaft at 100 1min 48 Ncm Torque max. at stirring shaft at 1.000 1min 34 Ncm Speed control stepless Stirring element fastening chuck Chuck range min. diameter 0.5 mm Chuck range max. diameter 10 mm Hollow shaft, inner diameter 11 mm Hollow shaft (push-through ¿ when stopped) yes Fastening on stand extension arm Extension arm diameter 13 mm Extension arm length 160 mm Torque display no Nominal torque 0.4 Nm Dimensions (W x H x D) 80 x 222 x 190 mm Weight 2.8 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 42 RS 232 interface no Analog output no Voltage 230 115 100 V Frequency 5060 Hz Power input 75 W

Stirring quantity max. (H2O) 2 l Motor rating input 8 W Motor rating output 1 W Speed range 0 - 2000 rpm Viscosity max. 100 mPas Output max. at stirring shaft 1 W Permissible ON time 100 % Torque max. at stirring shaft 0.8 Ncm Torque max. at stirring shaft at 60 1min (overload) 0.8 Ncm Torque max. at stirring shaft at 100 1min 0.8 Ncm Torque max. at stirring shaft at 1.000 1min 0.8 Ncm Speed control stepless Stirring element fastening plug-in coupling Plug-in coupling (Ø) 4 mm Hollow shaft (push-through ¿ when stopped) none Fastening on stand integrated Support rod diameter (with integrated fastening on stand) 10 mm Torque display no Nominal torque 0.008 Nm Dimensions (W x H x D) 86 x 89 x 175 mm Weight 0.39 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 42 RS 232 interface no Analog output no Voltage 100 - 240 V Frequency 5060 Hz Power input 8 W

Type of Cooling Vertical cooling Surface 1200 Cm2 motor Principle Dc speed Range 20 - 280 Rpm reversible Direction of Rotation Yes lift Motor stroke 140 Mm heating Temperature Range Room Temp. - 180 °c heat Output 1300 W heat Control Accuracy 5 ±k bath Volume Max. 3 L vacuum Controller Integrated No timer Yes dimensions (w X H X D) 500 X 430 X 410 Mm weight 19.6 Kg permissible Ambient Temperature 5 - 40 °c permissible Relative Moisture 80 % protection Class According to Din En 60529 Ip 20 rs 232 Interface No analog Output No voltage 220 - 240 100 - 120 V frequency 5060 Hz power Input 1400 W

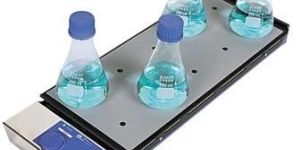

Number of stirring positions 10 Stirring quantity max. per stirring position (H2O) 0.4 l Stirring position distance 90 mm Speed deviation of individual stirring positions 5 % Stirring quantity max. (H2O) 4 l Motor rating input 14.4 W Motor rating output 3.6 W Speed range 0 - 1100 rpm Stirring bar length max. 30 mm Heat output 375 W Heating temperature range room temp. - 120 °C Temperature medium max. (dep. on vessel) 70 °C Heat control scale 1-10 Temperature constancy in medium 2 ±K Set-up plate material silicone Set-up plate dimensions 180 x 450 mm Dimensions (W x H x D) 198 x 65 x 552 mm Weight 4.2 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 42 Voltage 230 115 100 V Frequency 5060 Hz Power input 395 W

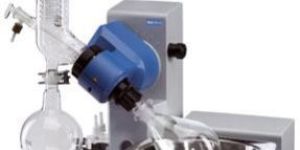

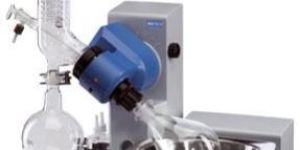

Type of cooling vertical Cooling surface 1200 cm2 Motor principle DC Speed range 20 - 280 rpm Reversible direction of rotation yes Lift Motor Stroke 140 mm Heating temperature range room temp. - 180 °C Heat output 1300 W Heat control accuracy 1 ±K Bath volume max. 3 l Vacuum controller integrated yes Measurement accuracy +- 2 mbar Vacuum adjustment range 1050 - 1 mbar Vacuum measurement range 1050 - 1 mbar Timer yes Dimensions (W x H x D) 500 x 430 x 410 mm Weight 21.5 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface yes Voltage 220 - 240 V Frequency 5060 Hz Power input 1400 W

Type of Cooling Vertical cooling Surface 1200 Cm2 motor Principle Dc speed Range 20 - 280 Rpm reversible Direction of Rotation Yes lift Motor stroke 140 Mm heating Temperature Range Room Temp. - 180 °c heat Output 1300 W heat Control Accuracy 1 ±k bath Volume Max. 3 L vacuum Controller Integrated No timer Yes dimensions (w X H X D) 500 X 430 X 410 Mm weight 20 Kg permissible Ambient Temperature 5 - 40 °c permissible Relative Moisture 80 % protection Class According to Din En 60529 Ip 20 rs 232 Interface Yes voltage 220 - 240 / 100 - 240 / 100 - 120 / 100 - 115 V frequency 50/60 Hz power Input 1400 W

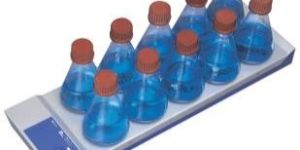

Number of stirring positions 10 Stirring quantity max. per stirring position (H2O) 0.4 l Stirring position distance 90 mm Speed deviation of individual stirring positions 5 % Stirring quantity max. (H2O) 4 l Motor rating input 14.4 W Motor rating output 3.6 W Speed range 0 - 1100 rpm Stirring bar length max. 30 mm Speed control scale 1-10 Set-up plate material stainless steel 1.4301 Set-up plate dimensions 180 x 450 mm Dimensions (W x H x D) 182 x 65 x 552 mm Weight 3.2 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 42 Voltage 230 115 V Frequency 5060 Hz Power input 20 W

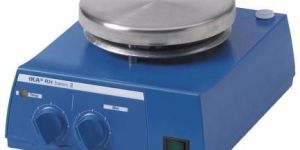

Number of stirring positions 1 Stirring quantity max. per stirring position (H2O) 10 l Stirring quantity max. (H2O) 10 l Motor rating input 15 W Motor rating output 2 W Speed range 100 - 2000 rpm Heat output 400 W Heating temperature range room temp. - 320 °C Heat control scale 1 - 6 Speed control scale 0 - 6 Fixed safety circuit 400 °C Set-up plate material stainless steel 1.4301 Set-up plate dimensions Ø 125 mm Dimensions (W x H x D) 168 x 105 x 220 mm Weight 2.4 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 21 Voltage 220 - 240 115 100 V Frequency 5060 Hz Power input 415 W

Number of stirring positions 1 Stirring quantity max. per stirring position (H2O) 20 l Stirring quantity max. (H2O) 20 l Motor rating input 12 W Motor rating output 5 W Speed display LCD Speed range 0 - 1200 rpm Stirring bar length max. 80 mm Heat output 600 W Heating rate (1 l H2O in H15) 7 Kmin Heating temperature range room temp. - 340 °C Heat control stepless Heat control accuracy 0.5 ±K Speed control stepless Adjustable safety circuit min. 50 °C Adjustable safety circuit max. 350 °C Connection for ext. temperature sensor PT 100 Control accuracy with sensor 0.2 ±K Set-up plate material stainless steel 1.4301 Set-up plate dimensions Ø 135 mm Dimensions (W x H x D) 160 x 97 x 280 mm Weight 2.8 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 42 RS 232 interface yes Analog output yes Voltage 220 - 230 V Frequency 5060 Hz Power input 630 W

Speed Range : 0 - 1200 rpm

Number of stirring positions 1 Stirring quantity max. per stirring position (H2O) 20 l Speed deviation of individual stirring positions 5 % Stirring quantity max. (H2O) 20 l Motor rating input 16 W Motor rating output 9 W Speed display LED Speed range 50 - 1700 rpm Stirring bar length max. 80 mm Heat output 600 W Heating rate (1 l H2O in H15) 7 Kmin Heating temperature range room temp. - 340 °C Heat control LED Heat control accuracy 1 ±K Speed control stepless Adjustable safety circuit min. 50 °C Adjustable safety circuit max. 360 °C Connection for ext. temperature sensor PT1000 Control accuracy with sensor 1 ±K Temperature constancy in medium 1 ±K Set-up plate material stainless steel 1.4301 Set-up plate dimensions Ø 135 mm Dimensions (W x H x D) 160 x 95 x 270 mm Weight 2.5 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 42 RS 232 interface no Analog output no Voltage 220 - 230 115 100 V Frequency 5060 Hz Power input 630 W

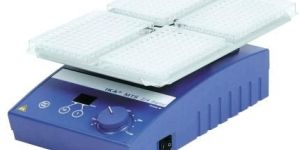

Type of movement orbital Shaker diameter 3 mm Permissible shaking weight (incl. attachment) 24 MT-Platten kg Motor rating input 35 W Motor rating output 13.2 W Permissible ON time 100 % Speed min (adjustable) 50 rpm Speed range 0 - 1100 rpm Speed display scale Timer yes Timer display 7 segment LED Time setting range 1 - 99 min Operating mode timer and continuous operation Shaking table lock no Working with microtiter plates yes Number of microtiter plates 2 or 4 Dimensions (W x H x D) 185 x 105 x 320 mm Weight 2.7 kg Permissible ambient temperature 5 - 40 °C Permissible relative moisture 80 % Protection class according to DIN EN 60529 IP 21 RS 232 interface no Analog output no Voltage 220 - 240 100 - 120 V Frequency 5060 Hz Power input 45 W
