Invendis Technologies India Private Limited Btm Layout, Bangalore, Karnataka

Invendis ET2071 AC Basic, Class 1.0, 85 - 270V AC/DC, 415/110 V, 3 Phase, 5A, 3 R 3 DIGIT 0.56", V,A,Hz  Panel meter (96x96mm), for measuring voltage, current and frequency, 5A secondary, CT primary programable  Configuration; 3 Phase, 3 Element, 3/4 wire Nominal: 415v LT or 10v through PT Input current: Factory set                                                                                                                Computation: True RMS for AC parameters Isolation: 2000\AC for one minute  Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition Temperature: 0-50C Humidity:

Number Of Flower : Panel Meter VAF Meter

Country of Origin : 415/110 V

Condition : NEW

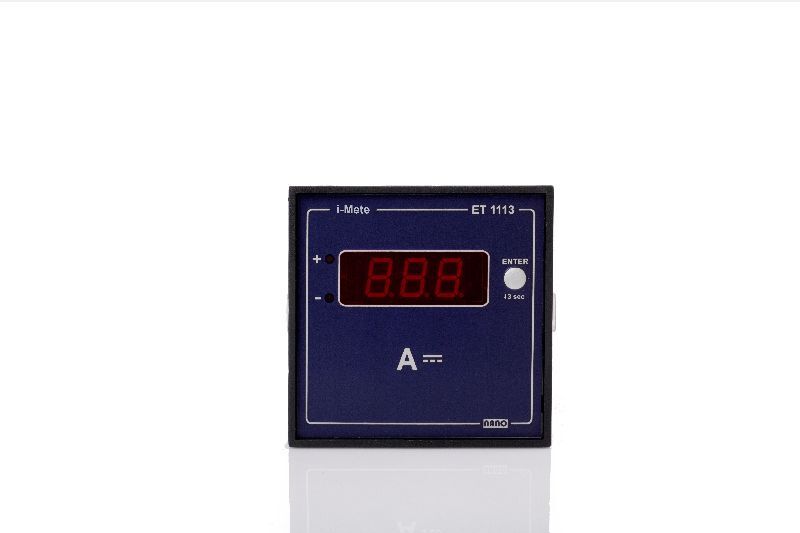

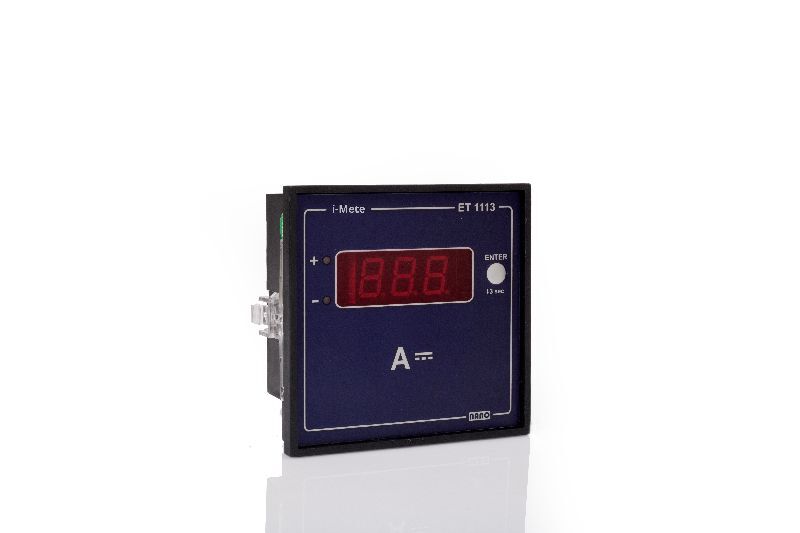

Invendis ET1113 DC, Class 1.0, 0 - 500V DC, 50/60/75 mV, 1 R 3 DIGIT O.56", Amps      DC voltmeter 0-500 VDC (96x96mm) Configuration : 1/3 Phase, 3 Element; 3 / 4 Wire (Note Order code) Input V Nominal : 415 V LT or 110 V through PT (line to line)                                                Computation : True RMS for all Power & Energy Parameters Accuracy : ± (0.5% of FS + 0.5% of Rdg + 1 digit) ± 0.2% for Frequency ± 1.0% of FS for Current                                                                                                                            Isolation : 2000 V AC for one minute Safety : Measurement Category III, Pollution Degree 2 as per EN61010-1 First Edition                                      Frequency : 0.1 Hz Power : autoscaling depending on input Power Factor : 0.01 Energy : 1 kWH upto 866 kW 10 kWH above 866 kW

Country of Origin : India

Number Of Flower : DC Voltmeter

Application : Industrial Use

Feature : Long Life, Optimum Quality

Country of Origin : 0-500 VDC

Condition : New

gas : NA

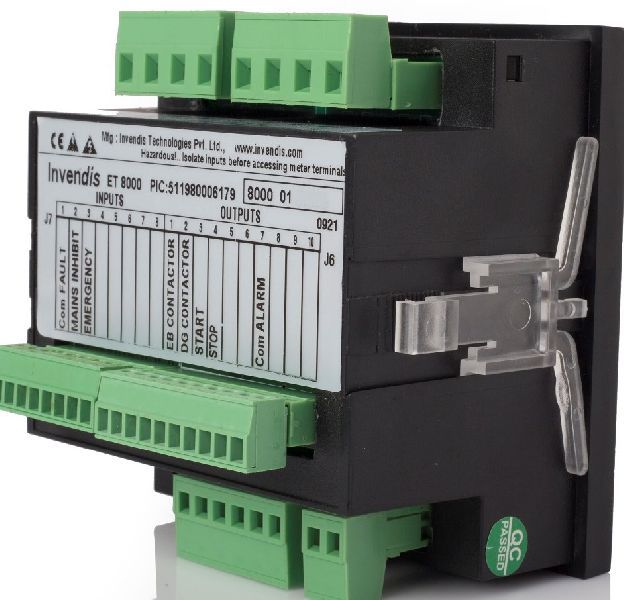

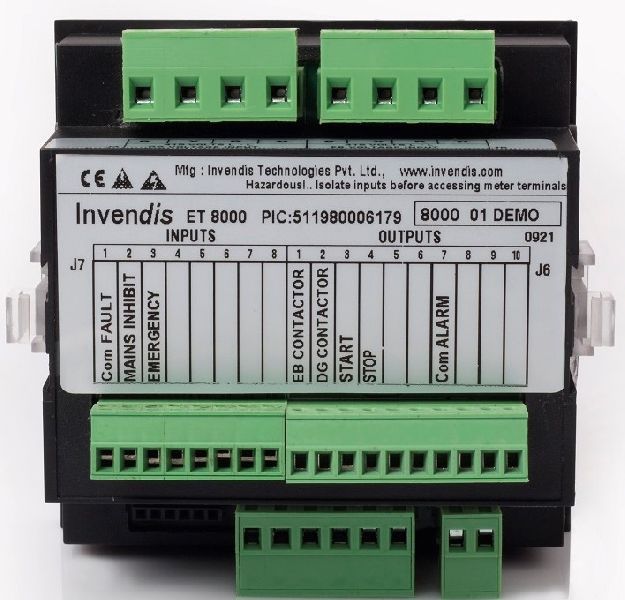

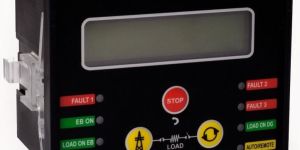

Invendis ET8000 GENSET CONTROLLERS, Class 1.0, Any Other, 415 V, 3 Phase, 5A, LCD 16X2 ROW, Any OtherAuto Transfer module with remote Start/Stop, AC metering, Digital I/O Auto transfer switch for Genset (DG), (96x96mm) Overall Dimensions: 96 x 96 x 52 mm Mounting Hole: 92 x 92 mm. Mounted IP rating: IP 52 frontIP20 rear Supply Voltage & Current: 8 V to 30 V DC. Nominal 12/24 V Automotive / Nominal 50mA General protection: Reverse voltage120V load dump Input reference: 0V DC/Common Mains Voltage Input Range: 60-300 Volts RMS. Short duration overload capability 350V Generator Voltage Input Range: 60-300 Volts RMS Short duration overload capability 350V Mains Under/Over Frequency: Under Frequency = 40HzOver Frequency =70 Hz Output OP1 to OP5: Relay Coil Driver Open drain current limited 30V 300mA Generator Under/Over Frequency: Under Frequency = 40HzOver Frequency =70 Hz Output protection: Short circuitreverse voltageload dumpinductive relay currents Set-up and Adjustment: Menu buttons and LCD or by PC with cloning software. Terminations: Amp DUAC / Molex Mini Fit JNR Operating / Storage Temperature: -10 to +70°C / -20 to +70°C

Country of Origin : India

Number Of Flower : GENSET CONTROLLERS

Material : ABS

Condition : New

Total Carbohydrate : 1yr

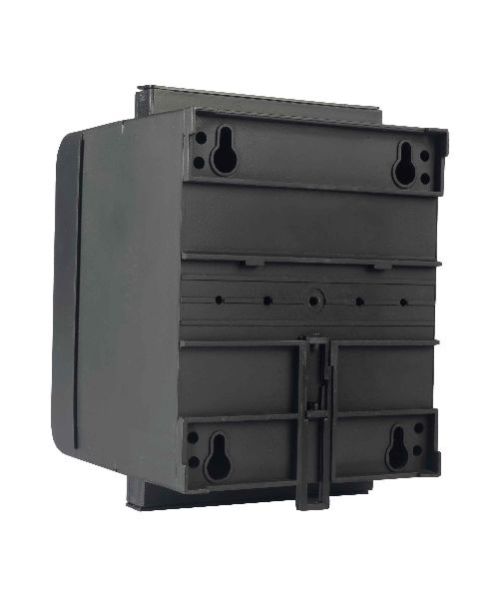

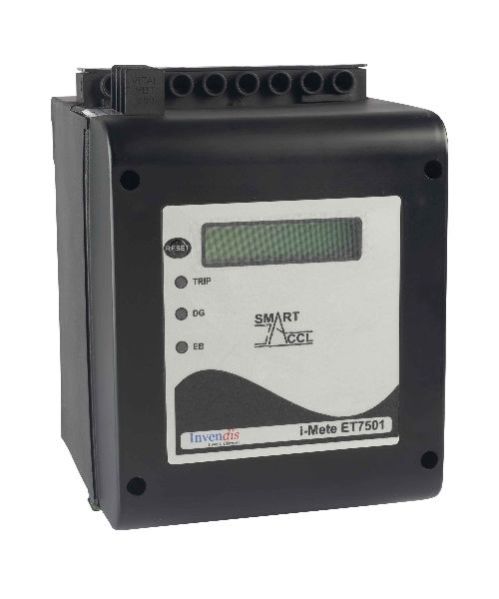

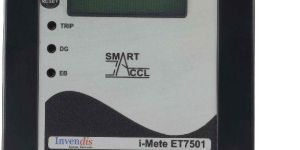

Invendis ET7501 Special Meters, Class 1.0, Self Powered, 240 V, Non standard input, LCD 16X2 ROW, Any OtherACCL with DG kWh , Interuptions , and Under/Over Voltage on EB ,25-25A Service Type : Single PhaseThree Phase Four Power :From L1 to N Wire. 0.5 Watts; Voltage Channels :85-270 Volts ACCurrent Channels :0-100 Amps External depending on Measurement Type: True RMS using high-speed digital Line Frequency: 50 and 60Hz Waveform Sampling :13 kHz voltage and current Measurements: AmpskWh Accuracy: Better Than 1% Resolution Voltage : 1 V; Current : 0.1 Amp; kWkVAR : 0.1; PF : 0.01; kWH : 1 kWH Indicators: LCD and LED for Power On and Communication indication COMMUNICATION SPECIFICATIONS Direct: Modbus over RS-485 Modbus Framing RTU (binary) Communication Rate :9600 baud Data Bits: 8 Parity: None Stop Bit :1 Protocol Modbus Protocol MECHANICAL SPECIFICATIONS Operating Temperature: -7 to +60°C (-20 to +140°F) Humidity: 5% to 95% non-condensing Enclosure: Bare PCB Coated for Enviormental protection Weight (exclusive of CTs): Without Enclosure: Max 1000 g BCM 9 /18 Channel : 155 (L) x 108 H /170 (L) x 108 H Ct card containing 9 CT’s :260 * 72MM Mounting: DIN RaiL CONNECTION BCPM ~ CT connectivity: 20 PIN FRC Cable Voltage :1.5 Sq Round Pin Connectivity Micro- Controlled Based Devices for high precisionsmart decisions LCD Display for Electrical Parameters. Single Phase/Three Phase: 25A32A63A. Automatic selection for the Right supply & EB Voltage Limit Monitoring.. Switching of power source based on the user set Under/Over Current levels on DG auto cut off. Also Configuration based on KW available (Optional)l RS 485 serial communication for summator-GPRS Alerts or BMS Integrator. Energy computation for EB / DG ( VIKW etc are available on R 485 Communication Port) Energy Readings backup on EPROM 5 times load Alert before total disconnection. (User Programmable through Port) Wide input voltage range - SMPS Based. LED Status Indication for MainsLoadGenerator & Over Load trip. Option for Base Mount or DIN Rail Mount. Dimensions: 155 X 200 X 150 mm

Country of Origin : India

Number Of Flower : ACCL Special Meter

Material : ABS

Shape : Square

Application : Industrial

Feature : Durable, High Accuracy, Light Weight

Display Type : Digital

Power Source : Electric

Total Carbohydrate : 1Years

Brand Name : Invendis

Invendis ET4031 P & E with Serial Communication, Class 0.5, 85 - 270V AC/DC, 415 V, 3 Phase, 5A, 3 R 3 DIGIT 0.56", Dual MeteringkW,kWh Eb, kWh Dg, Protocol Maodbus as per Scnider Register Mapping (obsolete) Configuration : 1/3 Phase, 3 Element; 3 / 4 Wire (Note Order code) Input V Nominal : 415 V LT or 110 V through PT (line to line)                                            Computation : True RMS for all Power & Energy Parameters Accuracy : ± (0.5% of FS + 0.5% of Rdg + 1 digit) ± 0.2% for Frequency ± 1.0% of FS for Current                                                                                                                              Isolation : 2000 V AC for one minute Safety : Measurement Category III, Pollution Degree 2 as per EN61010-1 First Edition                                      Frequency : 0.1 Hz Power : autoscaling depending on input Power Factor : 0.01 Energy : 1 kWH upto 866 kW 10 kWH above 866 kW

Display Type : Digital

Body Material : Plastic

Power Source : Electric

Total Carbohydrate : 1Year

Brand Name : Invendis

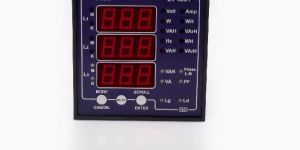

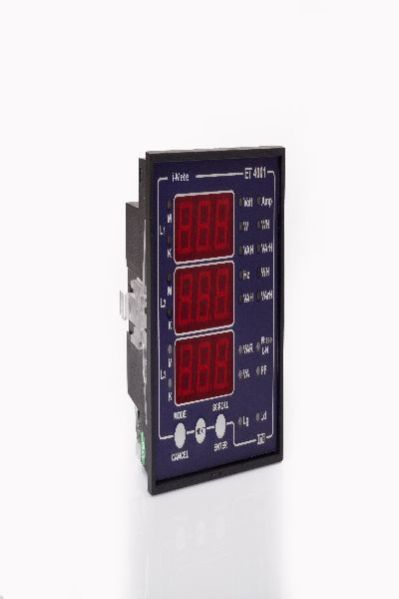

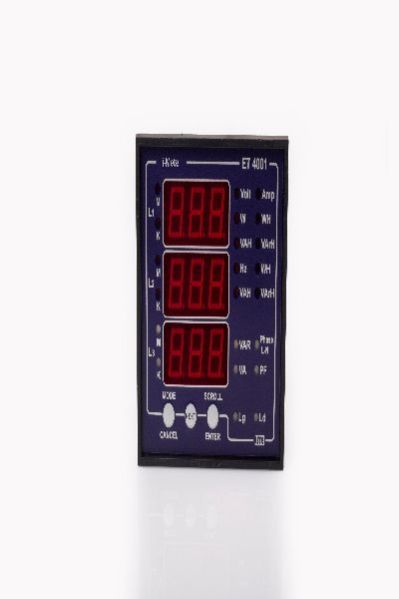

Invendis ET4001 P & E with Serial Communication, Class 1.0, 85 - 270V AC/DC, 415/110 V, 3 Phase, 5A, 3 R 3 DIGIT 0.56", V,A,KW,Hz,PF,KVA,kWh,Load Hrs V(LL),Amps,Hz,W,VA,VAR,PF,kWh,kVAh,kVARh,RS485,LED display Configuration : 1/3 Phase3 Element; 3 / 4 Wire (Note Order code) Input V Nominal : 415 V LT or 110 V through PT (line to line) Computation : True RMS for all Power & Energy Parameters Accuracy : ± (0.5% of FS + 0.5% of Rdg + 1 digit) ± 0.2% for Frequency ± 1.0% of FS for Current Isolation : 2000 V AC for one minute Safety : Measurement Category IIIPollution Degree 2 as per EN61010-1 First Edition Frequency : 0.1 Hz Power : autoscaling depending on input Power Factor : 0.01 Energy : 1 kWH upto 866 kW 10 kWH above 866 kW

Country of Origin : India

Number Of Flower : Phase Meters, MDM/MFM Meter

Material : ABS

Shape : Square

Application : Household, Industrial

Feature : Durable, High Accuracy, Light Weight

Display Type : Digital

Total Carbohydrate : 1Years

Brand Name : Invendis

eltrac et1300 dc, class 1.0, 20 - 80v dc, 80 v, non standard input, 3 r 3 digit 0.56", v,a,w,wh programmable 50/60/75mv input with 4 currents and kwh channel wise kwh, 3 ph,cl.1.0, 415vac, 5a, counter type kwh, 96x96x52mm configuration; 3 phase, 3 element, 1 phase or 3 phase nominal: 415v lt  input current: factory set computation: true rms  temperature: 0-50 deg c                                                                                                                                    accuracy : ± (0.5% of fs + 0.5% of rdg + 1 digit) ± 0.2% for frequency ± 1.0% of fs for current       humidity:

Country of Origin : India

Availability : 0.300g

Condition : New

Usage : Industrial

Power Source : Electric

Total Carbohydrate : 1 Year

Automatic : Automatic

Phase : Three Phase

Display Type : Digital

Diameter (mm) : NA

Packaging Type : Carton Box

Overall Length : 4

Specialities : Precise Design, Fine Finish

Frequency : Nil

Overall Dimension : 96mm*96mm

Power : KWh

Working Temperature : 0-50 Deg C

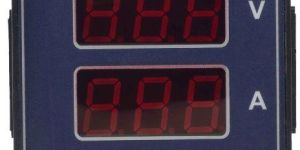

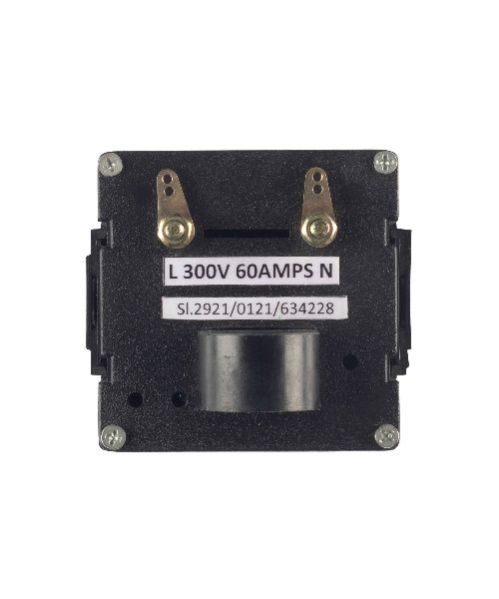

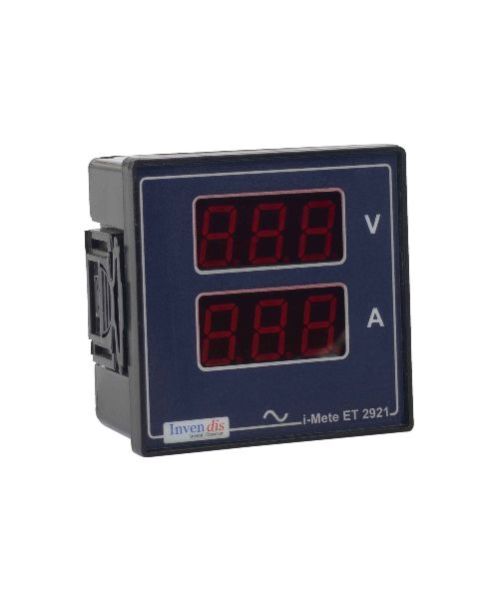

Invendis ET2921 AC Basic, Class 1.0, Self Powered, 415 V, Non standard input, Any Other, Volt & Ammeter, 300 V, 0-50 A Max, 2 row 3 digit Computation: True RMS for AC parameters Isolation: 2000\AC for one minute  Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition Temperature: 0-50C Humidity:

Material : Plastic

Shape : Square

Application : Industrial

Feature : Durable

Country of Origin : 220V

Country of Origin : India

Brand Name : Invendis

Operating Temperature : Temp. 0-50 deg C, RH < 95% non-condensing

invendis et2081 ac basic, class 1.0, 85 - 270v ac/dc, 415/110 v, 3 phase, 5a, 3 r 3 digit 0.56", v,a,hz,rpm,rhrs, alt & engine loading  panel meter (96x96mm), for measuring voltage, current and frequency, 5a secondary, ct primary programable, with run hour and prm, for genset (dg)application configuration; 3 phase, 3 element, 3/4 wire nominal: 415v lt or 10v through pt input current: factory set                                                                                                               computation: true rms for ac parameters isolation: 2000\ac for one minute  safety: measurement category iii, pollution degree 2 as per en61010-1 first edition temperature: 0-50c humidity:

Country of Origin : India

Number Of Flower : Run Hour

Application : Energy Monitoring

Country of Origin : 85 - 270V AC/DC

Automatic Grade : Automatic

Invendis ET2033 AC Basic, Class 1.0, 85 - 270V AC/DC, 3 Phase with external CT, 1 R 4 DIGIT 0.56", A Configuration; 3 Phase, 3 Element, 3/4 wire Nominal: 415v LT or 10v through PT Input current: Factory set                                                                                                                Computation: True RMS for AC parameters Isolation: 2000\AC for one minute  Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition Temperature: 0-50C Humidity:

Country of Origin : India

Number Of Flower : Ammeter

Application : Control Panels, Industrial Use

Display Type : Digital

Automatic Grade : Automatic

Phase : Three Phase

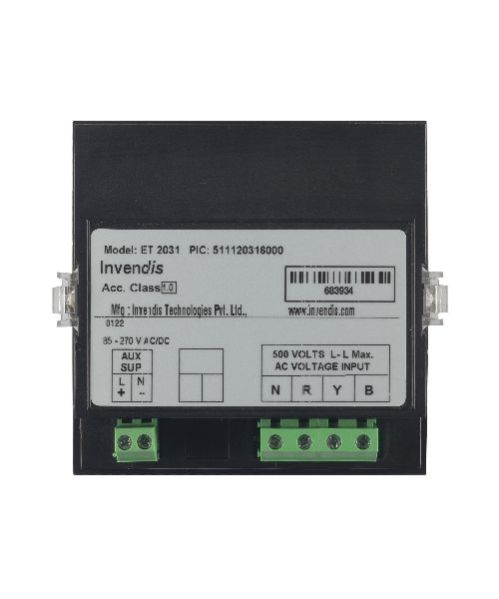

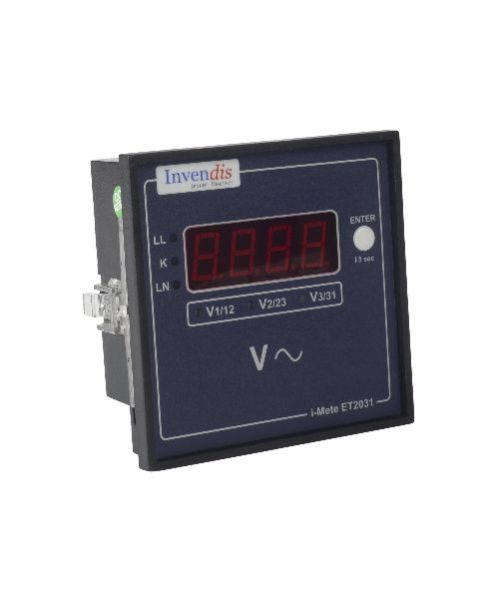

invendis et2031 ac basic, class 1.0, self powered from any phase, 415 v, 1 r 4 digit 0.56", relay output3 phase v, 3 relay out - best phase selector configuration : 1/3 phase, 3 element; 3 / 4 wire (note order code) input v nominal : 415 v lt or 110 v through pt (line to line)                                            computation : true rms for all power & energy parameters accuracy : ± (0.5% of fs + 0.5% of rdg + 1 digit) ± 0.2% for frequency ± 1.0% of fs for current                                                                                                                              isolation : 2000 v ac for one minute safety : measurement category iii, pollution degree 2 as per en61010-1 first edition                                      frequency : 0.1 hz power : autoscaling depending on input power factor : 0.01 energy : 1 kwh upto 866 kw 10 kwh above 866 kw

Country of Origin : India

Number Of Flower : Digital Voltmeter

Feature : Accuracy, Easy To Use, Proper Working

Condition : New

Power Type : AC

Frequency : 0-50Hz

Total Carbohydrate : 1yr

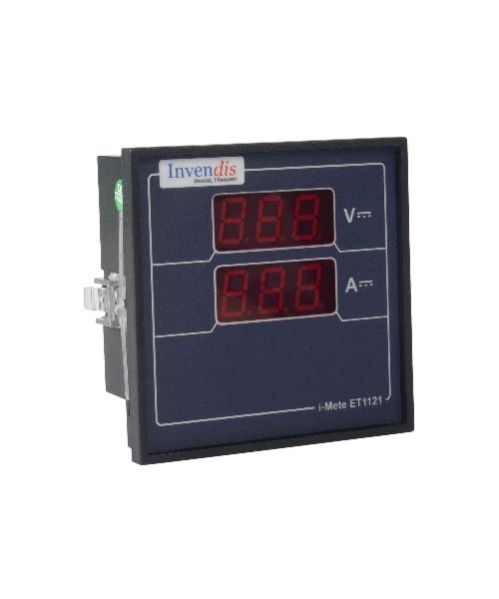

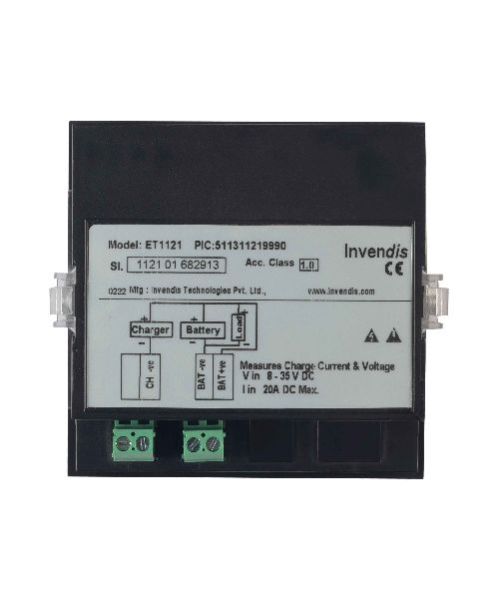

Invendis ET1121 DC, Class 1.0, Self Powered, Non Standard, Non standard input, Any Other, DC Genset Battery monitor, 8-35, V 20 A Internal Shunt Computation: True RMS for AC parameters Isolation: 2000\AC for one minute  Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition Temperature: 0-50C Humidity:

Country of Origin : India

Application : Energy Monitoring

Availability : 200-300gm

Feature : Accuracy, Durable, Light Weight

Display Type : Digital

Automatic Grade : Automatic

Body Material : ABS

Power Source : Electric

Total Carbohydrate : 1Year

Brand Name : Invendis

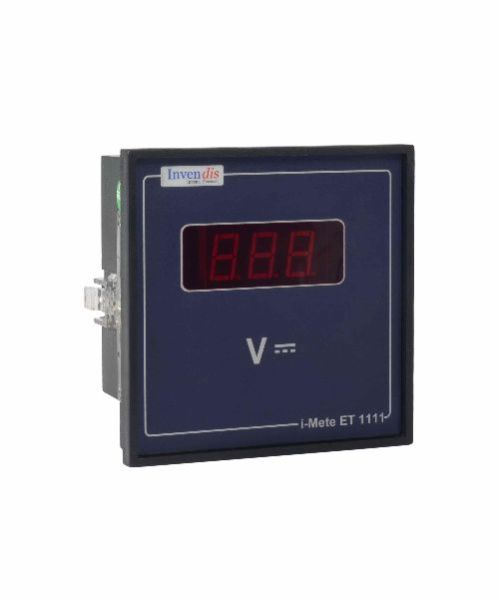

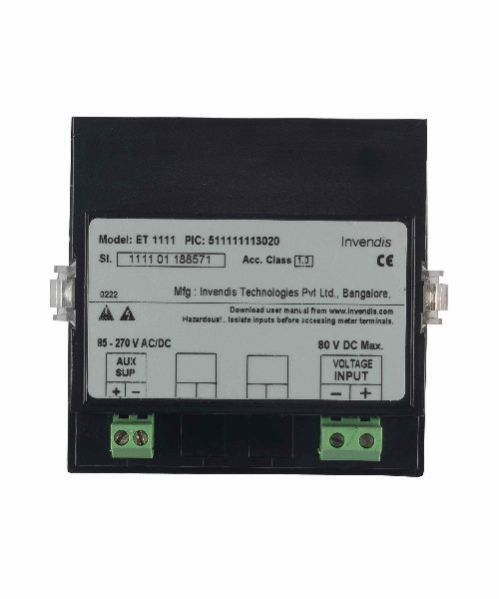

Invendis ET1111 DC, Class 1.0, 0 - 100V DC, 80 V, 1 R 3 DIGIT O.56", V DC, Aux supply 0 - 100 V DC Computation: True RMS for AC parameters Isolation: 2000\AC for one minute  Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition Temperature: 0-50C Humidity:

Application : Industrial Use

Feature : Long Life

Country of Origin : 0-100 VDC

Condition : New

Country of Origin : India

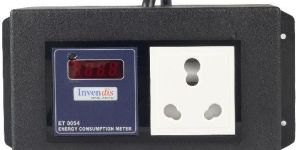

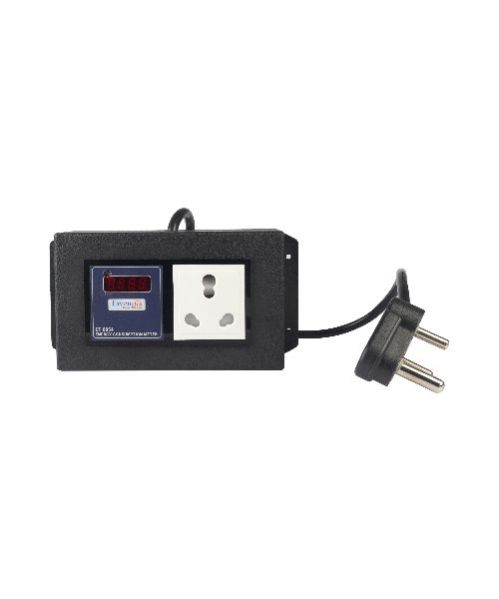

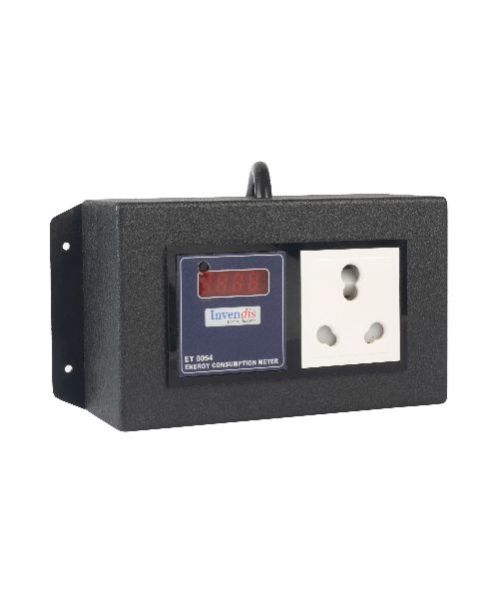

ET0054 Single phase energy meter for Appliances , Class 1.0, Self Powered, 240 V, 1 Phase, 20A Internal CT, Any Other, Energy consumption meter, 1 row 4 digit 0.3" display , V, I,kW & kWh, Cl 1.0

Country of Origin : India

Number Of Flower : Single Phase Meter

Application : Single Phase Energy Meter For Appliances

Phase : Single Phase

Total Carbohydrate : 1Year

Brand Name : Invendis

Display Type : Digital

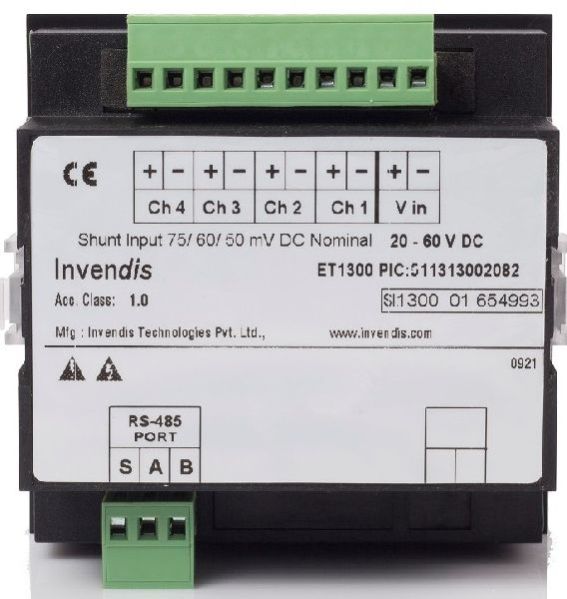

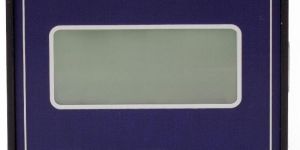

Invendis ET1300 DC, Class 1.0, 20 - 80V DC, 80 V, Non standard input, 3 R 3 DIGIT 0.56", V,A,W,WH Programmable 50/60/75mV Input with 4 Currents and kWh channel wise    Range: Voltage Range: 20-80 VDC or any other range on request. Current Range: Through Shunt, 4 Independent Current Channels. Shunt mV Rating: 50mV, 60mV or 75mV. Range: 10% to 129% of Nominal Accuracy: Standard: Class 1.0 (+/- 0.5% of FS + 0.5% of Rdg + 1 digit) Optional: Class 1.0 (+/- 0.25% of FS + 0.25% of Rdg + 1 digit)                                                                                            Serial Port : RS-485 MODBUS RTU with data format confirming to IEEE 754 for 32-bit-Float Point.                                                                                                                                      Ambient : Temp. 0-50 deg C, RH < 95% non-condensing                                                                              Mounting : Slide and Lock clamp Warranty : 15 months from date of manufacture OR 12 months from date of sale, whichever is earlier

Country of Origin : India

Number Of Flower : Mechanical Energy Meter

Application : Energy Monitoring

Availability : 300-400gm

Country of Origin : 50/60/75 MV DC

Display Type : Digital

Frequency : Nil

Automatic Grade : Automatic

Body Material : Plastic

Power Source : Electric

Total Carbohydrate : 1Year

Brand Name : Invendis

Feature : 4 Voltage Channel,1 Current Channel, 50/60/75 MV Shunt Programmable No. Of Channels : 4 Independent

Operating Temperature : Temp. 0-50 Deg C, RH < 95% Non-condensing

Accuracy : Standard: Class 1.0 (+/- 0.5% Of FS + 0.5% Of Rdg + 1 Digit) Optional: Class 1.0 (+/- 0.25% Of FS +

Guarantee : Warranty : 15 Months From Date Of Manufacture OR 12 Months From Date Of Sale, Whichever Is Earlier

Measuring Energy Range : Voltage Range: 20-80 VDC Or Any Other Range On Request. Current Range: Through Shunt, 4 Independent

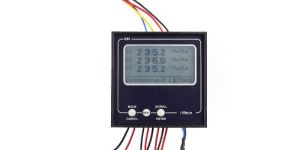

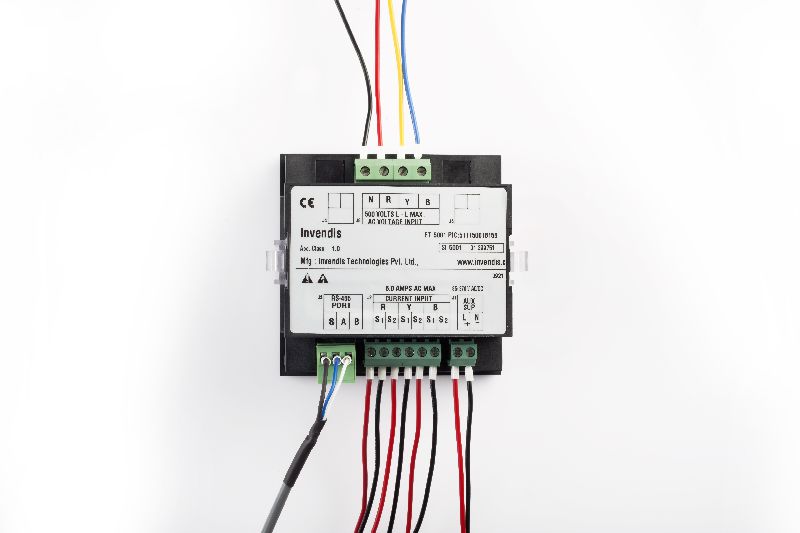

Invendis ET – 5001 Multi-function meter for power distribution panels Serial communication for data logger interface.  Optional BACnet port and measurement of Max. Demand and THD of the system.  Voltage, current, frequency, power, and energy of the linked electrical load  Suitable for 1Ph- 2Wire / 3P 3 wire -3P 4 wire system.  Can sense current from external CT (configurable) – Supports 20A   Usage : Electrical distribution panel to manage power distribution.  Find application in Energy Management with analysis considering Maximum Demand, THD and its effects.  Sub metering and can be used for billing tenants.  Centralised Power management when interfaced with SCADA / Dataloggers Technical Specifications Configuration: 1/3 Phase, 3 Element; 3 / 4 Wire (Note Order code)  Input V Nominal: 415 V LT or 110 V through PT (line to line)  Input I Nominal: 5 A or 1 A through CT  Computation: True RMS for all Power & Energy Parameters  Supports Demand computation and captures Max Demand.  Accuracy: -- ± (0.5% of FS + 0.5% of Rdg + 1 digit) -- ± 0.2% for Frequency -- ± 1.0% of FS for Current  Isolation: 2000 V AC for one minute  Safety: Measurement Category III, Pollution Degree 2 as per EN61010-1 First Edition  Frequency: 0.1 Hz  Power: autoscaling depending on input  Power Factor: 0.01  Aux Supply: 85 - 270 V AC or DC  Energy: Increments 1 kWH upto 866 kW and 10 kWH above 866 kW  RS485 / BACnet Interface for external system interfacing.  Dimension: 96 x 96 mm (Bezel), x 52 mm  Mounting: Slide and Lock clamp  Ambient: Temp. 0-50 deg C, RH < 95% non-condensing

Country of Origin : India

Number Of Flower : Power Meters, Multi Meter

Application : Indsustrial Usage, Power Monitor

Availability : 400-500g

Feature : Accuracy, Light Weight

Display Type : Digital

Material : ABS

Power Source : Electric

Total Carbohydrate : 1Year

Brand Name : Invendis

Operating Temperature : 10-50 Deg. C
