K. M. Cables & Conductors Chickpet, Bangalore, Karnataka

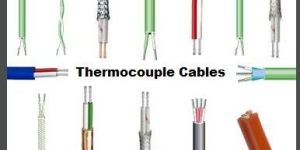

Thermocouple Compensating Cables Used to extend thermocouple circuits from the sensor to reference unit, Generally manufactured with conductor sizes 16, 18 & 20 AWG and conforming to IS: 8784, BS: 4937, IEC-584, ANSI: MC: 96.1, DIN, JIS Conductor : Solid/strandedType: KX, VX, TX, JX, EX, SX/RXInsulation: PVC –HR; PE, LSZHShielding: Individual & overall or overall screen only by Al-mylar tape/copper tape/copper wire braidInner sheath: PVC –HR/FR/FRLS; PE, LSZHArmour (for armoured cables): Galvanized steel round wire/stripOuter sheath: PVC –HR/FR/FRLS; PE, LSZH

Aerial Optical fiber & Jelly filled Telephone cable KM CABLES & CONDUCTORS are the stockiest for telecommunication cables/ jelly filled cables of the leading brands. The product range that KM Cables Holds include cables of following types:Polythene (Solid/Foam/Foam Skin) Insulated Jelly Filled Cables (5 Pair to 400 pair)Description: Twisted pair cable-with solid/foam/foam skin polythene insulated copper conductor, jelly filled, polythene sheathed, bonded poly-Al moisture barrier, unarmored/ armored polythene jacket underground cable. Application: This type of cable is meant for inter exchange and for local network use. This cable may be unarmored/armored type.Overhead Cables & Wires Aerial CablesDescription: Polythene insulated self-supporting aerial cable in which suspension wire and the cable core are contained in a single polythene jacket of a figure of 8 sections. Application: The cable is intended for use as a telephone distribution cable and would be suspended from posts using fixtures. These are normally used in rural/hilly areas.PCM CablesDescription: Solid round copper conductor, polythene insulated jelly filled poly-Al moisture barrier bonded polythene sheathed underground telecom cable usable for 2 Mb/s digital System. Application: This cable is intended as a transmission medium for carrying 2 Mb/s digital signal.Optical Fibre Cables Central Loose TubeDescription: The cable is of Central Loose Tube (CLT) structure. Single Mode Optical Fibres are placed in a Loose Tube and jelly is applied during the extrusion process. Three FRP’s are embedded in the sheathing. Application: Trunk & Junction Network, T.V. Distribution, Data Links, Telemetry, Short span aerial application on existing open air alignment network.Slotted CoreDescription: Primary coated single mode optical fibre is placed in the helical slots of a central strength member extruded with polypropylene. The Cable core is polyethylene sheathed and Nylon jacketed to make it rodent resistant and termite proof. Application: Trunk & Junction Network, T.V. Distribution, Data Links, and TelemetryAerial Optical Fibre CablesDescription: The cable is of Central Loose Tube (CLT) structure. Single Mode Optical Fibres are placed in a Loose Tube and filled with jelly. Over the loose tube a thin layer of jelly is applied during the extrusion process. Three FRP’s are embedded in the sheathing. To make it suitable for aerial Application Aramide Yarn is raped over the sheathing and then it is jacketed with Nylon. Application: Trunk & Junction Network in hilly areas & Data Link in hilly areas. Why K-Flex? Quick and convenient Localization Support Compatible with the latest Technology Quality Product Market Reach We make wires/cable for better tomorrow Experienced Team Product guarantee

Photovoltaic Solar dc cable Solar cable acts has a connector between solar panels and other electrical components used photovoltaic power generation. Being an efficient company K M Cables and conductors are one of the leading solar cable manufacturer in India. We manufacture and supply many types of wire and cable that are used to address the requirements of solar power generation, distribution and transmission. Features of Solar cable –   • Resistant to ozone, tear, Impact, whether, acids, alkaline, mineral oils and abrasion. • Voltage 1.5 (1.8) KV DC / 0.6/1.0 (1.2) KV AC • Minimum bending radius 4 times of overall diameter • Lasts up to 30 years • Full protection against ultraviolet rays • In accordance to environmental regulation • Easy installation with color identification • Suitable to common connectors

Silicone Rubber EPR Insulated Cable & wire Silicon rubber insulated cables are used in electric utilities such as the generation and transmission of electricity. Long service life under normal environment in Nuclear and conventionally powered generating stations plus safety considerations are the significant factors of these electric appliances. When exposed to fire, Silicon offers circuit integrity, low smoke evolution, and freedom from halogen acids. (For e.g. Boilers, Electric Furnaces, Cokd Ovens, Driers, Bakeries, Blast Furnaces & High Furnace Generator) K.M CABLES & CONDUCTORS offers a complete range of Silicon Rubber insulated wires & cables from 0.25 sq. mm to 240 sq. mm, Silicon rubber insulated wires are used where ever ambient temperature is very high upto 220°C combined with high dielectric breakdown when compared to ordinary PVC / Rubber insulation. ‘K.M CABLES & CONDUCTORS’ Silicon insulated wires are made as per IS 9968 part 1 & 2, which specifies working voltage of 1100V, however special insulation thickness wires are also available with construction as per customer requirement. We also offer multicore Silicon insulated cables with various choices of outer sheath coatings as per customer requirements. For temperature - more than 220°C, we offer silicon insulated conductor single & multicore with overall coating of Silicon rubber, this gives greater flexibility to the final cable while maintaining high temperature. EPR/PCP & VIR Insulated & TRS Sheathed Cables:K.M CABLES & CONDUCTORS offers a complete range of EPR/PCP/TRS Sheathed elastrometric trailing round flexible cables, which are heat resistant, oil resistant & flame retardant wires & cables from 0.25 sq. mm to 240 sq. mm Single & Multi Core Cables Upto 1100 Volts CONF:IS 9968 Part 1 (1988).Applications Steel Mills   EOT Cranes   Airport Lighting   Ships   Nuclear & Thermal Power Stations   Wind Power Mills   Electrical Machines   Textile Machines   Construction Equipments   Turbines

ERP Insulated & Armored Marine Cable K.M Cables and conductors are among major manufacturer and supplier of marine cables from India which covers the whole wiring requirements of commercial shipboards. Our EPR insulated armored cables are fire resistant and marine grade used both for offshore and onshore cable requirements in shipping industry. We supply wide range of shipping and marine cable requirement includes marine power cable, marine tinned battery cable, marine LAN cable, marine telecommunication cable, submarine cable and shipboard instrumentation cable.

Single core to 100 core Instrumentation Cable We have expertise in manufacturing high quality Screened Shielded Instrumentation cables. These cables are generally manufactured with conductor sizes 0.25/0.5/0.75/1.0/1.5/2.5/4.0 sq. mm, conforming to BS: 5308 - I & II, IEC-189, IS: 1554 - I: 88, VDE 0815. Core: From Single core/ single pair to 100core or 50 pair. Applications: Screen shielded instrumentation cables are used in data acquisition systems, computer networking, PA systems, digital control/measuring & communication systems. Specially designed to transmit signals without any external interferenceRange:Conductor: Solid / Stranded / Flexible copper (bare / tinned)Insulation: PVC – HR; PE, LSZHShielding: individual & overall or overall screen only by Al-mylar tape / copper tape / copper wire braidInner sheath: PVC – HR / FR / FRLS; PE, LSZHArmour (for armoured cables): Galvanized steel round wire / stripOuter sheath: PVC – HR / FR / FRLS; PE, LSZH

RS485/232 twisted Shielded Cable Our range of communication data cable includes RS485 and RS232 shielded cables in India. We are manufacturer and supplier of various data cables like serial communication interface cable RS232, RS485, RS485 USB cable and RS232 USB cable. Data communication cables RS232 & RS485 are used to prevent noise which tries to keep magnetic field away from signal lines. With twisted pairs RS485 helps to prevent noise in a better way.

PVC Electrical Conduit Pipe K.M Cables and Conductors offers wide range of PVC conduit pipes meeting electrification demands power projects, commercial establishments, households and industrial buildings. These are pipes are used to protect and route electric wires and cables from moisture and considered has a best insulator against electricity.

Teflon insulated Wires & cables PTFE Wires, cables are tape wrapped wires having uniform insulation thickness around the central conductor compared to the wires insulated by extrusion process. PTFE is higher grade insulating polymer compared to other fluorocarbons that are used in extrusion process. PTFE Wires, cables have much greater perfection.Product Range: Hook-up Wires   RR Co-Axial Cables   Tri-Axial Cables   Multi Core Twisted Cables   Twisted & Shielded Cables   Twisted Shielded & PTFE /PVC Jacketed Cables   Double Shielded Cables   Multi Pair Cables   Twin Parallel Balloon Wire   Sleeves   PTFE Tape   PTFE Hoses Operating Temperatures: PTFE Insulated Silver Plated Copper Wires - 650 to 2650   PTFE Insulated Nickel Plated Copper Wires - 650C to 2000C Running Voltage: TYPE ET: 250 VOLTS AC RMS   TYPE E: 600 VOLTS AC RMS   TYPE EE: 1000 VOLTS AC RMS General Charactersitics: Low Dielectric Constant   Low Dissipation Factor (

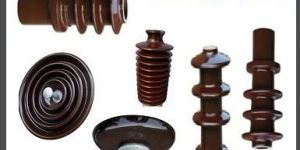

33/11/1.1 KV Pin, Stain, Post And Disc Type Porcelain Insulators KM CABLES & CONDUCTORS recently joined hands with RR industries and brought a new product into their esteemed product line. The collaboration bestowed with the marketing option of “33/11/1.1 KV pin, stain, post and disc type porcelain insulators”. Also includes 1.1 To 36 KV Transformer Bushings.These insulators are of extremely high quality and in a short period of time they have made a place for themselves in this competitive market. These insulators are far best from the rest available in the market.ApplicationsThese insulators are used in the power transmission process as safety devices. These help in smooth transmission and distribution of Electrical power.11 KV Pin InsulatorsPin Insulators (Nema Type)22 KV Pin Insulator33 KV Pin Insulator11 & 22 KV Post Insulator33 KV Post InsulatorDisc Insulators (B & S Type)11. KV Disc Insulator (T & C)11 KV X 3 = 33 KV Disc Insulator (B & S) Type/70 KN Solid Core Insulator for 11 KV33 KV Solid Core Insulator1.1 KV Transformer Bushings3.6 KV Transformer Bushings0.66-12 KV Transformer Bushings12-17.5 KV Transformer Bushings24 KV Transformer Bushings36 KV Transformer Bushings12-17.5 KV AIF Transformer Bushings24 KV AIF Transformer Bushings36 KV AIF Transformer BushingsCable Box Bushings (Indoor)Cable Box Bushings (Outdoor)C.T. BushingsLightning ArrestorPorcelain Low Tension Shackle InsulatorsLow Tension Insulators (Spool Type)Porcelain Low Tension Insulators Pin Type Porcelain Guy Strain Insulators

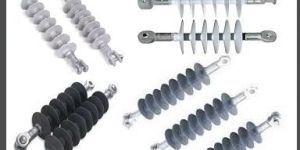

Disc Polymer Insulator We are one of the renowned high voltage polymer insulator manufacturer and supplier based out of India. Our insulators are used as safety devices for high voltage power transmission. They are designed to withstand power load and high temperature. To ensure quality insulators are tested upon series of parameters.  Applications – • Transformers • Overhead transmission lines • Switchgears Why K-Flex? Quick and convenient Localization Support Compatible with the latest Technology Quality Product Market Reach We make wires/cable for better tomorrow Experienced Team Product guarantee

LT PVC / XLPE Power Cables are available in different combinations with us, such as Aluminum, Copper Conductors, Round Solid conductor, stranded conductors, sector shaped conductors, taped inner sheath, extruded inner sheath, round steel and aluminum wire/flat galvanized steel strip armoured/ unarmoured, single/ double outer sheathed, etc. are available. We provide types of insulation that includes - PVC, HR PVC and XLPE. The inner & outer sheaths can be PVC, HR PVC, FRLS, HR-FRLS or FR depending upon the application and requirement of customers. Features K.M CABLES & CONDUCTORS manufactures different types with combinations of specifications as mentioned above as per IS 1554 Part I for cables upto 1100V and IS 1554 Part II for 3300V. LT PVC /XLPE Power Cables are used under ground as well as overhead transmission of power in –  Power plants   Industries   Various other projects   All electrical installations.

AAC/AAAC/ACSR Conductors KM CABLES & CONDUCTORS are manufactures of a wide range of conductors that includes AAC/ACSR Conductors, All Aluminum Alloy Conductors, Aluminum Conductor Aluminized Steel Reinforced (ACASR) Conductors, Aluminum Alloy Conductors Steel Reinforced (AACSR) Conductors, Other Special Conductors, as per Customer’s RequirementSpecial Features IS: 398 (Part 1) Certified   IS: 398 (Part 2) Certified   Approved by all Electricity Boards ApplicationsAAAC: Used as bare overhead conductor for primary and secondary distribution. Designed utilizing high strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.AAC/ACSR: Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing capacity.AACSR: Used as bare overhead transmission cable and as primary and secondary distribution cable. AACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing capacity.AAC: Stranded 1350 aluminum conductors shown in this section of data are classified, as follows:Class AA: For bare conductors usually used in overhead linesClass A: For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is requiredClass B: For conductors to be insulated with various materials and for conductors indicated under Class A where greater flexibility is requiredClass C: For conductors where greater flexibility is required

K.M CABLES & CONDUCTORS is manufacturing a new range of electrical wires known as PVC/FRLS/HR Insulated Single/Multi core cables, which provides additional safety and security. The wires bear the mark of IS: 694: 1990. Each wire is fabricated using 99.97% pure, electrolytic grade, bright-annealed bare copper with more than 100% conductivity. Copper guarantees higher percentage of electrical energy saving which eventually helps in reducing the electricity bills. The conductor is made of multiple strands of finely drawn copper wires thereby offering greater flexibility, which makes these wires ideal for conduit wiring. This FR PVC compound has a high oxygen and temperature index. The wires are wadded with a flame retardant (FR) PVC compound, which helps to control the spread of fire even at very high temperature. It also protects against electrical shock and short circuit. All wires are subjected to high voltage spark testing to ensure that no weak spots are there in the insulation.

Ladder & Perforated Cable Trays We are among leading manufacturers and suppliers of cable trays and ducts that are used in various projects across India. Ladder Type Cable tray – • Width range – 150mm to 1200mm • Height range – 50mm to 150mm • Galvanized/Redoxide/Enamel painted/Powder coated finish • Mild steel Perforated Cable tray – • Width range – 50mm to 900mm • Galvanized/Redoxide/Enamel painted/Powder coated finish • Mild steel Cable ducts – We supply varied range of cable ducts made of PVC as per project requirement

Heat Shrink Cable Jointing Kits We are considered as one among top manufacturer and supplier of heat and cold shrink cable jointing kits in India. We offer complete range of cable jointing and termination kits for PVC, XLPE and EPR cables which includes oversleeving, HT/LT jointing kits, resin cable joint kits and cable jointing accessories.

Condition : New

Type : Heat Shrink Cable Jointing Kits

Material : Heat Shrink Material

Packaging : Box

Application : Cable Jointing And Termination,Suitable For Various Cable Jointing Applications

Country of Origin : India

Size : Various Sizes Available

11kv Aerial Bunched Cables Aerial Bunched Cable (ABC) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It is being designed, manufactured & tested conforming to IS: 14255 & other international specifications. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost. This system is ideal for rural distribution and it is especially perfect for installation in difficult terrains such as hilly areas, forest areas, coastal areas etc. ABC is also considered to be ideal for power distribution in congested urban areas with narrow lanes and by-lanes. In developing urban complex, ABC is the first choice because of its flexibility for re-routing as demanded by changes in urban development plan.ApplicationsAerial Bunched Cables are suitable for the following functions mentioned as under: In theft prone areas   As replacement of bare lines in rural areas, in woods, other localities & narrow street where space is limited   As replacement of bare lines where reliability of supply is of prime importance   As replacement of bare lines where high degree of stability of supply voltage is of importance   In hilly terrains where cost of erection of overhead lines of under ground cable becomes very high   As reinforcement of existing system without increasing voltage   For temporary supplies AdvantagesAerial Bunched Cables Lines have very high reliability in maintaining services because power and neutral conductors are insulated with the best dielectric. The benefits of using this line are:  Less fault rage on account of good protection against line and ground fault by high winds or falling trees or bird especially in hilly areas & forests as encountered in rural distribution networks.   High insulation resistance to earth in all seasons and polluted atmospheres. Negligible leakage currents and low losses.   Multiple circuits of power and telephone cables could be strung in the same set of poles or any other supports like walls etc.   Better adaptability to “in concurrently with existing over-head bare conductor system without any interference.   High capacitance and low inductance leading to low impedance of lines.   Lower voltage drop, higher current carrying capacitates, vis-à-vis better voltage regulation.   Total lines costs are reduced.   Maintenance is very easy.   Very difficult to tap the ABC cables, thus reducing theft, which leads to lower distribution.

Conductor Type : Squirrel, Weasel

Application : Construction

Jacket : PVC
