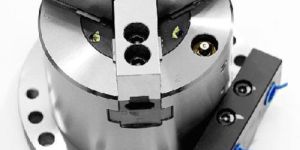

Static Chucks

Get Latest Price

Jaw Stroke Diameter (mm)5.2
Gripping Force (kN)7.5
Weight (kg)7.3
Max. Air Pressure (MPa)0.7
Matching Soft JawSB04B1
Gripping Diameter (mm)10 - 110
Air Consumption (N)0.22

...more
Static Chucks

Request for Price

Get Best Price
Shrink Fit Chuck

Get Latest Price

Toolholder InterfaceHSK-A-63
Runout Accuracy (µm)<3
Balancing GradeG2.5 at 25,000 RPM or Umax < 1 gmm
Chuck nose diameter (mm)12
Chuck base diameter (mm)17
Shaft Clamping (mm)6
Minimum Clamping length (mm)26
Shrink temperature (°C)100 - 420
Maximum Shrink temperature (°C)500

...more
Shrink Fit Chuck

Request for Price

Get Best Price

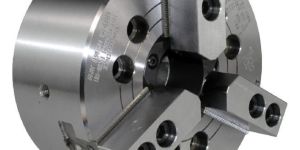

Power Chucks

50,000 - 100,000 / Piece

Number Of FlowerPower Chuck
Through-hole (mm)45
Gripping range (mm)169 max, 16 min
Jaw Stroke (diameter mm)5.5
Plunger Stroke (mm)12
Max. Draw Bar Pull Force22kN, 2243 kgf
Max. Gripping Force57 kN, 5812 kgf
Max Speed6000rpm
Weight (with soft jaws)11.9kg
Moment of inertia0.058 kg.m2
Matching cylinderS1246
Max pressure2.8 MPa, 28.6 cm2
Matching hard top jawHB06B1
Matching soft top jawSB06L1A
Product codeB-206

...more
Power Chucks

50,000 - 100,000 / Piece

Number Of Flower : Power Chuck

Get Best Price

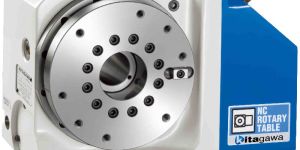

NC Rotary Table

400,000 - 600,000 / rs

Table diameter (mm)Ø200
Centre Height (mm)140 Register diameter on faceplate (mm): Ø65
Spindle Through Hole Diameter (mm)Ø45
Gear ratio1/72
Clamping methodPneumatic
Clamping Torque (N.m)820
Max Speed41.6 rpm
Weight (kg)65

...more
NC Rotary Table

400,000 - 600,000 / rs

Get Best Price

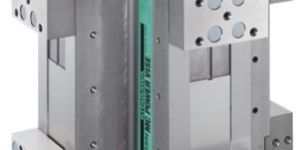

MC Power Vise

Get Latest Price

Packaging Size150
Body MaterialCast Iron
Jaw Stroke (mm)168
Total Height (mm)451.5
Full Width (mm)379
Max Clamping Force (kN)40
Jaw MaterialHardened Steel
Product codeMV-125

...more
MC Power Vise

Request for Price

Packaging Size : 150
Body Material : Cast Iron

Get Best Price
Hydro-expansion Chuck

Get Latest Price

Toolholder InterfaceHSK-A-40
Runout Accuracy< 0.005mm at 3 x D
Balancing GradeG2.5 at 25,000 RPM or Umax < 1 gmm
Chuck diameter (mm)HC6
Shaft Clamping (mm)6 hb
Maximum Speed (min-1)37,500
Minimum Clamping length (mm)27
Operating temperature (°C)20-50
Maximum Coolant Pressure (bar)80
Product codeHSK40A-HC6-70

...more
Hydro-expansion Chuck

Request for Price

Get Best Price

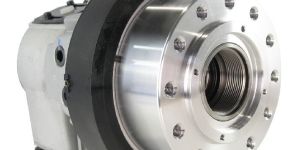

Hydraulic Cylinder

80,000 - 200,000 /

Country of OriginIndia
Number Of FlowerHydraulic Cylinder
Piston Diameter (mm)105
Piston Stroke (mm)15
Draw Bar Pull Side (kN)23.5
Draw Bar Push Side (kN)24.5
Max Operating Pressure (MPa)3.9
Max Speed8000rpm
Moment of Inertia (kg.m2)0.012
Net Weight (kg)9

Hi, Thank you for your inquiry. We need your requirements with details to submit offer.
Hydraulic Cylinder

80,000 - 200,000 /

Hi, Thank you for your inquiry. We need your requirements with details to submit offer.

Country of Origin : India
Number Of Flower : Hydraulic Cylinder
...more
Get Best Price

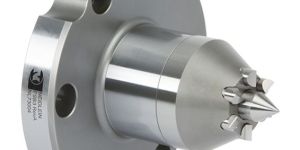

Face Drivers

Get Latest Price

Centre Range (mm):0 – 5
Clamping diameter Range (mm)8 – 17
Number of Drive Pins3
Drive Pin Diameter (mm)6
Centre Body Diameter (mm)Ø22

...more
Face Drivers

Request for Price

Get Best Price

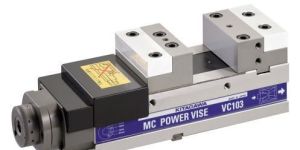

Compact Power Vise

Get Latest Price

Packaging Size16
Jaw Height (mm)40
Jaw Stroke (mm)128
Total Height (mm)105
Work Mounting Face Height (mm)65
Full Width (mm)109
Full Length (mm)355.5
Max Clamping Force (kN)20

...more
Compact Power Vise

Request for Price

Packaging Size : 16

Get Best Price
Collet Chuck

Get Latest Price

Gripping Range (mm)4 - 42
Sleeve Stroke (mm)7
Max Input Force (kN)25
Max Gripping Force (kN)55
Matching CylinderS1246
Product codeQD-CRL42

...more
Collet Chuck

Request for Price

Get Best Price
