Mangrish Sanjay Nagar, Bangalore, Karnataka

Material : HDPE

Thickness : 3-10mm

Packaging Type : Any

  DWC-HDPE pipes for underground drainage, sewerage etc. Double Walled Corrugated High Density Poly Ethylene (DWC-HDPE) of class SN4 and SN8 Pipes: Application: Non pressure pipes to be buried underground, used in Drainage and Sewerage, Cross Drainage, Pipe Culverts, Storm Water, etc. DWC-HDPE of class SN4 and SN8 Pipes are substitute to conventionally used products like RCC Hume pipes, PVC pipes, HDPE pipes etc. Technically approved: ISO-21138-3, Indian Road Congress, Recommended by Ministry of Urban Development, New Delhi, Manufactured as per IS-16098-2 , Various State Water Boards, etc. Manning's N value is low. C-value defined as co-efficient of flow is high. Abrasion is less. Cost effective: Average savings are from 25% to 300% depending upon the type and size of the pipe used. Savings on labor and time: Additional. Long life: 50years plus. Sizes available: From 110mm OD to 1200 mm OD. Products available in Stiffness Class SN4 and SN8. Jointing method: Through Snapfit Coupler. Other fittings like End Caps, Bends, Tees, Reducers, Ys Spacers, etc are also available. Regular users: Infrastructure Companies, Water Boards, Local Municipalities, Builders, Land Developers etc.

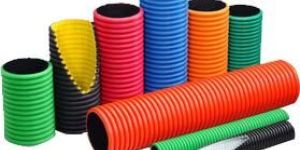

  DWC-HDPE pipes for underground cable protection Double Walled Corrugated High Density Poly Ethylene (DWC-HDPE) Pipes: Application: Providing mechanical protection to underground cables- namely Electrical, O.F.C. and signaling cables. DWC HDPE pipes are substitute to conventionally used products like RCC Hume pipes, Plain PVC pipes, Plain HDPE pipes, Brick and Sand etc. Technically approved: IS 14930 part 2, TSEC of BSNL etc. Cost effective: Average savings are from 25% to 300% depending upon the type and size of the pipe used. Savings on labor and time: Additional. Long life: 50 years plus. Sizes available: From 40mm OD to 315mm OD and in different colors. Jointing method: Through Snap fit Coupler. Also available on demand - End caps, Bends, Tees, etc. Additional features: Anti-Rodency, Non Flame Propagating Properties and Permanently Lubricated Silicone Inner Layer can be provided on request. Regular users : Indian Railways, Metro Railways, Telecom Companies, Airport Authority of India, CPWD, PWD'S, Local Area Development Authorities, Builders, Land Developers etc.

Corrugated Perforated with Filter (CPF) Pipes: Application:Sub Surface Drainage (SSD) - for doing away with water logging conveniently. Technically approved: IS9271 and DIN1187. Cost effective: And extremely convenient. Savings on labor and time: Additional. Sizes available: 65mm to 160mm along with filter. Jointing method: through Snapfit Coupler. Fittings available are End Caps, Bends, Tees, Reducers, Ys Spacers, etc. Regular users:Landscapers, Airport Authority of India, Oil Depots, Sports Field, Golf Clubs, Race Courses, Farm Lands etc.

    S-DWC-HDPE pipes for existing underground cable protection Split - Double Walled Corrugated High Density Poly Ethylene (S-DWC-HDPE) Pipes: Application: These are half pipes available for providing mechanical protection to undergroundCables especially for already laid and existing cables of higher diameter. Sizes available: From 90mm OD to 315mm OD.

Polyolefin Cable (PC) Channel:Application: Ideal for laying of underground signal , communication, power cables along railway routes, in power plants, industrial installations Podium, Landscape and large lay outs. PC Channel are substitute for RCC concrete trenches.Technically approved: Fire protection Class K 1 in accordance with DIN 53438 Part 2, Continuous thermal stability from -10oC to +70oC, 650KV/cm in accordance with DIN VDE 0303-21.Cost effective: Highly economical in comparison to RCC trenches.Savings on Labor and Time: Additional.Sizes available: 1)Length X Width X Height 1000mm X 100mm (internal) X 155mm (internal)2)Length X Width X Height 1000mm X 200mm (internal) X 230mm (internal)

Number Of Flower : Cable Channel

Material : Polyolefin

Certification : RDSO (Railway)

Length : length 1mt width external 340mm Internal 240m , height external 230mm internal 155mm

Application : for cables

Condition : New

Mounting : any

Height : 20-40 Mm

Country of Origin : India

Plain High Density Poly Etheylene (P-HDPE) Pipes: Application: For transportation of water and effluent disposal. Technically approved: Plain HDPE pipes confirms to IS: 4984:1995 and have been successfully used by various Water Boards and other leading organizations- Governmental and Private. Sizes available: Almost all Dias 20mm to 315mm, Material grade PE 63, PE 80 and PE100. Pressure (PN) 2.5 Kgs to 16 Kgs. Jointing method: We also undertake Laying and Jointing of our HDPE Pipes through Butt Welding Method and Electro- Fusion Method.

Application: Providing mechanical protection to underground cables- namely Electrical, O.F.C. and signaling cables. DWC HDPE pipes are substitute to conventionally used products like RCC Hume pipes, Plain PVC pipes, Plain HDPE pipes, Brick and Sand etc.

Application: Providing mechanical protection to underground cables- namely Electrical, O.F.C. and signaling cables. DWC HDPE pipes are substitute to conventionally used products like RCC Hume pipes, Plain PVC pipes, Plain HDPE pipes, Brick and Sand etc. Additional features: Anti-Rodency, Non Flame Propagating Properties and Permanently Lubricated Silicone Inner Layer can be provided on request. Sizes available: From 40mm OD to 315mm OD and in different colors.

Corrugated High Density Poly Ethylene Sheathing (CHS) Ducts: Application:In the field of internal bonded post tensioning of tendons in pre-stressed concrete in Projects like Flyover Bridges, Offshore Platforms, via ducts, Underpasses, Tunnels, Nuclear containments etc. CHS Ducts are substitute to conventionally used metallic sheathing ducts. Technically approved: IRC18:2000, Fib Bulletin 7, NPCIL Spec. No. PP/M/1721 etc. Cost effective and non-corrosive. Savings on labor and time : AdditionalLong life. Sizes available: 63 mm OD to 175mm OD
